Introduction

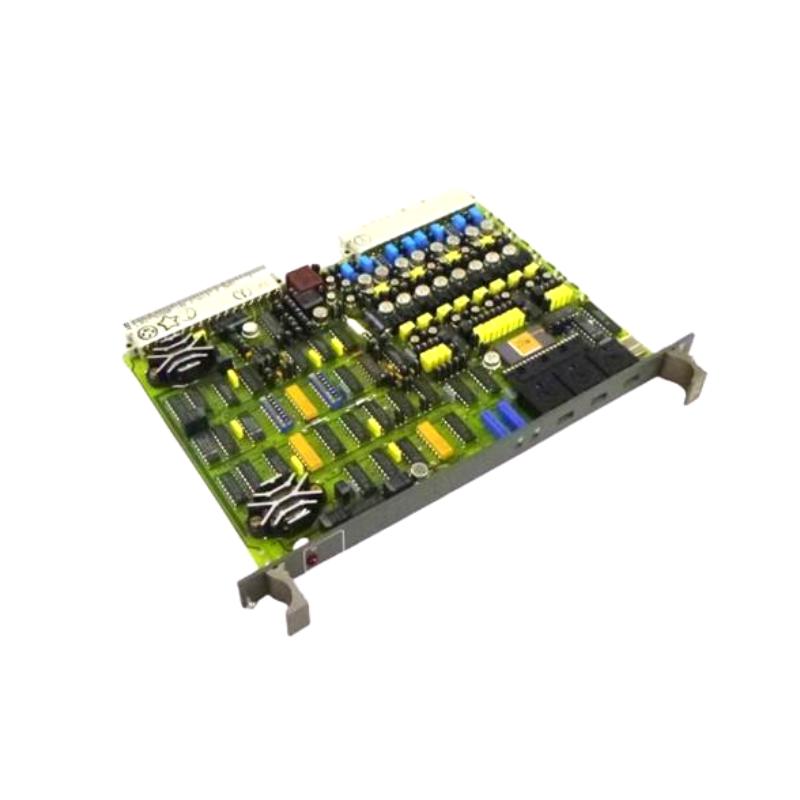

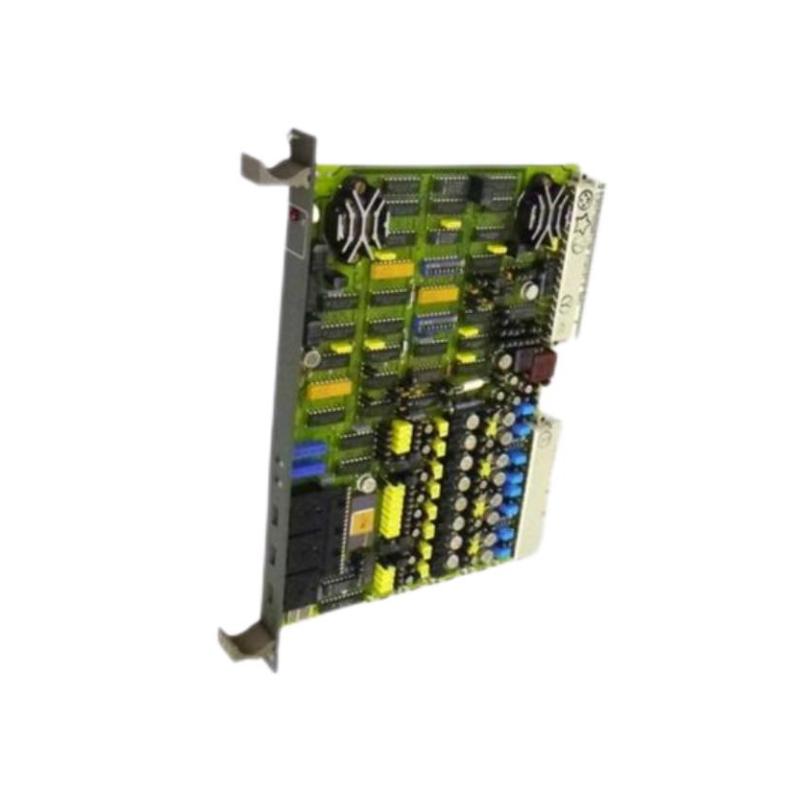

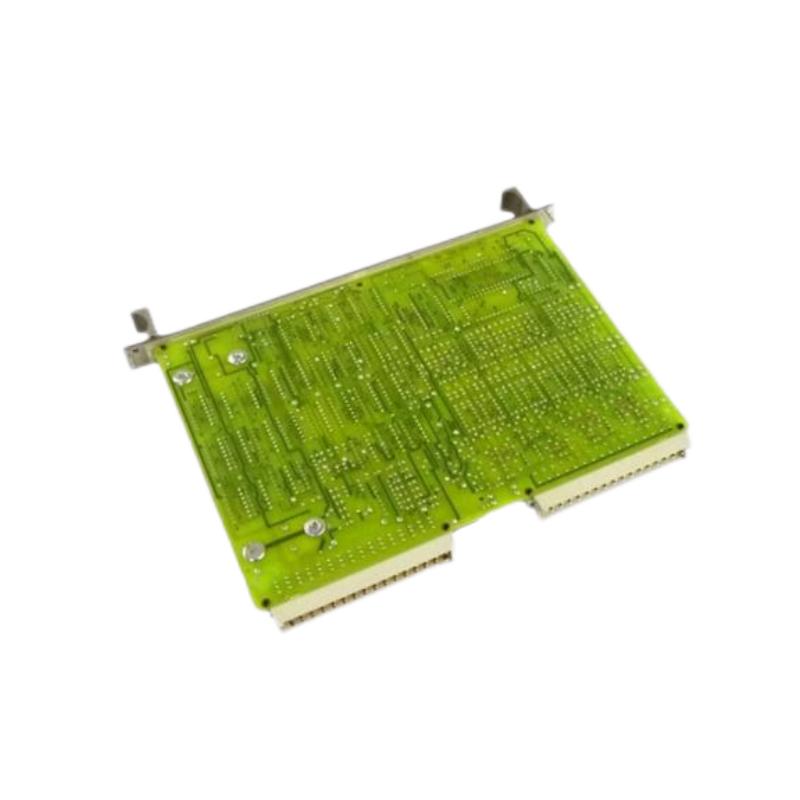

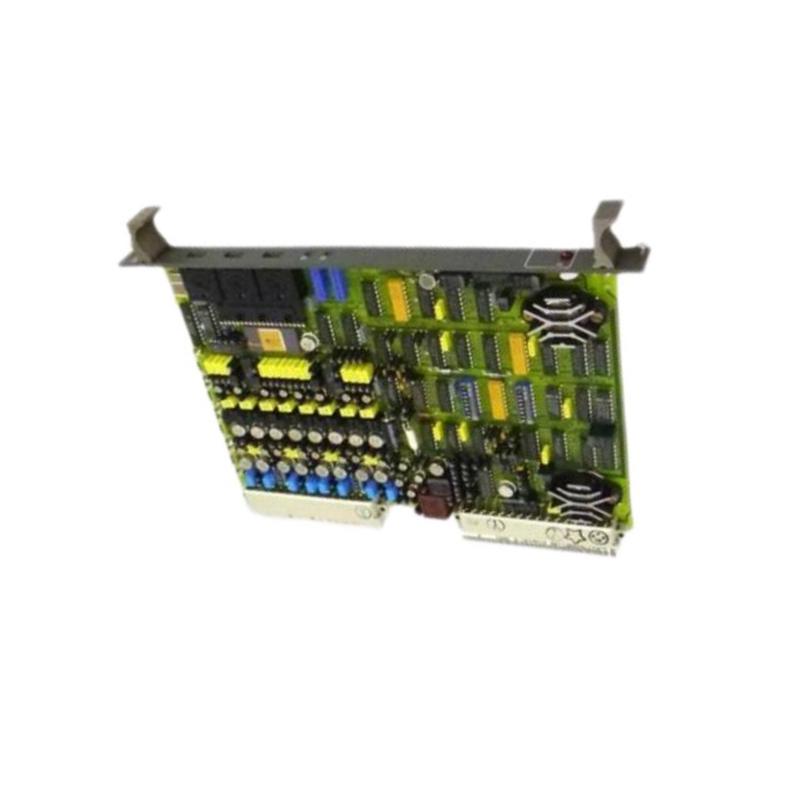

The ABB 81AA10E Analog Output Module Control Board is engineered for demanding industrial automation environments where stable, accurate, and noise-immune analog signaling is essential. Designed as part of ABB’s advanced control platform, this module provides reliable analog outputs to drive actuators, valve positioners, indicators, and other precision instruments.
Its robust hardware architecture ensures long-term signal stability, making it a trusted choice for continuous process industries such as power generation, oil & gas, refining, chemical production, and water treatment. Built for durability and predictable control behavior, the 81AA10E is often selected when system reliability is non-negotiable.
Technical Specifications — Detailed Module Profile
| Specification | Description |
|---|---|
| Module Type | Analog Output Module / Control Board |
| Model / Part Number | 81AA10E / GJR2370200R1100 |
| Number of Output Channels | 4 precision analog output channels |
| Signal Output Range | 0–10 V or 0–20 mA / 4–20 mA (depending on system configuration) |
| Output Isolation | Galvanic isolation between channels and system bus |
| Drive Capability | Rated to support typical industrial actuator and control loads |
| Accuracy | High-accuracy output with consistent linearity across full range |
| Power Supply | Provided via ABB control bus/backplane |
| Operating Temperature | –20°C to +60°C |
| Dimensions | 160 mm × 30 mm × 130 mm |
| Weight | ~0.32 kg |
| Installation Method | Rack-mounted control board (ABB modular chassis) |
| Typical Response Time | Fast analog update suitable for process loop control |
| Electrical Protection | Output short-circuit protection and surge immunity |
| Design Purpose | Precision analog control within ABB DCS platforms |
