Product Overview

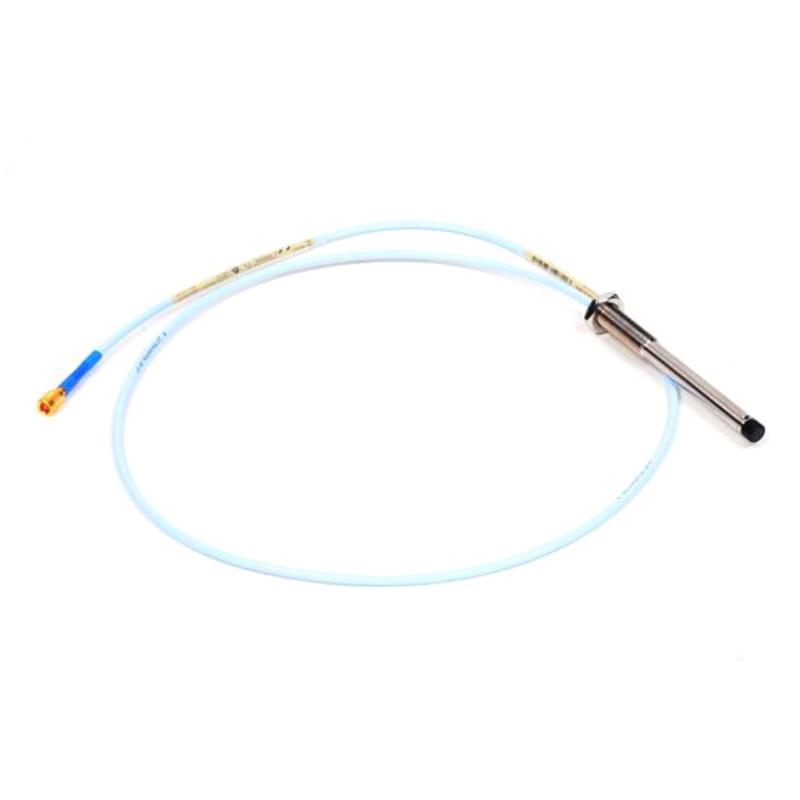

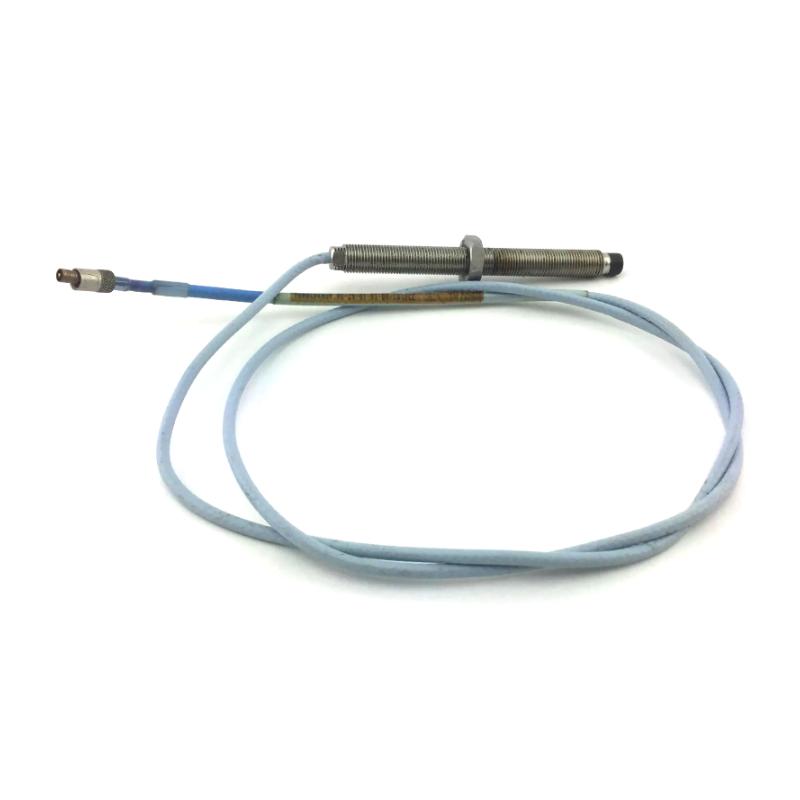

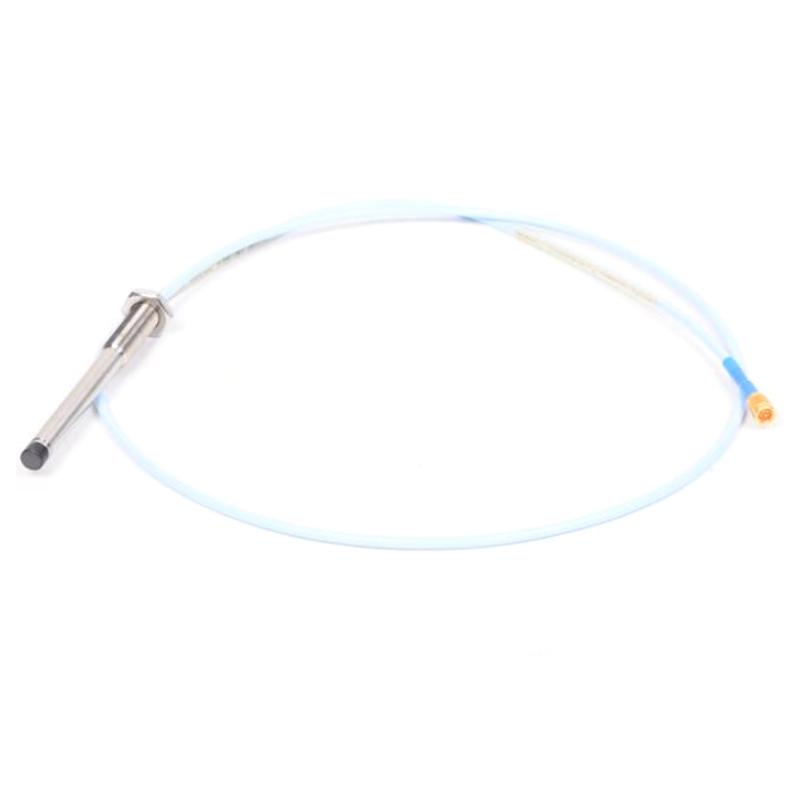

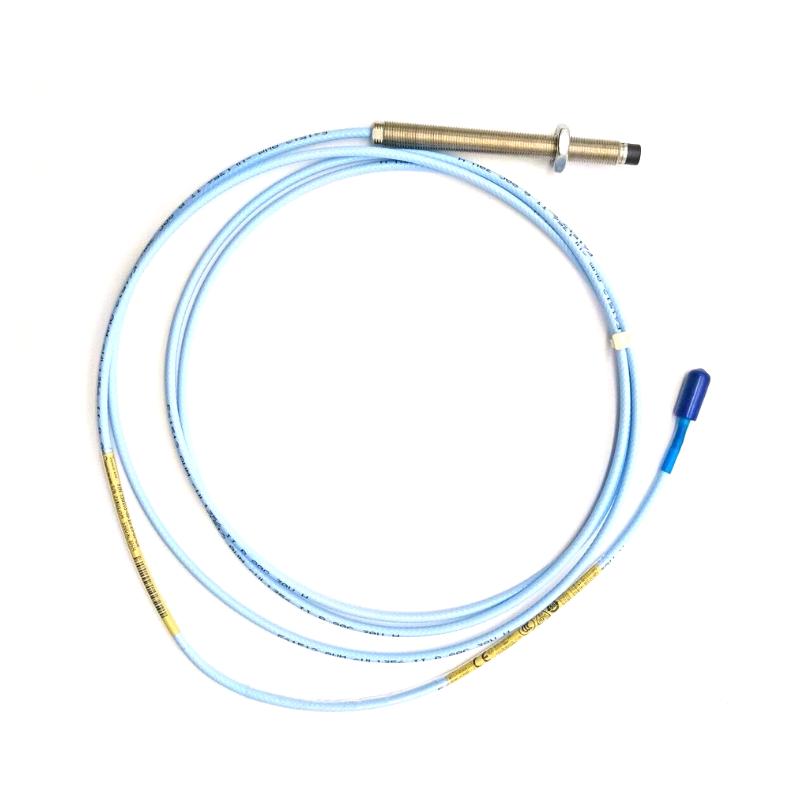

The Bently Nevada 330101‑00‑14‑10‑02‑05 3300 XL 8 mm Proximity Probe is a precision, non‑contact eddy‑current sensor engineered to measure shaft vibration, displacement, and position in industrial rotating machinery. As part of the trusted 3300 XL Proximity Transducer System, this probe delivers consistent, accurate measurements that are essential for condition monitoring and machinery protection strategies.
With its 8 mm sensing tip and durable stainless‑steel construction, the 330101‑00‑14‑10‑02‑05 is designed for long‑term reliability in demanding environments such as power plants, refineries, and heavy manufacturing facilities. Its robust performance makes it a core component in systems that monitor turbine balance, compressor vibration, and other critical rotating equipment parameters.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model | 330101‑00‑14‑10‑02‑05 |
| Product Type | Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Sensing Technology | Eddy‑current proximity sensing |
| Probe Diameter | 8 mm |
| Thread Size | 3/8‑24 UNF |
| Connector | Standard miniature coaxial |
| Cable Type | FEP insulated coaxial |
| Linear Measurement Range | Approx. 2 mm |
| Frequency Response | 0 Hz – 10 kHz |
| Operating Temperature | −51 °C to +177 °C |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Body Material | Stainless Steel |
| System Compatibility | Bently Nevada 3300 XL Proximitor sensors |
Industrial Applications
The 330101‑00‑14‑10‑02‑05 proximity probe is widely used in condition monitoring and machinery protection systems where precise, real‑time measurements are essential.
Typical use cases include:
-
Turbine vibration and displacement monitoring
-
Generator shaft position sensing
-
Compressor shaft vibration and motion analysis
-
Pump vibration diagnostics
-
Predictive maintenance systems
-
Heavy industrial rotating machinery monitoring
Accurate and early detection of vibration anomalies allows operators to plan maintenance proactively and avoid costly unplanned downtime.
Key Advantages
Highly Accurate Non‑Contact Measurement
Eddy‑current sensing ensures precise detection of shaft movement without physical contact, reducing wear and enhancing measurement reliability.
Robust Industrial Construction
Stainless‑steel housing and high‑temperature insulation provide durable performance even under harsh plant conditions.
Reliable System Integration
Engineered for direct compatibility with Bently Nevada 3300 XL Proximitor sensors and extension cables for seamless system configuration.
Stable Signal Output
Superior linearity and low noise support dependable data for condition monitoring and protection logic.
Installation Flexibility
The extended cable length allows greater freedom in probe placement relative to machinery and monitoring equipment.
Technical FAQs
1. What does this proximity probe measure?
It measures vibration, displacement, and shaft position in rotating machinery without physical contact.
2. What sensing technology is used?
Eddy‑current proximity sensing technology is used to ensure accurate and stable measurements.
3. What is the diameter of the sensing tip?
The probe’s sensing tip has an 8 mm diameter.
4. What is the typical measurement range?
Approximately a 2 mm linear range, depending on calibration and system setup.
5. Which systems is it compatible with?
It is designed for use with Bently Nevada 3300 XL Proximitor sensors and condition monitoring systems.
6. What type of environments can it operate in?
It is built to handle industrial environments with vibration, temperature fluctuations, and moisture.
7. What is the operating temperature range?
The probe operates reliably between −51 °C and +177 °C.
8. Does the cable length affect performance?
No, the integrated 2.0 m cable maintains high‑quality signal transmission.
9. Can this probe be used for continuous monitoring?
Yes, it is built for 24/7 operation in condition monitoring applications.
10. Is special calibration required?
Calibration is typically conducted during initial system commissioning with Proximitor sensor and cables.
