Product Overview

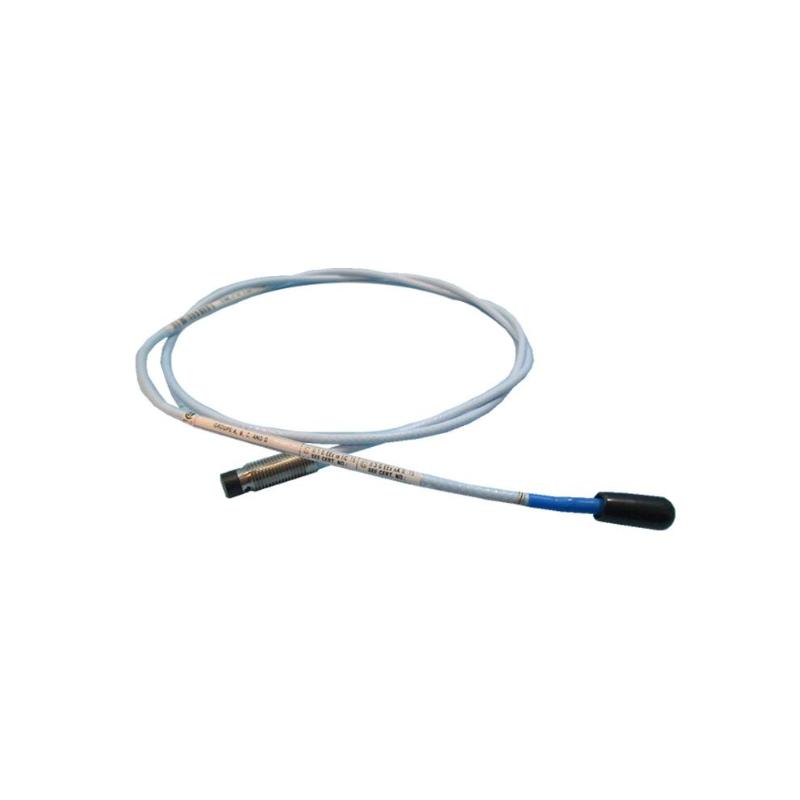

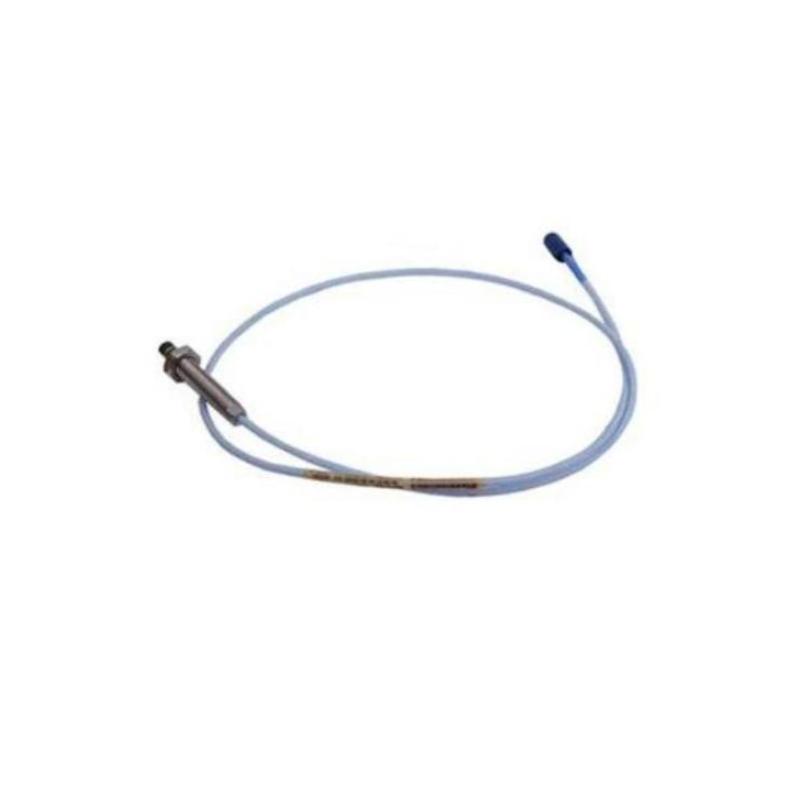

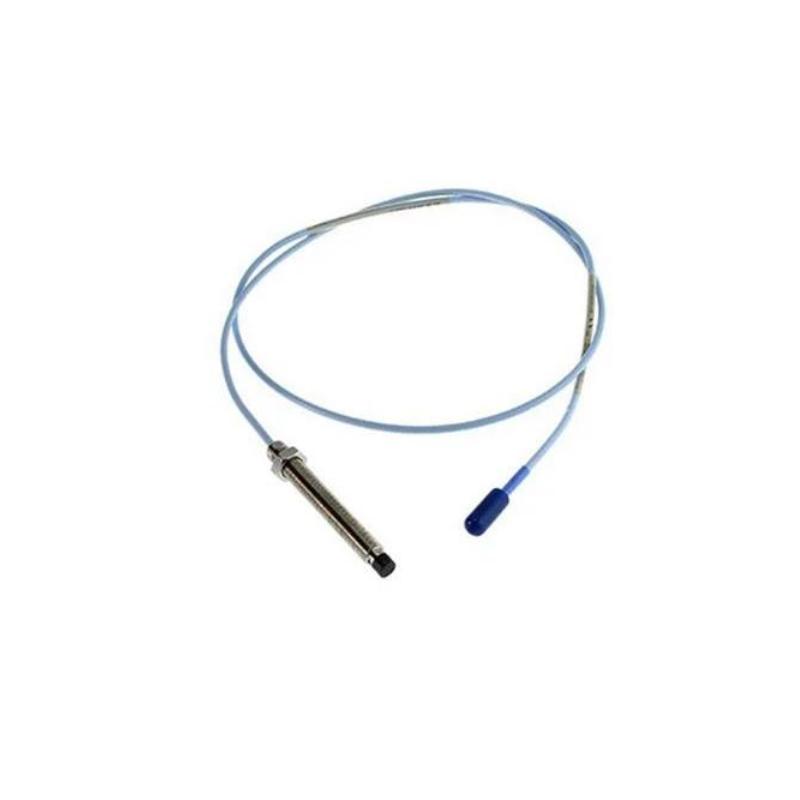

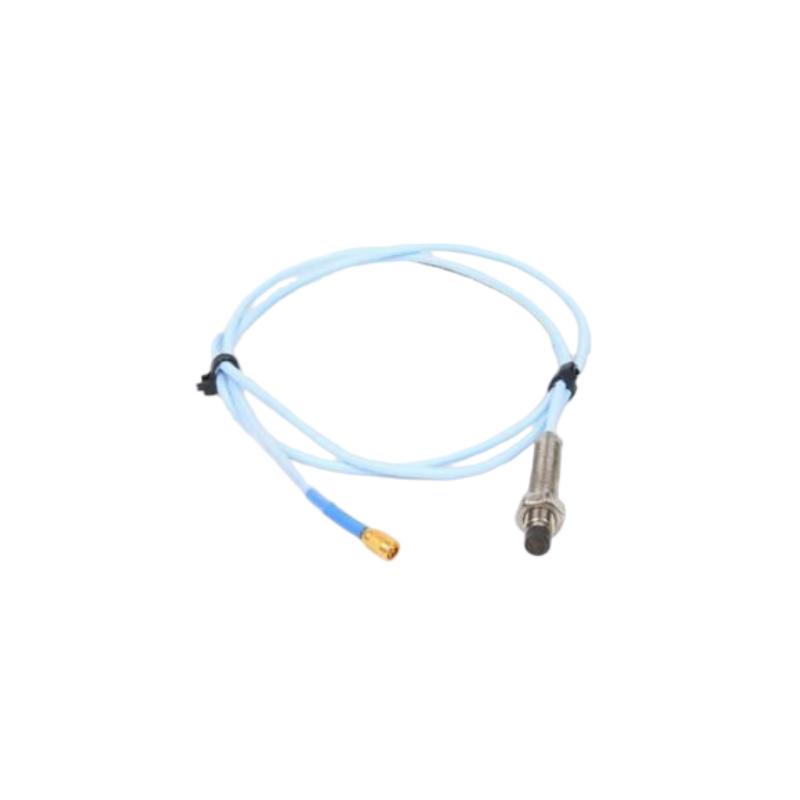

The Bently Nevada 330101‑00‑10‑10‑02‑00 3300 XL 8 mm Proximity Probe is a high‑precision non‑contact sensor designed to measure shaft vibration, position, and dynamic displacement in industrial rotating machinery. As part of the renowned 3300 XL Proximity Transducer System, this probe delivers dependable and accurate measurements critical for machinery protection and condition monitoring.
Engineered for heavy‑duty industrial performance, the 8 mm proximity probe features robust construction and advanced eddy‑current sensing technology. It is ideally suited for demanding environments found in power generation plants, oil & gas facilities, and large manufacturing installations where continuous vibration monitoring is essential to avoid costly unplanned outages.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model | 330101‑00‑10‑10‑02‑00 |
| Product Type | Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Probe Diameter | 8 mm |
| Sensor Technology | Eddy‑current proximity sensing |
| Thread Size | 3/8‑24 UNF |
| Connector Type | Standard miniature coaxial |
| Cable Insulation | FEP (fluoroethylene propylene) |
| Linear Measurement Range | ~2 mm |
| Frequency Response | 0 Hz – 10 kHz |
| Operating Temperature | −51 °C to +177 °C |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Body Material | Stainless steel |
| System Compatibility | Bently Nevada 3300 XL Proximitor sensors |
Applications
The 330101‑00‑10‑10‑02‑00 proximity probe is widely used in condition monitoring and protection systems where precise non‑contact sensing is required to detect subtle changes in machinery behavior.
Typical applications include:
-
Turbine vibration monitoring in power generation
-
Compressor shaft displacement measurement
-
Generator rotor position sensing
-
Pump vibration diagnostics
-
Heavy industrial machinery monitoring
-
Predictive maintenance programs
Its role in continuous monitoring systems enables early detection of faults such as imbalance, misalignment, or bearing wear before they escalate into costly failures.
Advantages
High‑Accuracy Non‑Contact Measurement
Eddy‑current technology ensures reliable detection of shaft movement without physical contact, reducing wear and measurement error.
Industrial‑Grade Construction
Durable stainless‑steel housing and robust cable insulation are designed for harsh plant environments with vibration, heat, and moisture.
Seamless System Integration
Optimized for Bently Nevada 3300 XL proximity transducer systems, ensuring consistent signal performance and compatibility with monitoring modules.
Stable Signal Output
Low noise and high linearity enable better data quality for condition monitoring analysis.
Flexible Installation
Compact dimensions and standard coaxial connectors make installation straightforward even in tight spaces.
Technical FAQs
1. What does the 330101‑00‑10‑10‑02‑00 proximity probe measure?
It measures shaft vibration, position, and displacement in rotating machinery.
2. What sensing technology is used?
Eddy‑current proximity sensing technology for non‑contact measurement.
3. What is the probe diameter?
The sensing tip diameter is 8 mm.
4. Which systems is it compatible with?
It is designed for use with Bently Nevada 3300 XL Proximitor sensors and extension cables.
5. What is the typical measurement range?
Approximately 2 mm linear range, depending on system calibration.
6. What environments can this probe operate in?
Industrial environments with vibration, temperature variation, and moisture.
7. Does it require calibration?
Calibration is typically performed during installation to match the Proximitor sensor and cabling configuration.
8. What industries commonly use this probe?
Power generation, petrochemical, oil & gas, and heavy industrial sectors.
9. What is the cable type?
It uses FEP‑insulated coaxial cable for stable signal integrity.
10. Can it be installed in confined machinery housings?
Yes, the compact size allows flexible mounting in limited spaces.
