Product Introduction

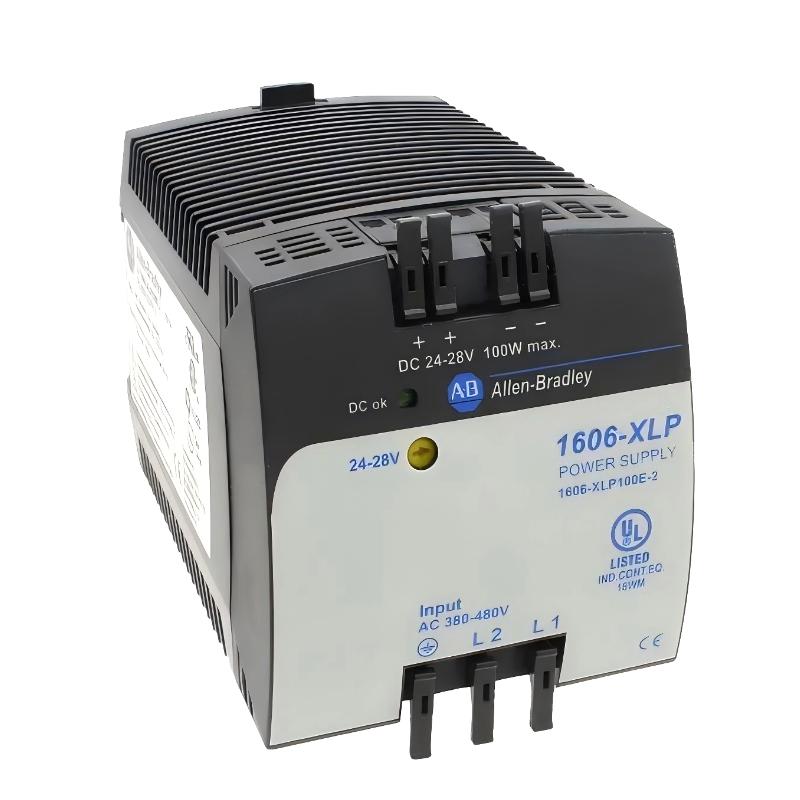

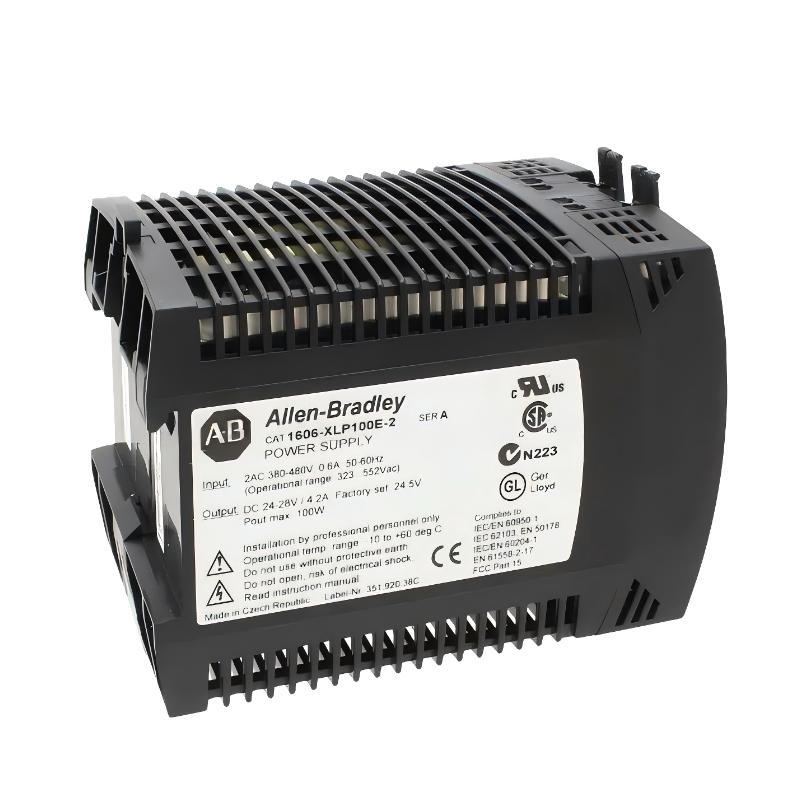

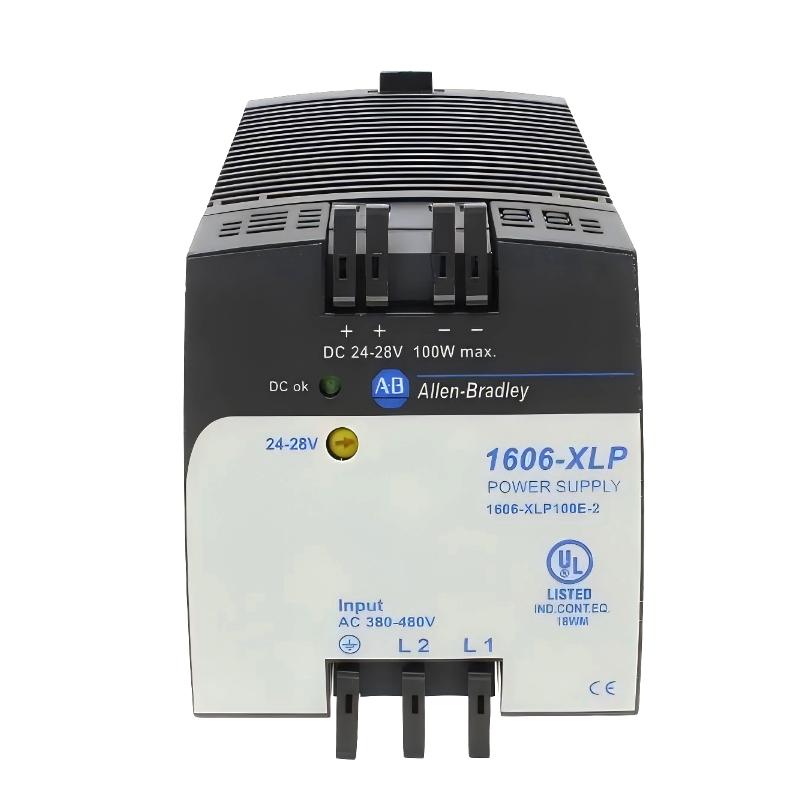

The Allen Bradley 1606-XLP100E Power Supply Module is part of the Bulletin 1606 industrial power supply family designed for use in industrial automation and control systems. These modules play a critical role in providing reliable power conversion within control cabinets and distributed automation architectures.
In typical control systems, AC power from the facility electrical network must be converted into low-voltage DC power suitable for automation electronics. The 1606-XLP100E performs this function using switched-mode power conversion technology, delivering stable DC output to control components throughout the system.
Due to its compact footprint, reliable power regulation, and compatibility with standard DIN-rail control panel installations, the module is commonly deployed in manufacturing plants, process industries, and machine automation systems where dependable power infrastructure is essential.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Allen Bradley |
| Model | 1606-XLP100E |
| Module Type | Power Supply Module |
| Application | Industrial automation and control systems |
| Installation | DIN rail mounting in control cabinets |
| Input Power | AC power input |
| Output Type | Regulated DC output |
| Dimensions | 73 mm × 75 mm × 103 mm |
| Weight | 0.36 kg (0.79 lb) |
Typical Deployment Environments
The Allen Bradley 1606-XLP100E Power Supply Module is designed to deliver stable DC power to industrial automation equipment installed in control cabinets and distributed control environments. As a switched-mode power supply, it converts AC input voltage into regulated 24 VDC output, ensuring reliable energy delivery for controllers, I/O modules, communication interfaces, and field instrumentation.
In modern automation infrastructure, dependable power conversion is essential for maintaining uninterrupted system performance. The 1606-XLP100E is widely used in compact industrial panels where efficiency, space optimization, and long-term reliability are required.
Common deployment scenarios include:
-
Manufacturing automation systems, supplying PLC processors, remote I/O modules, and sensor networks.
-
Packaging and processing machinery, where control electronics require stable low-voltage DC power.
-
Material handling and conveyor systems, powering motor controllers, monitoring devices, and control interfaces.
-
Water and wastewater treatment facilities, where instrumentation and control modules operate continuously.
-
OEM automation equipment, where compact and efficient power supplies are integrated into machine control cabinets.
Through reliable voltage regulation and efficient power conversion, the module supports stable operation across a wide range of industrial automation platforms.
Engineering Benefits
Compact Panel Integration
The narrow housing allows efficient installation in space-constrained control cabinets and industrial panels.
Stable 24 VDC Output Regulation
The module provides consistent DC voltage required by PLC systems, sensors, and industrial communication devices.
High Conversion Efficiency
Efficient switched-mode design minimizes energy losses and reduces heat generation within control cabinets.
Reliable Industrial Performance
Engineered for continuous operation in automation environments, the module supports long-term system reliability.
Flexible System Power Architecture
Multiple power supply units can be deployed within the same cabinet to distribute electrical loads across automation components.
Technical FAQs
1. What is the main function of the 1606-XLP100E module?
It converts AC input power into regulated 24 VDC output used by industrial control and automation devices.
2. What types of automation equipment typically use this power supply?
PLCs, remote I/O modules, sensors, industrial communication gateways, and human-machine interfaces.
3. How does the module contribute to control system stability?
By delivering consistent DC voltage that ensures reliable operation of electronic automation components.
4. Can this power supply operate continuously in industrial environments?
Yes. It is designed for continuous operation in industrial control cabinets.
5. Does the module support installation in compact control panels?
Yes. Its compact design allows installation in space-limited automation cabinets.
6. Can multiple power supplies be used in the same system?
Yes. Industrial control systems often distribute electrical loads across several power supply modules.
7. What role does the module play in automation infrastructure?
It acts as the primary DC power source for controllers, communication devices, and I/O modules.
8. Can it support sensitive electronic equipment?
Yes. The regulated output helps protect sensitive automation electronics from unstable voltage conditions.
9. Is the module suitable for OEM machine control panels?
Yes. Its compact size and reliable performance make it suitable for machine-level automation systems.
10. How does the module integrate with PLC-based control architectures?
It supplies the stable DC voltage required by PLC processors and associated automation hardware.
