Product Overview

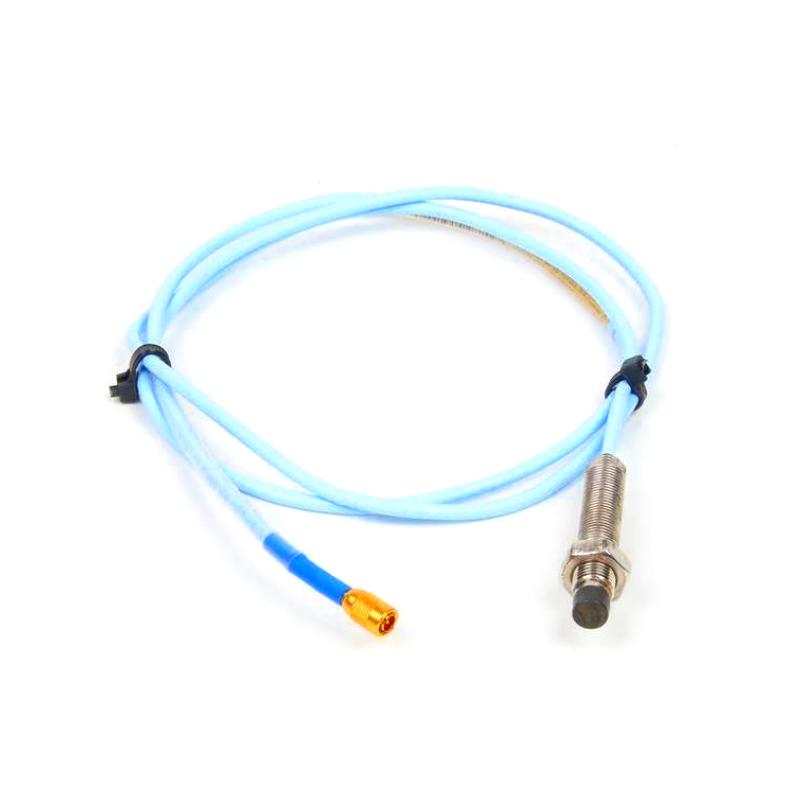

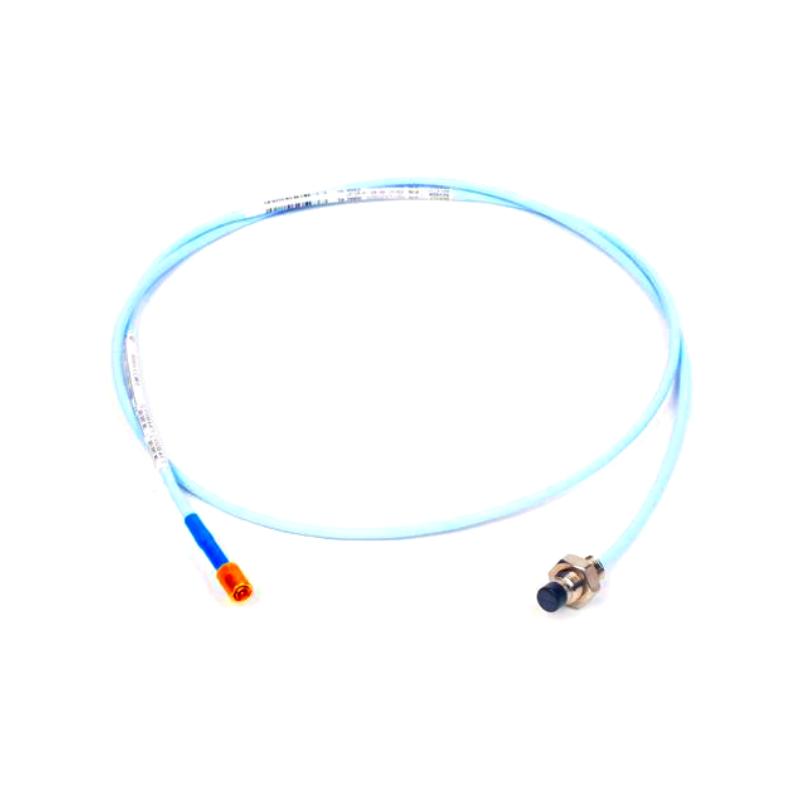

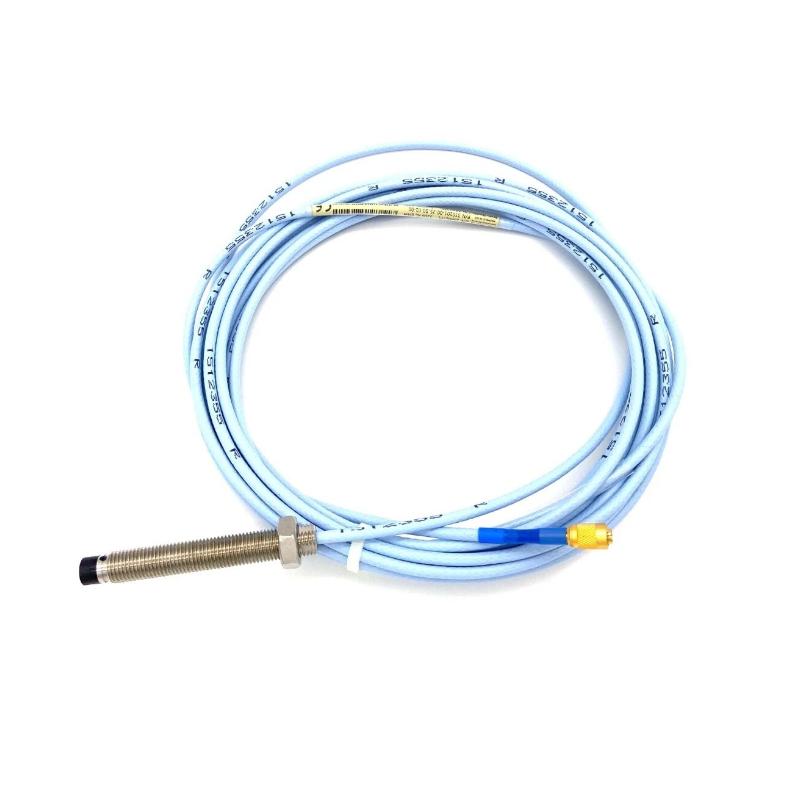

The Bently Nevada 330101-00-08-20-02-CN 3300 XL 8 mm Proximity Probe is a precision non-contact vibration and displacement sensor designed for industrial rotating machinery monitoring. As a member of the advanced 3300 XL proximity transducer system, this probe delivers stable, high-accuracy measurements for shaft vibration, position, and dynamic displacement.
Engineered with an 8 mm sensing tip and robust stainless-steel housing, the probe uses eddy-current sensing technology to detect small changes in the distance between the probe tip and conductive targets. This capability allows maintenance teams to continuously monitor turbines, compressors, generators, and pumps, enabling early detection of mechanical issues and improved machinery protection strategies.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 330101-00-08-20-02-CN |
| Module Type | Proximity Probe |
| Series | 3300 XL Proximity Transducer System |
| Probe Tip Diameter | 8 mm |
| Sensing Technology | Eddy-current |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Standard coaxial probe cable |
| Linear Measurement Range | Approx. 2.0 mm |
| Scale Factor | 7.87 V/mm ±5% |
| Frequency Response | 0 Hz – 10 kHz |
| Operating Temperature | −51 °C to +177 °C |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 stainless steel |
| System Compatibility | Bently Nevada 3300 XL Proximitor sensors |
Applications
The 3300 XL proximity probe is widely deployed in industrial condition monitoring systems where accurate shaft motion measurement is required.
Typical application environments include:
-
Gas and steam turbine vibration monitoring
-
Compressor shaft displacement measurement
-
Generator rotor position monitoring
-
Pump vibration diagnostics
-
Oil & gas rotating equipment monitoring
-
Predictive maintenance programs in heavy industry
These systems help operators detect imbalance, misalignment, or bearing wear before equipment failures occur.
Key Advantages
High-Precision Eddy-Current Measurement
Non-contact sensing technology delivers highly accurate shaft displacement and vibration measurements.
Industrial-Grade Durability
Stainless-steel construction and PPS probe tip provide resistance to heat, vibration, and harsh industrial environments.
Seamless Integration with 3300 XL Systems
Designed for direct compatibility with 3300 XL Proximitor sensors and extension cables.
Stable Signal Output
Maintains reliable measurement signals for machinery protection and condition monitoring.
Flexible Installation Options
Compact design and standard connector configuration allow installation in tight machinery housings.
Technical FAQs
1. What does the 330101-00-08-20-02-CN probe measure?
It measures shaft vibration, displacement, and position in rotating machinery.
2. What sensing technology is used in this probe?
It uses eddy-current sensing technology for non-contact distance measurement.
3. What is the probe diameter?
The sensing tip diameter is 8 mm.
4. What is the measurement range?
The typical linear measurement range is approximately 2 mm.
5. What monitoring systems is it compatible with?
It works with Bently Nevada 3300 XL Proximitor sensors and monitoring systems.
6. What industries typically use this probe?
Power generation, petrochemical processing, oil & gas, and heavy manufacturing.
7. What is the operating temperature range?
The probe can operate between −51 °C and +177 °C.
8. Does the probe require calibration?
Calibration is typically performed during system installation with the Proximitor sensor and extension cable.
9. Can the probe operate in harsh industrial environments?
Yes, it is designed for environments with high vibration, temperature changes, and contamination.
10. What does the “CN” suffix indicate?
It refers to country-specific regulatory approvals or certification requirements.
