Product Overview

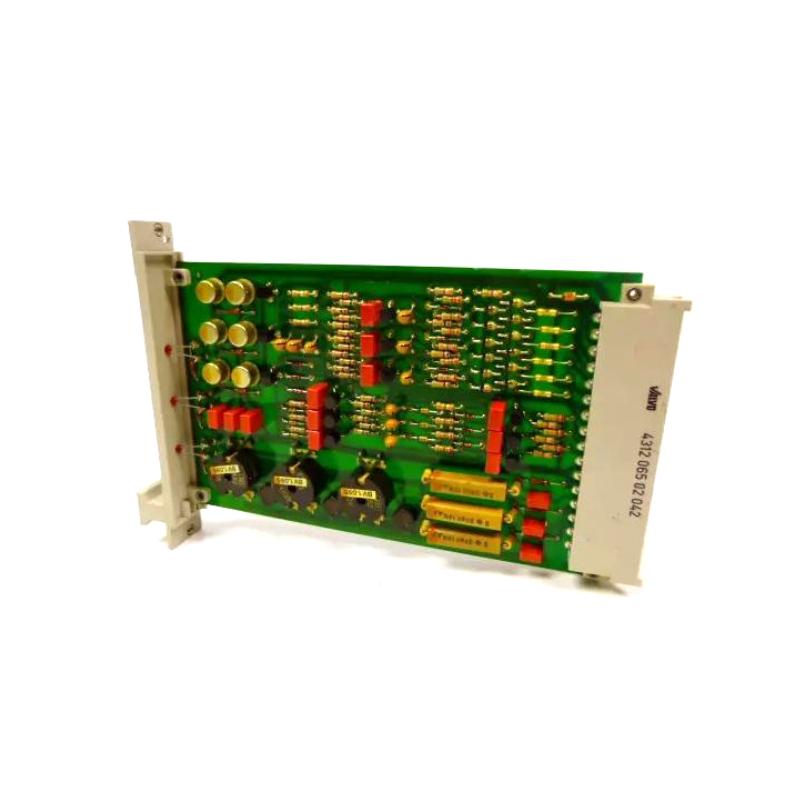

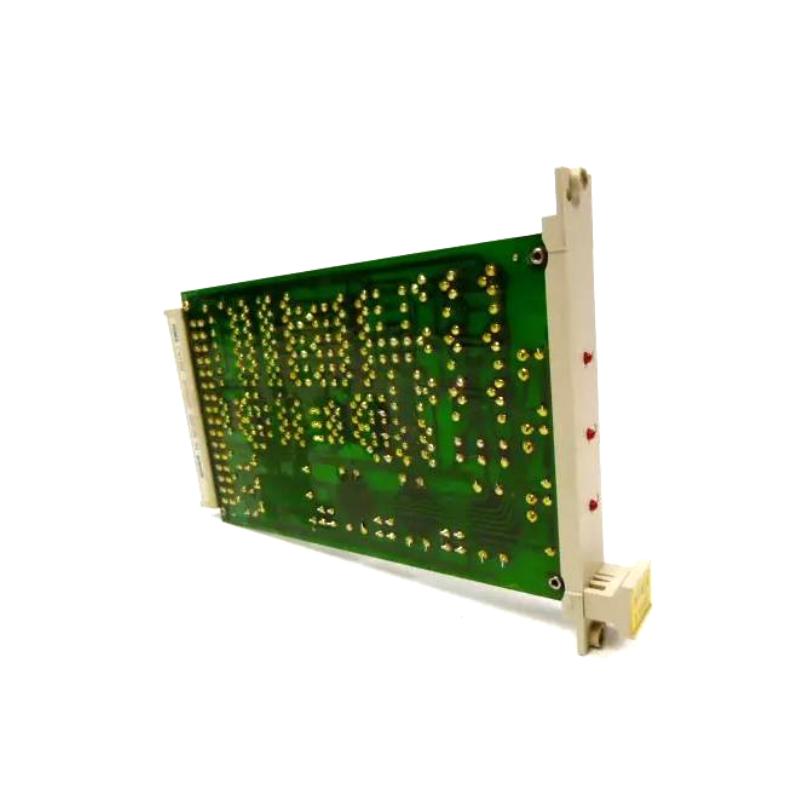

The HIMA F 4109 Security-Related Four-Channel AND Gate Module is a hardware logic component used in HIMA Planar F safety systems. It performs logical AND operations across multiple safety input signals, enabling the implementation of reliable safety interlock conditions.
In many industrial processes, protective actions or equipment startup conditions depend on the simultaneous verification of several safety parameters. The F 4109 module provides the logic capability required to evaluate these signals and determine whether the necessary conditions are satisfied.
By combining signals from different sensors or control circuits, the module ensures that safety decisions are based on comprehensive process information. Its hardware-based logic implementation enhances reliability and helps maintain stable operation in safety instrumented systems used across industries such as energy production, chemical processing, and heavy manufacturing.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | HIMA |
| Model | F 4109 |
| Module Type | Security-Related Four-Channel AND Gate Module |
| System Platform | HIMA Planar F System |
| Logic Channels | 4 |
| Function | Multi-channel logical AND signal processing |
| Application | Safety instrumented systems (SIS) |
| Installation | Safety control rack / cabinet |
| Dimensions | 120 mm × 100 mm × 75 mm |
| Weight | 0.2 kg (0.44 lb) |
Typical Industrial Logic Applications
The HIMA F 4109 Security-Related Four-Channel AND Gate Module is a logic interface component designed for the HIMA Planar F safety system. It performs logical AND operations across multiple input channels, ensuring that a safety output signal is generated only when all required input conditions are simultaneously satisfied.
In industrial safety architectures, logical gate modules like the F 4109 are used to combine multiple safety signals into a single decision output. This capability is particularly important in systems where several safety conditions must be verified before allowing equipment operation or triggering protective actions.
Typical application areas include:
-
Emergency shutdown systems (ESD) in oil and gas facilities where multiple sensors must confirm safe conditions before process restart.
-
Turbine protection systems in power plants where interlock logic ensures that several operational parameters are within safe limits.
-
Chemical process safety systems where multiple sensors must validate safe operating conditions before valves or pumps are activated.
-
Industrial machinery protection systems where several safety inputs must be confirmed before machine operation is permitted.
-
Pipeline monitoring systems where pressure, flow, and valve position signals must all meet specific criteria before system operation continues.
Through its multi-channel AND logic functionality, the F 4109 module helps ensure that critical safety decisions rely on validated signals from multiple sources.
Key Functional Advantages
Four Independent Logic Channels
The module provides four AND logic channels, allowing multiple safety signal combinations within a single device.
Reliable Logical Decision Processing
AND logic ensures that outputs are activated only when all required input signals are present.
Integration with Planar F Systems
Designed specifically for HIMA Planar F architectures, allowing straightforward installation and system integration.
Improved Safety Logic Structuring
Hardware logic modules simplify the implementation of safety interlocks and condition verification.
Industrial Reliability
Built for continuous operation within safety control cabinets in demanding industrial environments.
Technical FAQs
1. What is the main function of the F 4109 module?
It performs AND logic operations across multiple input channels within safety control circuits.
2. Why are AND gate modules used in safety systems?
They ensure that several safety conditions must be satisfied simultaneously before an output signal is generated.
3. How many logic channels does the module provide?
The module includes four independent AND logic channels.
4. Which system platform supports this module?
It is designed for the HIMA Planar F safety control system.
5. What types of signals can be processed by the module?
Safety-related digital signals from sensors, controllers, or interlock circuits.
6. Can the module be used in emergency shutdown systems?
Yes. It is commonly used to combine multiple safety signals before triggering shutdown actions.
7. How does the module contribute to system reliability?
By verifying multiple input conditions before allowing control actions to proceed.
8. Is the module suitable for continuous industrial operation?
Yes. It is designed for long-term use in safety instrumented systems.
9. Can multiple logic modules be installed within the same system rack?
Yes. Systems can include several modules to implement complex safety logic structures.
10. What role does the module play in safety interlock systems?
It ensures that equipment operation or shutdown actions occur only when all defined safety criteria are satisfied.
