Product Introduction

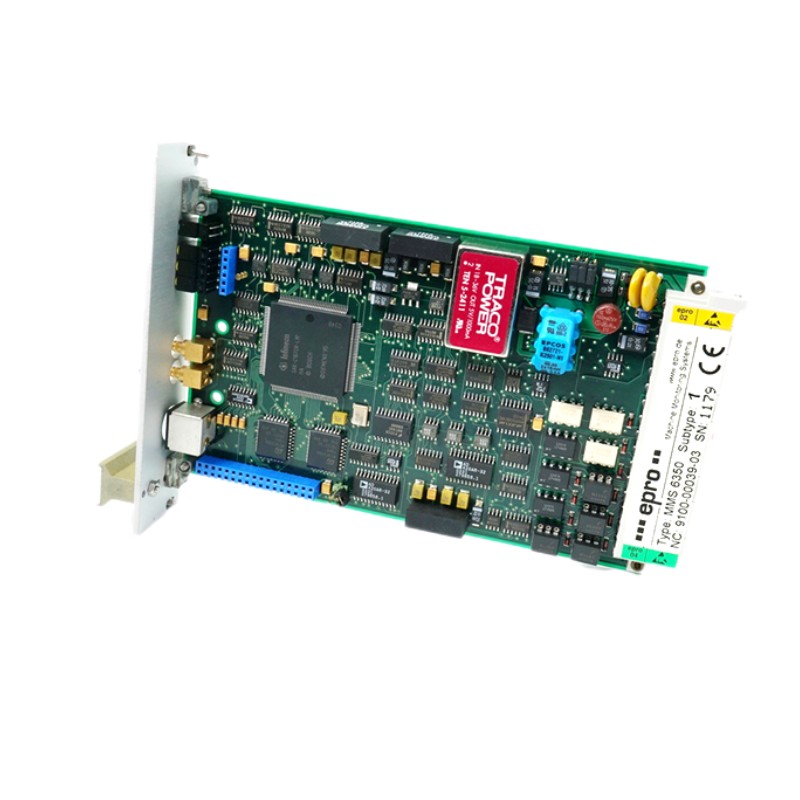

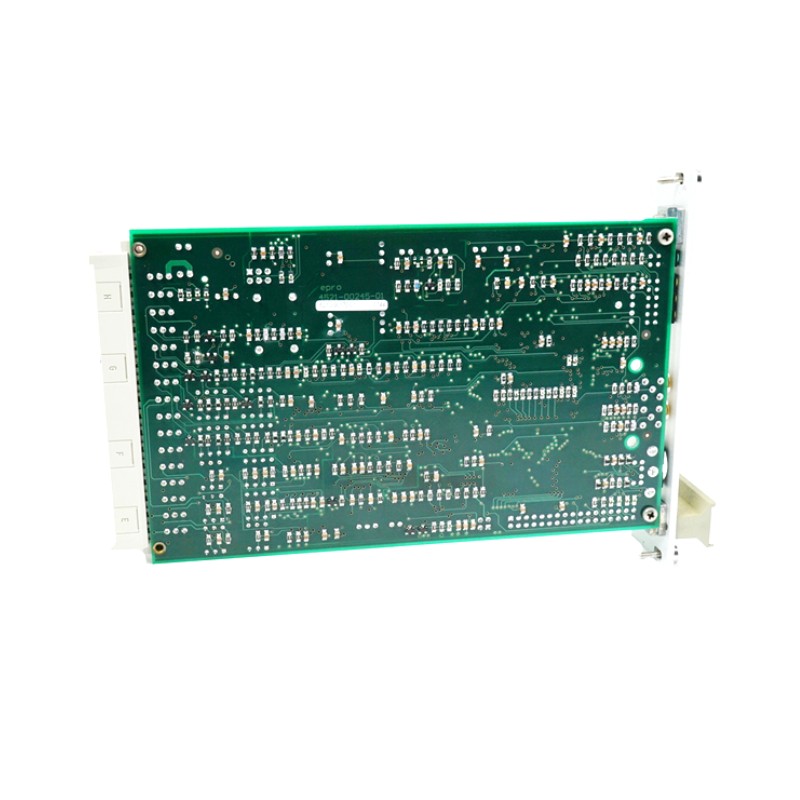

The Epro MMS6350 Digital Overspeed Protection System is a high-reliability protection module designed to monitor rotational speed and prevent overspeed conditions in critical rotating machinery. Overspeed events can lead to catastrophic equipment damage, especially in turbines and compressors operating at high rotational speeds.
The MMS6350 continuously evaluates speed signals received from connected sensors and compares them against configurable protection thresholds. If the monitored speed exceeds the defined limits, the system immediately triggers alarm signals or protective shutdown commands to prevent mechanical failure.
Because of its safety-oriented design, the system is frequently integrated into industrial machine protection platforms alongside vibration, displacement, and temperature monitoring modules. These integrated systems provide comprehensive monitoring of rotating equipment in industries where operational safety and reliability are essential.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Epro |
| Model | MMS6350 |
| Module Type | Digital Overspeed Protection System |
| Measurement Function | Rotational speed monitoring and overspeed protection |
| Speed Measurement Range | Up to approximately 20,000–50,000 RPM (configurable depending on configuration) |
| Measurement Accuracy | ±0.1% of full scale |
| Input Channels | Multi-channel speed inputs |
| Communication Interface | RS232 / RS485 / optional PROFIBUS-DP |
| Output Signals | Relay outputs, current outputs (0/4–20 mA) |
| Operating Temperature | -20°C to +70°C |
| Mounting | Rack or panel installation |
| Dimensions | 30 mm × 128.4 mm × 160 mm |
| Weight | 0.32 kg (0.71 lb) |
Industrial Deployment Context
In rotating machinery protection systems, overspeed is one of the most dangerous operating conditions. The Epro MMS6350 Digital Overspeed Protection System is engineered to detect excessive rotational speeds and trigger protective actions before mechanical damage or catastrophic failure occurs.
This protection system is widely deployed in critical industrial environments where high-speed rotating equipment must operate safely and reliably, including:
-
Steam and gas turbine protection systems in power generation facilities.
-
Centrifugal compressors used in petrochemical and refinery processing units.
-
Industrial generators and turbo-machinery where rotor overspeed can cause severe structural damage.
-
Large motors and pump systems operating in continuous industrial processes.
-
Oil and gas production platforms, where safety-critical rotating equipment requires redundant monitoring systems.
By continuously measuring rotational speed and comparing it with predefined protection thresholds, the MMS6350 enables rapid protective responses that safeguard both machinery and plant personnel.
Engineering Advantages
High-Integrity Overspeed Protection
The system is designed for safety-critical machinery protection and meets stringent industrial safety standards, including SIL3 certification for high-reliability safety systems.
Multi-Channel Measurement Architecture
A multi-channel speed measurement system increases reliability by enabling redundant monitoring of rotational speed signals from sensors.
Fast Detection and Shutdown Response
The module continuously analyzes speed signals and triggers alarm or shutdown outputs when defined overspeed limits are exceeded.
Flexible Integration with Control Systems
Optional communication interfaces such as PROFIBUS-DP allow seamless integration with PLCs, DCS platforms, and industrial monitoring systems.
Advanced Diagnostics and Monitoring
Built-in diagnostics, event logging, and fault detection functions support predictive maintenance and system reliability.
Technical FAQs
1. What is the main purpose of the MMS6350 system?
It monitors rotational speed and provides automatic protection when overspeed conditions occur.
2. What types of machinery commonly use this protection system?
Turbines, compressors, generators, pumps, and high-speed industrial motors.
3. What safety standard does the system comply with?
The system is designed to meet SIL3 safety integrity requirements for critical protection systems.
4. What type of sensors are typically connected to the module?
Speed sensors such as eddy-current probes or pulse-based speed pickups.
5. How does the module respond when overspeed is detected?
It activates alarm outputs or triggers protective shutdown signals to stop the machinery.
6. What communication interfaces are available?
RS232, RS485, and optional PROFIBUS-DP interfaces for integration with industrial networks.
7. What measurement accuracy does the system provide?
Speed measurement accuracy can reach approximately ±0.1% of full scale.
8. Can overspeed thresholds be configured?
Yes. Engineers can configure multiple limit values and time delays for protection logic.
9. Does the system support redundant monitoring?
Yes. Multi-channel speed monitoring increases reliability and ensures safety-critical protection.
10. Is the module designed for continuous industrial operation?
Yes. It is built for long-term operation in industrial monitoring and protection systems.
