Product Introduction

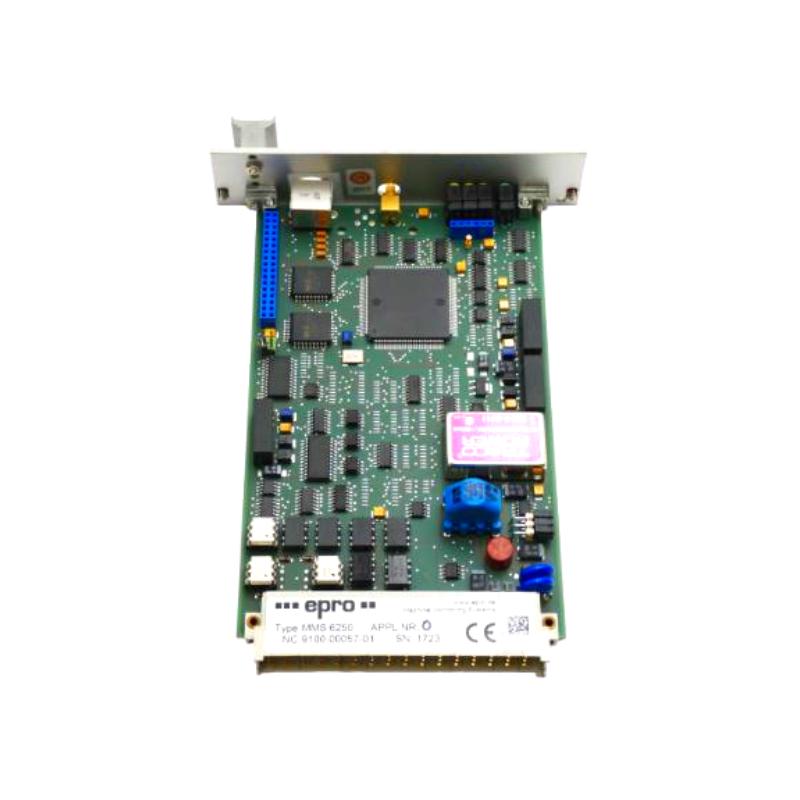

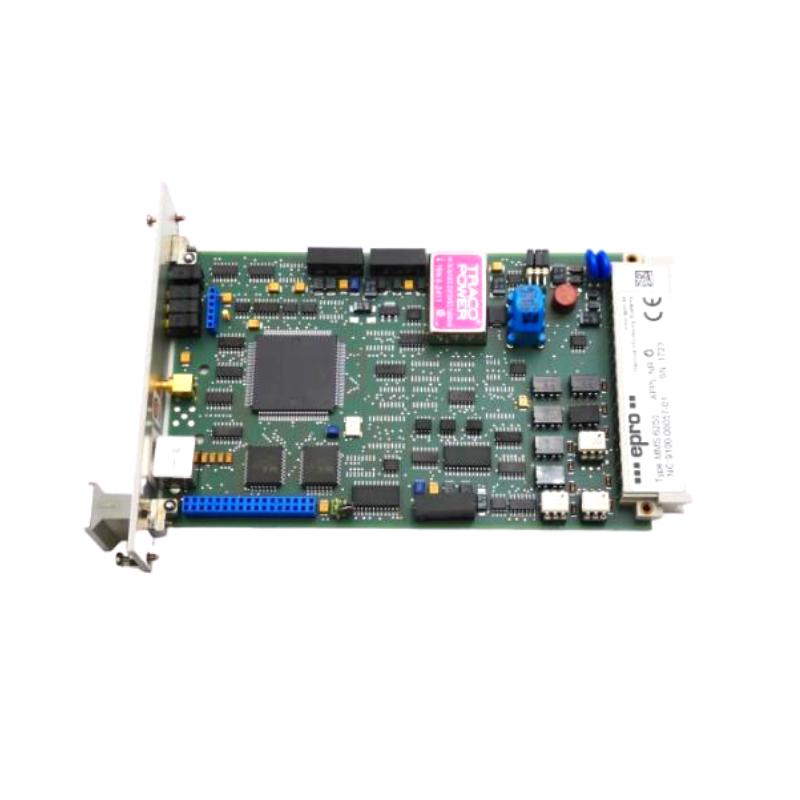

The Epro MMS6250 9100-00057 Digital Axial Protection System Shaft Displacement Monitor is an advanced monitoring module developed for machinery protection systems used in industrial rotating equipment. The device continuously measures axial shaft displacement and provides digital monitoring functions that help maintain machine integrity.
Shaft displacement monitoring is particularly important in turbines, compressors, and large motors where axial forces can lead to bearing wear or rotor misalignment. By providing precise real-time measurements, the MMS6250 enables early detection of abnormal shaft movement, allowing operators to take corrective actions before serious damage occurs.
The system is commonly integrated into comprehensive machinery monitoring platforms that include vibration, speed, and temperature monitoring devices. These integrated protection systems improve equipment reliability and support predictive maintenance strategies in high-value industrial installations.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Epro |
| Model | MMS6250 9100-00057 |
| Module Type | Digital Axial Protection System Shaft Displacement Monitor |
| Measurement Parameter | Axial shaft displacement |
| Monitoring Function | Digital shaft position protection |
| Sensor Compatibility | Non-contact displacement / proximity probes |
| Integration | PLC, DCS, and machinery protection systems |
| Dimensions | 30 mm × 128.4 mm × 160 mm |
| Weight | 0.32 kg (0.71 lb) |
Industrial Equipment Protection Applications
In modern rotating machinery systems, monitoring shaft displacement is essential to prevent mechanical damage and maintain operational stability. The Epro MMS6250 9100-00057 Digital Axial Protection System Shaft Displacement Monitor is designed to supervise axial shaft movement and provide protective monitoring for critical rotating equipment.
This monitoring module is widely implemented in industrial sectors where rotor position accuracy directly affects machine safety and performance, including:
-
Steam and gas turbine monitoring systems in power generation facilities where axial displacement can indicate thrust bearing stress.
-
Petrochemical and refinery compressor stations, where shaft displacement monitoring helps identify internal mechanical faults early.
-
Large centrifugal pumps and industrial fans used in process industries requiring stable shaft alignment.
-
Heavy-duty electric motors and generators operating under continuous high-load conditions.
-
Metallurgy, oil and gas, and CNC machinery environments where precise shaft position monitoring improves equipment reliability.
The module forms part of advanced machine protection architectures that continuously analyze shaft movement and trigger alarms when abnormal displacement is detected.
Performance and Engineering Advantages
High-Precision Shaft Displacement Monitoring
The device measures axial shaft movement with high accuracy, allowing operators to detect abnormal thrust loads or rotor movement before mechanical damage occurs.
Digital Protection System Architecture
As a digital monitoring module, it supports reliable signal processing and diagnostic functions for modern machine protection systems.
Real-Time Condition Monitoring
Continuous monitoring of shaft position provides immediate feedback on machine operating conditions, helping maintenance teams respond quickly to anomalies.
Flexible System Integration
The monitor can integrate with plant automation systems, including PLCs and distributed control systems, enabling centralized monitoring and alarm management.
Improved Equipment Reliability
By identifying shaft displacement issues early, the module helps extend machine life, reduce downtime, and minimize unexpected maintenance events.
Technical FAQs
1. What parameter does the MMS6250 monitor?
It measures axial shaft displacement, which represents movement of the rotor along its longitudinal axis.
2. What type of sensors are used with this monitor?
Non-contact proximity probes or displacement sensors designed for shaft position monitoring.
3. Why is shaft displacement monitoring important?
Excessive axial movement can damage thrust bearings, reduce efficiency, and lead to mechanical failure.
4. Can the monitor be integrated into existing machinery protection systems?
Yes. It is designed to operate as part of a larger machine condition monitoring architecture.
5. Does the system support alarm or shutdown protection functions?
Yes. Monitoring outputs can be used by protection systems to trigger alarms or initiate shutdown procedures.
6. What industries typically use shaft displacement monitoring modules?
Industries such as power generation, oil and gas, petrochemical processing, and heavy manufacturing.
7. How does digital monitoring improve reliability?
Digital processing ensures more accurate measurement, stable signal handling, and improved diagnostic capabilities.
8. Can the module monitor multiple parameters simultaneously?
It primarily monitors shaft displacement but can operate alongside vibration and speed monitoring modules in a full system.
9. What environmental conditions can the device operate in?
Industrial environments with wide temperature ranges and high mechanical stress.
10. Does the monitor support continuous operation in rotating equipment systems?
Yes. It is designed for permanent installation and continuous monitoring of critical machinery.
