Product Introduction

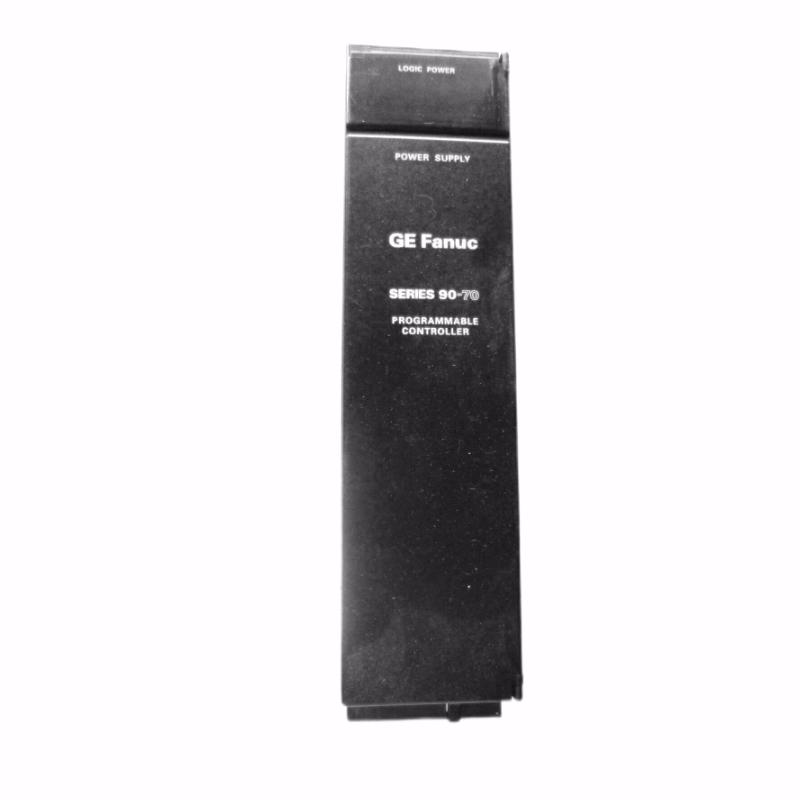

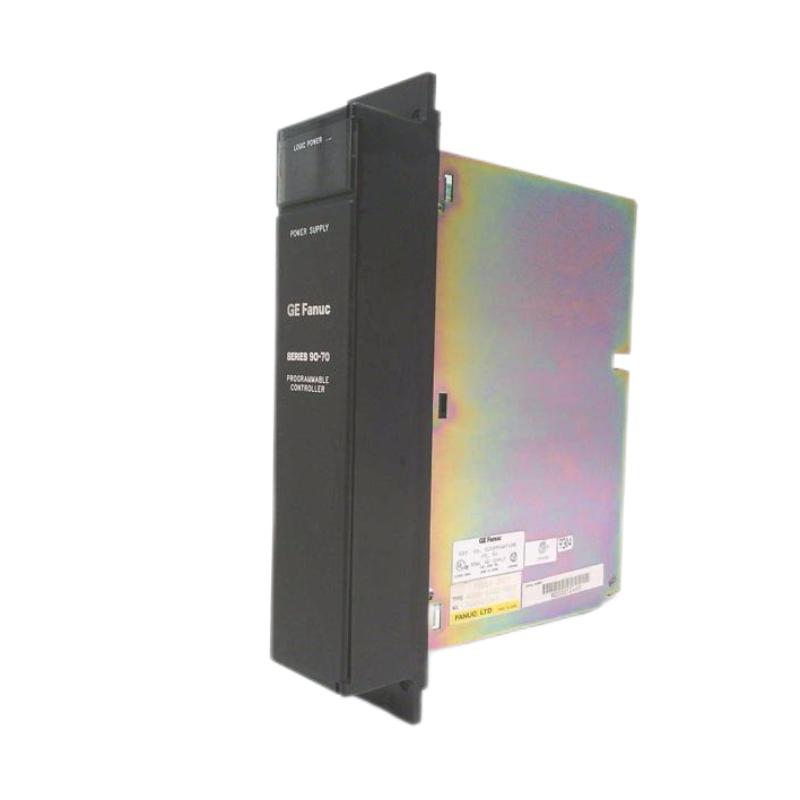

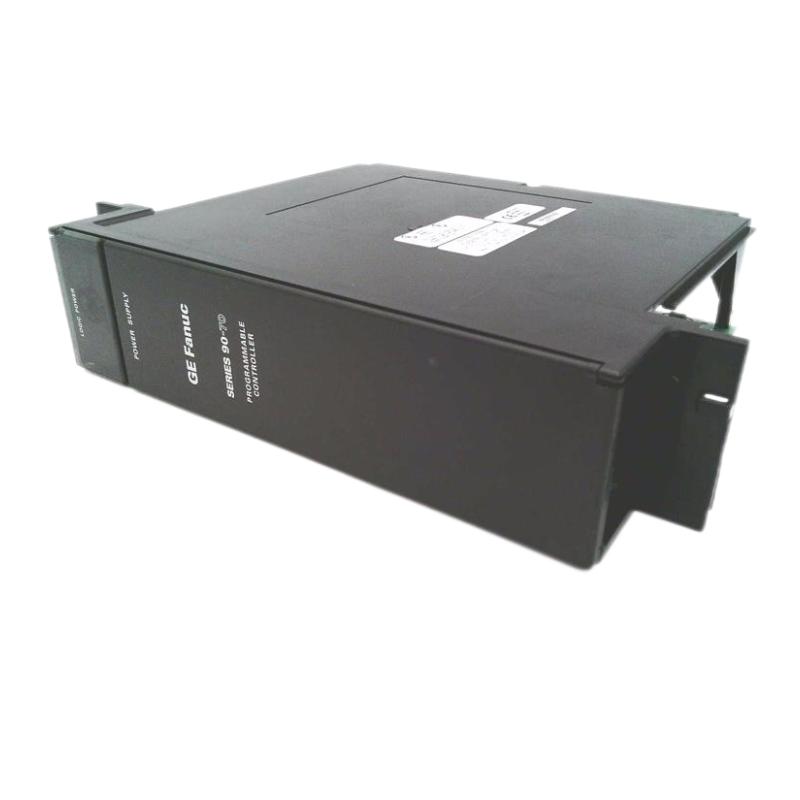

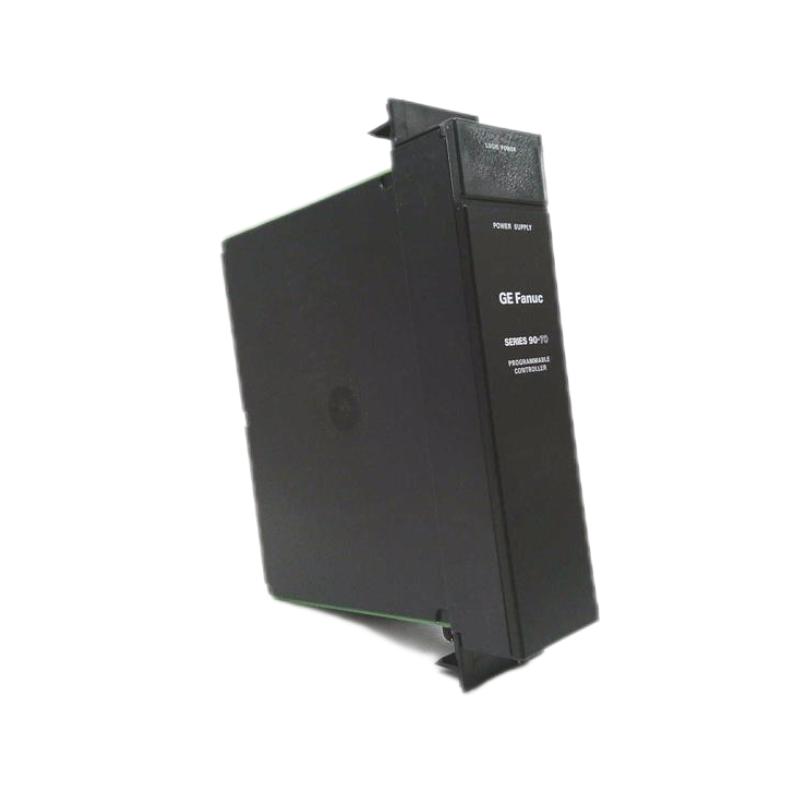

The GE Fanuc IC697PWR710K is a reliable Power Supply Module designed for the Series 90‑70 PLC platform. It provides regulated DC power to Series 90‑70 CPUs and I/O racks, ensuring stable operation of the automation system. With its rugged design and built-in protection features, this power supply module is ideal for industrial environments where uptime and reliability are critical.
The module is engineered for installation in the leftmost slot of a Series 90‑70 rack, delivering essential power to the backplane and supporting connected CPU and I/O modules. Its wide input voltage range and ride-through capability ensure consistent performance even in fluctuating electrical conditions.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | GE Fanuc |
| Model Number | IC697PWR710K |
| Product Type | Power Supply Module |
| Series | Series 90‑70 PLC |
| Input Voltage | 90–264 VAC (47–63 Hz) or 100–150 VDC |
| Nominal Input Voltage | 120/240 VAC or 125 VDC |
| Input Power | 90 W max |
| Output Voltage | +5 V DC nominal (4.90–5.25 V) |
| Output Power | 55–56 W max |
| Output Current | Up to 11 A |
| Protection | Overvoltage, overcurrent |
| Ride-Through Time | ≥ 21 ms during AC power loss |
| Mounting | Leftmost rack slot of Series 90‑70 PLC |
| System Compatibility | Series 90‑70 PLC racks (VME standard) |
Industrial Applications
The IC697PWR710K is commonly used in industrial settings where stable PLC power is required:
-
Manufacturing automation controllers
-
Process control systems in chemical and petrochemical plants
-
Machine tool PLC systems
-
Power generation and distribution automation
-
Water and wastewater treatment facilities
-
Maintenance and retrofit of legacy Series 90‑70 installations
Its regulated +5 V DC output ensures safe, reliable operation of connected modules under all operating conditions.
Advantages
Stable Power Delivery
Provides regulated 55 W DC power to support CPUs and I/O modules reliably.
Wide Input Range
Supports both AC and DC input voltages, allowing flexible deployment across various industrial power systems.
Integrated Protection
Includes overvoltage and overcurrent protections, enhancing system safety and longevity.
Backplane Support
Designed for seamless integration into the VME-type backplane of Series 90‑70 racks.
Short Ride-Through Capability
Maintains output during brief AC power interruptions, reducing the risk of unexpected system resets.
Technical FAQs
1. What is the primary function of the IC697PWR710K?
It provides regulated DC power to Series 90‑70 PLC CPUs and I/O modules.
2. What input voltages does it accept?
90–264 V AC or 100–150 V DC.
3. What is the output voltage?
+5 V DC nominal, within a 4.90–5.25 V range.
4. How much power can the module supply?
Up to 55–56 W maximum.
5. What is the maximum output current?
Approximately 11 A.
6. Does it have protection features?
Yes, it includes overvoltage and overcurrent protection.
7. Where is it installed in a Series 90‑70 rack?
In the leftmost slot of the rack.
8. What is the ride-through time during AC loss?
At least 21 milliseconds.
9. Is it compatible with VME-based systems?
Yes, it works with the VME standard backplane of Series 90‑70 racks.
10. Which PLC platform does this module support?
GE Fanuc Series 90‑70 PLC systems.
