Product Overview

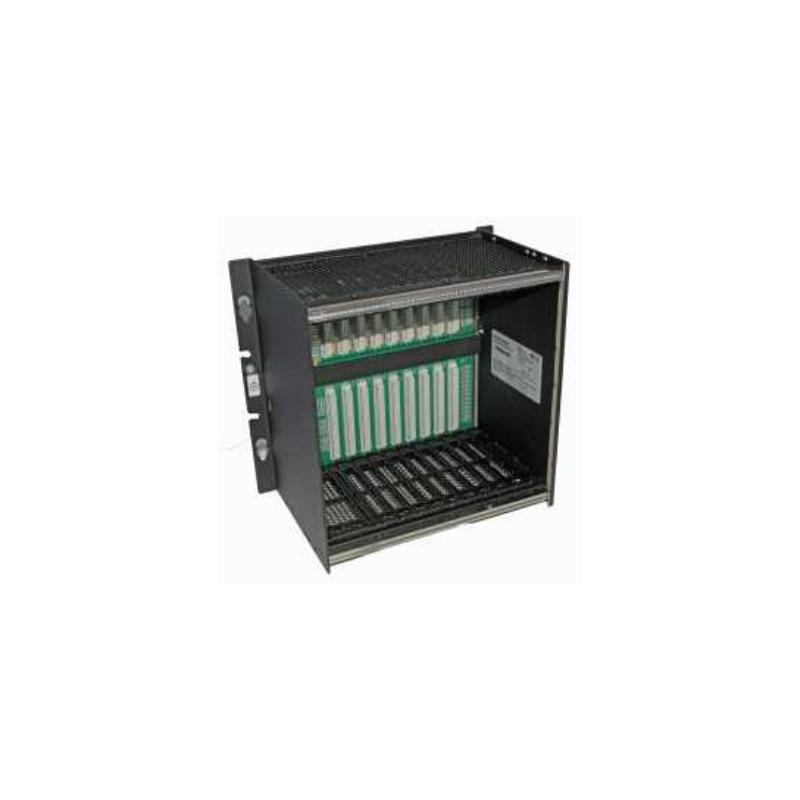

The GE IC698CHS009 is a rugged I/O Rack engineered for the PACSystems RX7i automation platform. Acting as the structural backbone of the controller system, this rack provides the mounting framework and backplane communication necessary to connect CPUs, power supplies, and a wide range of I/O modules.
Built to support high-performance industrial control environments, the IC698CHS009 allows engineers to construct scalable automation systems by accommodating multiple modules in a single chassis. Its modular architecture simplifies system expansion while ensuring stable communication between all installed components.
Designed for cabinet installation in demanding industrial settings, this rack provides the reliability and flexibility required for complex control applications across manufacturing, energy, and process industries.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | GE (General Electric) |
| Model Number | IC698CHS009 |
| Product Type | I/O Rack |
| Series | PACSystems RX7i |
| Mounting Method | Rear-mounted rack |
| Total Slots | 9 I/O slots + 1 power supply slot |
| Slot Layout | Slots 1–8 single-width modules |
| Double Width Slot | Slot 9 supports double-width modules |
| CPU Installation | CPU typically installed in Slot 1 |
| Compatible Power Supplies | RX7i 100 W or 350 W power modules |
| Backplane Type | VME64 backplane architecture |
| Operating Temperature | 0°C to 60°C |
| Cooling Options | Optional fan assembly available |
Industrial Applications
The IC698CHS009 rack is commonly used in complex automation systems where modular expansion and reliable communication are required.
Typical industrial scenarios include:
-
Large-scale manufacturing automation systems
-
Distributed control systems (DCS)
-
Power generation and energy management facilities
-
Oil and gas processing plants
-
Water treatment and infrastructure control systems
-
SCADA-integrated industrial automation platforms
Its ability to support multiple I/O modules allows engineers to build scalable control systems capable of managing large numbers of sensors, actuators, and process signals.
Key Advantages
Flexible System Expansion
The 9-slot configuration provides sufficient space to install CPUs, communication modules, and I/O modules according to system requirements.
High-Speed Backplane Communication
The VME64-based architecture ensures reliable and fast communication between installed modules.
Modular System Architecture
Supports a wide range of PACSystems RX7i modules, allowing system designers to easily expand or modify automation systems.
Industrial-Grade Construction
Designed for long-term operation within industrial control cabinets exposed to vibration, temperature variations, and continuous use.
Power Supply Compatibility
Supports both 100 W and 350 W RX7i power supply modules, enabling systems to scale according to power demands.
Technical FAQs
1. What is the main function of the IC698CHS009 rack?
It provides mounting space and a communication backplane for RX7i CPU, power supply, and I/O modules.
2. How many slots are available in this rack?
The rack provides 9 I/O module slots and one dedicated slot for the power supply.
3. Where is the CPU usually installed?
The CPU module is typically installed in Slot 1.
4. Does the rack support double-width modules?
Yes, Slot 9 supports double-width modules.
5. What type of backplane does the rack use?
It uses a VME64-based backplane architecture.
6. What power supply modules are compatible?
RX7i 100 W and 350 W power supply modules.
7. What is the operating temperature range?
The rack operates between 0°C and 60°C.
8. Can cooling be added to the rack?
Yes, optional fan assemblies can be installed for improved airflow.
9. Is this rack suitable for large automation systems?
Yes, it is commonly used in complex industrial automation architectures.
10. Which industries typically use this rack?
Manufacturing, energy, oil & gas, and infrastructure automation industries.
