Product Overview

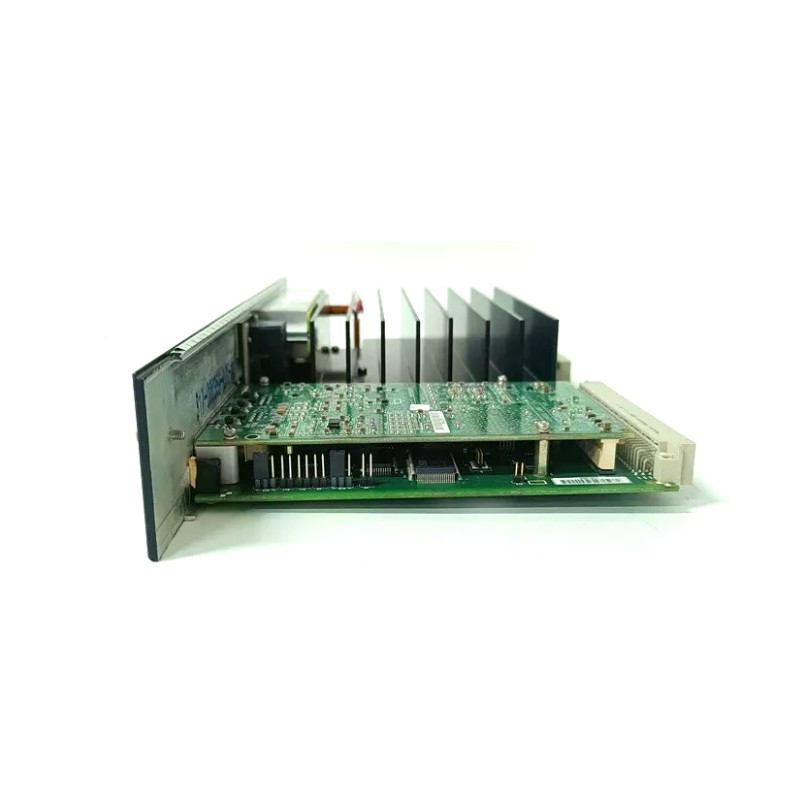

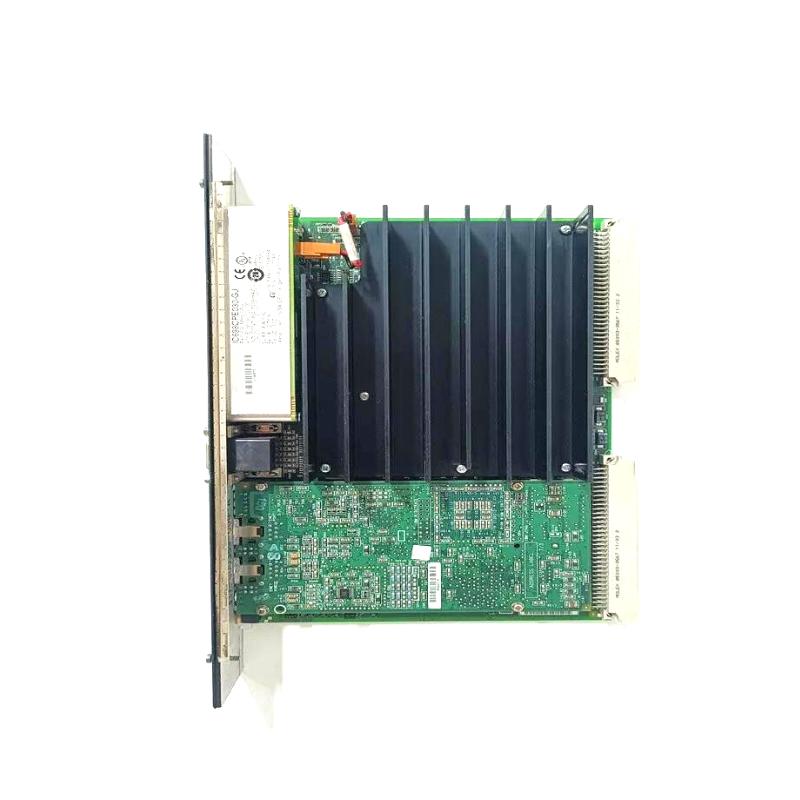

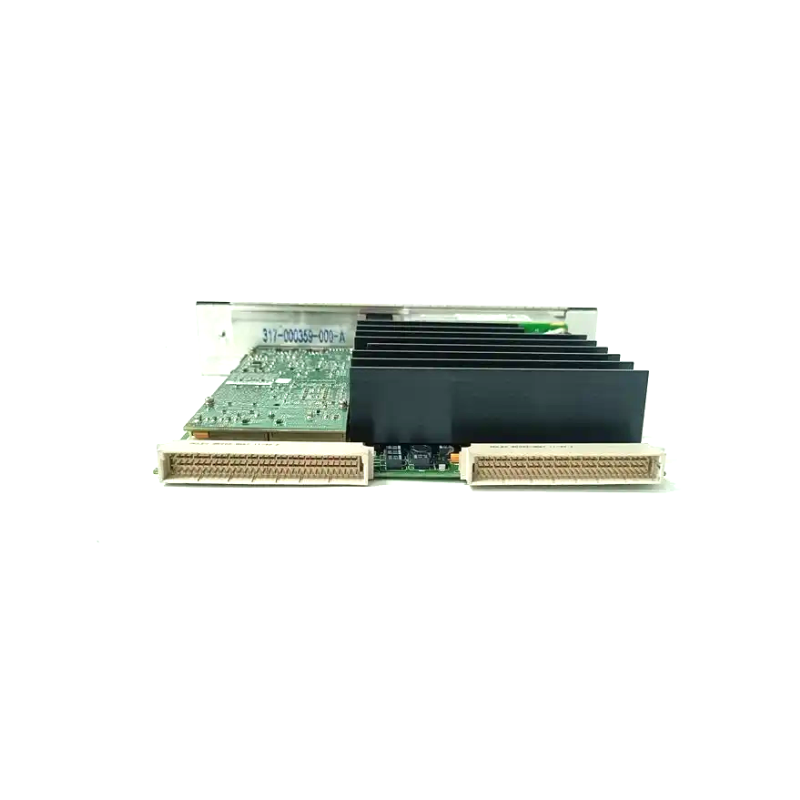

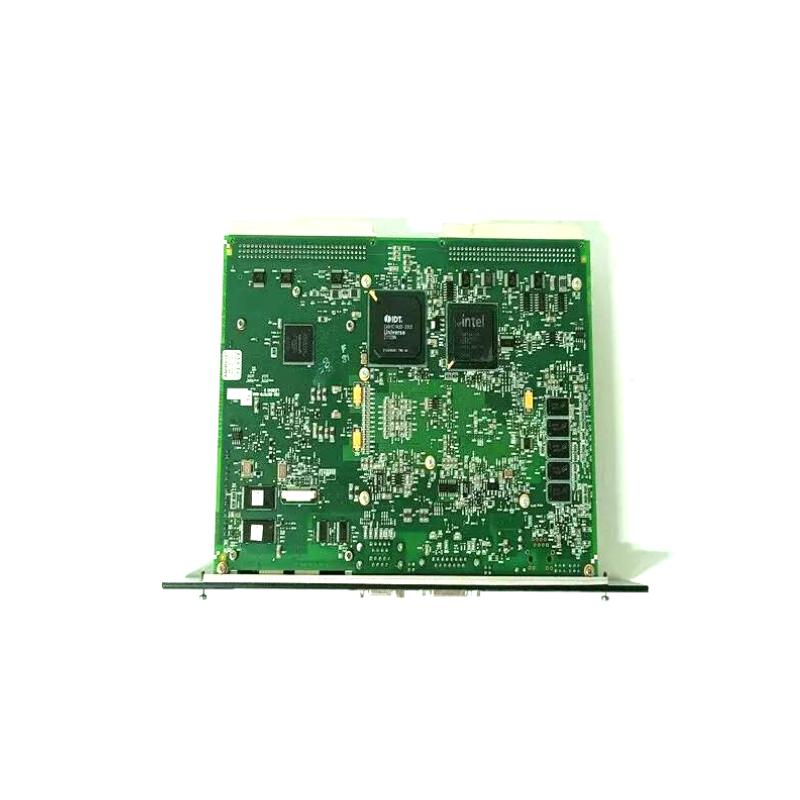

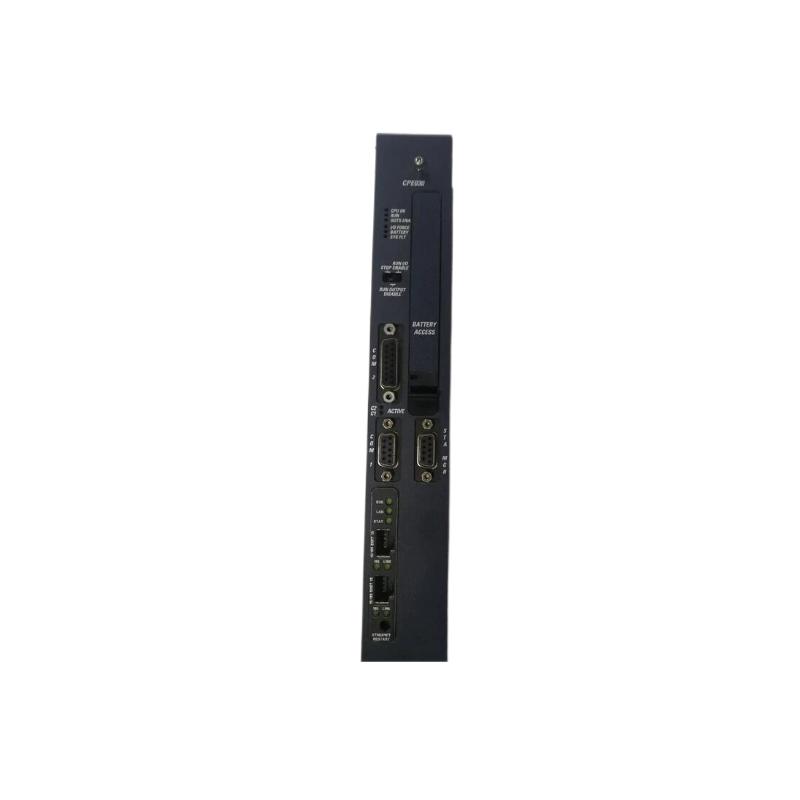

The GE IC698CPE030-GL is a high-performance CPU Module designed for the PACSystems RX3i automation platform, providing advanced processing capabilities for demanding industrial applications. This CPU module combines high-speed execution, large memory capacity, and versatile communication options, making it ideal for centralized or distributed control systems.
Engineered for critical automation environments, the IC698CPE030-GL supports real-time control, complex logic execution, and seamless integration with PACSystems RX3i I/O, Ethernet, and power modules. Its rugged design ensures continuous operation under vibration, temperature extremes, and industrial electrical noise. Operators benefit from deterministic performance, high reliability, and simplified system integration.
This module is particularly suitable for process automation, manufacturing, power generation, and other industries where uninterrupted, precise control is essential.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | GE (General Electric) |
| Model Number | IC698CPE030-GL |
| Product Type | CPU Module |
| Platform Compatibility | PACSystems RX3i Controllers |
| Processor | High-speed embedded CPU |
| User Memory | 2 MB |
| Communication Interfaces | Ethernet, Serial, I/O Bus |
| Operating Voltage | 5 V DC |
| Mounting | DIN rail / Panel mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 150 × 100 × 50 mm |
| Weight | Approx. 0.78 kg |
| Application | Real-time control, process automation, manufacturing, power generation |
Applications
The IC698CPE030-GL CPU Module is widely used in industrial automation systems where high-speed control and reliability are critical:
-
Centralized and distributed process control systems
-
Manufacturing automation and assembly lines
-
Gas and steam turbine control applications
-
Integration with PACSystems RX3i Ethernet and I/O modules
-
Real-time monitoring via SCADA and HMI systems
-
High-speed data acquisition and processing in industrial environments
Its advanced processing and memory capabilities allow complex logic and multi-task operations to run smoothly.
Advantages
High-Speed Real-Time Processing
Executes complex control algorithms with minimal latency, ensuring reliable system performance.
Enhanced Memory Capacity
2 MB user memory allows larger applications and extensive data logging.
Versatile Communication
Supports Ethernet, serial, and I/O bus connections for distributed and networked systems.
Industrial-Grade Reliability
Designed for continuous operation in harsh industrial conditions, including vibration and temperature variations.
Simplified Maintenance
Plug-and-play installation and modular design allow fast replacement with minimal downtime.
Technical FAQs
1. What is the primary function of the IC698CPE030-GL?
It serves as the main CPU, executing control logic and coordinating I/O operations in RX3i systems.
2. How much user memory does it have?
2 MB of user memory.
3. Which communication interfaces are supported?
Ethernet, serial, and PACSystems RX3i I/O bus.
4. What is the operating temperature range?
0°C to +60°C.
5. Can it be mounted in standard control panels?
Yes, it supports DIN rail and panel mounting.
6. Is it suitable for distributed control architectures?
Yes, it integrates seamlessly into centralized and distributed RX3i systems.
7. Can it run continuous 24/7 operations?
Yes, it is designed for industrial continuous operation.
8. Which industries typically use this CPU module?
Manufacturing, process automation, power generation, and chemical processing.
9. Does it support high-speed, deterministic control?
Yes, optimized for real-time, multi-task operations.
10. Is maintenance and replacement easy?
Yes, plug-and-play design ensures minimal downtime during service.
