Product Overview

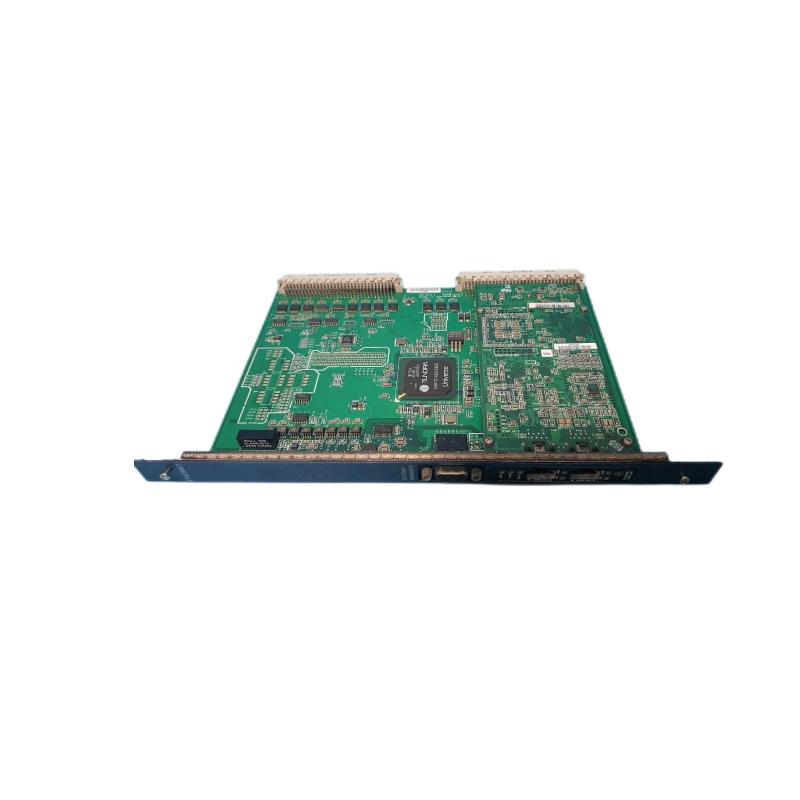

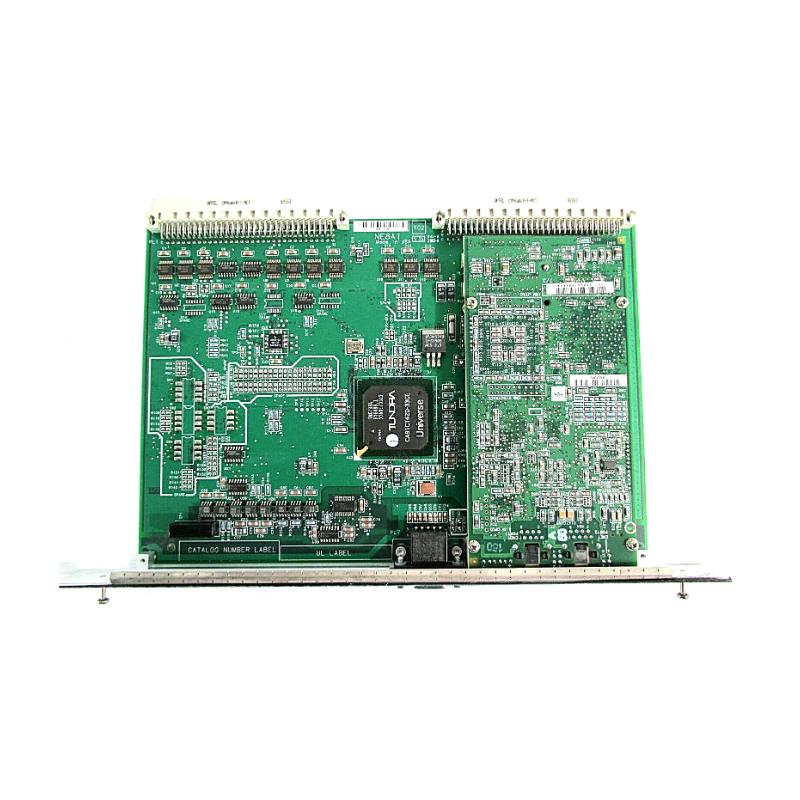

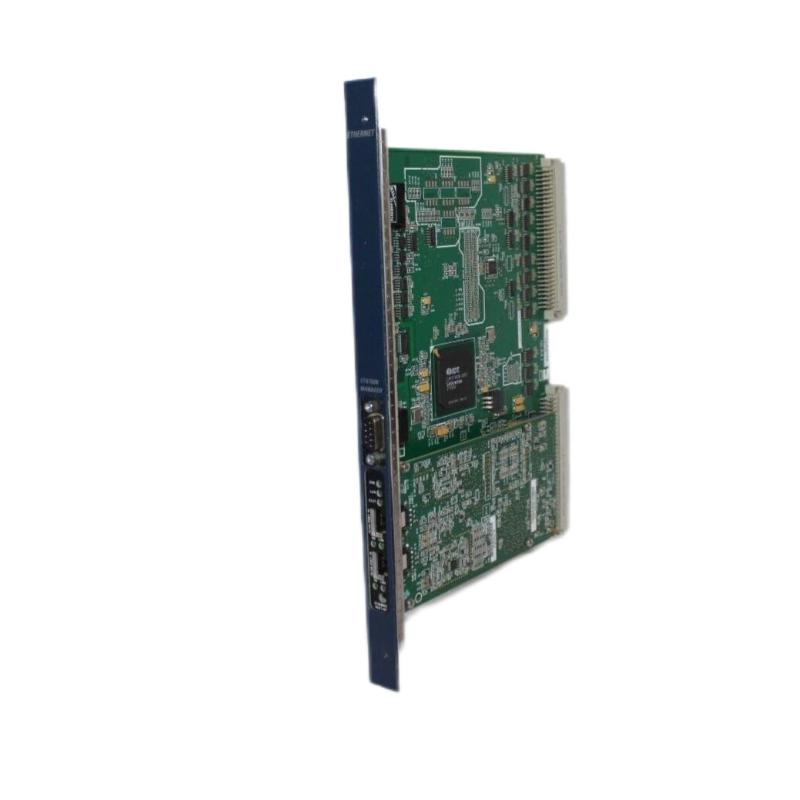

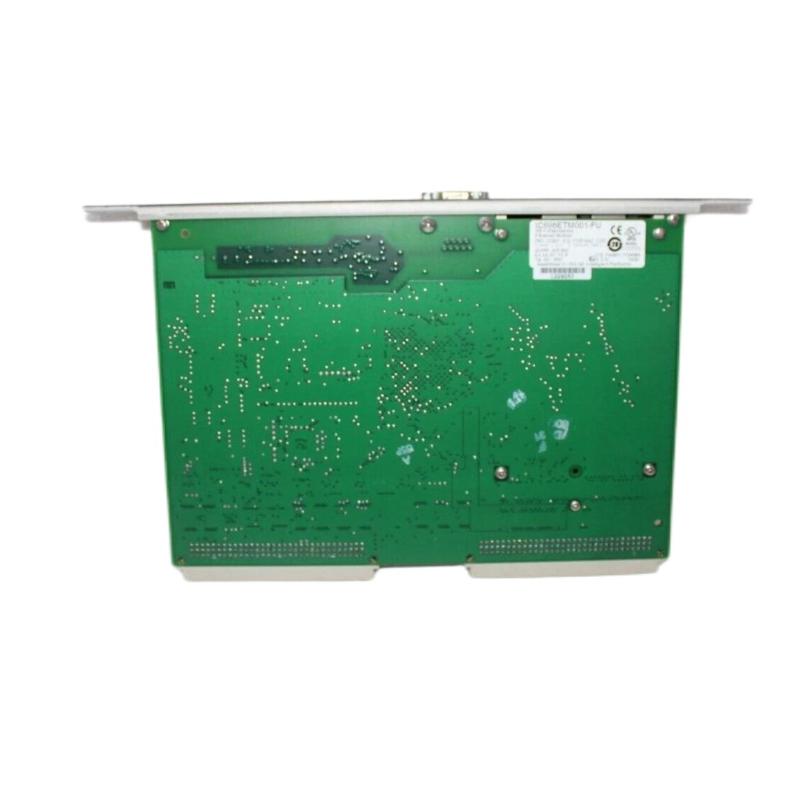

The GE IC698ETM001 is a high-performance Ethernet Interface Module designed for the PACSystems RX3i automation platform. This module provides reliable Ethernet connectivity, enabling communication between RX3i controllers, I/O modules, and networked devices. With support for standard Ethernet protocols, it facilitates fast, efficient, and secure data transfer in industrial automation applications.
Engineered for high-availability and demanding environments, the IC698ETM001 ensures seamless integration into distributed control systems. It allows operators to monitor and control processes remotely, implement real-time data exchange, and connect PLC systems to SCADA or HMI interfaces. Its compact design and rugged construction make it suitable for industrial control cabinets while maintaining performance under vibration and temperature fluctuations.
This module is ideal for industries that require fast, reliable, and scalable Ethernet connectivity for their PACSystems RX3i controllers.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | GE (General Electric) |
| Model Number | IC698ETM001 |
| Product Type | Ethernet Interface Module |
| Platform Compatibility | PACSystems RX3i Controllers |
| Network Protocols | TCP/IP, UDP, Modbus TCP, Ethernet/IP |
| Ports | Dual RJ45 10/100 Mbps |
| Operating Voltage | 5 V DC |
| Mounting | DIN rail / Panel mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 100 × 80 × 40 mm |
| Weight | Approx. 0.42 kg |
| Application | Industrial Ethernet communication for RX3i controllers |
Applications
The IC698ETM001 module is widely used in industrial automation scenarios where reliable Ethernet connectivity is essential:
-
Networked PACSystems RX3i controllers in distributed control systems
-
Connecting PLCs to SCADA, HMI, and OPC server systems
-
Remote monitoring and data acquisition
-
Real-time industrial communication over TCP/IP or Ethernet/IP
-
Process control in chemical, petrochemical, and manufacturing plants
-
High-speed data exchange in manufacturing automation networks
Its versatility ensures seamless integration for both small and large-scale industrial Ethernet networks.
Advantages
High-Speed Ethernet Connectivity
Supports dual RJ45 ports at 10/100 Mbps for efficient and fast network communication.
Protocol Flexibility
Compatible with TCP/IP, UDP, Modbus TCP, and Ethernet/IP for versatile industrial applications.
Compact and Rugged Design
Small footprint and industrial-grade components ensure reliable operation in control cabinets.
Seamless Integration
Fully compatible with PACSystems RX3i controllers, reducing configuration complexity.
Enhanced Network Reliability
Supports fault-tolerant network architectures for critical industrial systems.
Technical FAQs
1. What is the primary function of the IC698ETM001?
It provides Ethernet connectivity for PACSystems RX3i controllers to communicate with networked devices.
2. Which network protocols are supported?
TCP/IP, UDP, Modbus TCP, and Ethernet/IP.
3. How many Ethernet ports does it have?
Two RJ45 ports supporting 10/100 Mbps.
4. What voltage does the module operate on?
5 V DC.
5. Can it be mounted in standard control cabinets?
Yes, it supports DIN rail and panel mounting.
6. What is the operating temperature range?
0°C to +60°C.
7. Can it be used in redundant network setups?
Yes, it supports fault-tolerant and high-availability network configurations.
8. Is it suitable for continuous industrial operation?
Yes, it is designed for 24/7 industrial use.
9. What industries commonly use this module?
Chemical, petrochemical, manufacturing, energy, and process automation sectors.
10. Does it support remote monitoring and control?
Yes, it allows RX3i controllers to communicate with SCADA, HMI, and OPC systems.
