Product Introduction

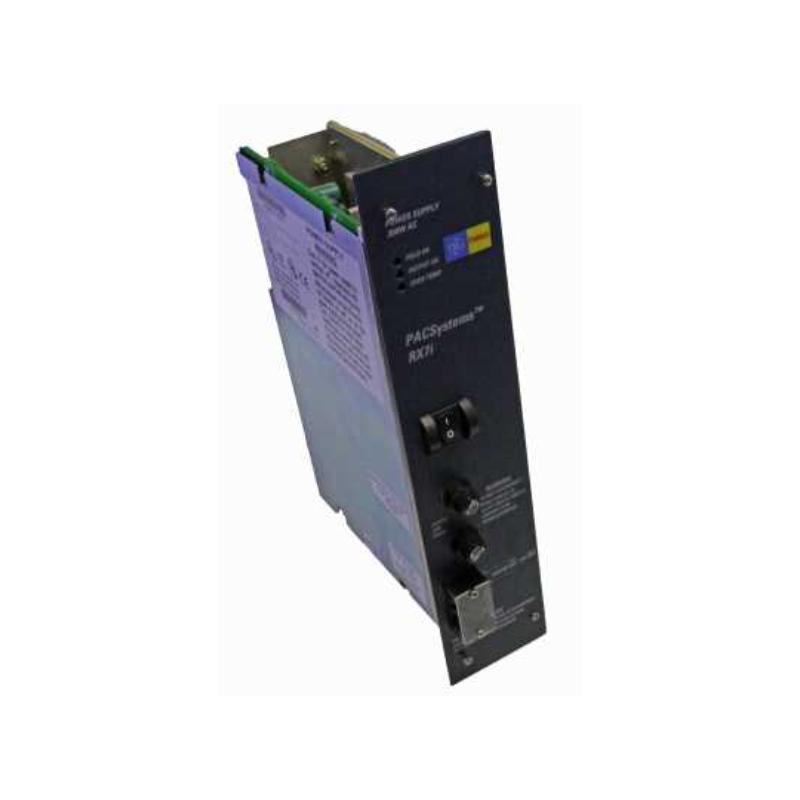

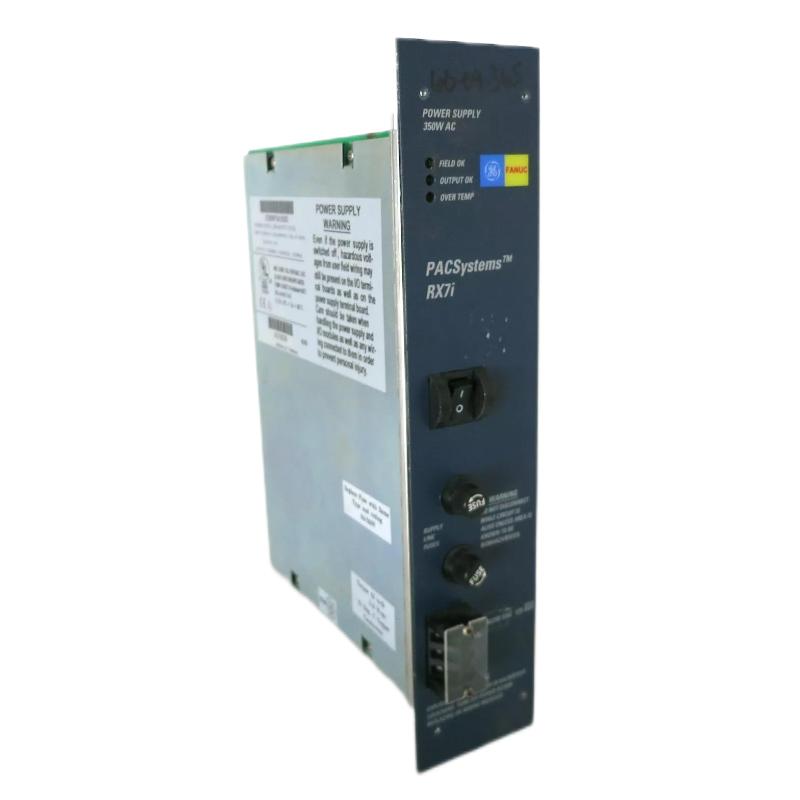

The GE IC698PSA350 is a reliable Power Supply Module designed specifically for the PACSystems RX3i platform. Engineered for industrial automation, this module provides stable and efficient power distribution to RX3i CPUs and I/O modules, ensuring uninterrupted operation in demanding process control environments.
With a robust design and high-quality components, the IC698PSA350 delivers consistent DC power to control systems, supporting both standard and high-availability configurations. Its compact form factor allows for easy installation in dense control cabinets, while industrial-grade construction ensures operation under temperature fluctuations, vibration, and continuous load conditions.
This power module is an essential component for manufacturers and plant operators looking to maintain reliable control system performance and reduce downtime.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | GE (General Electric) |
| Model Number | IC698PSA350 |
| Product Type | Power Module |
| Platform Compatibility | PACSystems RX3i Controllers |
| Input Voltage | 120–230 V AC, 50/60 Hz |
| Output Voltage | 5 V DC / 24 V DC (regulated) |
| Output Current | 5 V DC: 8 A max; 24 V DC: 8 A max |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Mounting | DIN Rail / Panel Mount |
| Power Efficiency | ≥85% |
| Dimensions | 100 × 80 × 45 mm |
| Weight | Approx. 0.6 kg |
| Application | Industrial control power supply, PACSystems RX3i power distribution |
Applications
The IC698PSA350 power module is ideal for a range of industrial automation scenarios:
-
Supplying stable power to PACSystems RX3i CPU and I/O modules
-
Redundant and high-availability control system architectures
-
Continuous process control in chemical, petrochemical, and power generation plants
-
Manufacturing and assembly line automation requiring reliable DC power
-
Distributed control systems in harsh industrial environments
Its design ensures consistent performance, minimizing voltage fluctuations that could affect sensitive automation components.
Advantages
Stable and Reliable Power
Provides regulated DC output to RX3i modules, ensuring reliable system operation.
Compact and Rugged Design
Small footprint fits easily into control panels, with components designed to withstand vibration and temperature extremes.
High Efficiency
Optimized to deliver maximum power with minimal energy loss, reducing heat generation and operational costs.
Redundancy Support
Compatible with redundant system architectures, enabling fault-tolerant operation.
Ease of Maintenance
Plug-and-play installation allows quick replacement or upgrade, minimizing system downtime.
Technical FAQs
1. What is the primary function of the IC698PSA350?
It supplies regulated DC power to PACSystems RX3i CPUs and I/O modules.
2. What input voltage does it support?
120–230 V AC, 50/60 Hz.
3. What output voltages are provided?
5 V DC and 24 V DC, both regulated.
4. Can it support redundant systems?
Yes, it is compatible with redundant RX3i system configurations.
5. What is the maximum output current?
8 A for both 5 V DC and 24 V DC outputs.
6. What is the operating temperature range?
0°C to +60°C.
7. How is the module mounted?
DIN rail or panel mount.
8. Is it suitable for continuous industrial operation?
Yes, designed for 24/7 operation in industrial environments.
9. How efficient is the module?
It operates at ≥85% efficiency, reducing energy loss.
10. What industries commonly use this power module?
Chemical, petrochemical, power generation, manufacturing, and automated assembly lines.
