Industrial Machinery Monitoring Applications

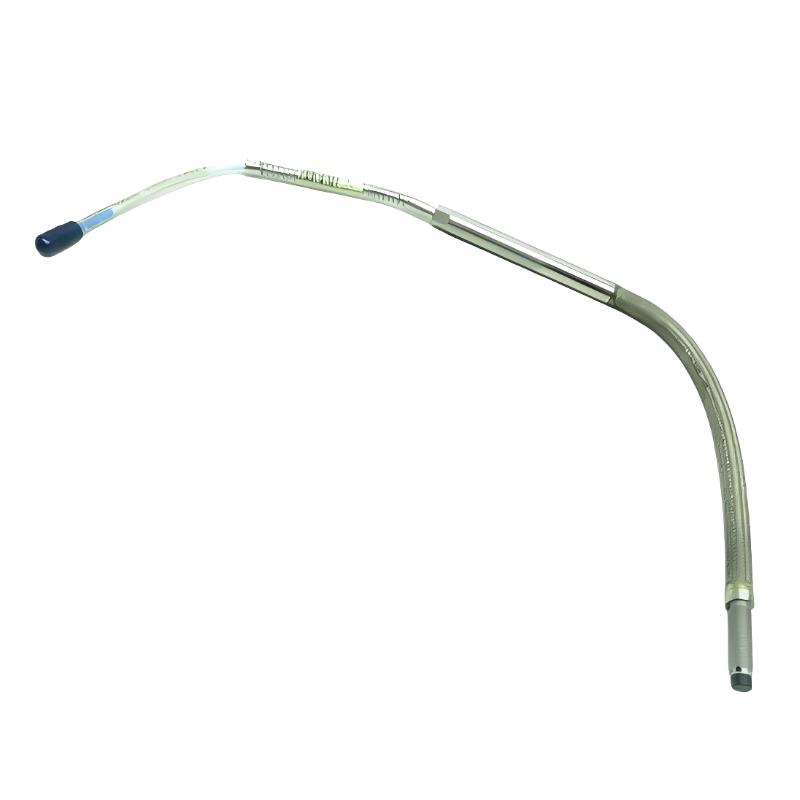

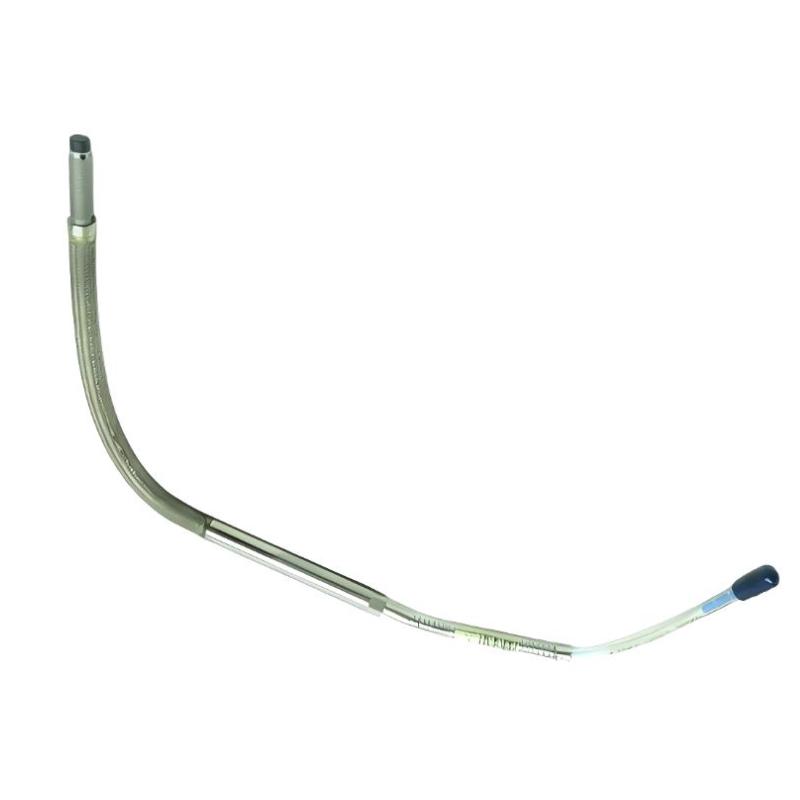

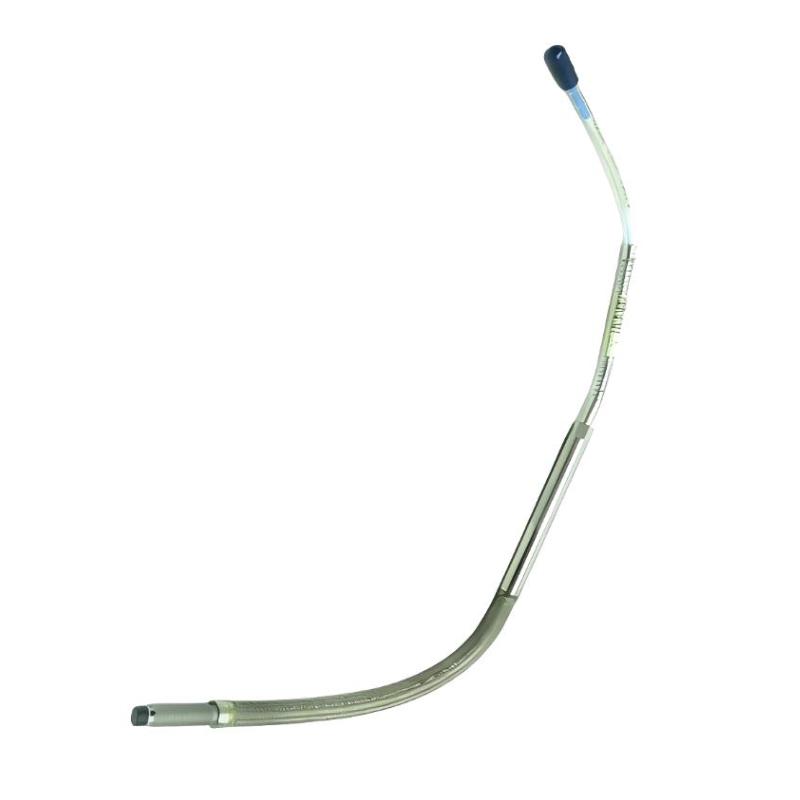

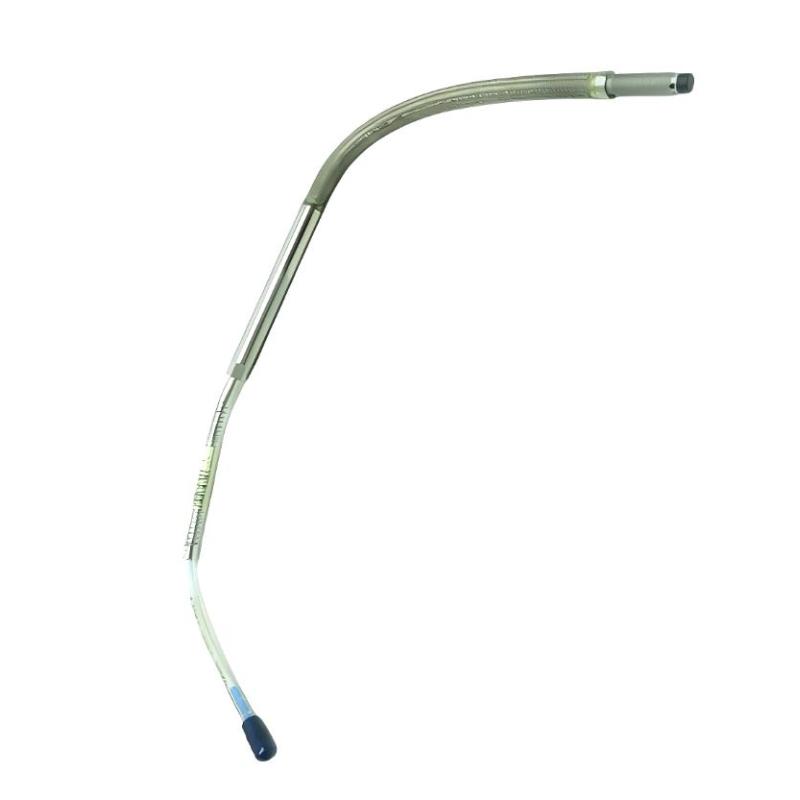

The Bently Nevada 129716-553-269-90-KZ-553 3300 XL Proximity Sensor is designed for precise shaft displacement and vibration monitoring in rotating industrial machinery. Proximity sensors of this type are widely used in machinery protection systems where continuous monitoring of shaft behavior is essential for maintaining operational stability.
Installed close to the shaft surface, the sensor detects minute variations in the distance between the probe tip and the metallic rotor. These variations represent shaft vibration, displacement, or dynamic movement during operation. The monitoring system analyzes these signals to detect early signs of mechanical instability.
Typical industrial application areas include:
-
Steam and gas turbine monitoring systems in power plants
-
Compressor protection systems in oil and gas processing facilities
-
Pump vibration monitoring in chemical manufacturing plants
-
Electric motor shaft displacement monitoring in industrial production lines
-
Gear-driven machinery monitoring in mining and heavy industry
Through continuous vibration monitoring, the sensor supports predictive maintenance and helps prevent unexpected equipment failures.
Operational Advantages for Condition Monitoring
Non-Contact Measurement Technology
The sensor measures shaft displacement without touching the rotating surface, ensuring long-term measurement stability and eliminating mechanical wear.
High Precision Detection
It detects extremely small shaft movements, allowing monitoring systems to identify mechanical faults in their early stages.
Continuous Monitoring Capability
The sensor is suitable for permanent installation within machine protection systems that operate continuously.
Durable Industrial Construction
Its design supports reliable performance in environments with high vibration levels and demanding operating conditions.
Compatibility with 3300 XL Monitoring Systems
The sensor integrates with monitoring architectures based on the 3300 XL platform, widely used for machinery protection.
Technical FAQs
1. What is the primary purpose of the 129716-553-269-90-KZ-553 proximity sensor?
It measures shaft displacement and vibration in rotating equipment to support condition monitoring and machinery protection.
2. What sensing technology does this proximity sensor use?
It uses eddy current sensing technology to detect the distance between the probe tip and the conductive shaft surface.
3. Why is shaft displacement monitoring important in industrial machinery?
Abnormal shaft movement often indicates mechanical issues such as imbalance, bearing wear, or misalignment.
4. What types of equipment commonly use proximity sensors like this one?
Turbines, compressors, pumps, motors, and gearboxes are typical applications.
5. How does the sensor detect vibration in rotating machinery?
It measures changes in the distance between the sensor probe and the shaft as the shaft moves during operation.
6. What role does the 8 mm sensor head diameter play?
The sensor head diameter determines the probe size and affects the sensing area used for displacement measurement.
7. Can this sensor operate in continuous monitoring systems?
Yes, it is designed for permanent installation in machinery condition monitoring systems.
8. How does the sensor help detect mechanical faults?
Changes in vibration amplitude or shaft displacement patterns indicate potential mechanical problems.
9. What happens if excessive vibration is detected?
Monitoring systems may generate alarms or initiate protective shutdown procedures.
10. Why are proximity sensors critical in turbine protection systems?
They provide real-time shaft movement data, allowing operators to detect instability before equipment damage occurs.
