Introduction

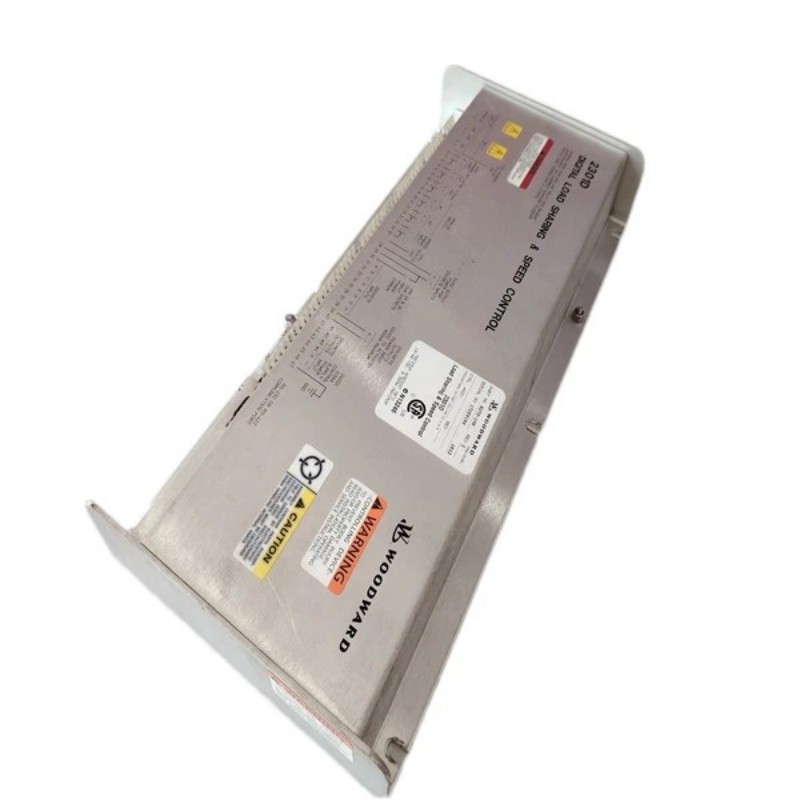

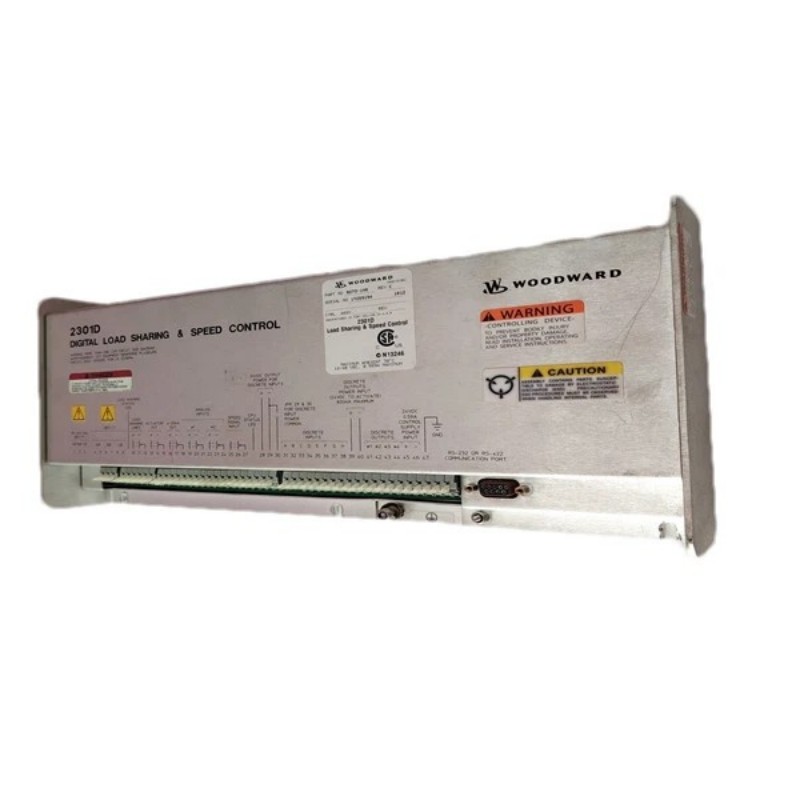

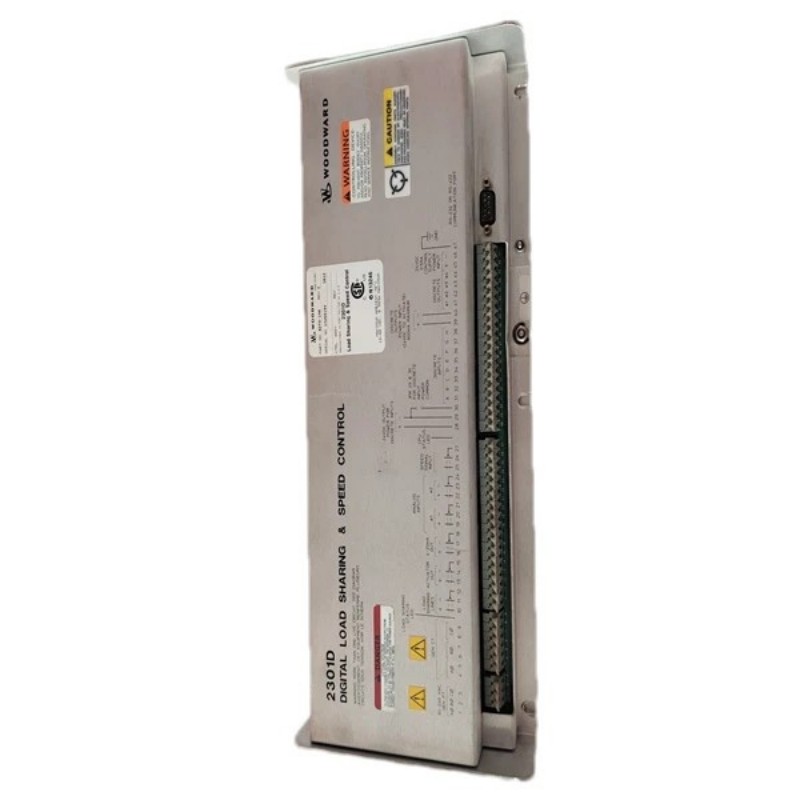

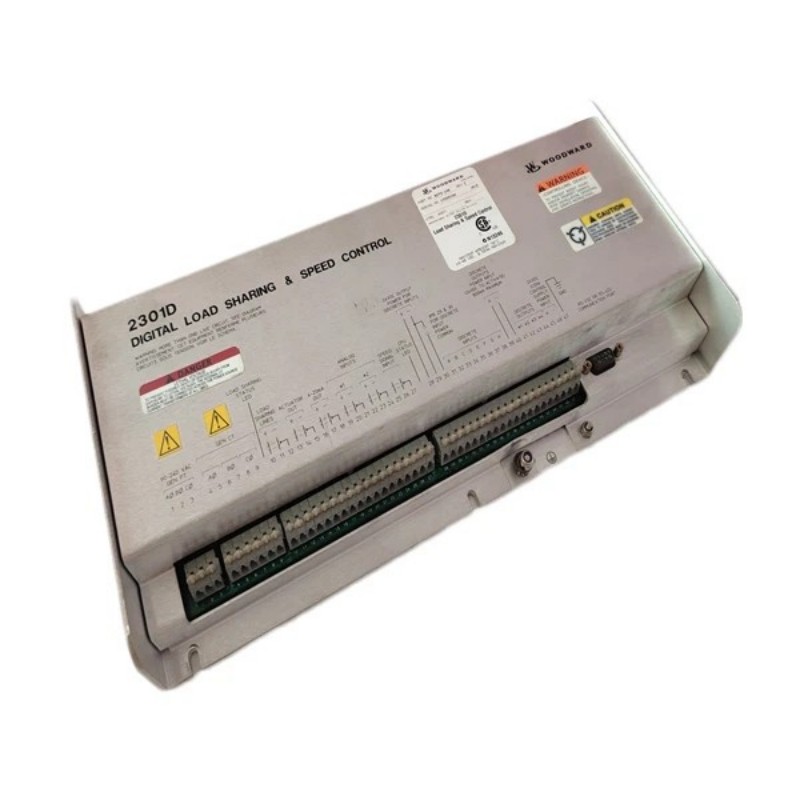

The Woodward 8273-140 Load Sharing & Speed Control Module is designed for precise management of engine and generator systems in multi-unit power configurations. It provides coordinated speed control and load sharing, ensuring stable synchronization between parallel generators. This module is widely used in power generation and industrial facilities where efficiency, reliability, and system stability are critical. Built for demanding environments, it delivers accurate, repeatable control even under vibration, temperature extremes, and electrical interference.
Technical Specifications
| Parameter | Specification / Estimate |
|---|---|
| Module Type | Load Sharing & Speed Control Module |
| Model Number | 8273-140 |
| Manufacturer | Woodward |
| Primary Function | Engine speed regulation and load distribution between parallel generators |
| Control Type | Closed-loop speed control with integrated load-sharing algorithms |
| Inputs | Engine speed sensors, governor signals, generator voltage/current feedback |
| Outputs | Control signals to actuators, governors, and excitation systems |
| Communication | Compatible with Woodward PLC/CPU modules or analog/digital networks |
| Operating Environment | Industrial-grade; tolerant to temperature variation, vibration, and electrical noise |
| Mounting | Rack, panel, or bulkhead-mounted in control enclosure |
| Dimensions (H × W × D) | 220 × 160 × 60 mm |
| Weight | ≈ 2.0 kg |
| Construction | Rugged PCB assembly in industrial-grade housing with secure connectors |
| Diagnostics | Fault detection, load imbalance monitoring, communication status indicators |
