Typical High-Power Industrial Applications

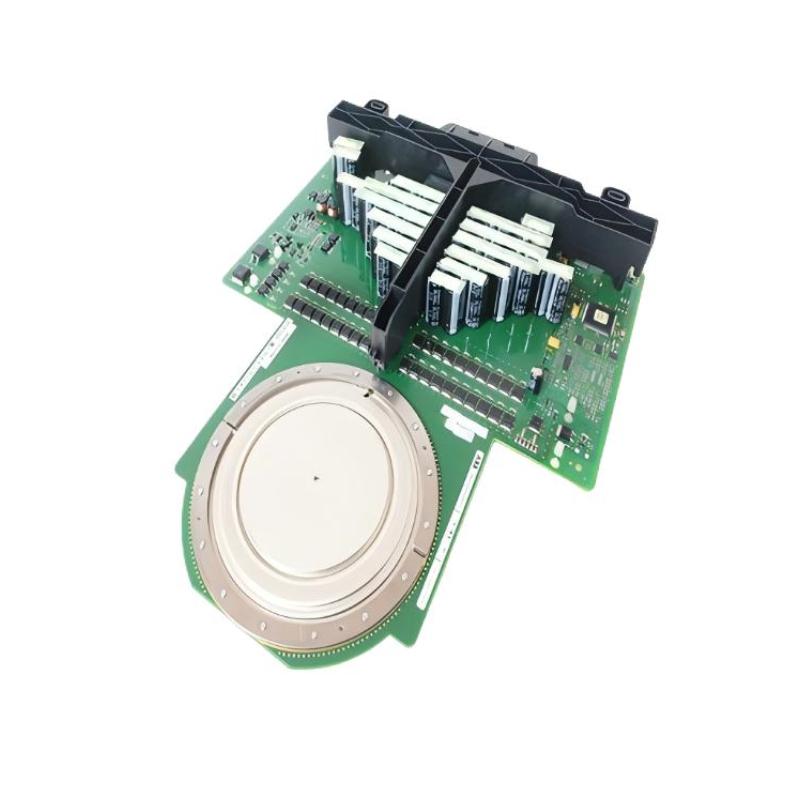

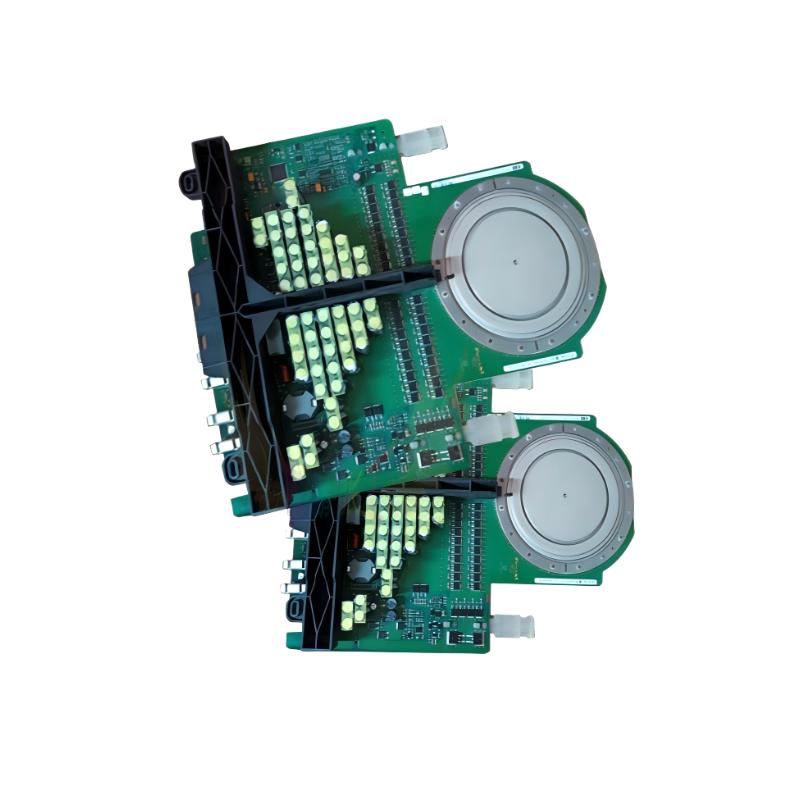

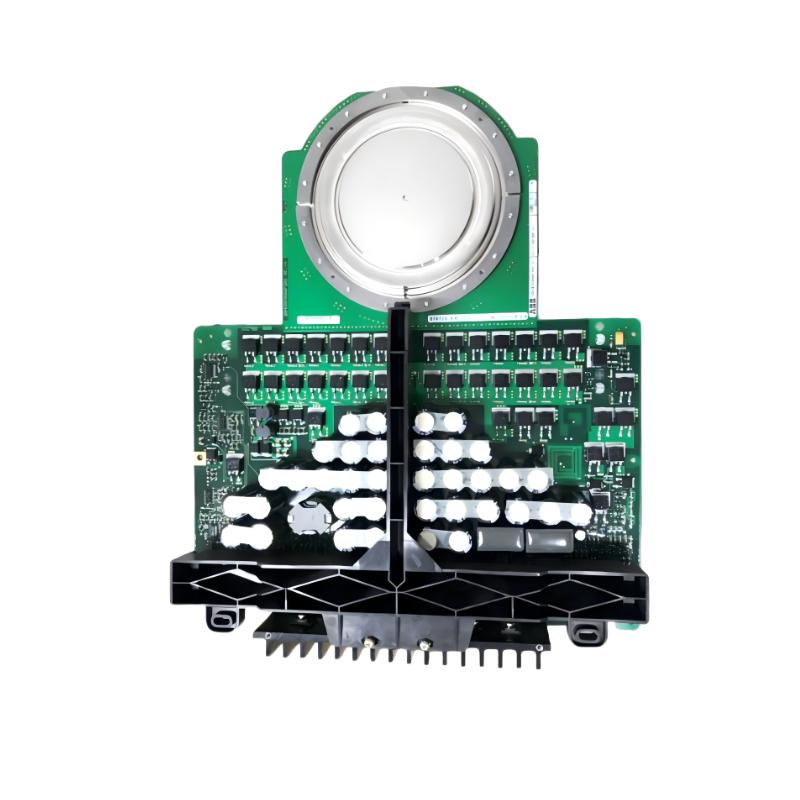

The ABB 5SHY4045L0001 IGCT Module is a high-performance power semiconductor device designed for demanding industrial drive and power conversion systems. IGCT (Integrated Gate-Commutated Thyristor) technology is widely used in high-power electronics where efficient switching, low losses, and high reliability are required.
This module is typically integrated into systems such as:
-
Medium-voltage industrial motor drives used in mining and metallurgy
-
High-capacity power converters for energy generation and distribution
-
Rolling mill drive systems in steel manufacturing plants
-
Large compressor and pump drive systems in oil and gas facilities
-
Power regulation systems in heavy industrial processing equipment
In these environments, the module plays a crucial role in managing high electrical loads while ensuring efficient power switching and system stability.
Key Engineering Advantages
High-Efficiency Power Switching
IGCT technology provides fast switching capability and lower conduction losses compared with traditional thyristor devices, improving overall drive system efficiency.
Designed for Medium- and High-Voltage Drives
The module is suitable for industrial applications where large motors and power converters require reliable high-power semiconductor components.
Thermal Stability Under Heavy Load
Its construction allows efficient heat dissipation when integrated with appropriate cooling systems within drive assemblies.
Robust Industrial Performance
The module is designed for continuous operation in demanding industrial environments where power electronics must operate reliably for extended periods.
Serviceable Power Module Architecture
The modular design enables technicians to replace the unit during maintenance without requiring major modifications to the drive system.
Technical FAQs
1. What is the main function of the 5SHY4045L0001 IGCT module?
The module acts as a high-power semiconductor switch that regulates electrical energy in industrial drive systems and power converters.
2. What does IGCT stand for and how does it work?
IGCT stands for Integrated Gate-Commutated Thyristor. It combines features of a thyristor and a gate-controlled device, enabling fast switching and efficient high-power control.
3. In what types of systems is this module typically used?
It is commonly used in medium-voltage motor drives, industrial converters, and large power control systems requiring reliable high-current switching.
4. How does IGCT technology improve efficiency compared to conventional thyristors?
IGCT devices have faster turn-off capability and lower switching losses, which improves system efficiency and reduces heat generation.
5. How is heat managed during module operation?
The module is typically mounted on a heat sink or integrated cooling system within the drive assembly to dissipate thermal energy.
6. Can this module be replaced during equipment maintenance?
Yes. In modular drive systems, the IGCT module can generally be replaced as an individual component during scheduled maintenance.
7. What role does the module play in motor speed control?
By regulating the switching of electrical power within the converter, the module helps control the voltage and frequency supplied to the motor.
8. What are common indicators of IGCT module malfunction?
Possible signs include unstable motor operation, abnormal converter performance, or system diagnostic alarms.
9. What precautions should technicians follow when servicing the module?
Power must be completely isolated before servicing, and technicians should follow safety procedures related to high-voltage power electronics.
10. Why are IGCT modules widely used in heavy industrial drives?
They provide high reliability, efficient power switching, and the ability to handle very large electrical loads required by heavy industrial equipment.
