Introduction

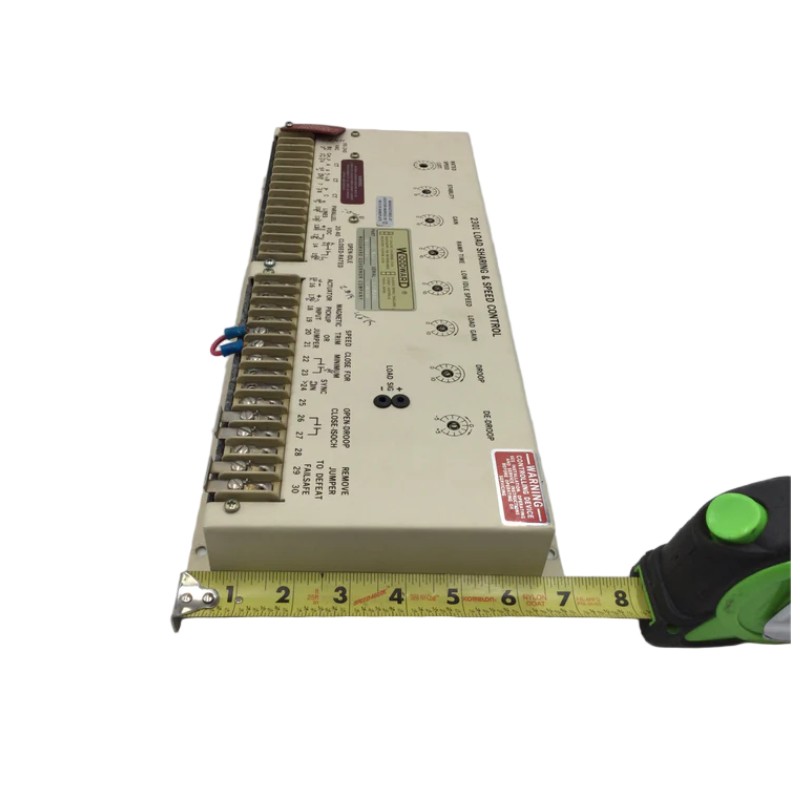

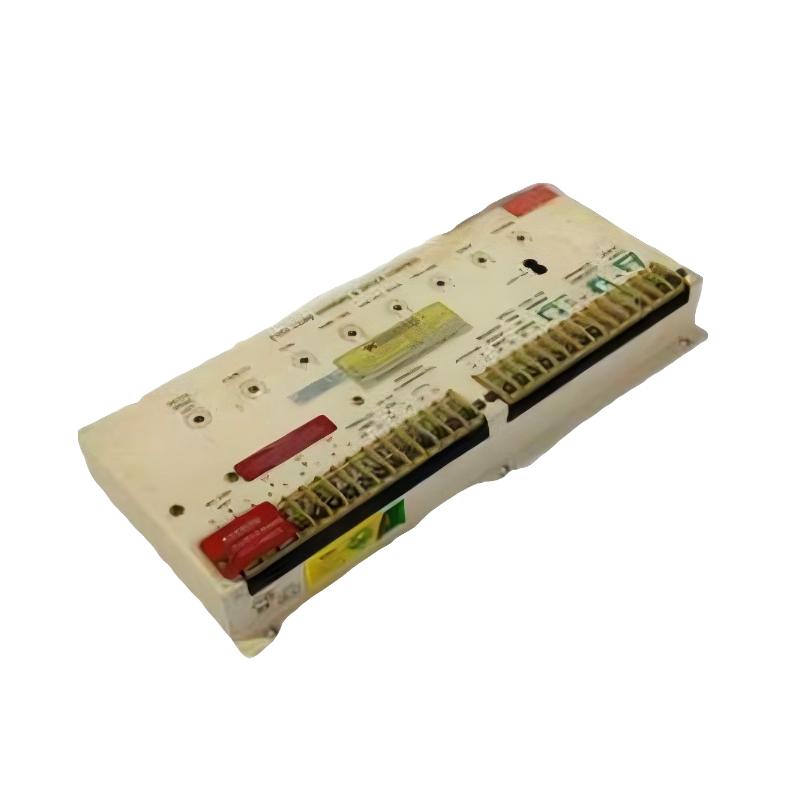

The Woodward 8271-467 Load Sharing & Speed Control Module is designed for precise engine and generator management in multi-unit power systems. It provides coordinated speed control and load sharing between parallel generators, ensuring stable power output, efficient fuel usage, and smooth synchronization. This module integrates seamlessly with Woodward control systems and acts as a critical interface for regulating engine speed, controlling load distribution, and maintaining system stability under varying load conditions. Built for industrial and power-generation environments, it delivers reliable performance even under high vibration, temperature extremes, and electrical noise.
Technical Specifications
| Parameter | Specification / Estimate |
|---|---|
| Module Type | Load Sharing & Speed Control Module |
| Model Number | 8271-467 |
| Manufacturer | Woodward |
| Primary Function | Regulates engine speed and shares load between parallel generators |
| Control Type | Closed-loop speed control and load-sharing algorithms |
| Inputs | Engine speed sensors, governor signals, generator voltage/current feedback |
| Outputs | Control signals to actuators, governors, and excitation systems |
| Communication | Interfaces with Woodward PLC/CPU modules or analog/digital networks |
| Operating Environment | Industrial-grade; tolerant to temperature variation, vibration, and electrical noise |
| Mounting | Rack, panel, or bulkhead-mounted within control enclosure |
| Dimensions (H × W × D) | 220 × 160 × 60 mm |
| Weight | ≈ 2.1 kg |
| Construction | Rugged PCB assembly with industrial-grade housing and connectors |
| Diagnostics | Fault detection, load imbalance monitoring, communication status |
