Product Introduction

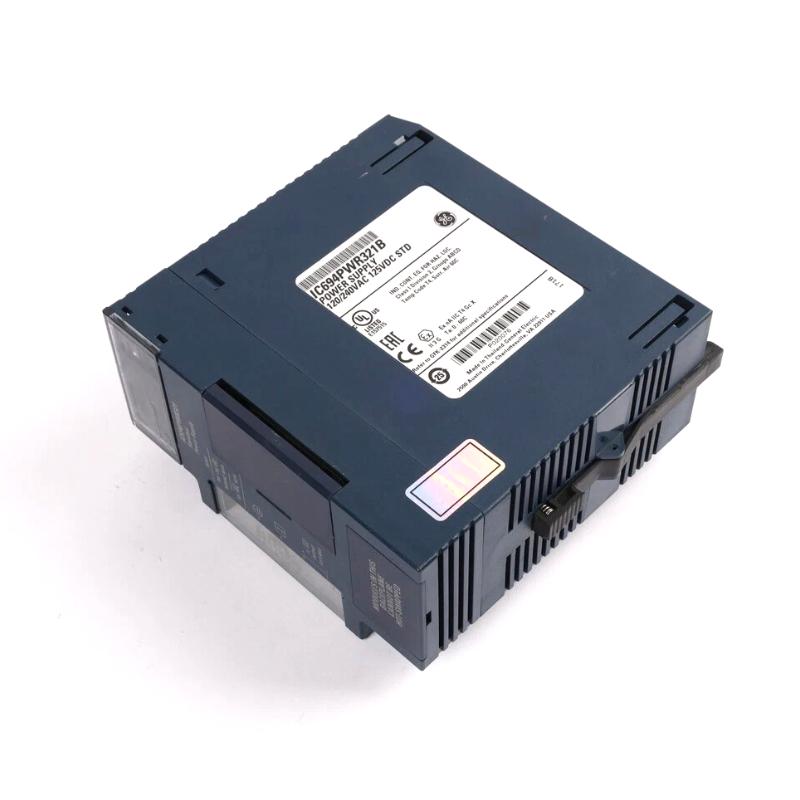

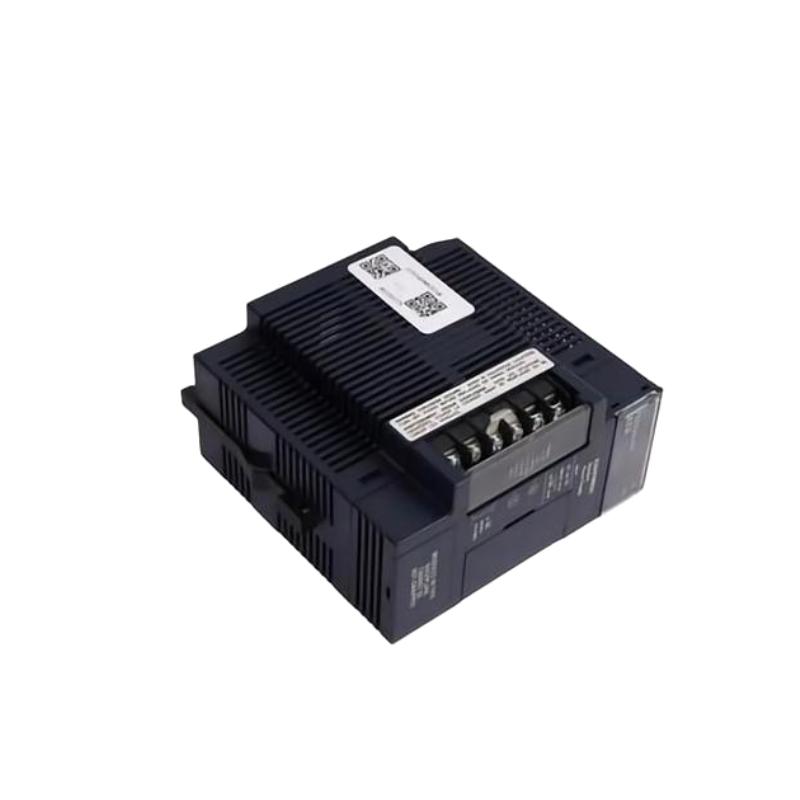

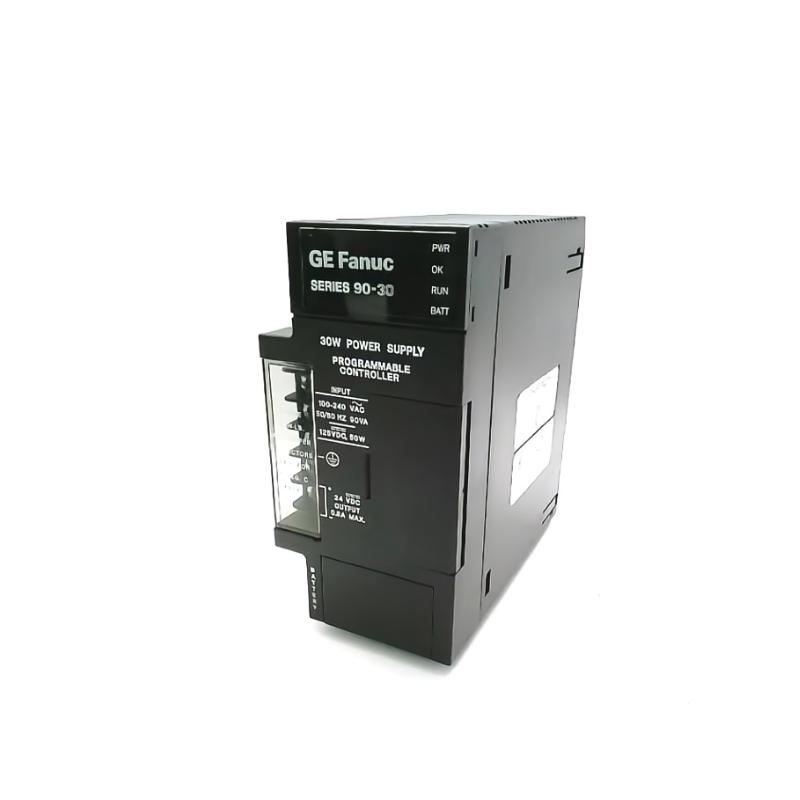

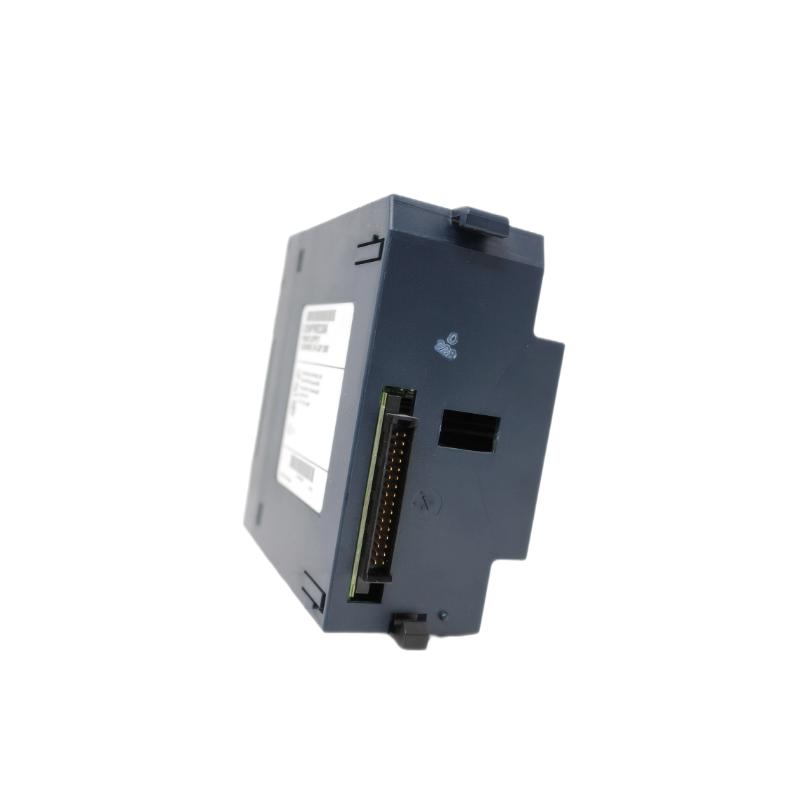

The GE IC694PWR321 Power Supply Module is a rugged, industrial‑grade power supply designed for GE Fanuc / GE Series 90‑30 PLC systems. As a core component in automation installations, this module provides reliable DC power to PLC racks, ensuring consistent operation of processor units, I/O modules, communication cards, and specialty modules.
Engineered for demanding industrial environments, the IC694PWR321 delivers stable voltage under varying load conditions and improves system resilience against electrical disturbances. Its high‑quality construction and robust protection features make it a trusted choice for manufacturing automation, process control systems, utilities, and energy infrastructure where continuous uptime and system integrity are essential.
Technical Specifications
| Specification | Detail |
|---|
| Brand | GE (General Electric) |
| Model | IC694PWR321 |
| Module Type | Power Supply Module |
| Series | GE Series 90‑30 PLC |
| Output Voltage | Regulated DC (standard Series 90‑30 levels) |
| Output Current | Industrial‑grade load capacity |
| Input Voltage | Standard AC mains supply (system dependent) |
| Power Capacity | Designed to supply a full PLC rack of modules |
| Protection Features | Overload, Short‑Circuit, Thermal Protection |
| Mounting | Series 90‑30 PLC Rack |
| Operating Temperature | 0°C – 55°C |
| Storage Temperature | –40°C – 85°C |
| Relative Humidity | 5% – 95% Non‑Condensing |
| Cooling | Passive Airflow via Chassis |
| Dimensions | Standard Series 90‑30 Module Form Factor |
| Weight | Approx. 0.70 kg |
Applications
The IC694PWR321 Power Supply Module is the electrical backbone of Series 90‑30 PLC systems, providing clean power for continuous automation operation.
Typical applications include:
-
Central power support for PLC racks in manufacturing automation
-
Process control installations in chemical, food, and pharmaceutical plants
-
Water and wastewater treatment facility control systems
-
Energy generation and distribution automation
-
Machine tool and material handling system PLC racks
-
Environmental control and monitoring systems
This module ensures that processors and I/O boards receive stable power, enhancing system stability and reducing the risk of unexpected resets or faults due to power fluctuation.
Key Advantages
Reliable DC Power Delivery
Provides regulated DC voltage to Series 90‑30 PLC racks, supporting stable logic processing and I/O functioning.
Industrial‑Grade Protection
Built‑in safeguards such as overload protection, short‑circuit defense, and thermal stability improve resilience in harsh environments.
Seamless PLC Integration
Directly installs into GE Series 90‑30 racks with full compatibility and minimal setup, powering connected modules from a single source.
High Load Capacity
Designed to supply sufficient current to support full racks of CPU, communication, and I/O modules.
Maintenance‑Friendly Design
Standardized form factor and easy‑access terminals simplify installation, service, and replacement.
Technical FAQs
1. What is the purpose of the IC694PWR321 module?
It provides regulated DC power to GE Series 90‑30 PLC racks, powering all connected modules.
2. Where is this power supply installed?
It mounts directly into a Series 90‑30 PLC rack in industrial control cabinets.
3. What type of power does it supply?
It delivers regulated DC voltage appropriate for PLC processors and I/O modules.
4. Can it support multiple modules in a rack?
Yes, it is designed to supply sufficient current to support a full rack of Series 90‑30 modules.
5. Does it include protective features?
Yes, it includes overload, short‑circuit, and thermal protections.
6. What environments is it suitable for?
It’s built for industrial automation environments with typical temperature and humidity ranges.
7. Is external cooling required?
No, passive airflow within the control cabinet is sufficient.
8. Why is a dedicated power supply important for PLC systems?
Stable, regulated power ensures consistent logic execution, prevents module resets, and improves overall system reliability.
9. Can this module be used in retrofit projects?
Yes, it supports both new installations and retrofits in Series 90‑30 control systems.
10. What happens if the power supply fails?
PLC modules may lose power or reset, so redundancy or backup power solutions are recommended for critical systems.
