Product Introduction

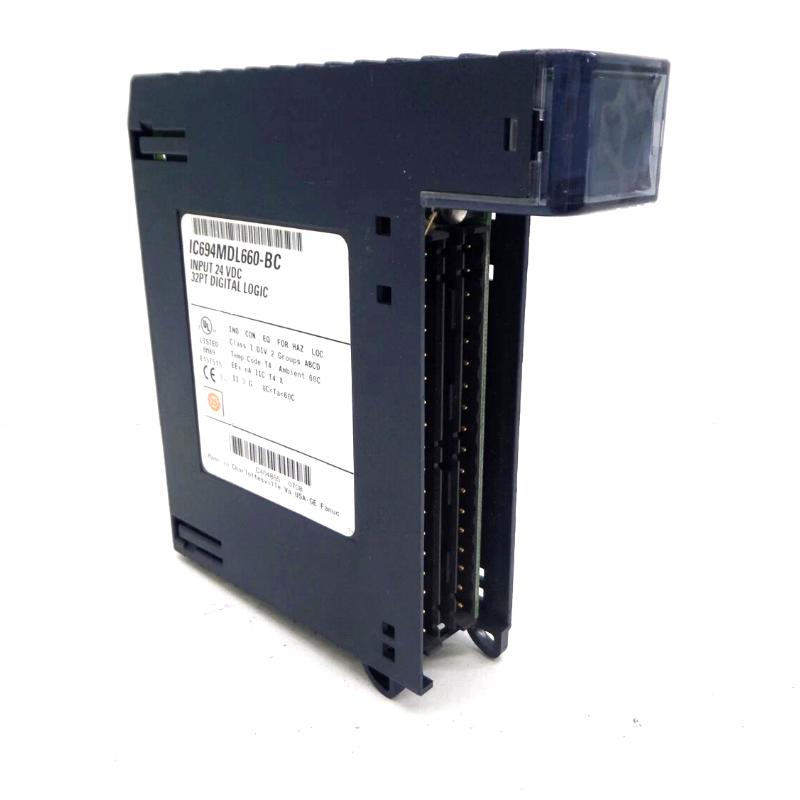

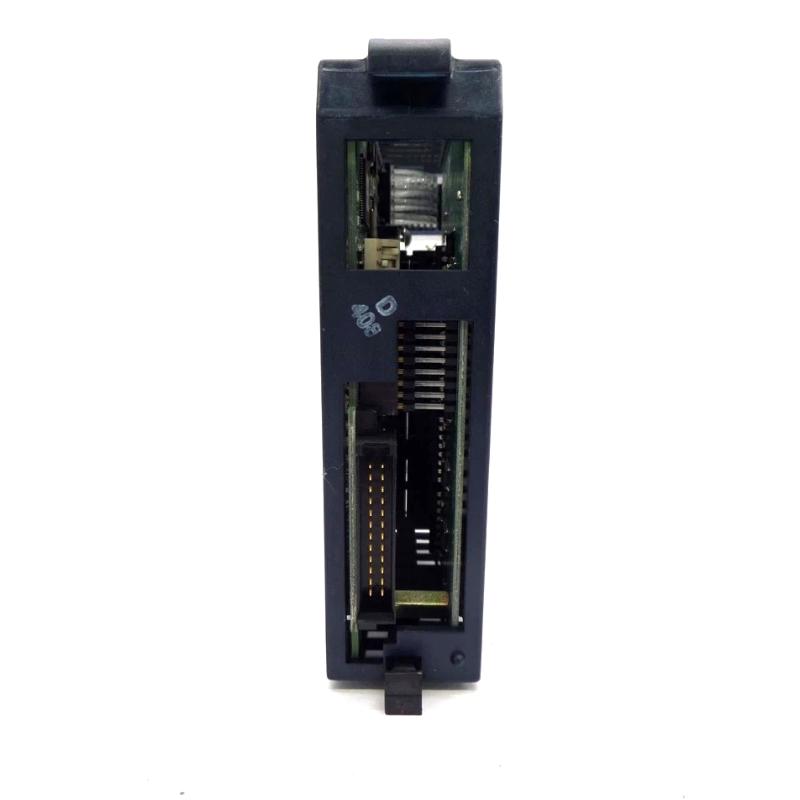

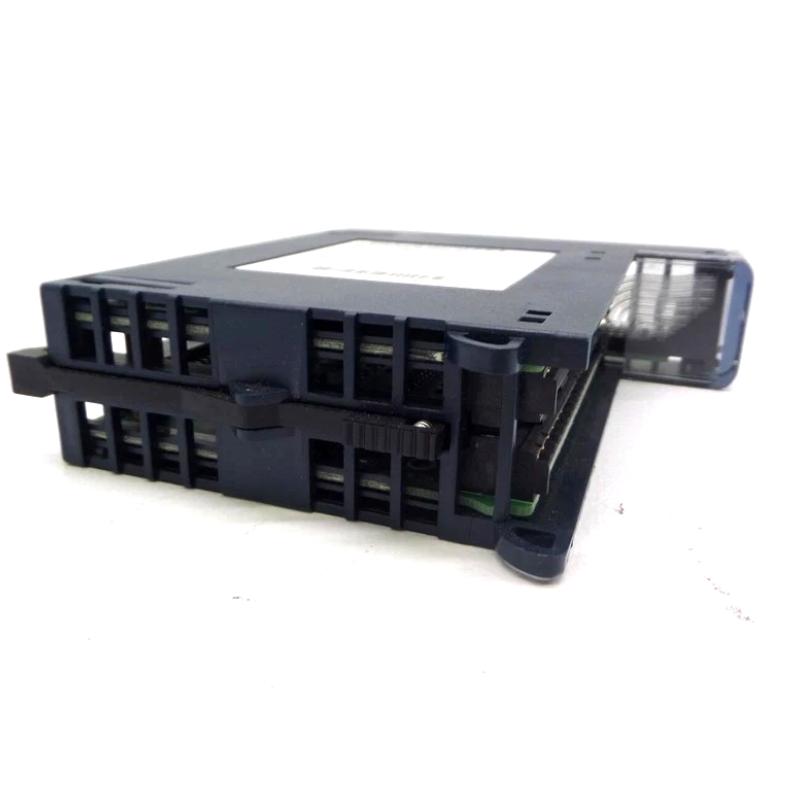

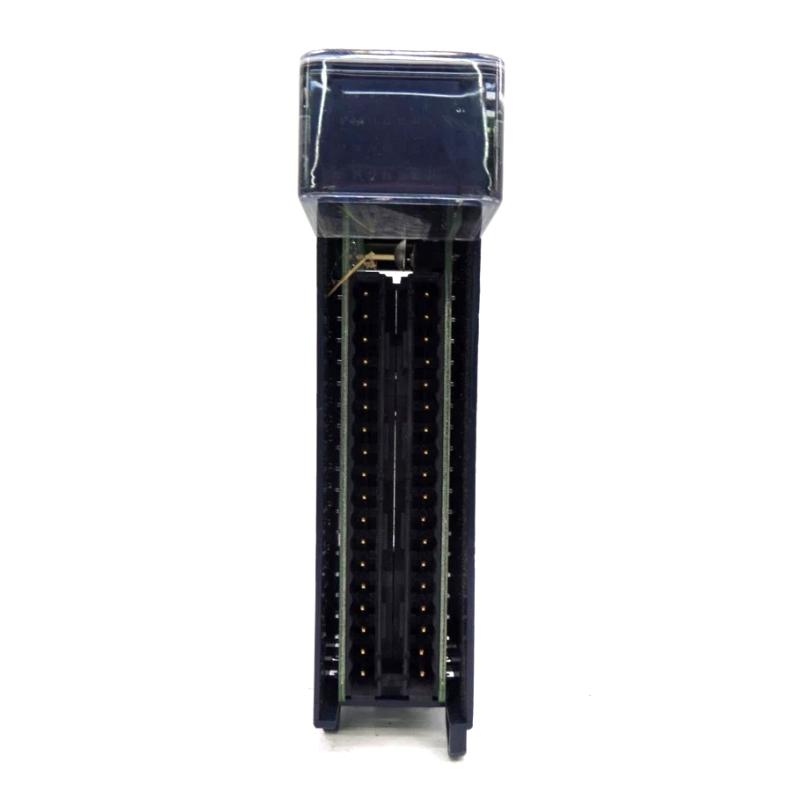

The GE IC694MDL660‑BC RX3i Input Module is a rugged, industrial‑grade discrete input interface designed for GE Fanuc / GE RX3i PLC automation systems. This module provides reliable acquisition of field logic signals — such as switches, contact closures, and digital sensors — and delivers them to the PLC processor for real‑time monitoring and control.
Built with robust construction and optimized for the RX3i platform, the IC694MDL660‑BC offers high noise immunity, fast response times, and consistent performance even in demanding industrial environments. It is ideal for applications where accurate and dependable discrete signal monitoring is critical for automation tasks across manufacturing, process control, energy systems, and machine safety interlocks.
Seamlessly integrating into the RX3i I/O rack, this module helps engineers expand control system input capacity with minimal configuration complexity and reliable signal integrity.
Technical Specifications
| Specification | Detail |
|---|
| Brand | GE (General Electric) |
| Model | IC694MDL660‑BC |
| Module Type | RX3i Discrete Input Module |
| Series | GE RX3i PLC |
| Input Type | DC Discrete Logic Inputs |
| Channels | Multiple DC Input Channels (Standard Configuration) |
| Input Voltage | Typically 24 V DC Logic Level |
| Response Time | High‑Speed Digital Response |
| Isolation | Optical / Electrical Isolation per Channel |
| Signal Conditioning | On‑Board Filtering & Protection |
| Mounting | RX3i PLC Rack Installation |
| Backplane Interface | RX3i Backplane Connector |
| Operating Temperature | 0°C – 60°C |
| Storage Temperature | –40°C – 85°C |
| Relative Humidity | 5% – 95% Non‑Condensing |
| Protective Design | Industrial Circuit Construction |
| Cooling | Passive Airflow |
| Dimensions | Standard RX3i I/O Module |
| Weight | Approx. 0.48 kg |
Applications
The IC694MDL660‑BC RX3i Input Module is designed for a wide range of industrial control and automation environments that require accurate and dependable discrete signal monitoring:
-
Machinery control panels and safety systems
-
Conveyor and material handling systems
-
Packaging and assembly automation
-
PLC‑based logic control in manufacturing environments
-
Process control applications with discrete signal inputs
-
Energy and utility system digital monitoring
-
Fault and status signal interfacing for remote I/O
This module enables fast, stable detection of on/off logic states from sensors, switches, and contact devices — feeding real‑time status information into the PLC controller for precise decision‑making.
Key Advantages
Reliable Discrete Signal Capture
Designed to monitor a wide array of DC discrete inputs with high accuracy and stability.
Seamless RX3i Integration
Directly integrates into GE RX3i PLC racks with full backplane communication compatibility.
High Noise Immunity
On‑board isolation and signal conditioning protect against electrical interference typical of industrial environments.
Robust Industrial Design
Engineered with durable components that perform reliably under vibration, heat, and humidity stress.
Simplified Diagnostics & Maintenance
Standard modular form factor enables easy installation, troubleshooting, and replacement.
Technical FAQs
1. What type of signals does the IC694MDL660‑BC monitor?
It monitors discrete DC logic signals from field devices such as switches and contact closures.
2. How many input channels does the module support?
It supports multiple discrete input channels configured per RX3i standard.
3. What PLC platform is this module designed for?
It is designed for GE RX3i PLC automation systems.
4. Where is the module installed?
It installs directly into an RX3i PLC rack alongside other I/O modules.
5. What input voltage range is supported?
It typically operates with industrial 24 V DC logic input signals.
6. Does the module include signal protection?
Yes, it includes on‑board filtering and isolation to protect against noise and transient events.
7. What is the operating temperature range?
The module operates reliably from 0°C to 60°C.
8. Does this module require external cooling?
No, it uses passive airflow cooling within the control cabinet.
9. Is this module suitable for machine safety applications?
Yes, it provides dependable discrete input monitoring suitable for safety and interlock logic.
10. Why is discrete input monitoring important in PLC systems?
Discrete inputs provide real‑time status of field conditions, essential for accurate logic decisions and process control.
