Product Introduction

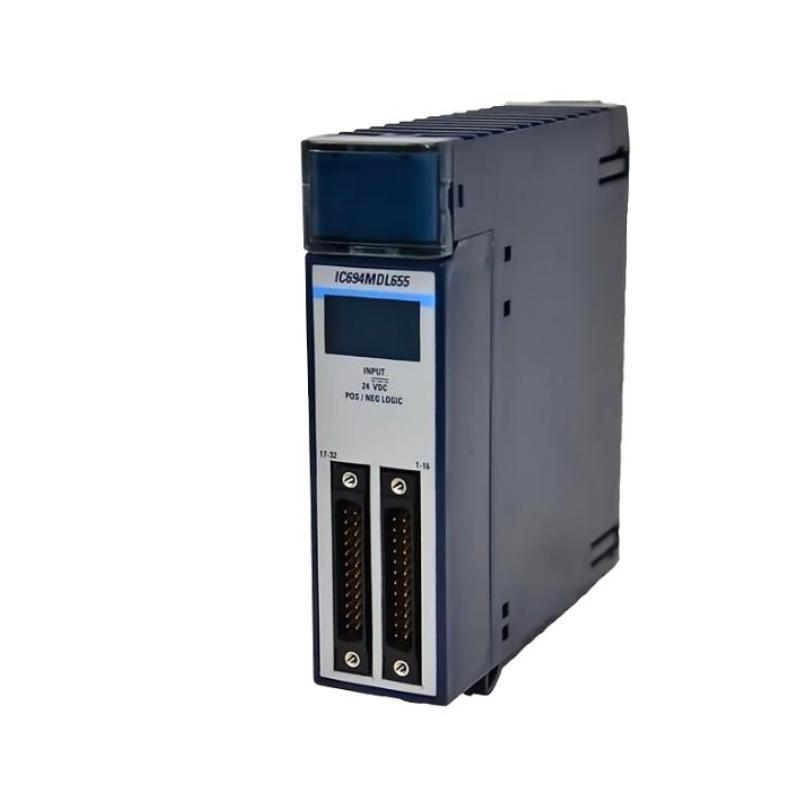

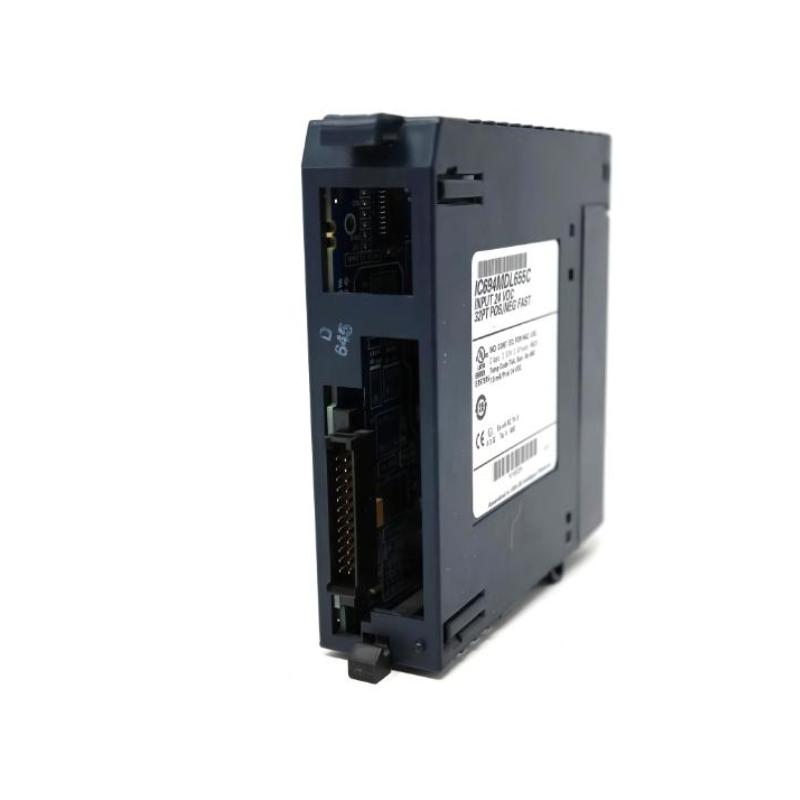

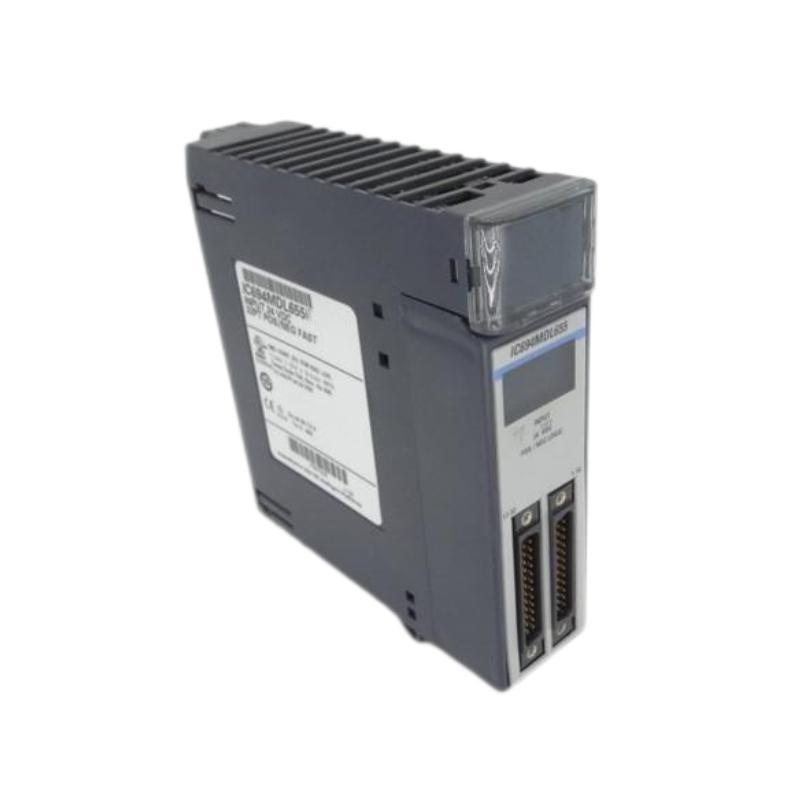

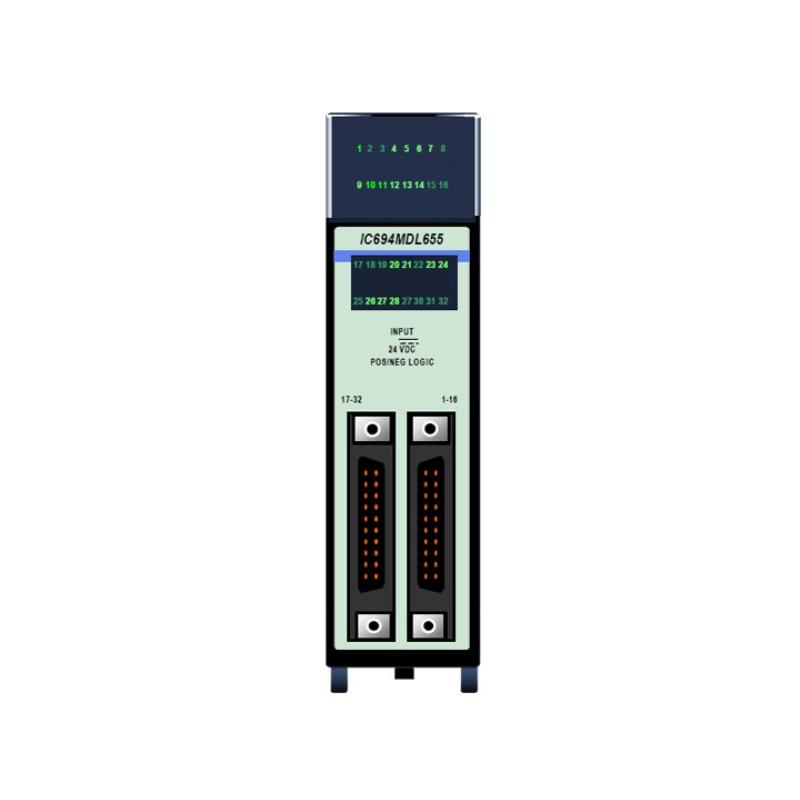

The GE IC694MDL655 RX3i DC Voltage Input Module is a precision‑engineered industrial input board designed for GE Fanuc / GE RX3i PLC automation systems. This module provides reliable measurement of DC voltage signals from field devices, converting them into data that the PLC can use for logic decisions, monitoring, and control functions.
Built for demanding industrial environments, the IC694MDL655 delivers consistent performance with high integrity and noise‑resilient signal acquisition. It’s ideal for applications where accurate DC voltage monitoring is essential — such as machinery control, process automation, energy systems, and sensor‑based monitoring tasks.
With seamless integration into RX3i racks and robust electrical design, this module offers extended system capability while simplifying wiring and diagnostics for engineers and technicians.
Technical Specifications
| Specification | Detail |
|---|
| Brand | GE (General Electric) |
| Model | IC694MDL655 |
| Module Type | DC Voltage Input Module |
| Series | GE RX3i PLC |
| Input Channels | Multiple DC Voltage Inputs (standard configuration) |
| Input Range | Typically 0–10 V DC or similar industrial DC ranges |
| Resolution | High‑Resolution Data Conversion |
| Signal Conditioning | On‑Board Filtering for Stability |
| Mounting | GE RX3i PLC Rack |
| Backplane Interface | RX3i Backplane |
| Operating Temp. | 0°C – 60°C |
| Storage Temp. | –40°C – 85°C |
| Relative Humidity | 5% – 95% Non‑Condensing |
| Protective Design | Industrial‑Grade Circuit Construction |
| Cooling | Passive Airflow |
| Dimensions | Standard RX3i I/O Module Size |
| Weight | Approx. 0.48 kg |
Applications
The IC694MDL655 DC Voltage Input Module is used in industrial control systems where precise DC voltage measurements are required.
Typical application environments include:
-
Machine automation and control panels
-
Process monitoring and control systems
-
Sensor integration for voltage‑based feedback
-
Manufacturing line data acquisition
-
Energy distribution and power monitoring systems
-
Environmental and facility monitoring systems
This module captures DC voltage signals from various field devices — such as transducers, sensors, and switchgear — and provides validated input data to the PLC logic for real‑time decision‑making.
Key Advantages
Accurate DC Voltage Measurement
Designed for high‑resolution acquisition of DC voltage signals with strong noise immunity.
Seamless RX3i Integration
Plugs directly into GE RX3i PLC racks with full backplane compatibility and no external signal converters needed.
Robust Industrial Design
Industrial‑grade circuitry and protective design provide reliable service under harsh environmental conditions.
Enhanced Signal Conditioning
On‑board filtering improves measurement stability and reduces transient interference from adjacent systems.
Simplified Maintenance
Standard form factor and modular design make installation, inspection, and replacement easy during routine service.
Technical FAQs
1. What field signals does the IC694MDL655 measure?
It measures DC voltage signals from field sensors and devices, typically in standard industrial voltage ranges.
2. How many input channels are on the module?
The module supports multiple DC voltage input channels (configured per RX3i specification).
3. What PLC series is this module designed for?
It is designed for use in GE RX3i PLC automation systems.
4. Where is the module installed?
The module installs into an RX3i PLC rack alongside other I/O and control modules.
5. What is the typical operating temperature range?
It operates reliably between 0°C and 60°C in industrial environments.
6. Does it require external signal conditioning?
On‑board filtering and conditioning reduce the need for additional external conditioning for most applications.
7. What is the function of the backplane interface?
The RX3i backplane interface provides power and communication between the PLC controller and the I/O module.
8. Can it tolerate harsh environments?
Yes, the module’s industrial construction supports stable operation with wide humidity tolerance.
9. Is special configuration software needed?
Configuration is typically done through the RX3i PLC programming environment.
10. Why is accurate DC voltage input important in automation?
Accurate DC voltage inputs allow the PLC to monitor analog conditions (like sensor outputs) reliably, ensuring precise control decisions.
