Product Introduction

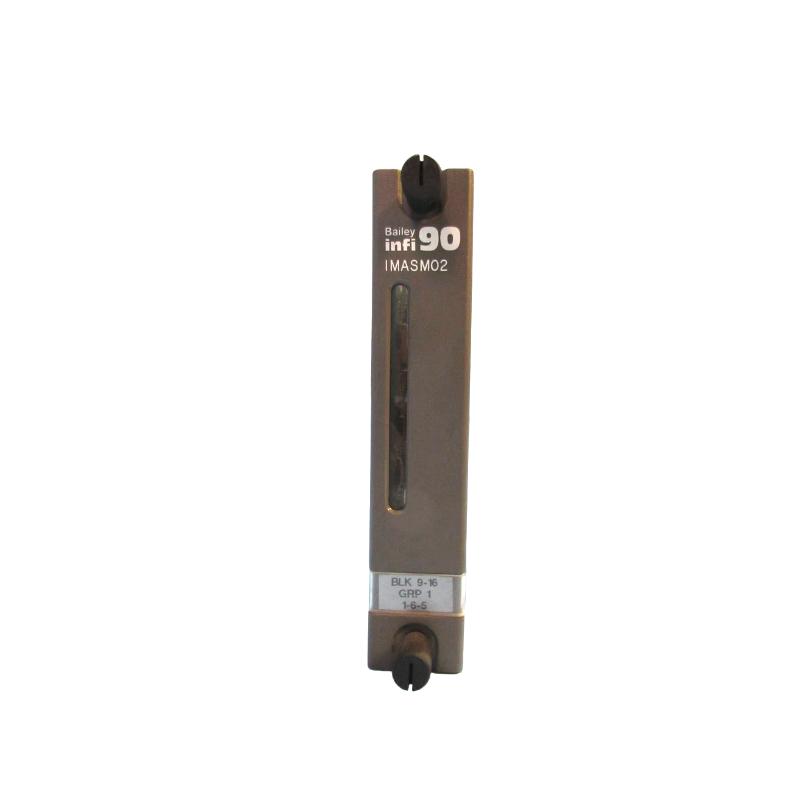

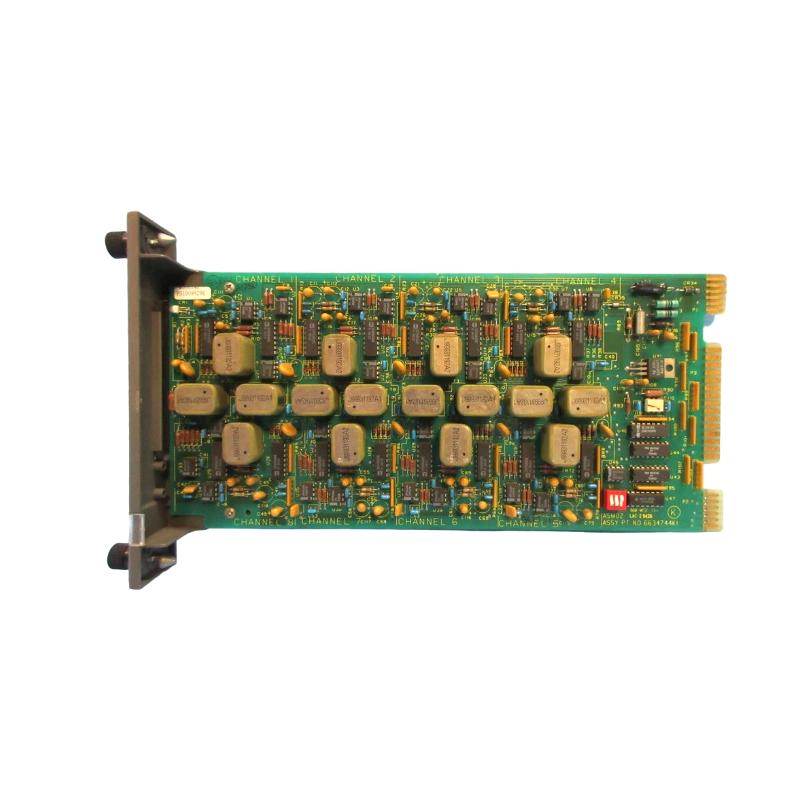

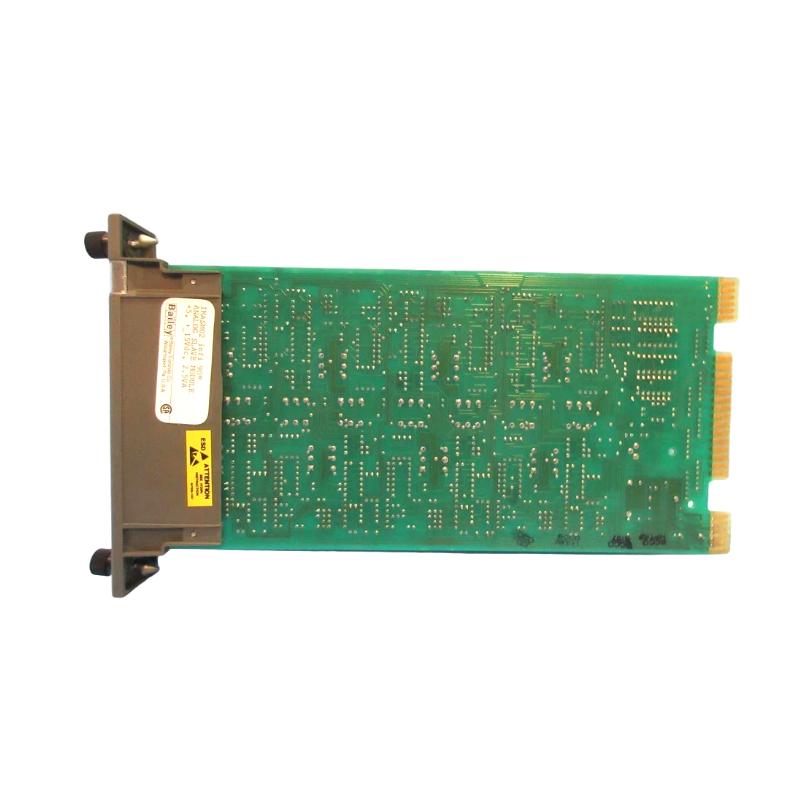

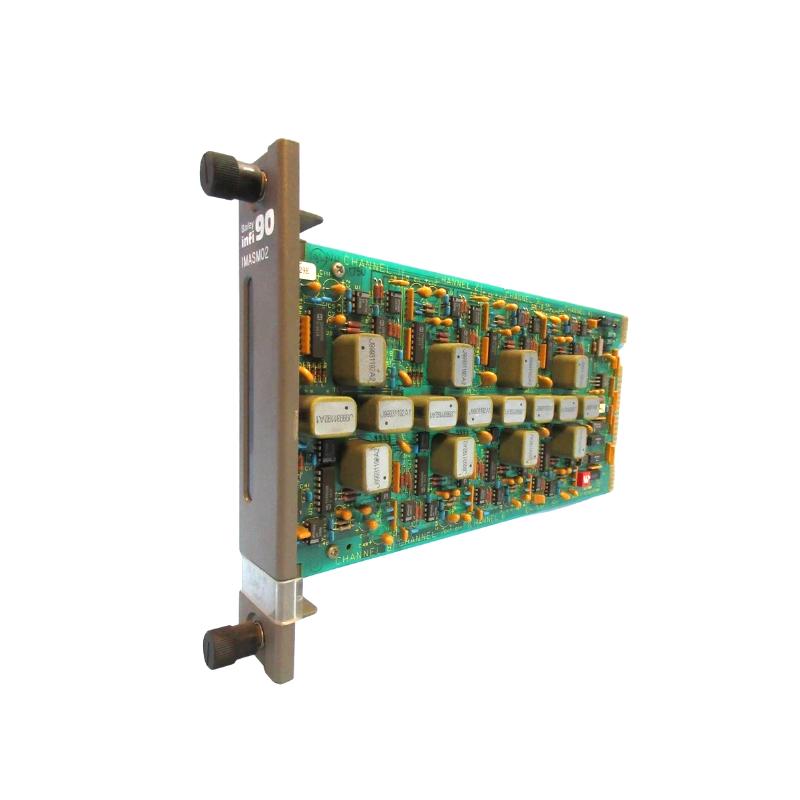

The IMASM02 Analog Input Slave Module serves as an essential component in expanding the analog input capabilities of Bailey DCS systems. By receiving field-level signals from various sensors and transmitters, the module converts them into digital data for further processing by the DCS. It provides a high degree of flexibility, enabling the system to scale easily as more analog inputs are required without needing a complete system overhaul.
This modular approach ensures that control systems remain adaptable, supporting a variety of applications across industries. Its rugged design guarantees reliable operation, even in environments with significant electrical noise, vibration, or thermal variation.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB Bailey |
| Model | IMASM02 |
| Module Type | Analog Input Slave Module |
| Input Type | Analog (4–20 mA, 0–10 V, configurable) |
| Communication | Requires a master module for operation |
| Mounting | DCS Rack Installation |
| Application | Analog input expansion for DCS systems |
| Operating Environment | Industrial control cabinets |
| Dimensions (H × W × D) | 200 × 150 × 80 mm |
| Weight | 1.2 kg (≈ 2.65 lb) |
Application Overview and System Integration
The ABB Bailey IMASM02 Analog Input Slave Module is designed to provide a scalable and reliable solution for expanding analog signal acquisition capacity in a Bailey distributed control system (DCS). As a slave module, it operates under a master module to extend the number of analog channels, enabling more comprehensive data collection from field devices in complex process control systems.
This module is used in:
-
Power generation plants (fossil, nuclear, and combined-cycle)
-
Oil & gas refineries
-
Chemical manufacturing processes
-
Water and wastewater treatment plants
-
Pulp and paper mills
Its robust construction and compatibility with a wide range of analog input devices make it ideal for demanding industrial environments requiring continuous and accurate measurement of key process variables.
Key Performance Advantages
Scalable Channel Expansion
Supports the addition of analog input channels to existing control systems, reducing the need for major system reconfigurations.
High-Precision Signal Acquisition
Ensures reliable, accurate conversion of process signals like pressure, temperature, flow, and level to digital values for further processing.
Robust Communication
Works seamlessly with master modules to communicate process data to the DCS, ensuring a real-time, centralized monitoring solution.
Electrical Noise Immunity
Built to handle industrial electromagnetic interference (EMI) and high-voltage spikes, ensuring uninterrupted signal integrity in noisy environments.
Continuous Operation
Designed for 24/7 operations in mission-critical environments where uptime is essential for system reliability.
Technical FAQs
1. What is the primary function of the IMASM02 module?
It expands the number of analog input channels in a Bailey DCS system by working in tandem with a master module.
2. What types of analog signals can the IMASM02 handle?
It supports industry-standard signals such as 4-20 mA, 0-10 V, and other typical analog input formats.
3. How does it communicate with the control system?
It communicates via the system backplane with its associated master module, which handles data transmission to the DCS.
4. Does the module require external power?
The module is powered by the DCS backplane, which also facilitates communication with the system.
5. Can it be used for remote installations?
Yes, the IMASM02 is designed for both local and remote installations within the DCS rack system.
6. Is there any built-in isolation for protection?
Yes, the module features electrical isolation to protect against ground loops, short circuits, and electrical spikes.
7. What types of field devices are connected to the IMASM02?
It connects to a wide variety of field transmitters and instruments, such as pressure transmitters, temperature sensors, and flow meters.
8. How is the module configured?
Configuration is done through the control system's software tools, where you can set input ranges, scaling, and other parameters.
9. What is the system's accuracy?
Accuracy is typically governed by the quality of field instruments, wiring, and proper system calibration.
10. Can the IMASM02 be used in hazardous areas?
Yes, the module is suitable for use in standard industrial environments, and additional safety equipment can be used for hazardous locations.
