Module Overview

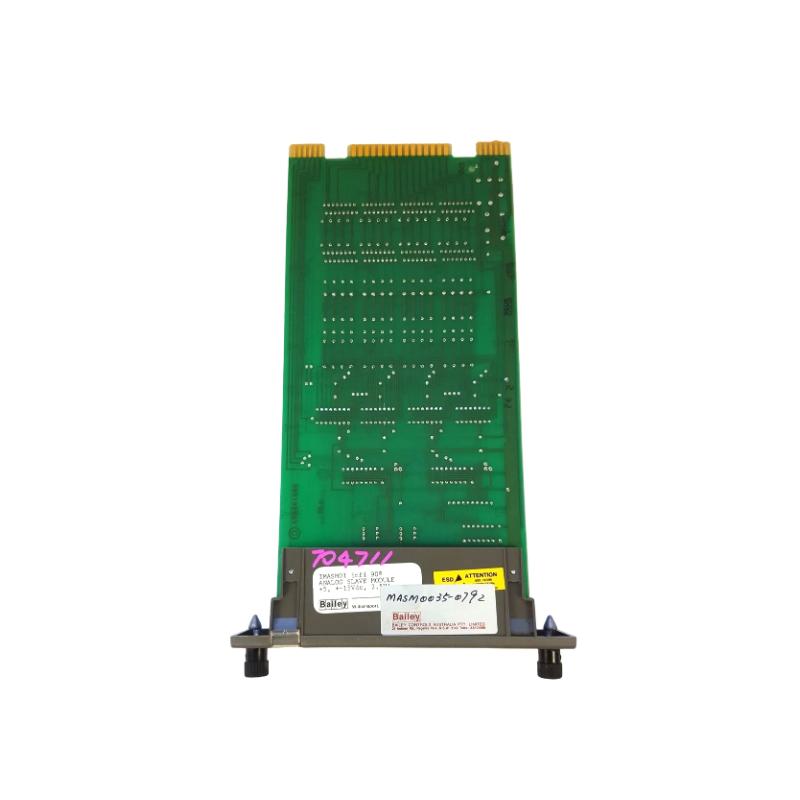

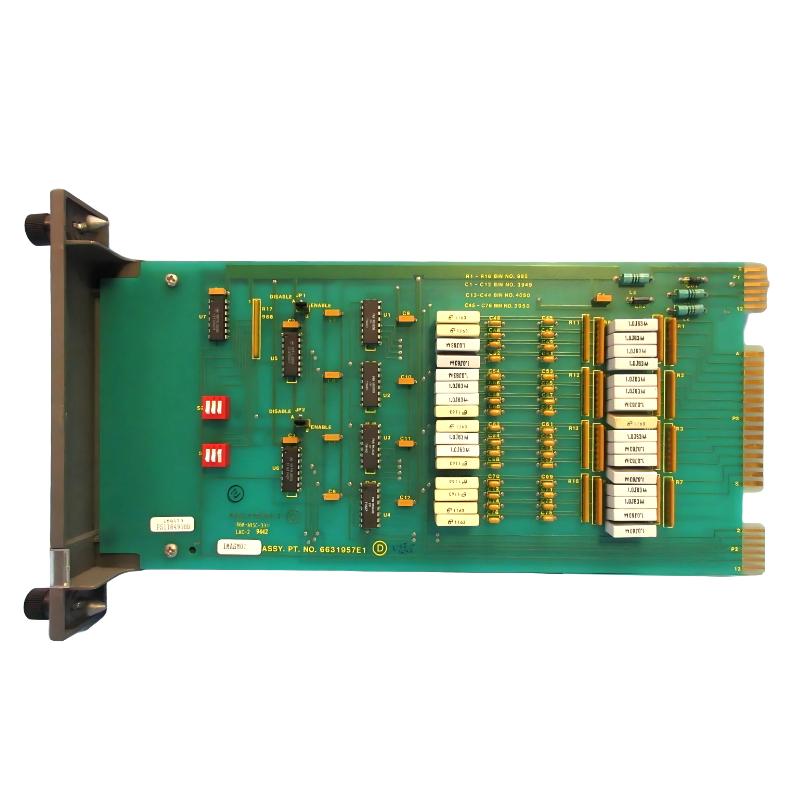

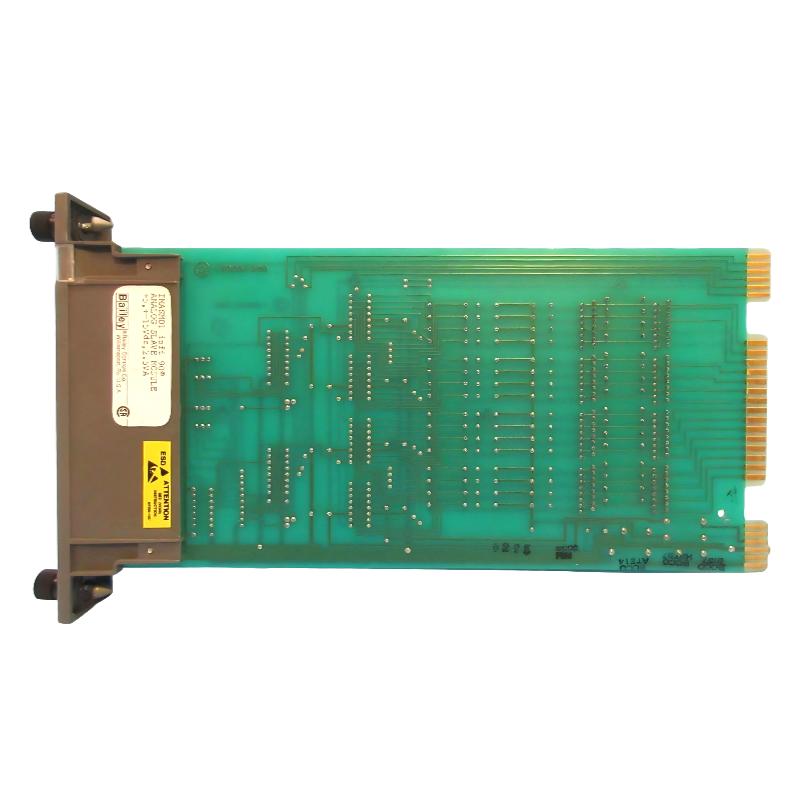

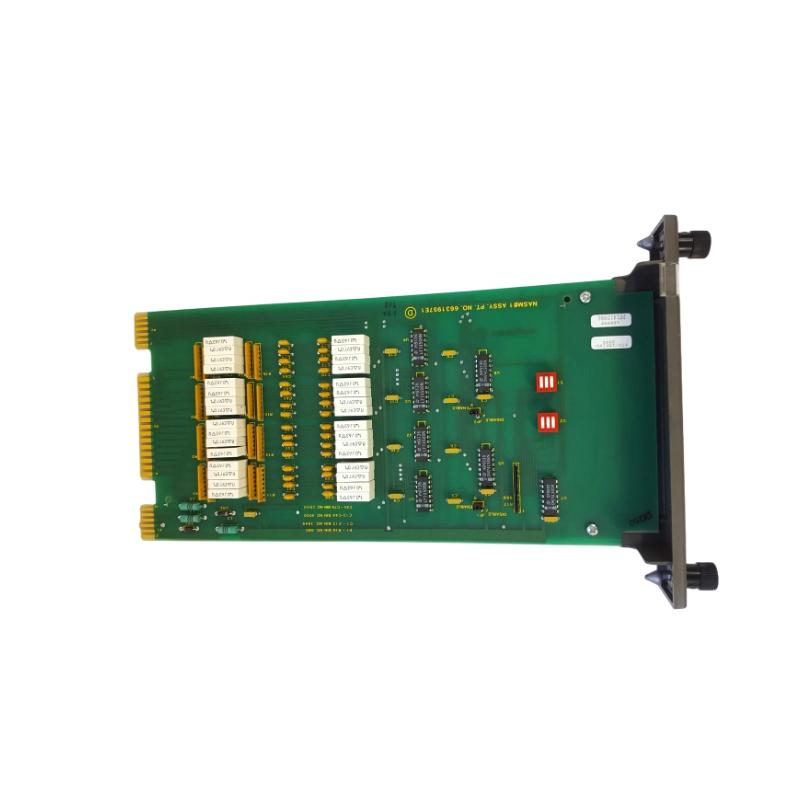

The IMASM01 serves as an analog input expansion component within the ABB Bailey control platform. It receives field analog signals and transfers them via the master module to the distributed control processor for analysis and control logic execution.
Its compact vertical rack design supports high-density installations while maintaining reliable signal integrity. In large industrial facilities where hundreds of analog points must be monitored continuously, this module contributes to a scalable and maintainable control architecture.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB Bailey |
| Model | IMASM01 |
| Module Type | Analog Input Slave Module |
| Input Type | Analog (current/voltage depending on configuration) |
| System Integration | Requires compatible master module |
| Mounting | DCS Rack Installation |
| Application | Process signal expansion |
| Operating Environment | Industrial control cabinet |
| Dimensions (H × W × D) | 178 × 51 × 330 mm |
| Weight | 0.231 kg (≈ 0.51 lb) |
Process Expansion & Remote Signal Integration
The ABB Bailey IMASM01 Analog Input Slave Module is designed to extend analog signal acquisition capacity within Bailey distributed control system architectures. As a slave module, it works in coordination with master interface modules to expand channel density while maintaining signal accuracy and system integrity.
It is typically installed in:
-
Fossil and combined-cycle power plants
-
Refinery process control units
-
Chemical production lines
-
Pulp and paper mills
-
Large-scale water treatment facilities
The module enables scalable analog input expansion without redesigning the core control infrastructure.
Operational Strengths & System Benefits
Scalable Analog Input Expansion
Provides additional analog channels within modular DCS rack configurations.
High Signal Stability
Maintains reliable measurement accuracy for process-critical variables.
Backplane Communication Integration
Communicates directly with associated master modules via the system backplane.
Industrial Electrical Immunity
Designed to withstand EMI, grounding variation, and cabinet-level electrical noise.
Continuous Operation Reliability
Engineered for 24/7 service in mission-critical process environments.
Technical FAQs
1. What is the role of the IMASM01 within the system?
It functions as an analog input slave module that expands channel capacity under a master module.
2. What signal types are supported?
It typically handles standard industrial analog inputs such as 4–20 mA and voltage signals, depending on configuration.
3. Does the module operate independently?
No, it requires coordination with a compatible master module within the system architecture.
4. How does it communicate with the control system?
Communication occurs via the DCS backplane through its associated master interface.
5. Is channel isolation provided?
Yes, isolation is incorporated to protect system electronics from field disturbances.
6. What types of field devices are connected?
Transmitters measuring pressure, temperature, flow, and level are common inputs.
7. Can it be used in redundant configurations?
Yes, depending on the system design and redundancy strategy.
8. How is scaling configured?
Signal scaling and engineering units are configured in the control system software.
9. What affects input measurement accuracy?
Calibration accuracy, wiring integrity, shielding, and grounding quality.
10. Is it suitable for hazardous environments?
It can be installed in safe areas and connected to hazardous-area devices through approved safety barriers.
