Product Introduction

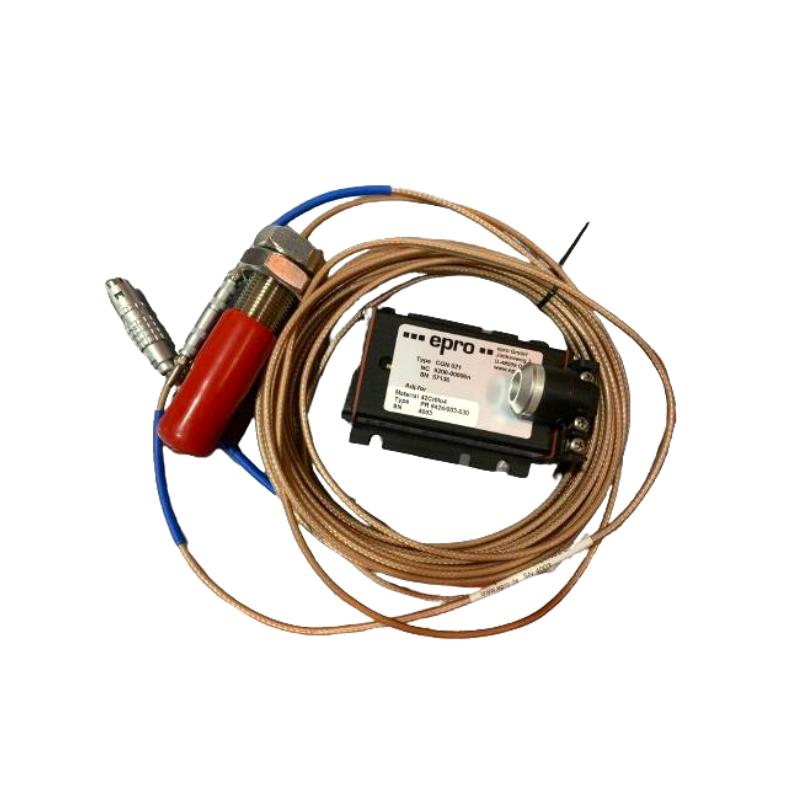

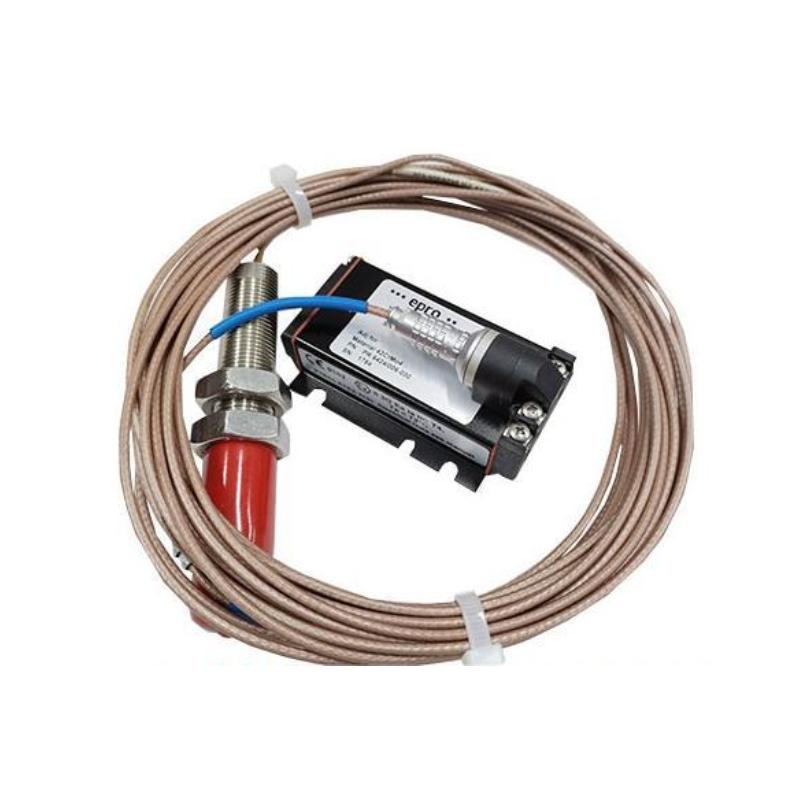

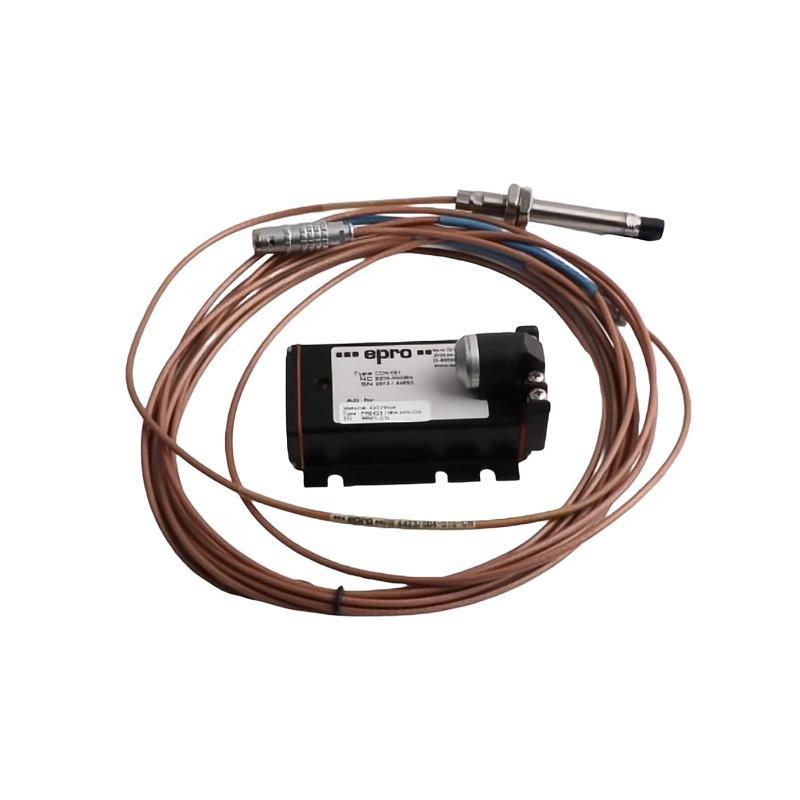

The CON021 + PR6424/01 system is a precision displacement measurement solution designed for industrial rotating machinery protection. The 16 mm probe generates a high-frequency electromagnetic field at its tip. As shaft position changes, eddy currents induced in the conductive surface alter the probe impedance. These changes are processed by the CON021 converter into proportional analog signals.
In high-value assets such as turbines and compressors, this system plays a critical role in early fault detection, helping prevent excessive vibration, misalignment, and catastrophic mechanical failure.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Epro |
| Model | CON021 + PR6424/01 |
| Sensor Type | Eddy Current Displacement Sensor |
| Probe Diameter | 16 mm |
| Sensor Head Diameter | 16 mm |
| Measurement Principle | Non-contact eddy current |
| Target Material | Conductive metallic surfaces |
| Typical Use | Shaft vibration and axial displacement monitoring |
| Signal Output | Analog (via CON021 converter) |
| Installation Type | Threaded industrial mounting |
| Weight | 0.32 kg (≈ 0.71 lb) |
Deployment Scenarios in Rotating Equipment Monitoring
In large turbomachinery installations, stable and precise shaft measurement is non-negotiable. The Epro CON021 signal converter paired with the PR6424/01 16 mm eddy current probe is designed specifically for this task. It forms a complete non-contact displacement measurement chain used in continuous condition monitoring and protection systems.
Typical field installations include:
-
Utility steam turbines
-
Gas turbines in combined-cycle plants
-
Petrochemical compressors
-
High-speed industrial pumps
-
Generator shaft monitoring systems
The 16 mm probe diameter supports measurement stability in heavy-duty machinery where shaft mass, vibration amplitude, and environmental stress are significant.
Functional Strengths & Engineering Benefits
Non-Contact Electromagnetic Measurement
Eliminates mechanical wear while ensuring precise shaft displacement detection.
High Linearity and Sensitivity
Provides stable micron-level measurement suitable for vibration and axial position monitoring.
Robust Industrial Construction
Designed to withstand mechanical shock, vibration, and industrial temperature fluctuations.
Signal Conditioning via CON021
The converter processes probe signals into calibrated analog outputs compatible with monitoring racks and DCS/PLC interfaces.
Optimized for Continuous Operation
Engineered for 24/7 operation in critical rotating assets where predictive maintenance is essential.
Technical FAQs
1. What measurement technology does the PR6424/01 use?
It uses the eddy current (inductive) principle for non-contact displacement measurement.
2. What is the primary function of the CON021 unit?
It conditions and linearizes the probe signal, producing a stable analog output for monitoring systems.
3. What machinery is this probe typically used on?
It is widely applied on turbines, compressors, pumps, and generators for shaft vibration monitoring.
4. Can it measure axial and radial displacement?
Yes, depending on probe positioning, it can monitor both axial thrust and radial vibration.
5. Is it compatible with machinery protection systems?
Yes, it integrates into industrial vibration monitoring and protective shutdown systems.
6. What type of target surface is required?
The probe requires a conductive metallic surface, typically carbon or alloy steel shafts.
7. Does the sensor require physical contact?
No, measurement is completely non-contact.
8. What affects measurement accuracy?
Accuracy depends on calibration, installation gap, target material, and system configuration.
9. Can multiple probes operate simultaneously on one shaft?
Yes, multi-probe configurations are standard in turbomachinery monitoring.
10. Is recalibration required after installation?
Factory calibration is standard, but verification during commissioning is recommended.
