System Functional Overview

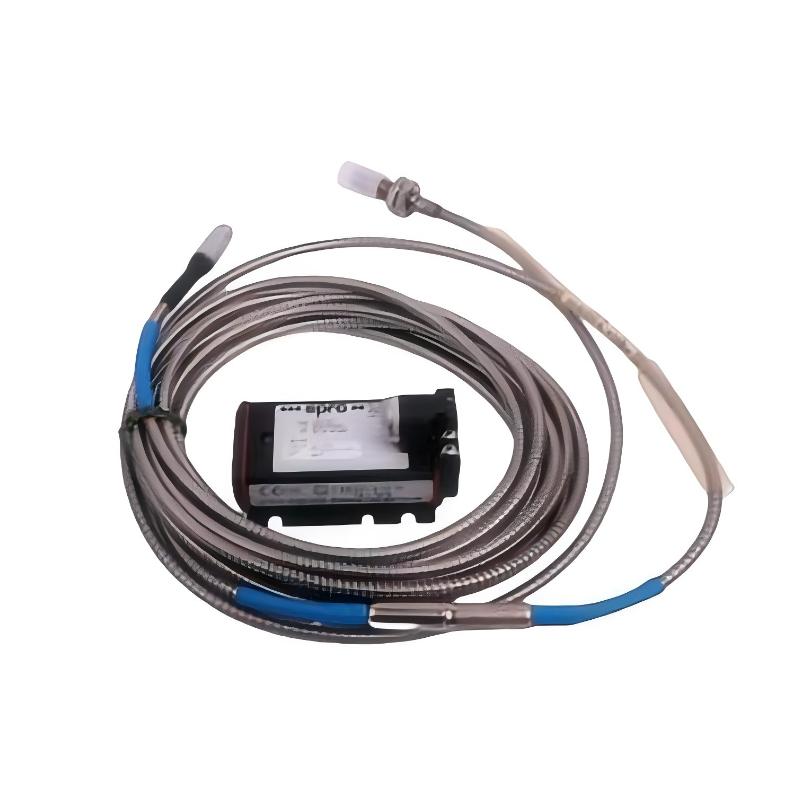

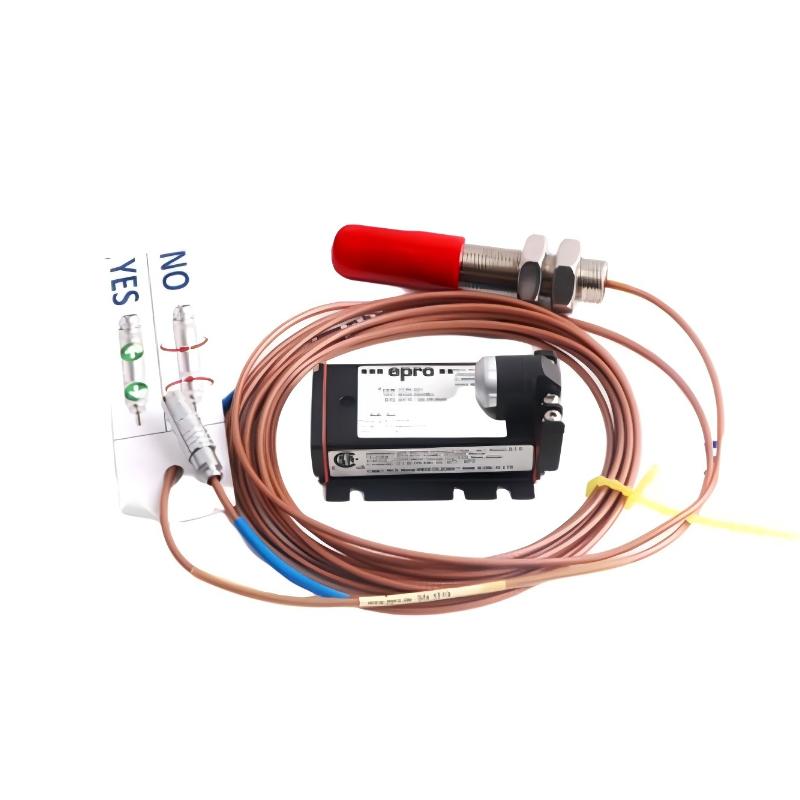

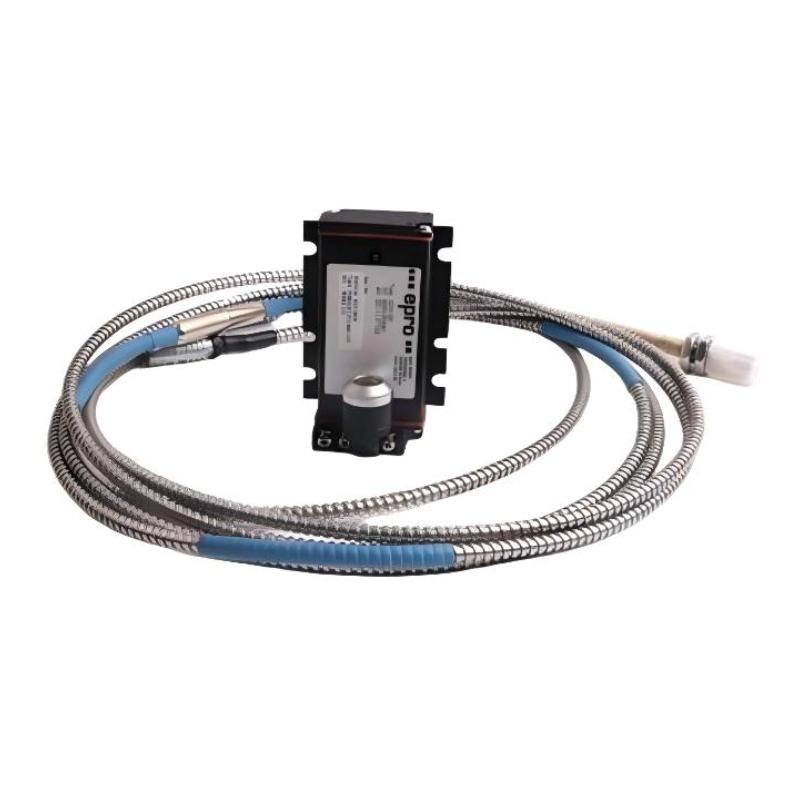

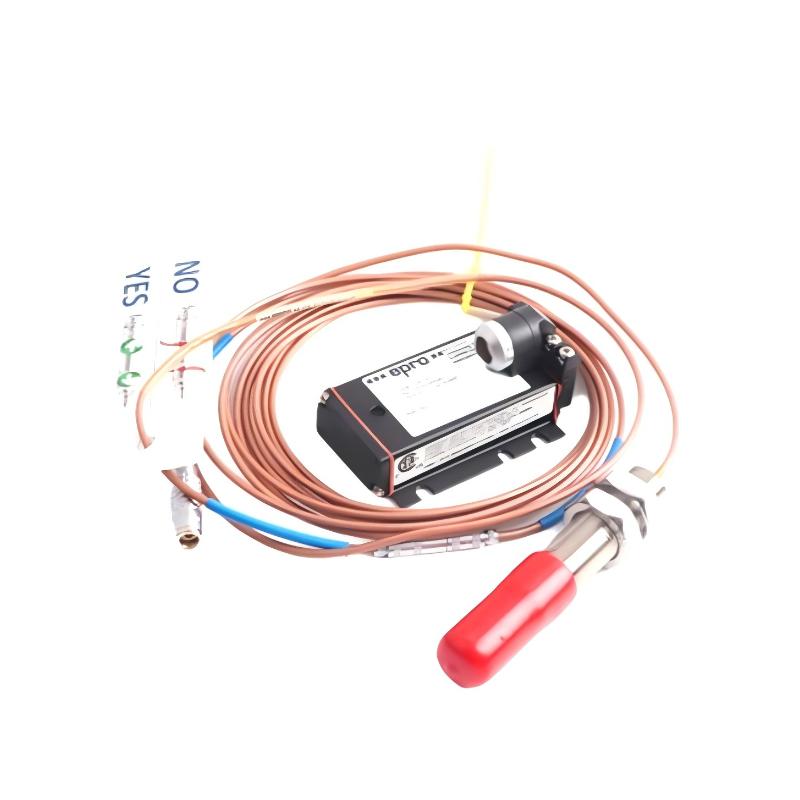

The CON021 + PR6424/007-110-CN configuration forms a complete eddy current displacement measurement chain. The probe generates a high-frequency electromagnetic field at the sensor tip. Variations in the distance to a conductive shaft cause measurable changes in impedance, which are converted by the CON021 into a proportional analog signal.
This system is widely used in predictive maintenance and protective shutdown architectures, where early detection of shaft vibration, eccentricity, or axial displacement is essential to preventing catastrophic equipment failure.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Epro |
| Model | CON021 + PR6424/007-110-CN |
| Sensor Type | Eddy Current Displacement Sensor |
| Probe Diameter | 16 mm |
| Measurement Principle | Non-contact eddy current |
| Target Material | Conductive metallic surfaces |
| Typical Application | Shaft vibration and displacement monitoring |
| Signal Output | Analog (via CON021 signal converter) |
| Installation | Threaded probe mounting |
| Sensor Head Diameter | 16 mm |
| Weight | 0.32 kg (≈ 0.71 lb) |
Machinery Protection & Monitoring Applications
The Epro CON021 signal converter combined with the PR6424/007-110-CN 16 mm eddy current sensor is engineered for continuous, high-precision monitoring of rotating machinery. This probe system is primarily used in critical asset protection environments where accurate shaft displacement and vibration measurement are essential.
It is commonly installed in:
-
Steam and gas turbines
-
Centrifugal compressors in petrochemical plants
-
Large industrial pumps and blowers
-
Turbo-generators in power stations
-
High-speed gearboxes in process industries
The 16 mm probe diameter makes it suitable for heavy-duty machinery where larger measurement ranges and stable signal response are required.
Performance Characteristics & Engineering Value
Non-Contact Measurement Technology
Operates using the eddy current principle, eliminating mechanical wear and ensuring long operational life.
High Signal Stability
Delivers consistent output even in high-vibration and thermally dynamic environments.
Wide Dynamic Frequency Response
Capable of capturing both slow shaft movement and high-frequency vibration events.
Integrated Signal Conditioning
The CON021 converter provides a calibrated and conditioned output signal for direct integration into monitoring systems.
Designed for Continuous Operation
Built for 24/7 service in mission-critical machinery protection systems.
Technical FAQs
1. What is the working principle of the PR6424 probe?
It uses an electromagnetic field to detect changes in distance between the probe tip and a conductive target surface.
2. What is the typical use of the /007-110-CN variant?
This configuration is often selected for specific cable lengths and connector types suitable for industrial installations in certain regions.
3. What type of output does the CON021 provide?
It provides a linearized analog signal compatible with machinery monitoring and protection systems.
4. Is the system suitable for API 670 applications?
Yes, it is commonly applied in systems designed to meet API 670 machinery protection standards.
5. What materials can the sensor detect?
It measures conductive metallic materials such as steel shafts.
6. Can the sensor withstand high ambient temperatures?
Yes, within specified industrial temperature ranges depending on installation configuration.
7. Does it require physical contact with the rotating shaft?
No, the measurement is entirely non-contact.
8. How is measurement range determined?
Range depends on probe diameter, calibration setup, and target material properties.
9. Can multiple probes be installed on one shaft?
Yes, multiple probes are typically installed for radial and axial displacement monitoring.
10. How is calibration verified?
Calibration is factory-defined and can be verified using approved test targets and monitoring equipment.
