Industrial Non-Contact Displacement Sensor for Turbomachinery Monitoring

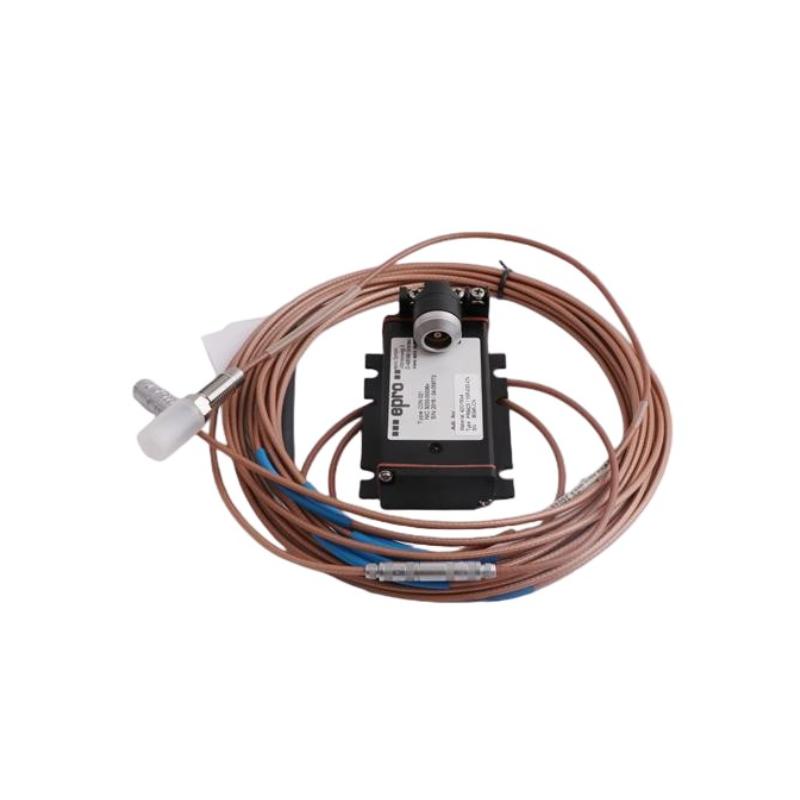

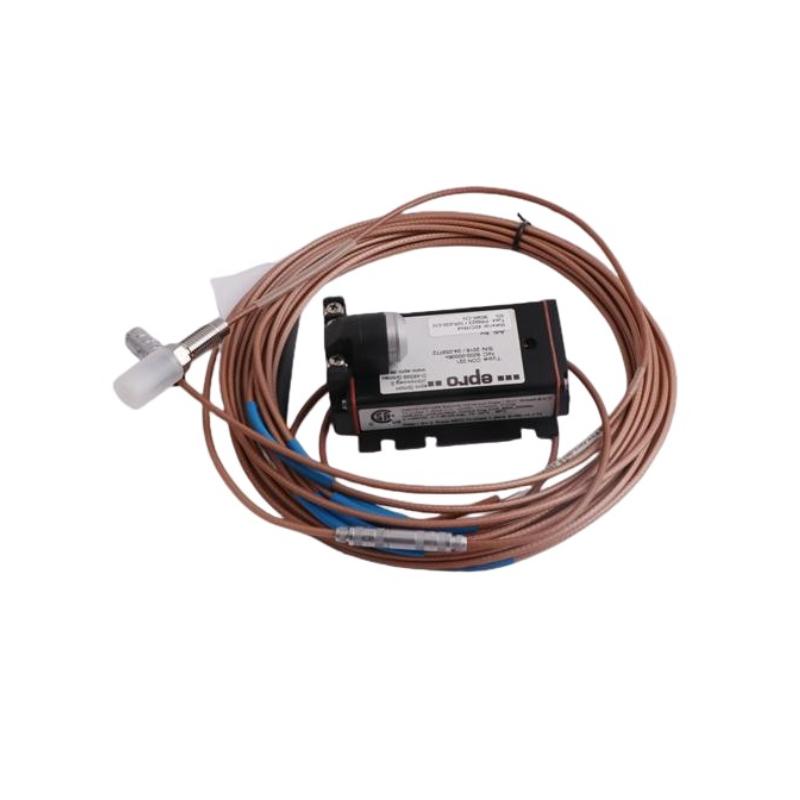

The Epro PR6423/10R-030-CN 8 mm Eddy Current Sensor is a precision non-contact measurement device designed for monitoring displacement, vibration, and position in rotating machinery. Built for demanding industrial environments, this sensor uses advanced eddy-current technology to deliver highly accurate and stable readings without mechanical contact, ensuring long service life and reliable operation.
Commonly used in turbomachinery protection systems, the PR6423 series is engineered to measure radial and axial shaft displacement, eccentricity, and vibration in critical equipment such as turbines, compressors, pumps, and gearboxes. Its rugged stainless-steel housing and industrial-grade cable ensure durability in high-temperature and high-vibration environments.
Technical Specifications
| Parameter | Details |
|---|
| Model | Epro PR6423/10R-030-CN |
| Product Type | Eddy Current Displacement Sensor |
| Sensor Diameter | 8 mm |
| Linear Measuring Range | 2 mm (80 mils) |
| Initial Air Gap | 0.5 mm |
| Sensitivity (ISF) | 8 V/mm ±5% |
| Output Signal | Analog voltage or current signal |
| Supply Voltage | Typically 12–24 V DC |
| Accuracy | Up to ±0.025 mm |
| Target Material | Ferromagnetic steel (42CrMo4 standard) |
| Minimum Shaft Diameter | 25 mm |
| Protection Class | IP66 |
| Operating Temperature | -35 °C to +200 °C |
| Housing Material | Stainless steel |
| Cable Material | PTFE insulated industrial cable |
Typical Industrial Applications
The PR6423/10R-030-CN is widely used in critical machinery monitoring systems where precise non-contact measurement is required:
-
Steam, gas, and hydro turbine shaft monitoring
-
Compressor vibration and displacement measurement
-
Pump and fan shaft position detection
-
Gearbox eccentricity and rotational analysis
-
Industrial rotating equipment protection systems
Because the sensor never physically contacts the measured surface, it ensures accurate readings even in high-speed rotating environments.
Typical Industrial Applications
The PR6423/10R-030-CN is widely used in critical machinery monitoring systems where precise non-contact measurement is required:
-
Steam, gas, and hydro turbine shaft monitoring
-
Compressor vibration and displacement measurement
-
Pump and fan shaft position detection
-
Gearbox eccentricity and rotational analysis
-
Industrial rotating equipment protection systems
Because the sensor never physically contacts the measured surface, it ensures accurate readings even in high-speed rotating environments.
Technical FAQs
1. What does the PR6423/10R-030-CN measure?
It measures shaft displacement, vibration, eccentricity, and position in rotating machinery.
2. Is the sensor contact-based?
No. It uses eddy-current technology to measure targets without physical contact.
3. What is the measuring range?
The linear measuring range is approximately 2 mm.
4. What industries commonly use this sensor?
Power generation, oil & gas, petrochemical plants, and heavy industrial machinery monitoring.
5. What output signals are available?
Typical systems provide voltage or 4–20 mA analog output through a compatible converter.
6. What converter works with this sensor?

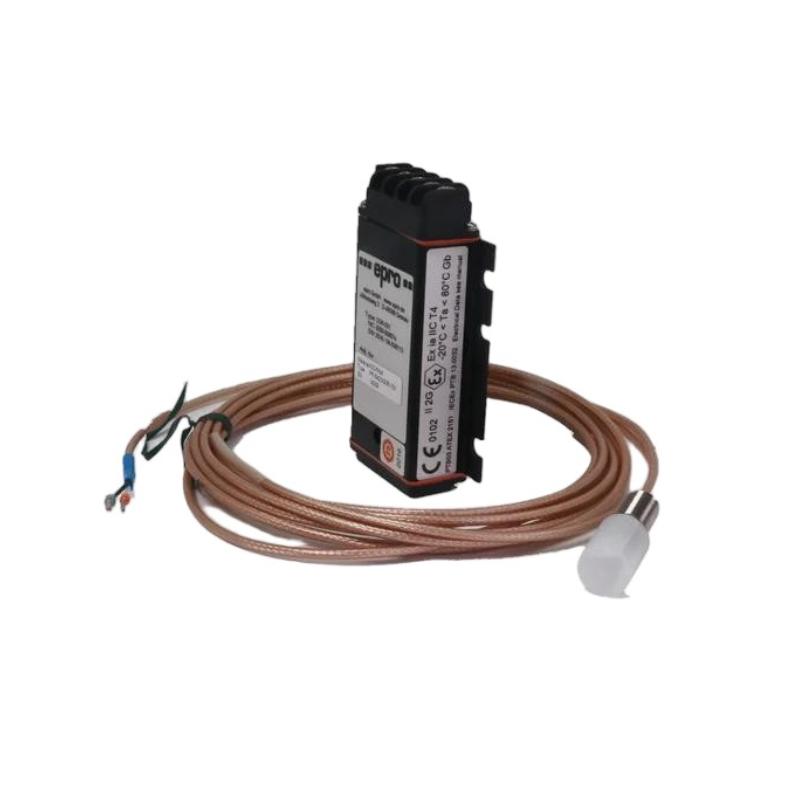

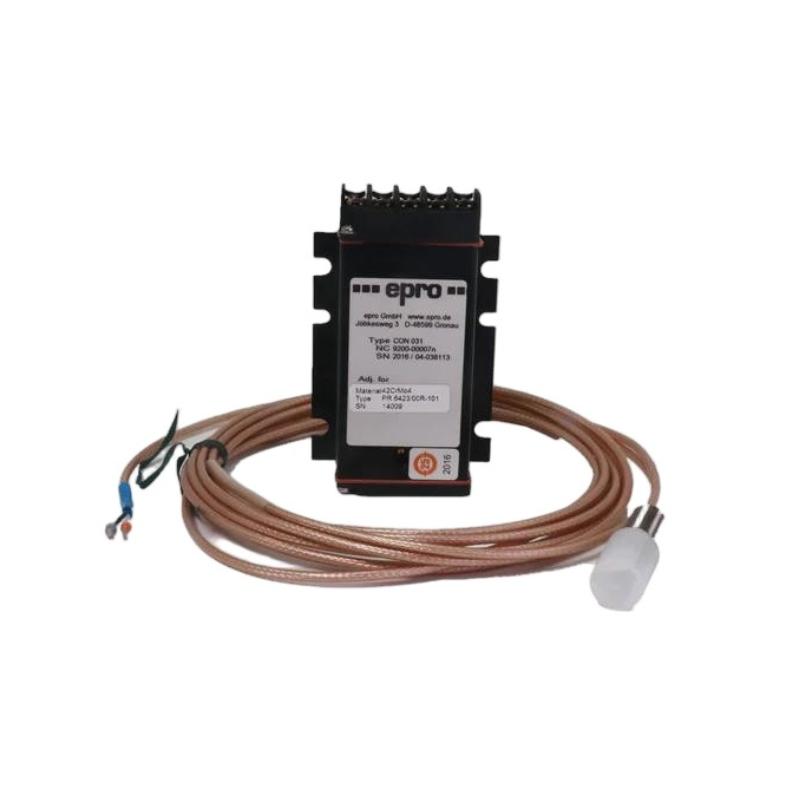

Commonly used with CON021 signal converters.
7. What materials can the sensor detect?
Primarily ferromagnetic metals such as 42CrMo4 steel.
8. What is the operating temperature limit?
Up to 200 °C for the sensor head.
9. What protection rating does the sensor have?
It has IP66 environmental protection.
10. Can it measure high-speed rotating shafts?
Yes, it is designed for high-speed turbomachinery monitoring.
