Product Overview and Architectural Role

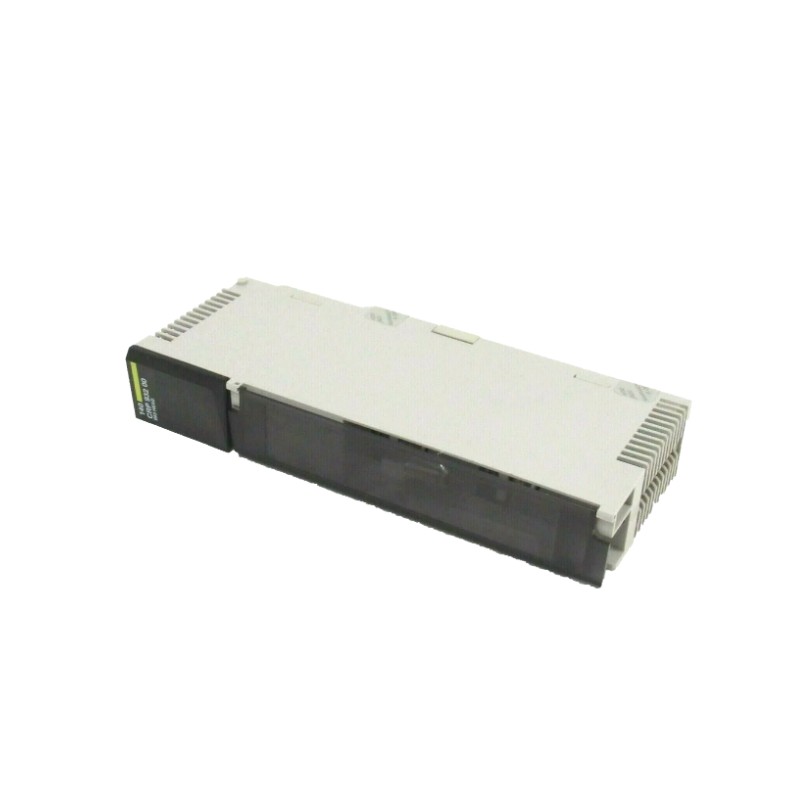

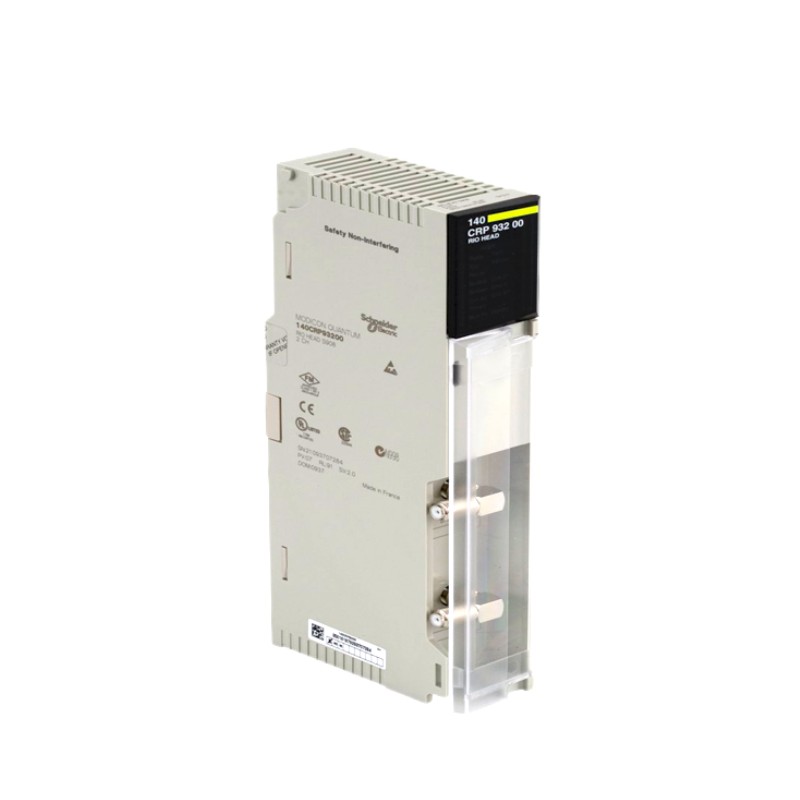

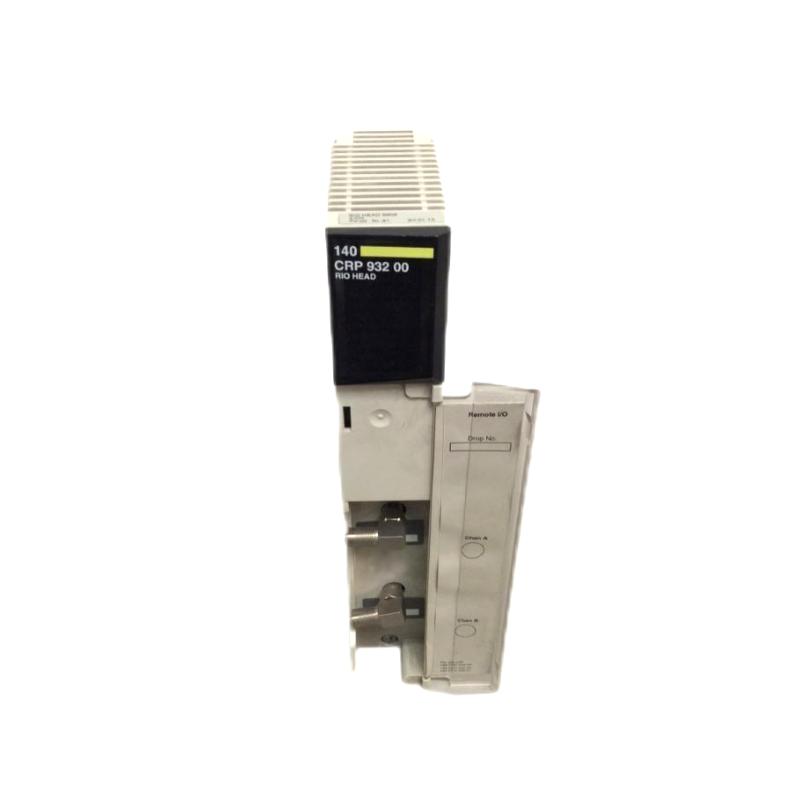

The 140CRP93200 RIO Header Adapter Module serves as a communication interface within Modicon Quantum distributed architectures. Rather than acting as a processor, it operates as a network coordination point for remote I/O racks.
In large industrial plants where centralized CPUs must interface with widely distributed field I/O, this module ensures predictable data transmission over coaxial infrastructure. Its continued relevance stems from the durability and installed base of Quantum systems worldwide.
Engineers managing brownfield installations often rely on this module to maintain system integrity while gradually implementing modernization strategies.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Schneider Electric |
| Series | Modicon Quantum |
| Model | 140CRP93200 |
| Module Type | RIO Header Adapter Module |
| Network Type | Quantum Remote I/O (Coaxial) |
| Mounting | Backplane installation (Quantum rack) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | 50 × 165 × 310 mm |
| Weight | 0.531 kg(≈ 1.17 lb) |
Deployment Landscape and System Integration Context
The Schneider Electric 140CRP93200 RIO Header Adapter Module is primarily deployed within legacy and extended-life distributed control architectures based on the Modicon Quantum platform. It functions as a Remote I/O (RIO) head-end adapter, bridging the central processor and remote I/O drops over coaxial network topology.
Typical applications include:
-
Large-scale water and wastewater treatment facilities
-
Oil & gas pipeline monitoring stations
-
Power distribution substations
-
Heavy manufacturing plants with geographically dispersed I/O
-
Mining conveyor and processing operations
Its strength lies in maintaining stable communication across extended distances where deterministic remote data exchange remains critical.
Engineering Advantages and Operational Value
Deterministic Remote I/O Communication
Provides stable and time-consistent data exchange between Quantum CPUs and remote I/O racks.
Extended Network Reach
Designed for long-distance coaxial RIO network topologies, ideal for large industrial footprints.
System Longevity Support
Enables modernization strategies while preserving installed Quantum I/O infrastructure.
High Noise Immunity
Robust communication design suitable for electrically noisy environments.
Seamless Quantum Integration
Direct compatibility with Modicon Quantum processors without additional conversion layers.
Technical FAQs
1. What network topology does the 140CRP93200 support?
It supports coaxial-based Remote I/O network architecture typical of Quantum RIO systems.
2. Is this module compatible with Ethernet-based I/O networks?
No, it is specifically designed for Quantum RIO coaxial communication networks.
3. What redundancy features are available?
Redundant RIO architectures can be implemented at the system level using redundant heads and processors.
4. How many remote drops can be supported?
The number of drops depends on the Quantum system configuration and network design limits.
5. Does it support hot standby CPU configurations?
Yes, when integrated within a properly configured Quantum hot standby system.
6. What diagnostics are available?
LED indicators provide network status, communication health, and fault diagnostics.
7. Can it be used in upgraded systems migrating toward Ethernet?
It is generally used in legacy or hybrid systems; Ethernet migration requires different communication modules.
8. What is the maximum communication distance?
Distance depends on coaxial cable type and system design parameters.
9. Is configuration software required?
Configuration is performed via Unity Pro (EcoStruxure Control Expert) within the Quantum system setup.
10. How does it handle communication faults?
Built-in fault detection isolates network issues and reports them to the processor for system-level handling.
