Product Introduction

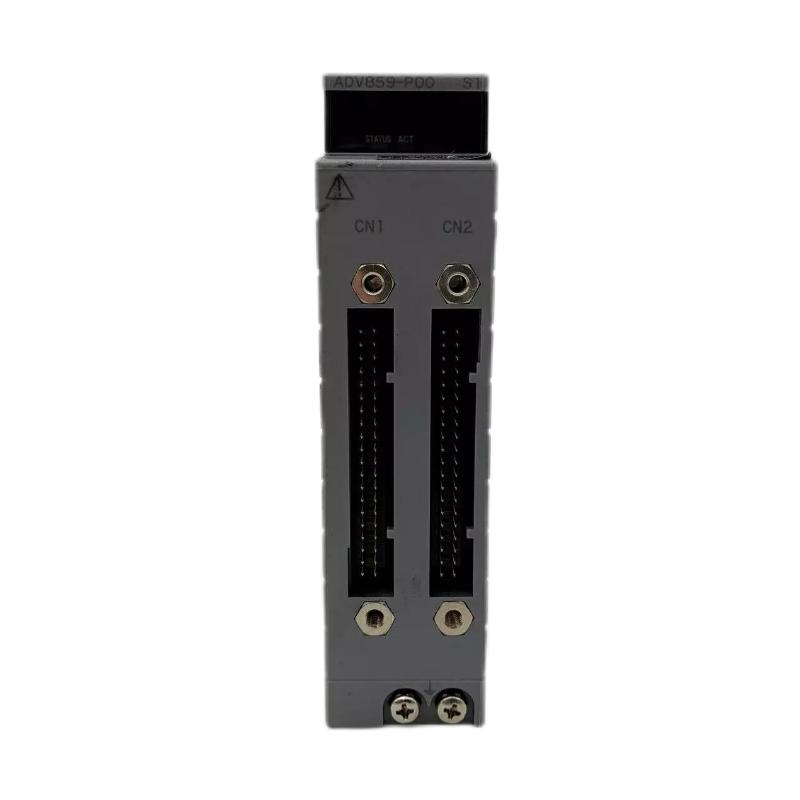

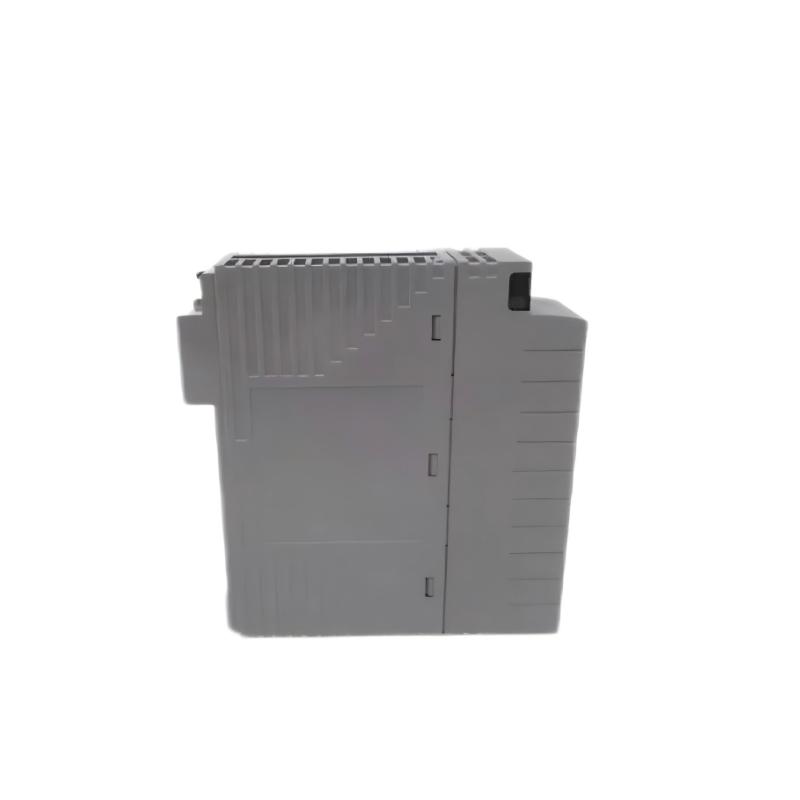

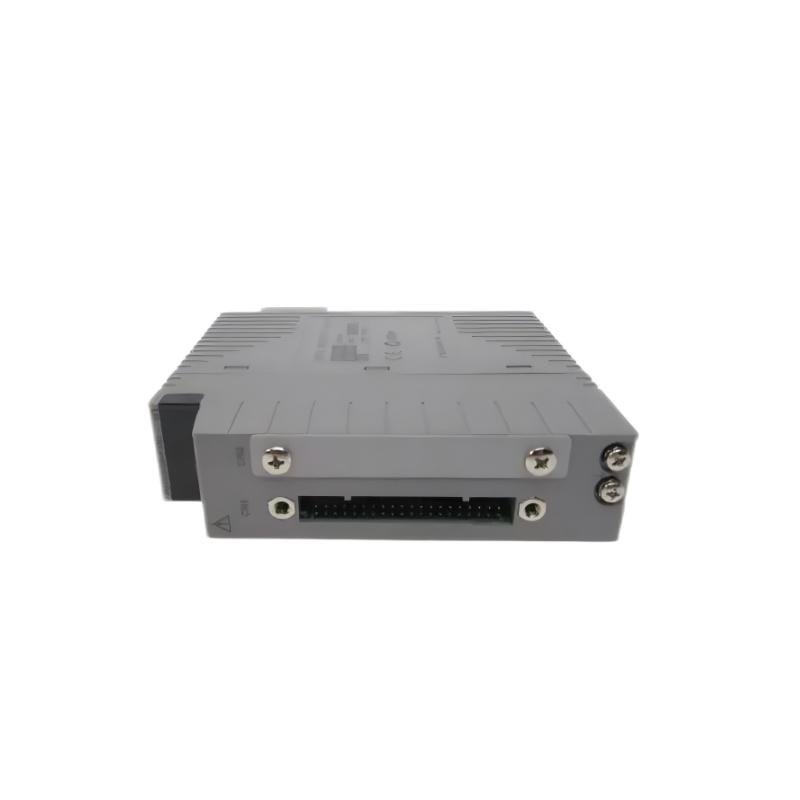

The Yokogawa ADV859 Digital I/O Module serves as a core interface component for discrete signal acquisition and command distribution in distributed control systems. By translating on/off field events into logic-level data and issuing output commands, it forms a key part of industrial automation in process, utility, and manufacturing environments.
Its reliable signal conditioning, diagnostics support, and compact design make it suitable for both dense control cabinets and remote I/O panels.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Digital I/O Module |
| Model | ADV859 |
| Platform | Yokogawa DCS (e.g., CENTUM / ProSafe-RS) |
| Function | Discrete input/acquisition and output drive |
| Installation | Control cabinet / rack mounting |
| Application | Process/discrete automation systems |
| Dimensions (H × W × D) | 130 × 127.2 × 32.8 mm |
| Net Weight | 0.3 kg (approx. 0.66 lb) |
Application in Industrial Control Systems
The Yokogawa ADV859 Digital I/O Module is engineered to interface discrete field signals with distributed control systems (DCS), such as the CENTUM series. It provides reliable digital input and output signal handling between field devices (switches, proximity sensors, solenoids) and the controller’s logic engine.
Common industrial applications include:
-
Batch and continuous process control loops
-
Pump and valve status monitoring
-
Discrete signal interfacing in water/wastewater systems
-
Material handling logic and interlocks
-
Safety and permissive logic in manufacturing plants
This module helps translate real-world on/off events into structured data usable by the DCS logic and vice versa.
Key Advantages and Functional Highlights
From an engineering integration perspective, the ADV859 offers:
Reliable Discrete Signal Handling
Captures field digital states and generates output commands with high integrity.
System Compatibility
Designed for seamless integration with Yokogawa DCS platforms, typically CENTUM or ProSafe-RS.
Compact Mechanical Footprint
Slim profile supports efficient panel and rack layouts without compromising signal density.
Industrial Noise Immunity
Engineered to maintain signal clarity in electrically noisy environments.
Diagnostics Support
Module status and channel health can be monitored through the system’s engineering tools.
Technical FAQs
-
What is the primary function of the ADV859 module?
It processes discrete digital inputs and outputs for field devices in a DCS architecture.
-
Can it handle both inputs and outputs?
Yes, it supports both digital input and digital output channels, depending on configuration.
-
Is it compatible with specific Yokogawa systems?
Yes, it is designed to interface with Yokogawa process control and safety platforms.
-
Does it include diagnostics?
Yes, diagnostic information is reported through the connected DCS engineering environment.
-
Can the module be hot-swapped?
Hot-swap capability depends on the system configuration and rack backplane design.
-
How does it improve maintenance efficiency?
Integrated diagnostics and clear channel status assist with troubleshooting.
-
Is it suitable for harsh industrial conditions?
Yes, built to withstand typical control cabinet electrical noise and temperature variations.
-
How are field devices connected?
Field wiring is terminated to structured connector interfaces tied to the module’s digital channels.
-
Can it be used for safety interlocks?
Safety usage depends on certification; always follow process safety guidelines when used in critical logic.
-
Does it support distributed I/O architectures?
Yes, it can be deployed in remote locations where discrete signals must be interfaced.
