Product Introduction

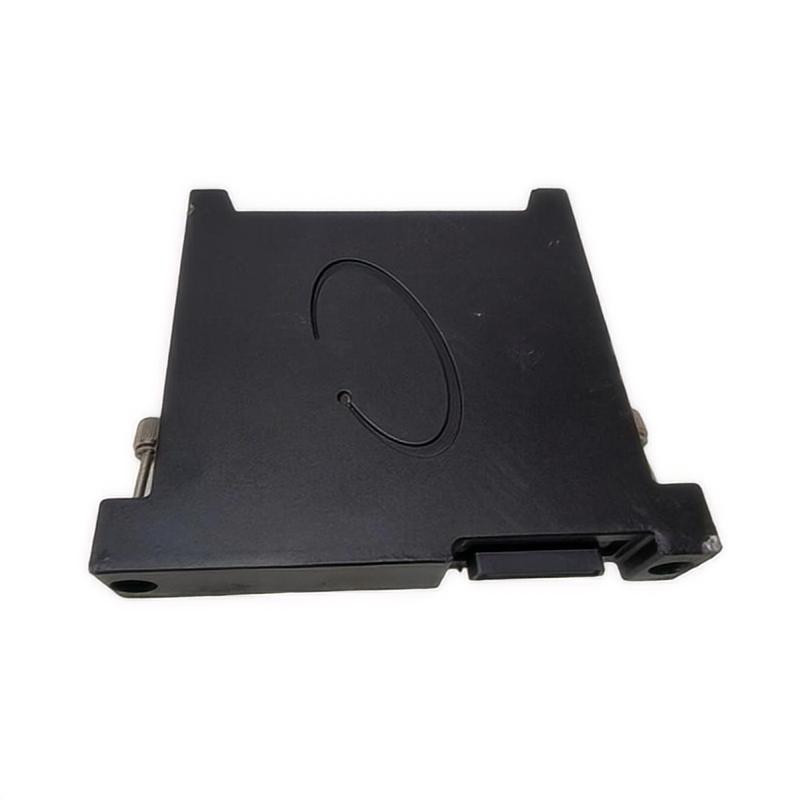

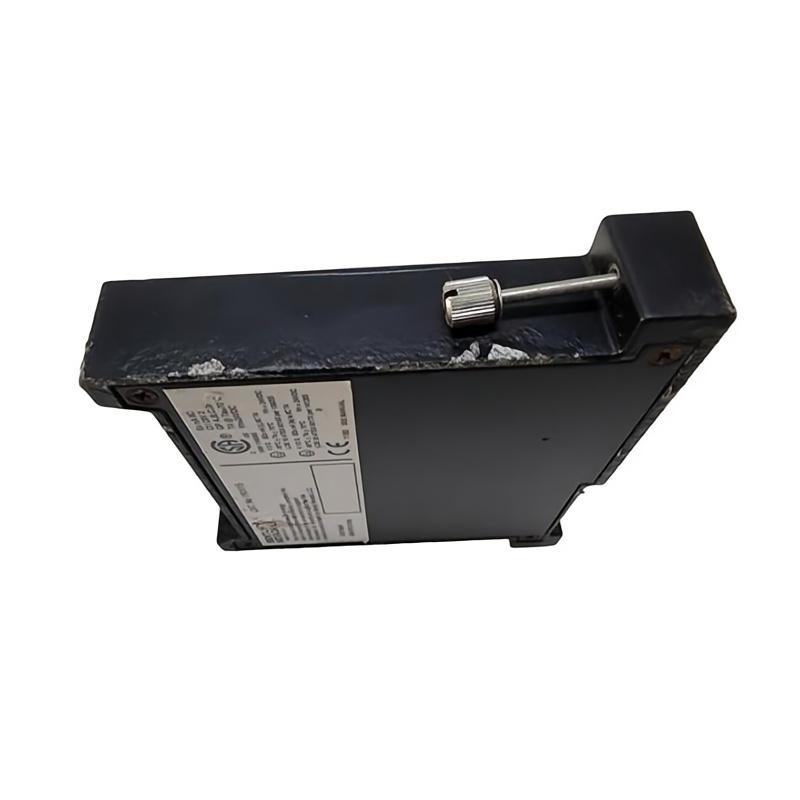

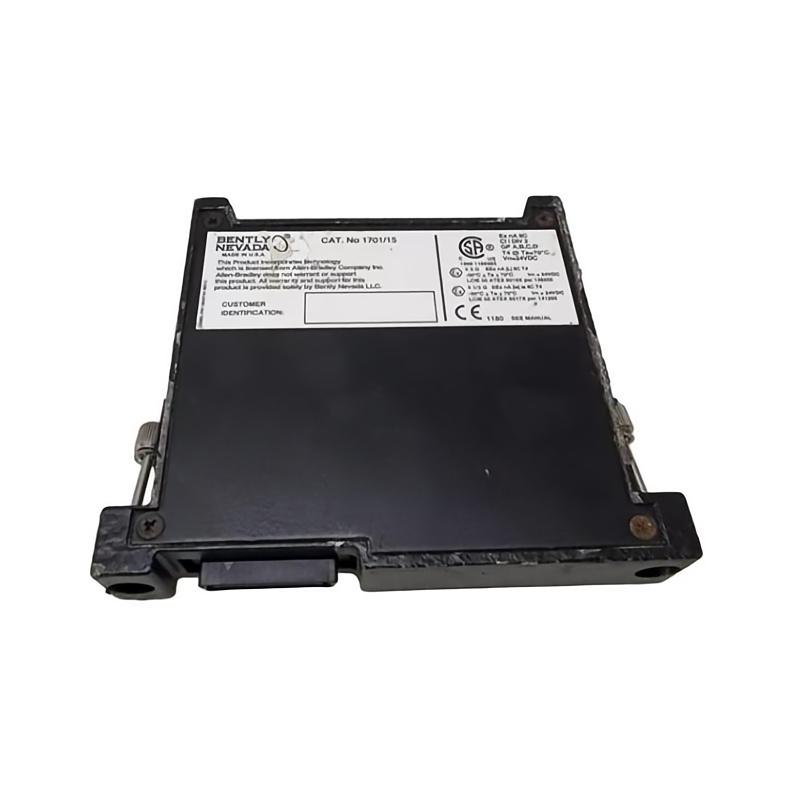

The Bently Nevada 1701/15 Field Monitor Preamplifier Input Monitor (141379-01) is a precision signal conditioning module designed for machinery health and protection systems. By amplifying and conditioning raw sensor signals at the source, it enhances measurement stability and integrity — especially in environments with electrical noise, long cable runs, and critical diagnostic demands.
Its rugged mechanical design and industry-standard interface make it suitable for integration with protection instruments, data acquisition systems, and remote monitoring networks in power generation, petrochemical, heavy industry, and rotating equipment applications.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Field Monitor / Preamplifier Input Monitor |
| Model | 1701/15 |
| Part Number | 141379-01 |
| Function | Sensor signal conditioning and amplification |
| Installation | Local machine/enclosure mounting |
| Application | Machinery protection and condition monitoring |
| Dimensions (H × W × D) | 127 × 21.6 × 105 mm |
| Net Weight | 0.314 kg (approx. 0.69 lb) |
Application in Machinery Protection and Monitoring
The 1701/15 Field Monitor Preamplifier Input Monitor is engineered as a rugged signal conditioning component within machinery protection and vibration monitoring systems. It serves as a front-end preamplifier for proximity probes, accelerometers, or other transducers, optimizing raw sensor signals before transmission to instruments or protection systems.
Typical deployment environments include:
-
Turbine, compressor, and generator protection loops
-
Heavy industrial rotating machinery dashboards
-
API machinery monitoring packages
-
Remote monitor panels in power plants and process facilities
-
OEM condition monitoring assemblies
Preamplifiers like this are essential where long cable runs or high-noise environments could degrade measurement integrity.
Functional Benefits and Engineering Highlights
This field-grade preamplifier enhances signal quality and reliability:
Signal Conditioning at Source
Amplifies and stabilizes weak sensor outputs before long-distance transmission.
Improved Noise Rejection
Reduces common-mode and electrical interference for clearer diagnostic signals.
Optimized for Vibration & Proximity Sensors
Engineered to interface with industry-standard transducers used in critical machine health monitoring.
Rugged Field Housing
Designed to operate in industrial environments near bearings and rotating equipment.
Simplified Cabling Architecture
Local signal conditioning reduces sensitivity to cable capacitance and interference.
Technical FAQs
-
What is the primary function of this monitor?
It conditions and amplifies sensor signals for transmission to protection or monitoring hardware.
-
What types of sensors is it compatible with?
It is typically used with proximity probes, vibration transducers, and similar field devices.
-
Does it provide noise filtering?
Yes, its conditioning circuitry reduces noise and preserves signal fidelity.
-
Can it drive long cable runs?
Yes, field preamplification helps maintain signal quality over extended distances.
-
Is it suitable for harsh environments?
Yes, its construction supports installation near industrial machinery.
-
How does it interface with central monitoring systems?
Conditioned outputs are routed to monitoring instruments or protection hardware via shielded cabling.
-
Does it require external power?
It typically uses local power from the monitoring system or instrument rack.
-
Is calibration needed?
Calibration procedures depend on the sensor type and system requirements.
-
Does it support diagnostic feedback?
Signal boards or connected instruments typically handle diagnostics; the preamplifier conditions the primary signal.
-
Can multiple modules be used on one machine?
Yes, multiple preamplifiers are often deployed to handle multiple sensors on complex machinery.
