Product Overview

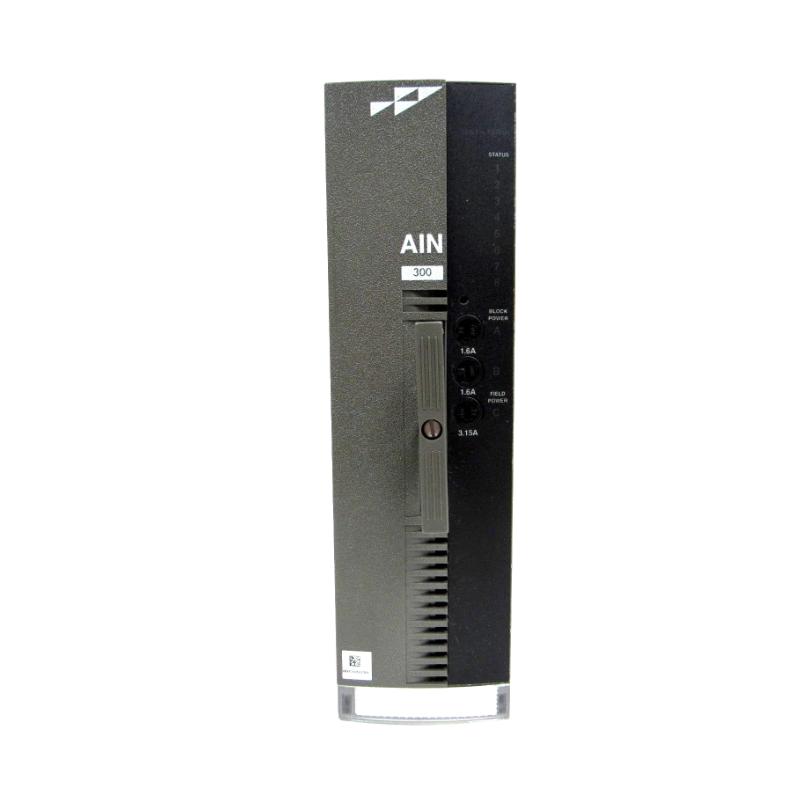

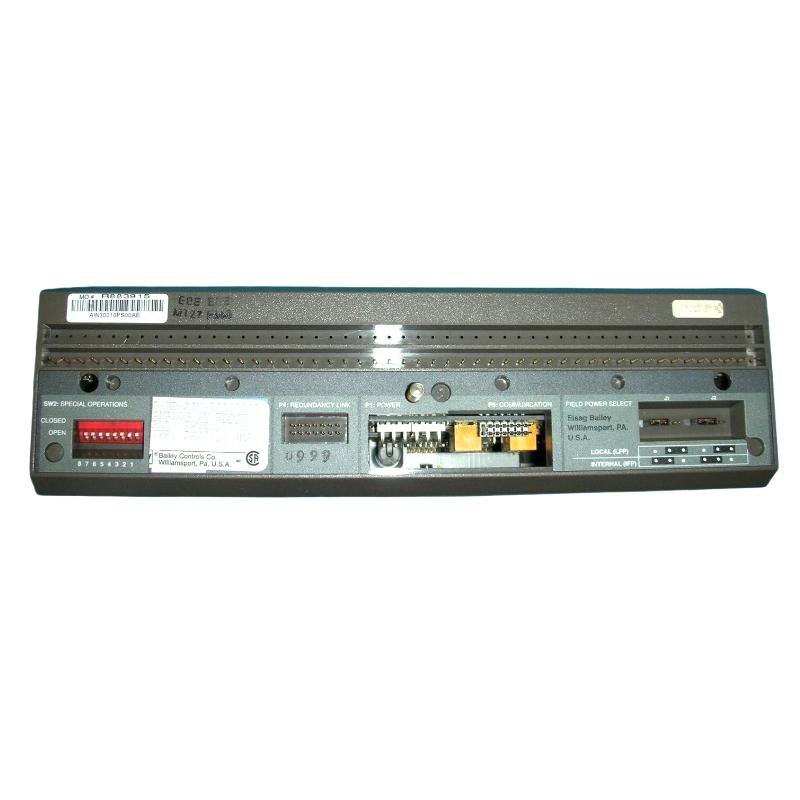

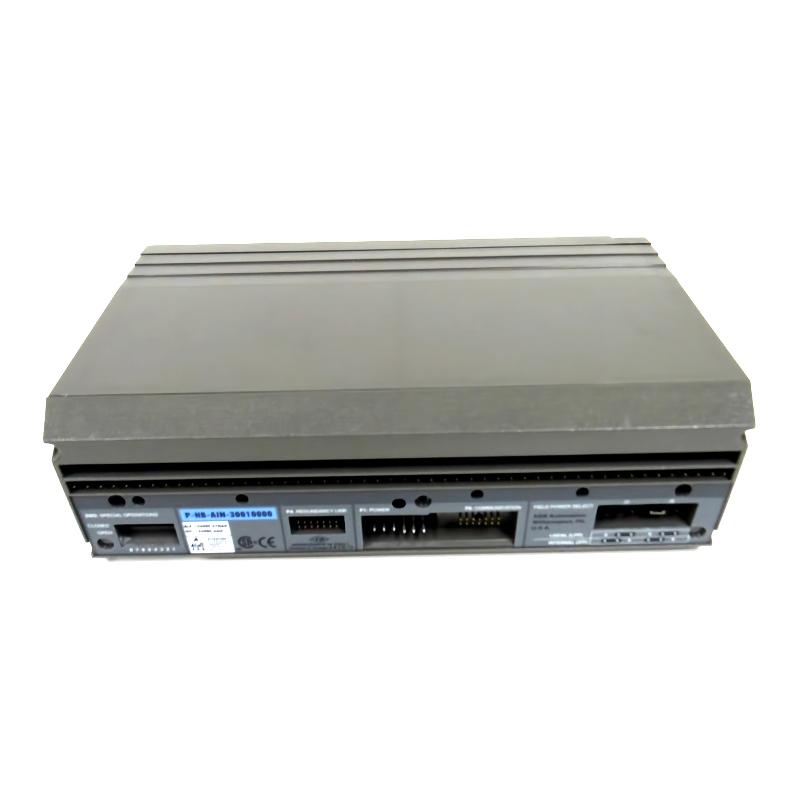

The Allen-Bradley AIN300 P-HB-AIN-30010000 Analog Input Module provides reliable analog signal acquisition in industrial automation systems. Its combination of high-resolution conversion, noise-resistant design, and system integration makes it suitable for precise process control and monitoring.
Built for industrial control cabinet environments, the AIN300 supports consistent signal fidelity and facilitates automation tasks that depend on accurate real-world data inputs.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Analog Input Module |
| Model | AIN300 |
| Part Number | P-HB-AIN-30010000 |
| Signal Type | Industrial analog inputs (voltage/current) |
| Installation | Control cabinet mounting |
| Application | Process automation and control |
| Dimensions (H × W × D) | 266 × 76 × 162 mm |
| Net Weight | 1.7 kg (approx. 3.75 lb) |
Application in Process Automation
The AIN300 P-HB-AIN-30010000 Analog Input Module is designed to acquire and condition analog signals from field instruments within Allen-Bradley control systems. It transforms real-world electrical signals into precise data streams for logic execution, trending, and control decisions.
Typical industrial use cases include:
-
Continuous process control loops
-
Temperature, pressure, and flow measurement acquisition
-
Chemical and petrochemical plant monitoring
-
Utility and energy management systems
-
Water and wastewater process control
Its performance characteristics help ensure process stability and operational clarity in demanding automation environments.
Engineering Advantages and Signal Fidelity
Analog input modules play a critical role in accurate process measurement. The AIN300 advances signal handling with features that enhance system performance.
High-Resolution Conversion
Delivers fine granularity in analog-to-digital data conversion, supporting tighter control loops.
Multi-Signal Compatibility
Handles both current and voltage input ranges common to industrial transmitters.
Robust Noise Immunity
Engineering design minimizes interference effects in electrically noisy cabinets.
Structured System Integration
Designed for seamless communication with Allen-Bradley PLC and controller platforms.
Diagnostics-Ready Operation
Supports system diagnostics to assist in fault detection and loop validation.
Technical FAQs
-
What is the primary function of the AIN300?
It acquires and digitizes analog signals from field transmitters for control logic use.
-
Which signal types does it support?
It typically supports standard industrial ranges such as 4–20 mA and 0–10 V.
-
Is it suitable for process control environments?
Yes, it is optimized for long-term analog measurement in process applications.
-
How is signal accuracy maintained?
Through high-resolution A/D conversion and stable analog front-end circuitry.
-
Can multiple analog inputs be processed simultaneously?
Yes, the module supports multiple channels depending on its configuration.
-
Does it include any diagnostics features?
System diagnostics for channel health and communication status are accessible through the controller.
-
Is it compatible with redundant systems?
Integration into redundant architectures depends on the system configuration.
-
How does it handle harsh electrical environments?
Industrial noise filtration and shielding improve measurement stability.
-
Does it require calibration?
Calibration may be performed during system commissioning according to instrumentation requirements.
-
What industries typically use this module?
Energy, chemical processing, utilities, and water treatment sectors commonly deploy it.
