Introduction

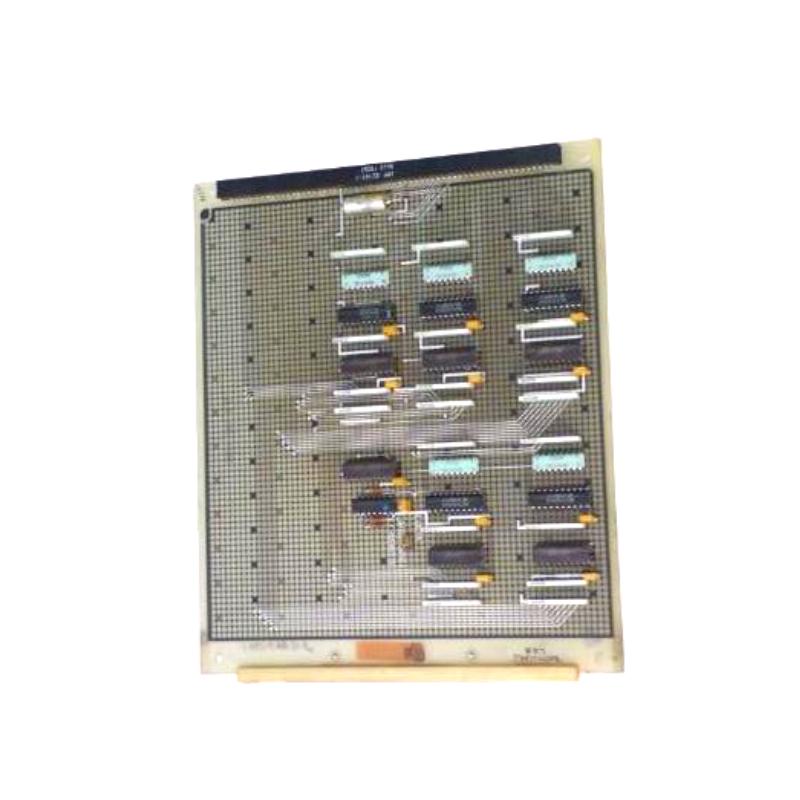

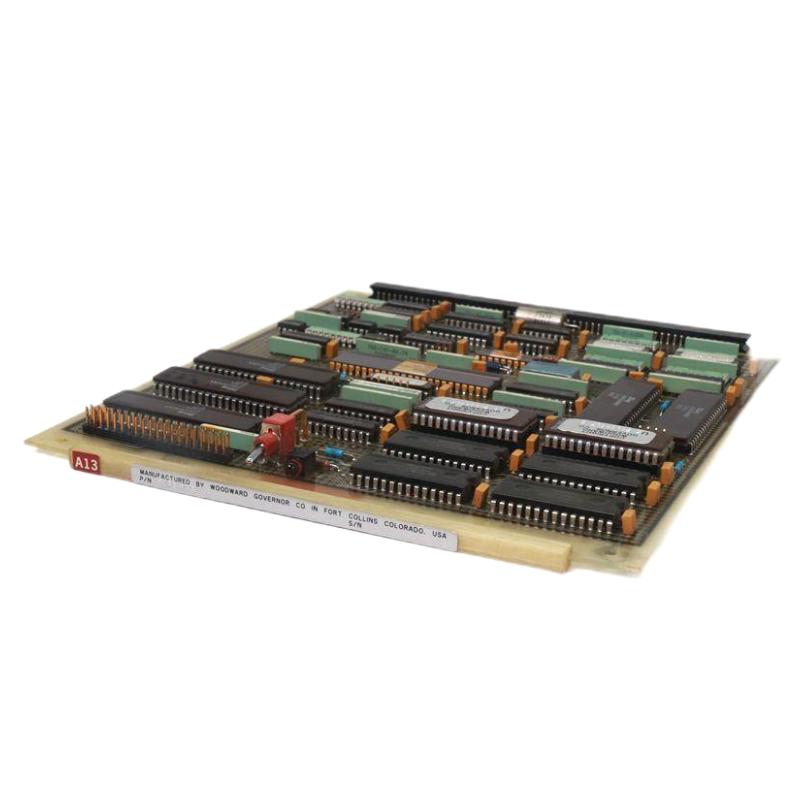

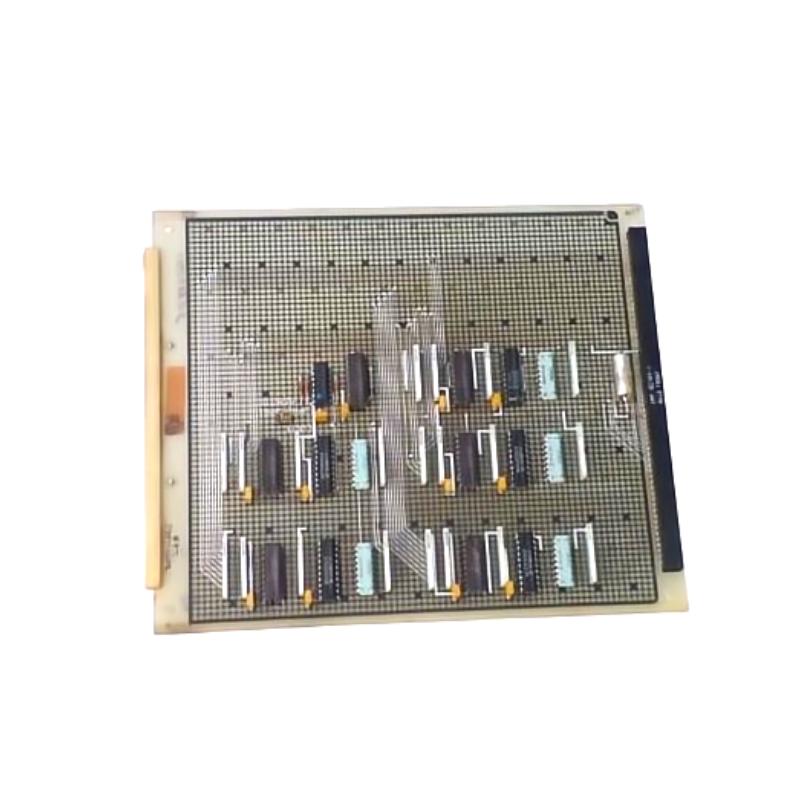

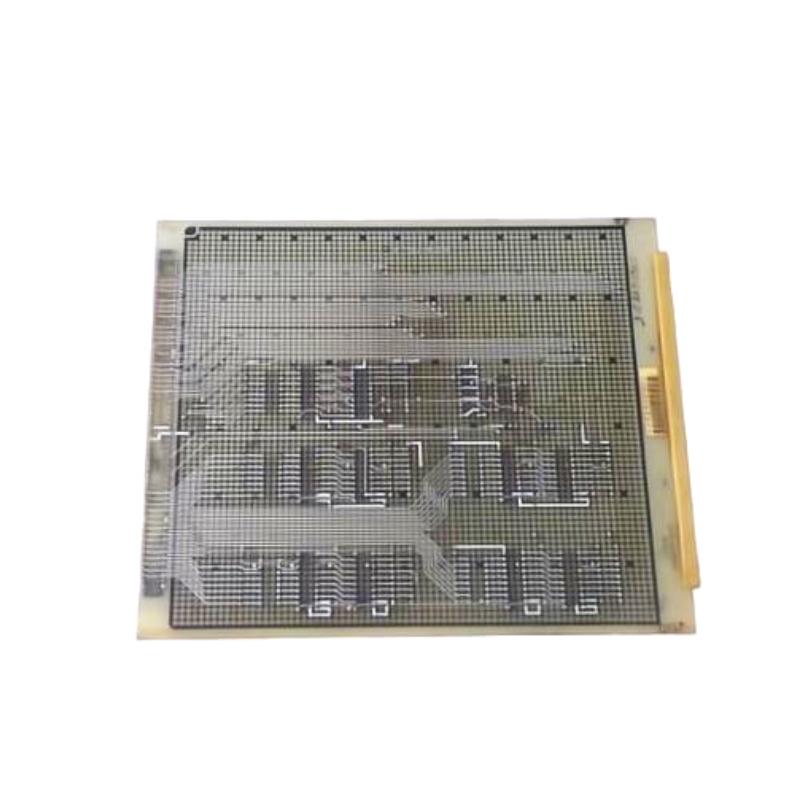

The Woodward 5461‑650 T/C Input Board is a precision‑engineered thermocouple interface module designed to condition and transmit temperature signals from thermocouple sensors into industrial control systems. Built for performance and reliability, this board ensures accurate temperature measurement across a wide range of applications in process automation, power generation, machinery control, and other industrial environments where thermal data drives key decisions.
By providing stable signal conditioning, noise filtering, and robust mechanical design, the 5461‑650 enhances system responsiveness and overall process stability. Its modular form factor makes it compatible with Woodward control architectures and allows seamless integration into field‑installed racks or cabinets.
Technical Specifications
| Parameter | Specification |
|---|
| Model | 5461‑650 |
| Module Type | Thermocouple (T/C) Input Board |
| Manufacturer | Woodward |
| Input Channels | Multi‑channel thermocouple inputs |
| Supported T/C Types | Standard industrial types (e.g., J, K, T, E, etc.) |
| Input Signal Conditioning | Cold‑junction compensation and amplification |
| Isolation | Galvanic isolation to protect logic circuitry |
| Output Signal | Scaled analog or digital data to controller (platform dependent) |
| Resolution | High resolution temperature conversion |
| Accuracy | Industrial‑grade T/C accuracy |
| Operating Temperature | Industrial range |
| Mounting | Chassis or panel installation |
Applications
The 5461‑650 T/C Input Board is ideal for systems requiring dependable temperature monitoring and control:
-
Power plant temperature sensing and protection
-
Turbine temperature supervision and alarms
-
Furnace, kiln, and heat‑treating system monitoring
-
Chemical and petrochemical process temperature loops
-
Heat exchanger and boiler control systems
-
Industrial machinery condition monitoring
By providing accurate thermocouple data to control systems, this board enhances process stability and safety.
Advantages
Accurate Temperature Signal Conditioning
Integrated cold‑junction compensation and amplification ensure trustworthy temperature readings.
Support for Multiple T/C Types
Compatible with standard industrial thermocouple types for application flexibility.
Electrical Isolation
Galvanic isolation separates sensor signals from sensitive control logic, reducing noise and ground loop interference.
Industrial‑Ready Construction
Designed for rugged environments with high vibration, temperature changes, and electrical noise.
Seamless Integration
Modular form factor allows integration into Woodward racks or control cabinets with minimal wiring.
This board delivers accurate and stable temperature sensing performance for critical industrial processes.
Technical FAQs
1. What is the main function of the 5461‑650?
It interfaces thermocouple sensors with the control system, converting raw temperature signals into conditioned, usable inputs.
2. Which thermocouple types are supported?
Common industrial types such as J, K, T, and E are supported (module/firmware dependent).
3. Does it provide cold‑junction compensation?
Yes, integrated compensation ensures accurate temperature measurement.
4. Is the board electrically isolated?
Yes — galvanic isolation protects control logic from sensor circuit noise.
5. What environments is this module suitable for?
Harsh industrial and electrically noisy environments.
6. How is it mounted?
It mounts in compatible chassis or panel installations.
7. Does it handle multiple channels?
Yes, it typically supports multiple thermocouple inputs.
8. What is the typical output signal format?
Scaled analog or digitized data appropriate for the system platform.
9. Is it suitable for continuous temperature monitoring?
Yes, designed for real‑time continuous operation.
10. What kinds of processes benefit from this board?
Power generation, process heating, and industrial thermal control systems.
