Product Introduction

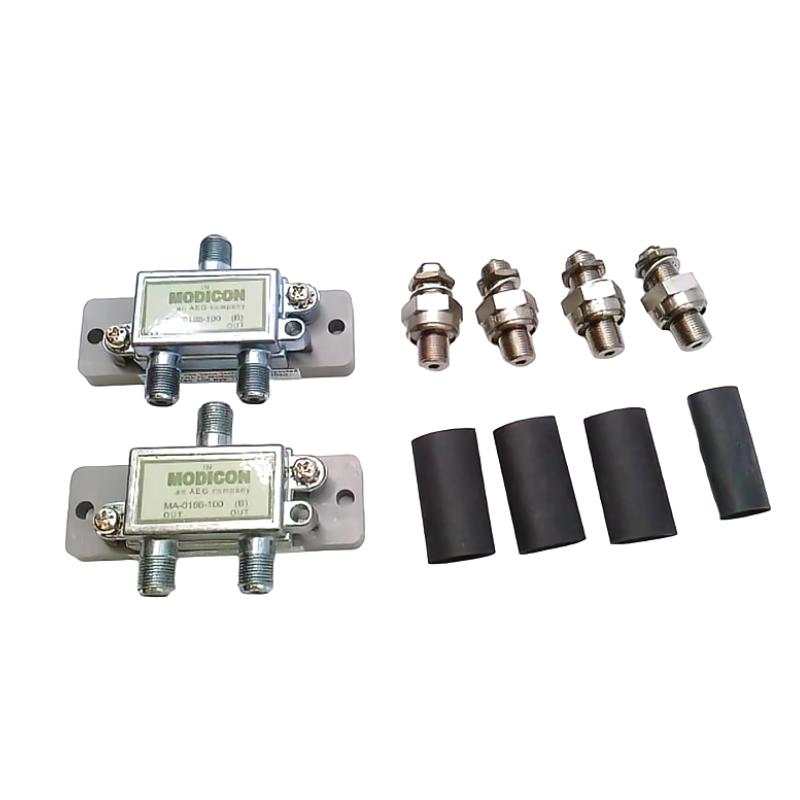

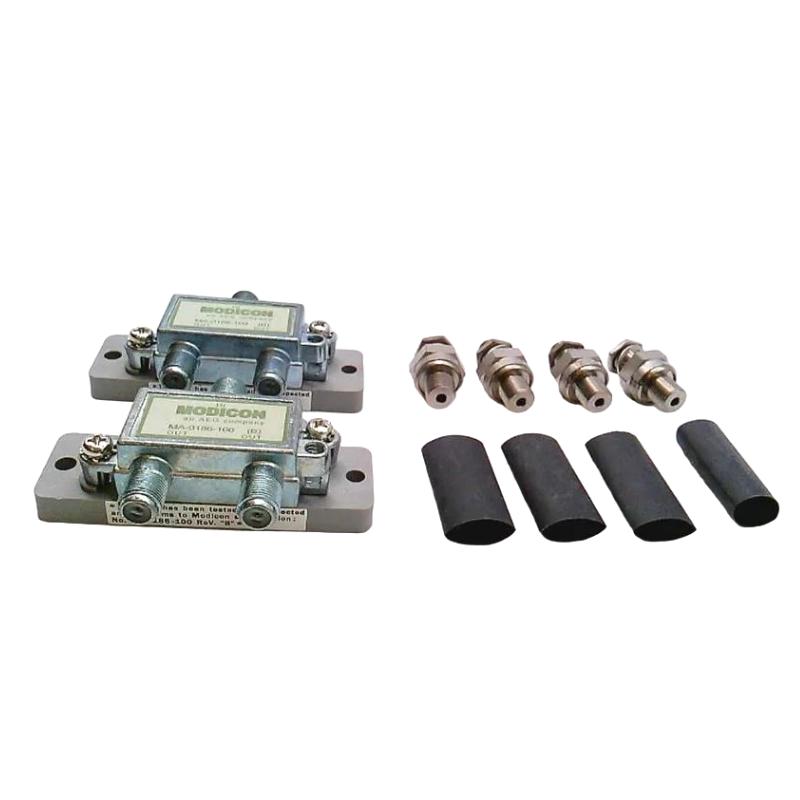

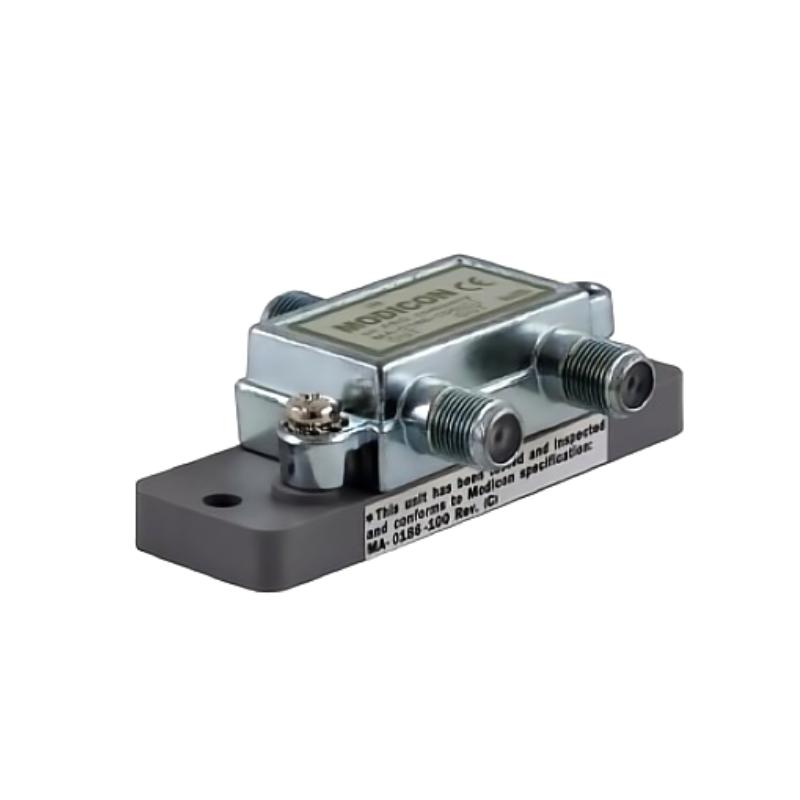

The Schneider Electric 140CHS32000 Coaxial Cable Hot Standby Splitter Kit is a specialized accessory developed for Quantum PLC redundant systems. It enables structured coaxial signal distribution between primary and standby controllers, forming a key component in high-availability automation architectures.
Its compact dimensions and robust construction make it suitable for installation in industrial control cabinets where reliability and communication stability are critical. The module supports seamless redundancy operation, contributing to uninterrupted process control.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Coaxial Cable Hot Standby Splitter Kit |
| Model | 140CHS32000 |
| Platform Compatibility | Modicon Quantum PLC |
| Function | Redundant controller communication signal distribution |
| Communication Medium | Coaxial cable |
| Installation | Control cabinet mounting |
| Dimensions (H × W × D) | 60 × 115 × 90 mm |
| Net Weight | 0.408 kg (approx. 0.90 lb) |
Redundant System Integration Scenarios
The 140CHS32000 Coaxial Cable Hot Standby Splitter Kit is engineered for Modicon Quantum hot standby architectures, where controller redundancy is essential for process continuity. It enables reliable signal distribution between primary and standby CPUs, ensuring synchronized communication across redundant control paths.
Typical deployment environments include:
-
High-availability process plants
-
Power generation and utility automation
-
Oil & gas production facilities
-
Continuous manufacturing lines
-
Critical infrastructure control systems
In hot standby configurations, communication integrity between redundant controllers is fundamental to maintaining seamless switchover performance.
System-Level Advantages
Designed specifically for redundancy architectures, this splitter kit enhances reliability and structured installation.
Optimized for Hot Standby Systems
Ensures stable coaxial signal distribution between primary and backup controllers.
Deterministic Communication Path
Maintains consistent signal integrity to support synchronized controller operation.
Compact Mechanical Design
Small footprint allows flexible installation within dense control cabinets.
Industrial-Grade Construction
Built to perform reliably in electrically demanding environments.
Simplified Redundancy Implementation
Supports standardized wiring practices in Quantum hot standby systems.
Technical FAQs
-
What is the primary function of the 140CHS32000 kit?
It distributes coaxial communication signals between redundant controllers in a hot standby system.
-
Is it specifically designed for Modicon Quantum platforms?
Yes, it is intended for use within Quantum hot standby architectures.
-
Does it affect controller synchronization performance?
Proper installation ensures stable signal integrity for synchronized redundancy operation.
-
Can it be used in non-redundant systems?
It is primarily designed for hot standby redundancy configurations.
-
What type of communication medium does it use?
It operates with coaxial cable communication links.
-
Does the splitter introduce signal delay?
It is designed to maintain deterministic communication characteristics suitable for redundancy systems.
-
Is special configuration required?
Configuration depends on the overall redundancy architecture and controller setup.
-
How does it enhance system reliability?
By supporting stable communication paths necessary for seamless controller switchover.
-
Is it suitable for industrial vibration environments?
Yes, when installed according to recommended cabinet practices.
-
What role does it play during controller failover?
It helps maintain communication continuity to enable rapid and stable switchover between primary and standby CPUs.
