Introduction

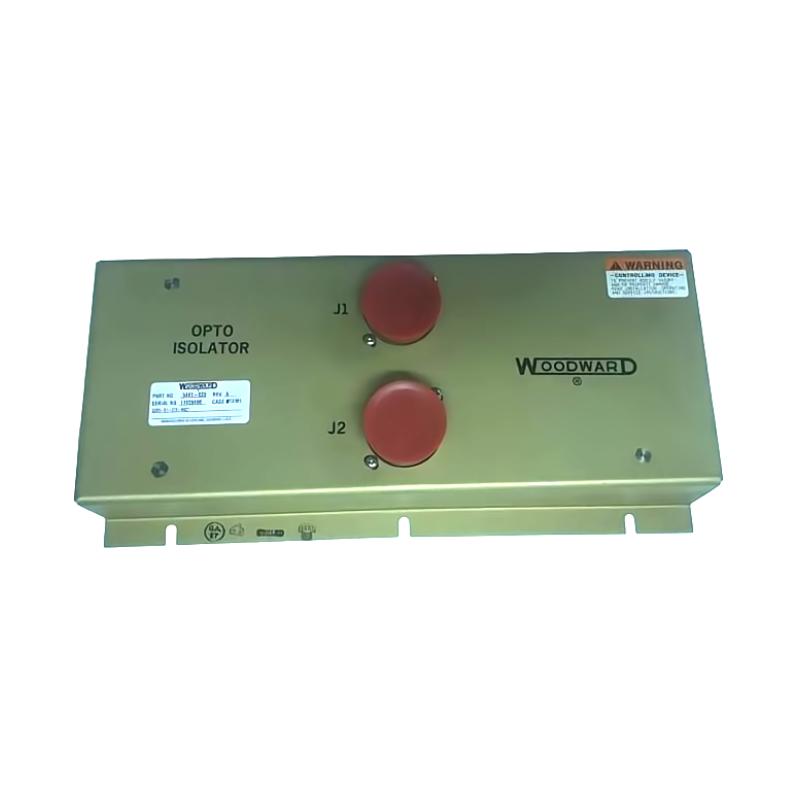

The Woodward 5441‑635 Opto Isolator Module is a rugged industrial isolation interface built to protect control systems from electrical noise, ground loops, and signal transients. By combining high‑quality optocoupler technology with robust module design, this product delivers reliable signal isolation between logic circuitry and field devices. It’s ideal for system designers and plant engineers who need stable, interference‑free signal transmission in demanding industrial environments, including power generation, process automation, and heavy machinery control.
This module enhances system resilience by separating signal domains without compromising speed or accuracy, ensuring safer operations and longer component life. With straightforward integration into existing control architectures, the 5441‑635 provides a practical solution to common electrical interference challenges.
Technical Specifications
| Parameter | Specification |
|---|
| Model | 5441‑635 |
| Module Type | Opto Isolator Module |
| Manufacturer | Woodward |
| Isolation Method | Optical isolation (opto‑coupler based) |
| Input Voltage Range | Compatible with standard industrial logic levels (24 VDC typical) |
| Output Type | Isolated switching or signal pass‑through |
| Response Time | Microsecond‑class optical isolation response |
| Load Compatibility | Logic and low‑power field signals |
| Mounting | Panel or rack mountable in control enclosures |
| Operating Temperature | Industrial‑rated temperature range |
| Electrical Protection | Helps prevent ground loops and EMI/RFI interference |
Applications
The 5441‑635 Opto Isolator Module is frequently used in:
-
Noise‑immune signal transmission in distributed control systems
-
Isolation between PLC/relay logic and field sensors or actuators
-
Protection of critical control circuits from ground potential differences
-
Signal conditioning interfaces in power generation and turbines
-
Interfacing sensitive logic circuits to noisy industrial environments
-
Reducing electrical interference in long cable runs
Its use helps prevent control errors, enhances signal clarity, and contributes to overall system safety and uptime.
Advantages
Strong Electrical Isolation
Optical isolation prevents ground loops and protects controllers from electrical noise.
Improved Signal Integrity
Minimizes the impact of EMI/RFI, ensuring clean signal transmission.
Industrial‑Ready Construction
Built to withstand vibration, temperature variation, and continuous operation.
Flexible Integration
Compatible with standard control cabinets and panel layouts.
Extended Component Life
Reduces stress on logic circuits caused by electrical interference.
This module offers a practical and robust solution to common signal isolation challenges in industrial automation.
Technical FAQs
1. What is the main function of the 5441‑635?
It isolates electrical signals to protect control systems from noise and interference.
2. How does optical isolation work?
Input signals are transferred across an optical barrier, eliminating direct electrical connection.
3. What input voltages does it support?
Typically designed around industrial logic voltages such as 24 VDC.
4. Where is isolation most beneficial?
In environments with ground potential differences or high electrical noise.
5. Can it be mounted in control racks?
Yes, it is suitable for panel or rack mounting.
6. Does it improve signal quality?
Yes, by reducing noise and preventing interference.
7. Is it compatible with PLC logic signals?
Yes, it is designed for common industrial logic levels.
8. What types of loads can it interface?
Low‑power logic and signal devices rather than high‑power outputs.
9. Will it reduce ground loop issues?
Yes, optical isolation decouples circuits to prevent ground loops.
10. Is this module durable for industrial use?
Yes, it is built for rugged industrial conditions.
