Product Overview

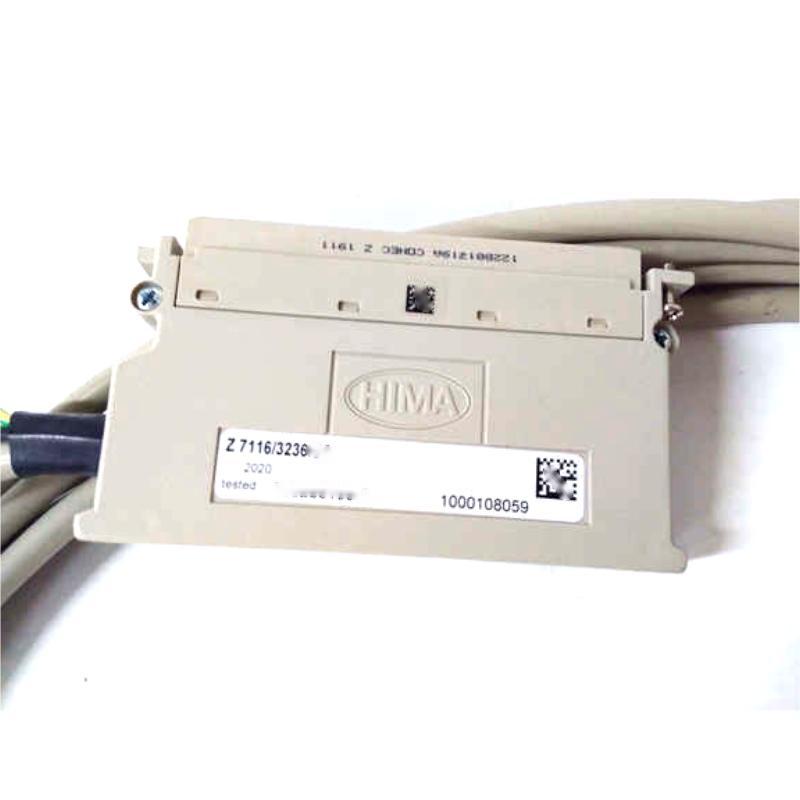

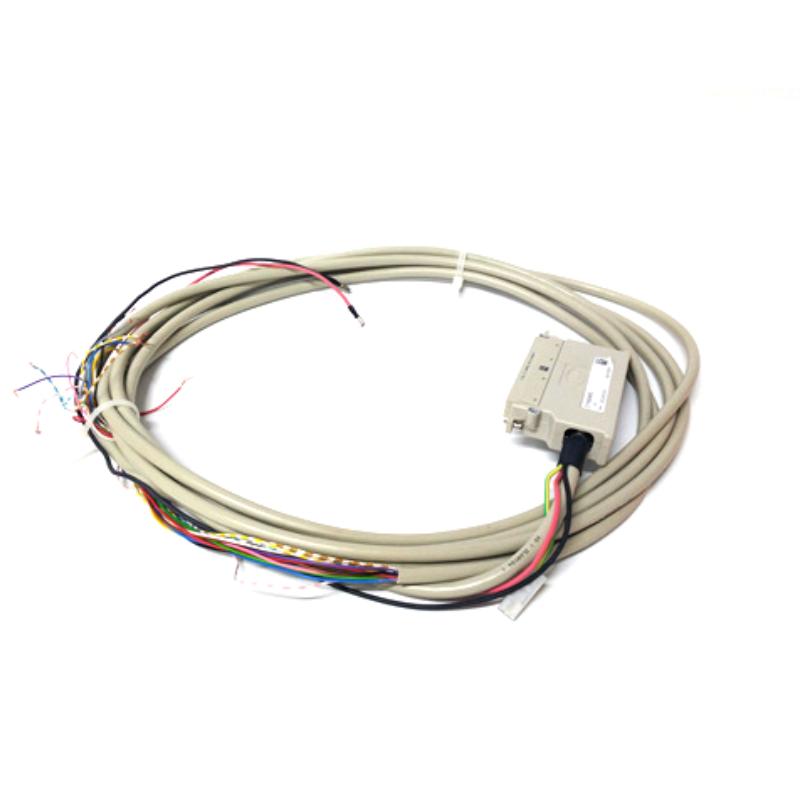

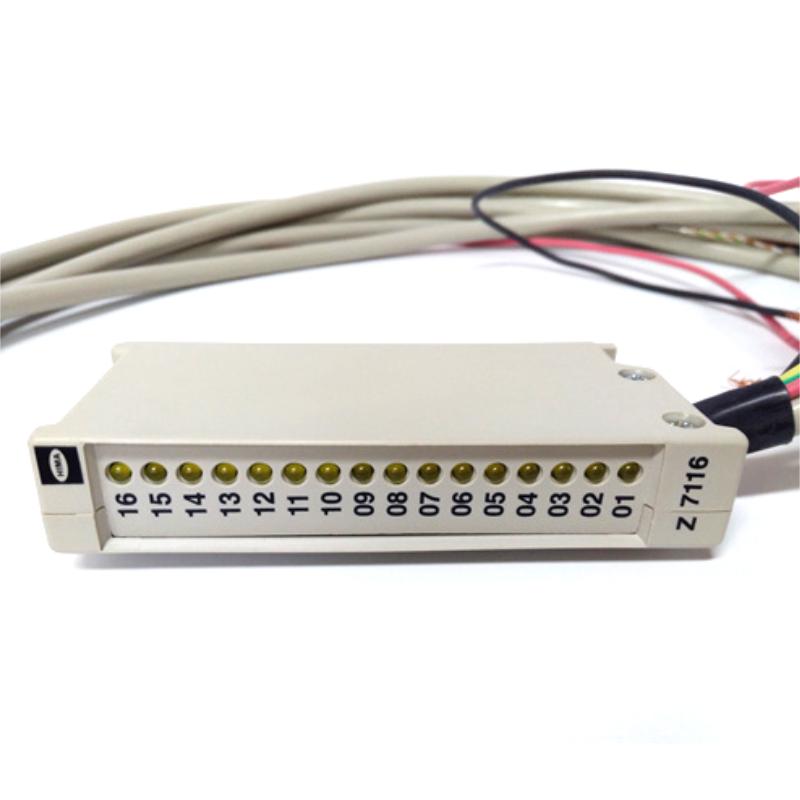

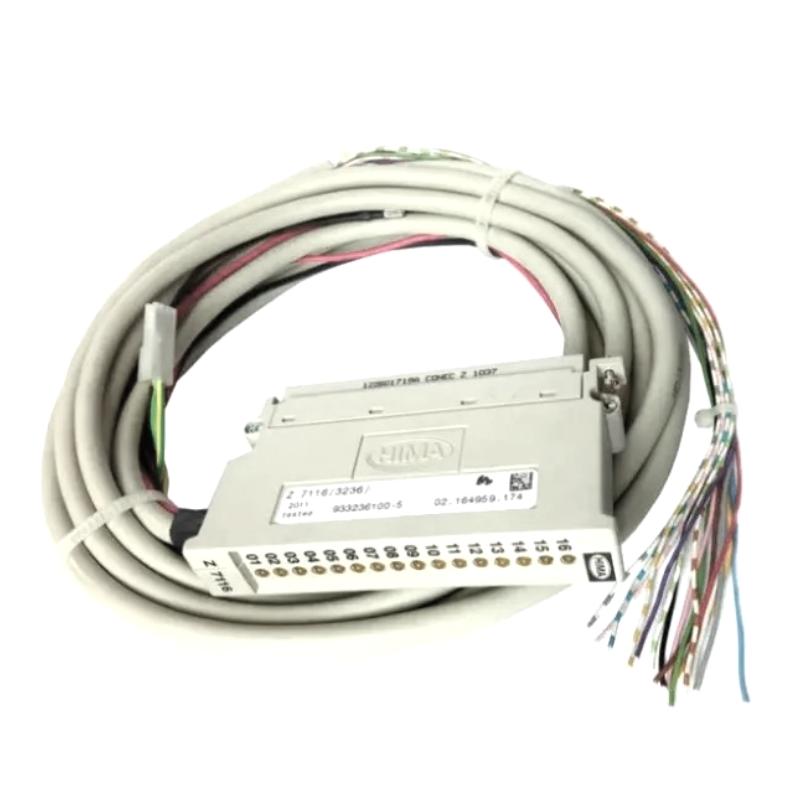

The HIMA Z7116/3236/C10 Cable Plug is a rugged industrial connector designed to provide dependable electrical interfacing in safety‑critical automation systems. Engineered for consistent performance, this cable plug ensures secure, reliable connections between field wiring and HIMA safety I/O equipment. Built with precision, it withstands harsh industrial environments while maintaining signal integrity and mechanical strength, making it ideal for demanding process control and safety instrumented applications.
This cable plug supports efficient field termination and streamlined installation workflows, helping system integrators minimize commissioning time while enhancing long‑term reliability. Its robust construction and compatible design make it a trusted choice for modern safety automation architectures.
Technical Specifications
| Parameter | Specification |
|---|
| Model | Z7116/3236/C10 |
| Type | Safety Cable Plug Connector |
| Compatibility | HIMA Safety I/O Modules and Racks |
| Connector Style | Multi‑pin industrial plug |
| Contact Material | High‑conductivity plated contacts |
| Cable Entry | Strain‑relief boot with secure clamp |
| Termination Options | Screw or crimp termination |
| Mechanical Durability | Designed for repeated mating cycles |
| Operating Temperature | –25°C to +70°C |
| Environmental Protection | Industrial contamination tolerance |
| Mounting | Panel or chassis connector interface |
Typical Applications
This cable plug is widely deployed in environments where reliable connectivity is crucial:
-
Interfacing field wiring to safety I/O modules
-
Safety system cabinets and junction panels
-
Chemical and process control plants
-
Offshore and high‑vibration installations
-
Machinery and equipment safety enclosures
-
Signal distribution in distributed safety systems
It provides a dependable link between sensors, actuators, and safety logic hardware.
Key Benefits
Industrial‑Grade Reliability
Constructed from durable materials, this plug delivers long service life even under vibration and temperature stress.
Secure Signal Integrity
Precision contacts and locking features help maintain stable electrical connections in industrial settings.
Efficient Installation
Clear termination options and strain relief simplify field wiring and reduce commissioning time.
System Integration
Designed specifically for HIMA safety racks and I/O configurations, ensuring proper pin alignment.
Wide Operating Range
Rated for typical industrial temperature extremes and environmental conditions.
This plug enhances safety system resilience by strengthening critical signal paths.
Technical FAQs
1. What is the purpose of the Z7116/3236/C10 cable plug?
It provides a secure and robust electrical interface between field wiring and safety I/O modules.
2. Which systems does it support?
It is designed for use with HIMA safety rack systems and compatible I/O modules.
3. What is the operating temperature range?
Approximately –25°C to +70°C.
4. Does it include strain relief?
Yes, an integrated strain‑relief boot helps protect cable integrity.
5. What termination methods are supported?
It supports both screw and crimp termination options.
6. Is it resistant to vibration?
Yes, its industrial design helps maintain connectivity under high vibration.
7. Are the contacts corrosion‑resistant?
Yes, plated contacts provide reliable conductivity and corrosion resistance.
8. Can it be used outdoors?
With proper enclosures and protection, it can be applied in outdoor environments.
9. Does it come with locking hardware?
Yes, secure locking features help prevent accidental disconnection.
10. Is it field‑replaceable?
Yes, it is designed to be replaced during maintenance operations.
