Product Overview

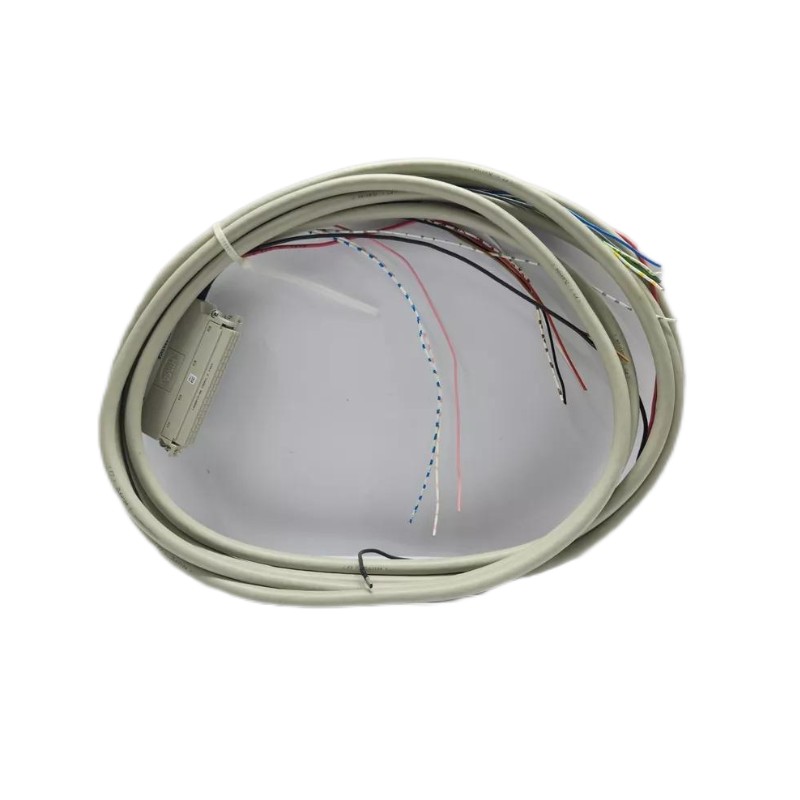

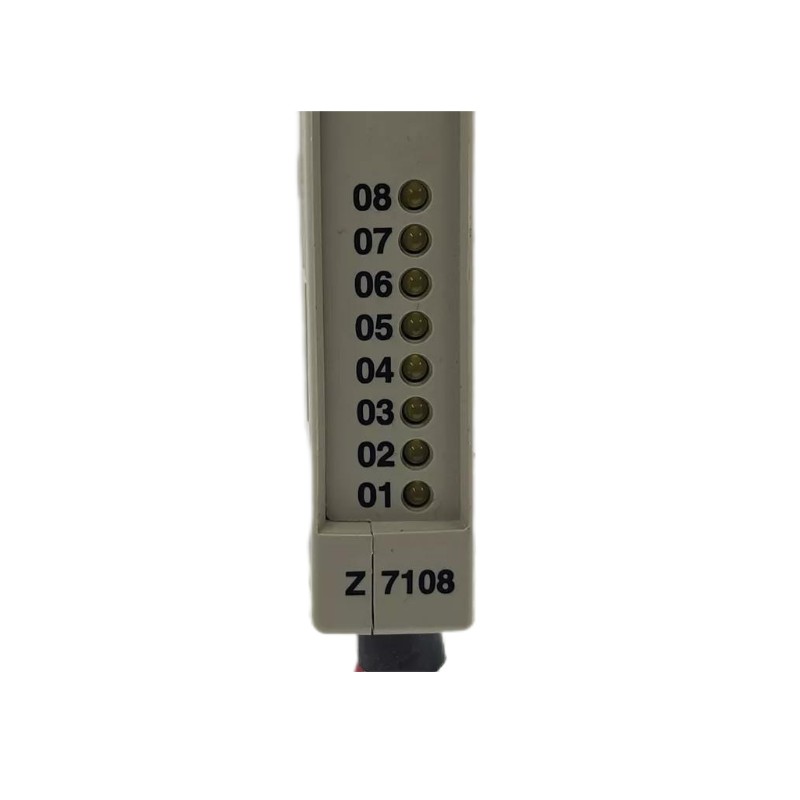

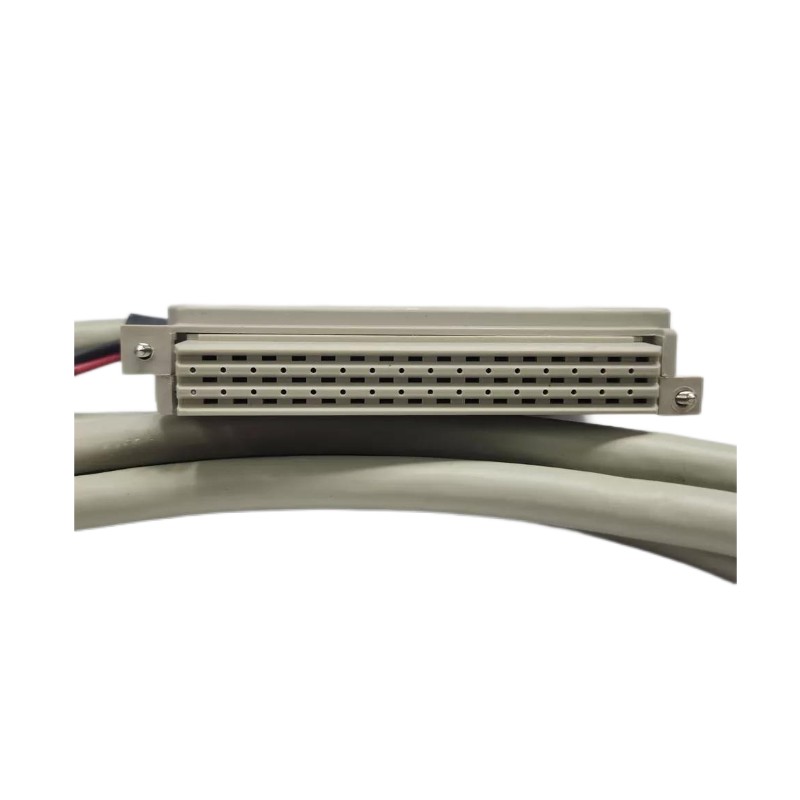

The HIMA Z7108/3237/C10 Cable Plug is a precision‑engineered connector designed for safety‑critical automation systems. Built to ensure a reliable electrical link between field wiring and safety I/O equipment, this cable plug supports high‑integrity signal transfer in industrial process control environments. Its robust construction delivers dependable performance even under vibration, temperature fluctuation, and continuous operation, making it well‑suited for demanding applications in refining, power generation, and chemical industries.
The Z7108/3237/C10 is crafted for seamless integration with HIMA safety modules and racks, offering secure mating, consistent contact stability, and field‑ready durability. Whether used in new installations or retrofit projects, this plug provides a trusted interface to maintain safety system integrity.
Technical Specifications
| Parameter | Specification |
|---|
| Model | Z7108/3237/C10 |
| Type | Cable Plug / Connector |
| Compatible Modules | HIMA Safety I/O Modules and Racks |
| Connector Format | Industrial multi‑pin plug |
| Contact Material | High‑conductivity, corrosion‑resistant plating |
| Cable Entry | Secure strain‑relief boot and clamp |
| Termination | Screw or crimp terminal options |
| Mechanical Durability | Designed for frequent mating cycles |
| Operating Temperature | –25°C to +70°C |
| Protection | Withstands industrial contaminants |
| Mounting Style | Panel‑ or chassis‑mounted connector |
Typical Applications
This cable plug is widely used where safe and dependable electrical connections are essential:
-
Field wiring interface for safety I/O modules
-
Safety system cabinets and junction panels
-
Control cabinets in petrochemical plants
-
Offshore and high‑vibration platforms
-
Machinery safety enclosures
-
Industrial automation signal distribution
It ensures precise connectivity between critical sensors, actuators, and safety logic interfaces.
Key Advantages
Industrial‑Grade Reliability
Durable materials and precise manufacturing deliver dependable performance over many mate‑demate cycles.
Secure Signal Integrity
Optimized contact design ensures stable electrical transmission in noisy industrial environments.
Easy Installation
Built‑in strain relief and clear termination options streamline field wiring and commissioning.
System Compatibility
Designed specifically to interface with HIMA safety racks and I/O modules for correct pin‑outs.
Broad Temperature Support
Rated for wide temperature ranges common to industrial facilities.
This cable plug enhances the reliability and maintainability of safety‑centric automation systems.
Technical FAQs
1. What is the primary function of this cable plug?
To provide a secure electrical interface between field wiring and safety I/O modules.
2. Which systems is it suited for?
HIMA safety racks and compatible I/O systems.
3. What is the operating temperature range?
Approximately –25°C to +70°C.
4. Does it provide strain relief?
Yes, integrated strain relief improves cable security.
5. What types of terminations are supported?
It supports screw or crimp terminations depending on configuration.
6. Is it suitable for high‑vibration applications?
Yes, it's designed for reliable performance under vibration.
7. What materials are used for contacts?
High‑conductivity plated contacts resistant to corrosion.
8. Can it be used outdoors?
With suitable enclosures and environmental protection, yes.
9. Is locking hardware included?
Secure locking prevents accidental disconnection.
10. Is it field‑replaceable?
Yes, this plug is designed for straightforward field replacement.
