Introduction

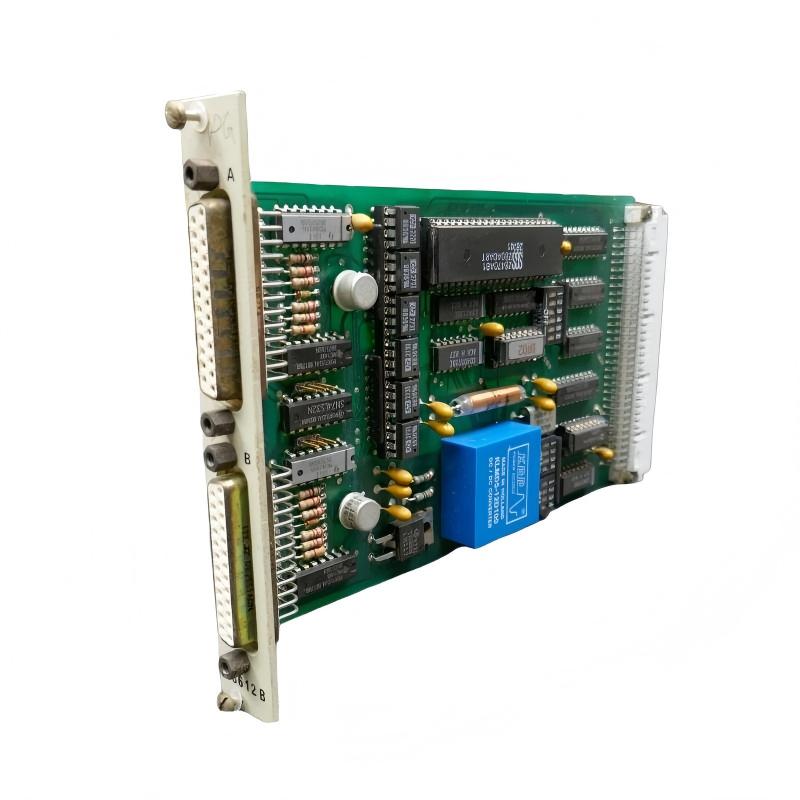

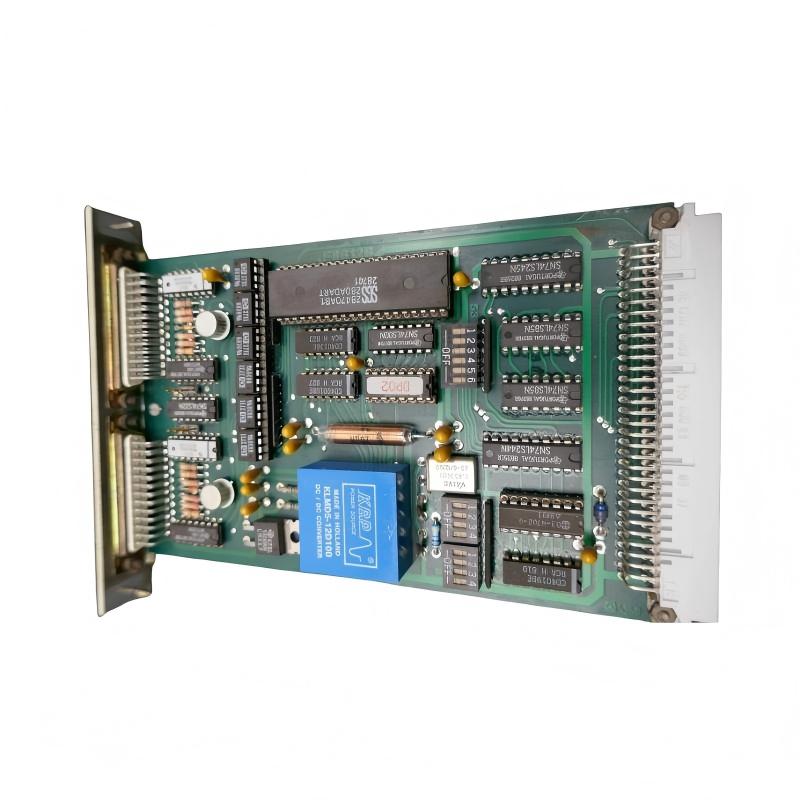

The HIMA F8612B Printed Circuit Board Module is a specialized safety automation component engineered for high‑integrity control environments where reliability and electrical precision are essential. As a core electronic element within HIMA safety system architectures, this board manages critical logic interfacing and signal conditioning between safety controllers and field I/O. Its design reflects decades of industrial automation expertise, combining robust board construction with long‑term operational stability.
Whether deployed in new safety cabinet builds or as part of system retrofits, the F8612B enhances performance, simplifies integration, and supports certified functional safety operation. This module is ideal for safety‑centric applications that demand repeatable performance under heavy load and continuous duty cycles.
Technical Specifications
| Parameter | Specification |
|---|
| Model | F8612B |
| Module Type | Printed Circuit Board Module |
| Primary Function | Safety logic interface and signal routing |
| System Integration | Internal board for HIMA safety racks |
| Signal Paths | Multi‑channel routing and connector interfaces |
| Electrical Interfaces | Backplane connections, bus links |
| Operating Temperature | –25°C to +70°C |
| Environmental Rating | Industrial operating tolerance |
| Mounting | Rack or chassis electronic board seating |
| Safety Compliance | Designed for use within SIL‑certified systems |
Applications
This board finds its place in diverse safety automation scenarios, such as:
-
Core safety control cabinets in process plants
-
Integrated backplane interfaces in refinery safety systems
-
Signal conditioning between CPUs and I/O modules
-
Turbine protection logic circuitry
-
Hazardous plant interlock systems
-
Modular safety system expansions
By acting as an electronic bridge within safety racks, the module supports efficient, deterministic safety logic.
Advantages
Precision Electronic Routing
Carefully engineered for reduced signal noise and accurate board‑level logic transfer.
System‑Level Safety Integration
Designed to be part of SIL‑compliant safety controllers and I/O racks.
Compact, Lightweight Construction
Ideal for dense board layouts and effective thermal performance.
Industrial Durability
Operates reliably under standard industrial temperature and electrical stress.
Long Lifecycle Support
Manufactured for consistent operation over extended duty cycles in continuous processes.
This module contributes to stable safety control frameworks, enhancing both performance and maintainability.
Technical FAQs
1. What is the main purpose of the F8612B?
It serves as an internal printed circuit board module within safety automation racks, managing signal routing and interface logic.
2. Can the F8612B operate on its own?
No, it must be integrated within HIMA safety racks or compatible control enclosures.
3. What temperature range does it support?
Approximately –25°C to +70°C for industrial operation.
4. Does it directly handle external I/O?
External I/O connections are handled by dedicated I/O modules; the F8612B interfaces internally.
5. Is it suitable for SIL‑compliant systems?
Yes, it is designed for use within systems certified to meet SIL safety standards.
6. Is board‑level cooling required?
Installed within an enclosure with conventional ventilation, active cooling is generally not required.
7. Are replacement parts available?
Yes, it is field‑replaceable when mounted correctly within safety racks.
8. What types of connectors does it use?
Standard backplane and bus connectors compatible with the targeted safety rack.
9. Is the module tested for vibration tolerance?
Yes, board design includes robust mounting and connection reliability.
10. How does it contribute to system diagnostics?
It supports consistent signal paths and interfaces that enable system‑level diagnostic clarity.
