Product Overview

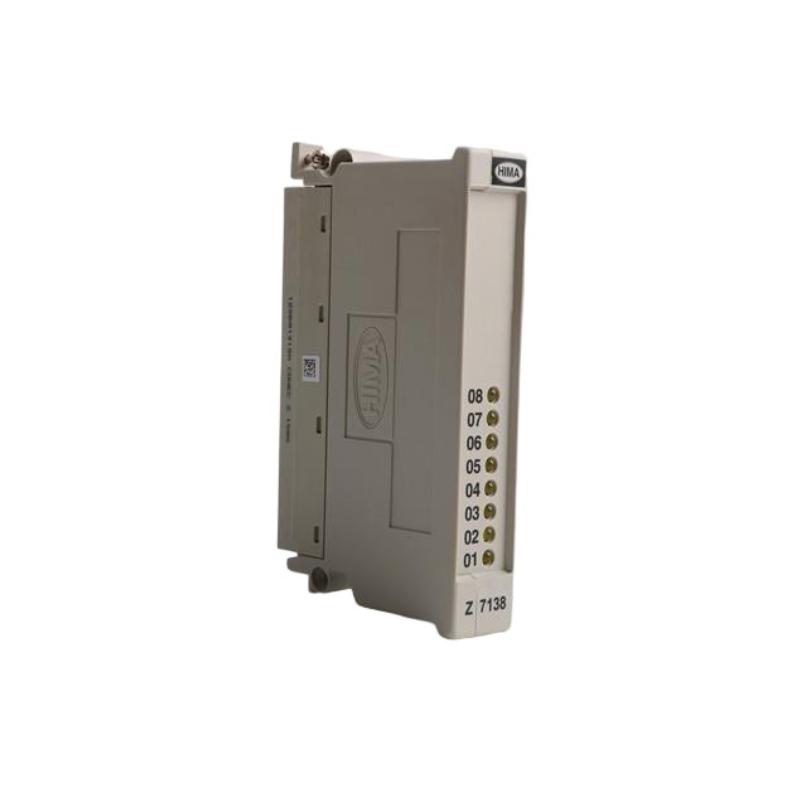

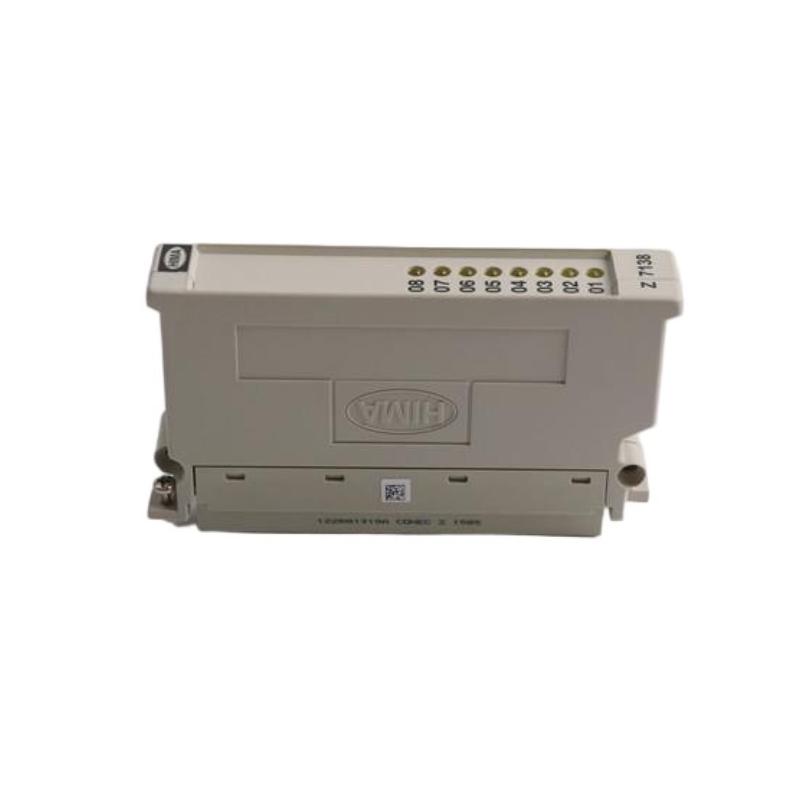

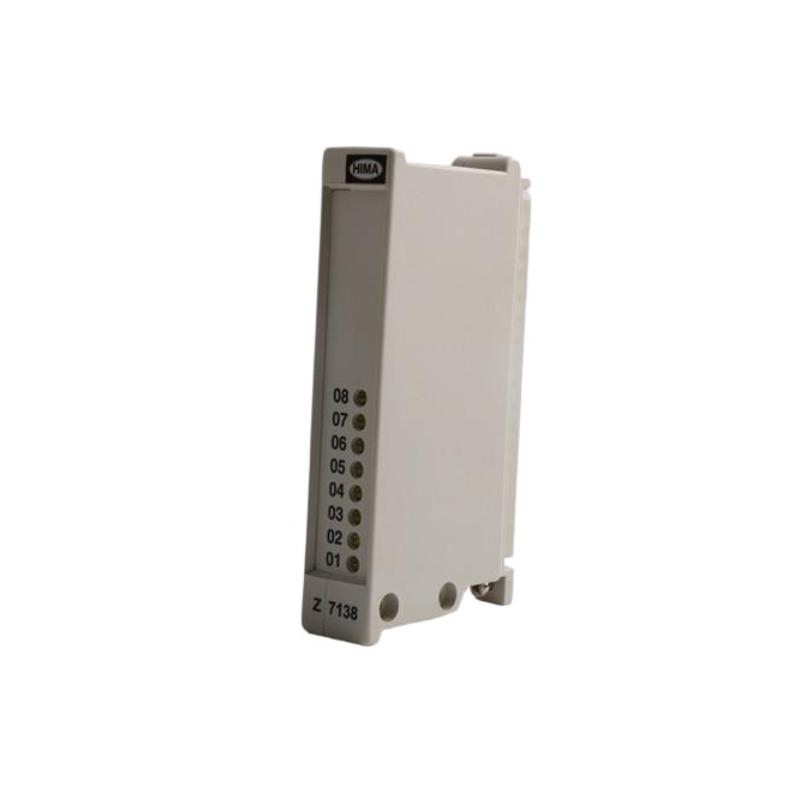

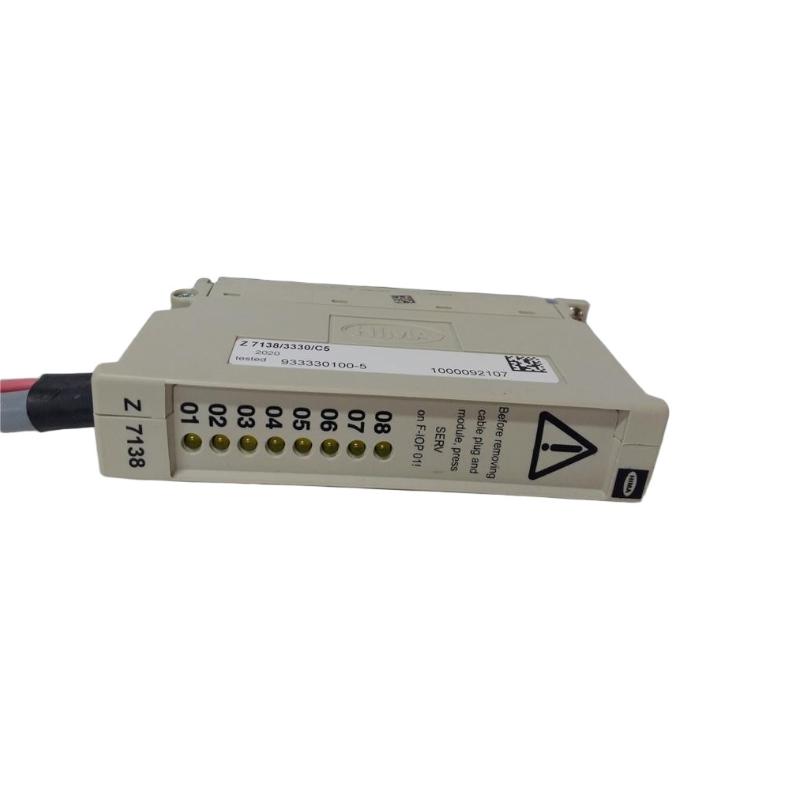

The HIMA Z7138/3330/C6/P2 Cable Plug is a rugged, high-quality interface component designed for safety-rated automation systems. Specifically tailored for HIMA safety I/O modules, this cable plug provides reliable electrical connections in demanding industrial environments. Engineered with precision and robust construction, the Z7138/3330/C6/P2 ensures secure signal integrity while simplifying installation and maintenance.
Built to complement safety modules and controllers, this plug supports vibration-resistant mating, consistent contact performance over extended cycles, and superior environmental protection. It is ideal where dependable communication between field wiring and safety I/O racks is required.
Technical Specifications
| Parameter | Specification |
|---|
| Model | Z7138/3330/C6/P2 |
| Type | Safety System Cable Plug / Connector |
| Compatible Platforms | HIMA Safety I/O Modules and Racks |
| Connector Style | Multi-pin industrial plug |
| Contact Material | High-conductivity plated contacts |
| Cable Entry | Strain-relieved boot with secure clamp |
| Termination | Screw or crimp terminations (dependent on variant) |
| Mechanical Protection | High durability housing |
| Operating Temperature Range | –25°C to +70°C |
| Protection Rating | Withstands industrial contaminants and moderate moisture |
| Mounting | Panel / chassis connector |
Typical Usage Scenarios
This cable plug is deployed wherever secure and resilient connections are critical within safety automation systems:
-
Interfacing field wiring to safety I/O modules
-
Connecting safety controller racks to external sensors and actuators
-
Industrial process skids and field junctions
-
High-vibration environments such as turbine platforms and offshore facilities
-
Maintenance hubs requiring frequent mate/demate operations
Its robust construction and precise fit contribute to reduced installation errors and increased uptime.
Key Benefits
Industrial-Grade Reliability
Durable materials and precision manufacturing ensure dependable electrical contact over thousands of cycles.
Safety System Compatibility
Designed specifically for HIMA safety racks and I/O systems, ensuring correct pin-out and conformity.
Enhanced Connection Integrity
Secure locking and strain relief help maintain connection stability under mechanical stress.
Easy Installation
User-friendly design simplifies field wiring and reduces commissioning time.
Broad Temperature Support
Rated for operation in a wide range of ambient conditions, suitable for most industrial environments.
This plug enhances overall system robustness by safeguarding signal paths in critical safety circuits.
Technical FAQs
1. What is the primary purpose of this cable plug?
It provides a secure electrical interface between field wiring and HIMA safety I/O modules.
2. Which systems is it compatible with?
HIMA safety I/O racks and associated safety controllers.
3. What is the operating temperature range?
Approximately –25°C to +70°C.
4. Does it support strain relief?
Yes, integrated strain relief enhances cable security.
5. What type of termination does it use?
Depending on configuration, it supports screw or crimp terminations.
6. Is this suitable for high-vibration environments?
Yes, it is designed for stable connections under vibration.
7. How robust are the contacts?
Contacts are plated and designed for repeated mate/demate cycles.
8. Can it be used outdoors?
With appropriate enclosure protection, it supports outdoor installations.
9. Does it include locking hardware?
Yes, features secure locking to prevent accidental disconnection.
10. Is this plug field-replaceable?
Yes, it is designed for easy field replacement and servicing.
