Overview – High-Speed Input/Output for Critical Control Systems

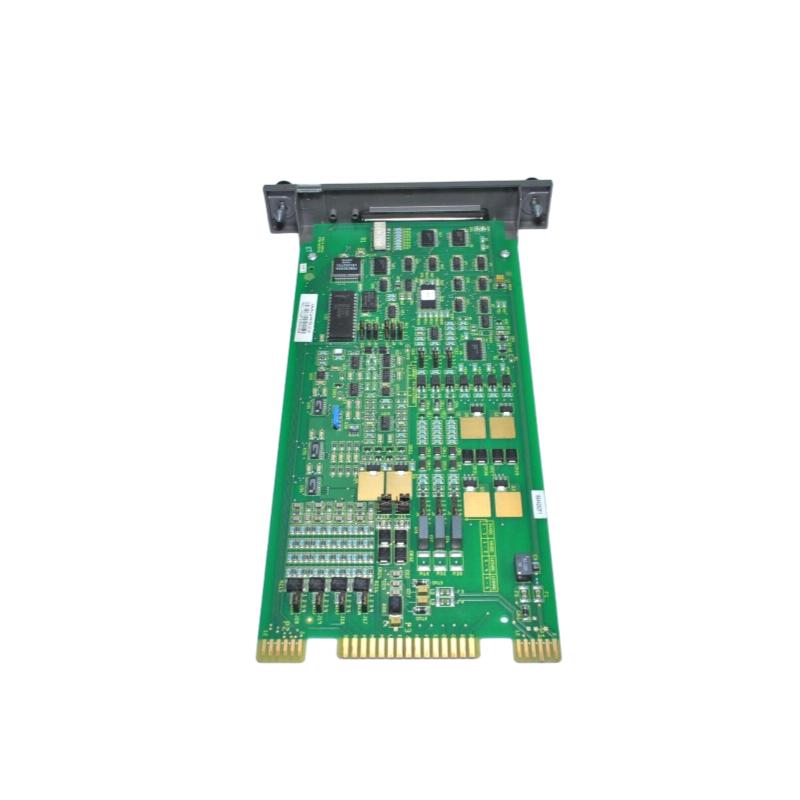

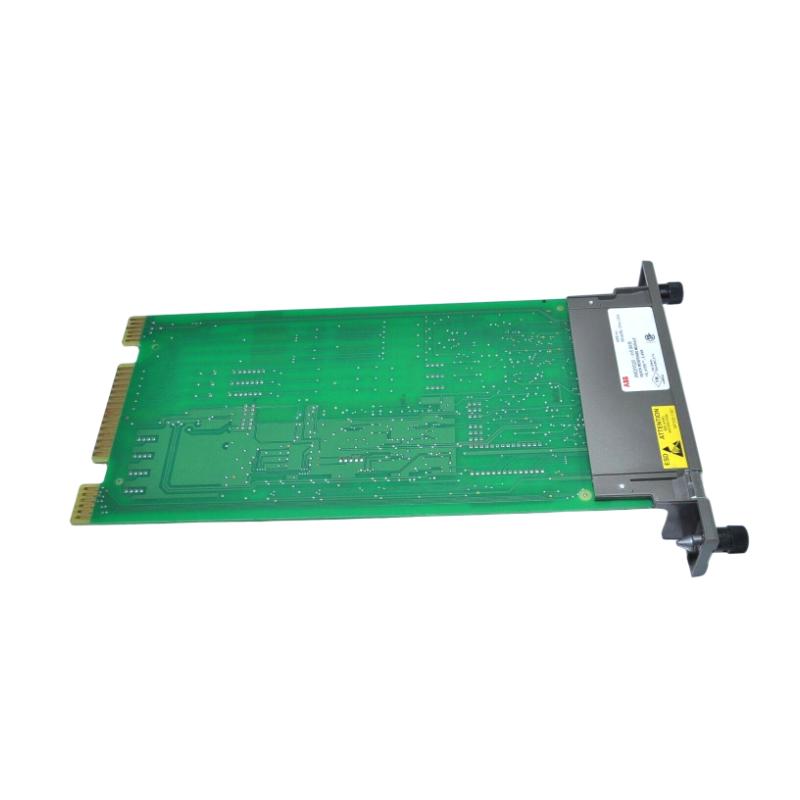

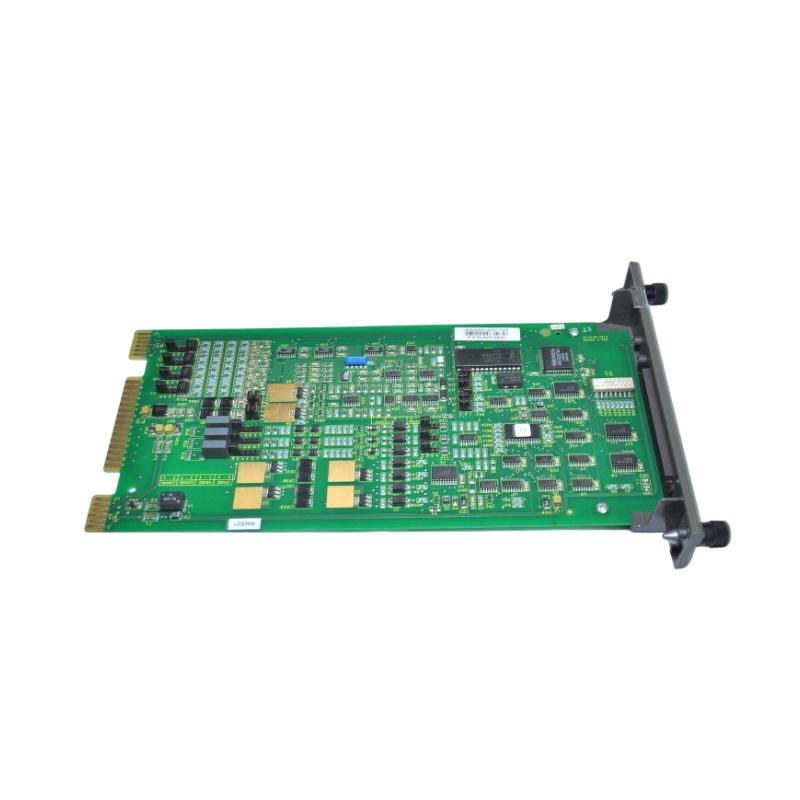

The ABB Bailey IMQRS22 Quick Response I/O Module is designed to provide fast, reliable digital and analog input/output processing within ABB Bailey INFI 90 Distributed Control Systems (DCS). Engineered for high-performance industrial applications, this module ensures rapid signal acquisition, low-latency output, and accurate data transfer, making it ideal for time-critical process control and automation systems.
With the IMQRS22, operators can achieve precise process monitoring, quick actuation of field devices, and seamless integration with other I/O and processor modules, ensuring continuous system reliability in manufacturing, chemical, and power generation environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | IMQRS22 |
| Type | Quick Response I/O Module |
| System Compatibility | ABB Bailey INFI 90 DCS |
| Input Channels | Configurable digital and analog inputs |
| Output Channels | Configurable digital and analog outputs |
| Response Time | Fast-scan operation, typical 10 ms per cycle |
| Mounting | Rack-mounted DCS chassis |
| Operating Temperature | 0°C to +60°C (+32°F to +140°F) |
| Storage Temperature | -20°C to +70°C (-4°F to +158°F) |
| Dimensions (L × W × H) | 160 mm × 100 mm × 25 mm |
| Weight | 0.36 kg (0.79 lbs) |
| Power Requirements | 5V DC ±5%, typical 6 W |
| Certifications | UL, CE, CSA industrial component standards |
