Product Introduction

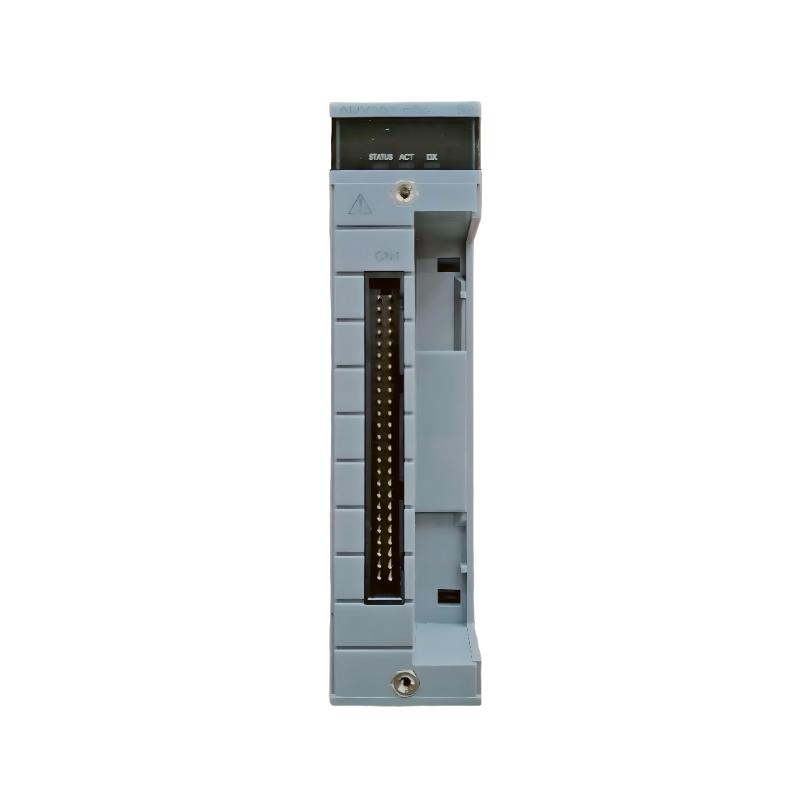

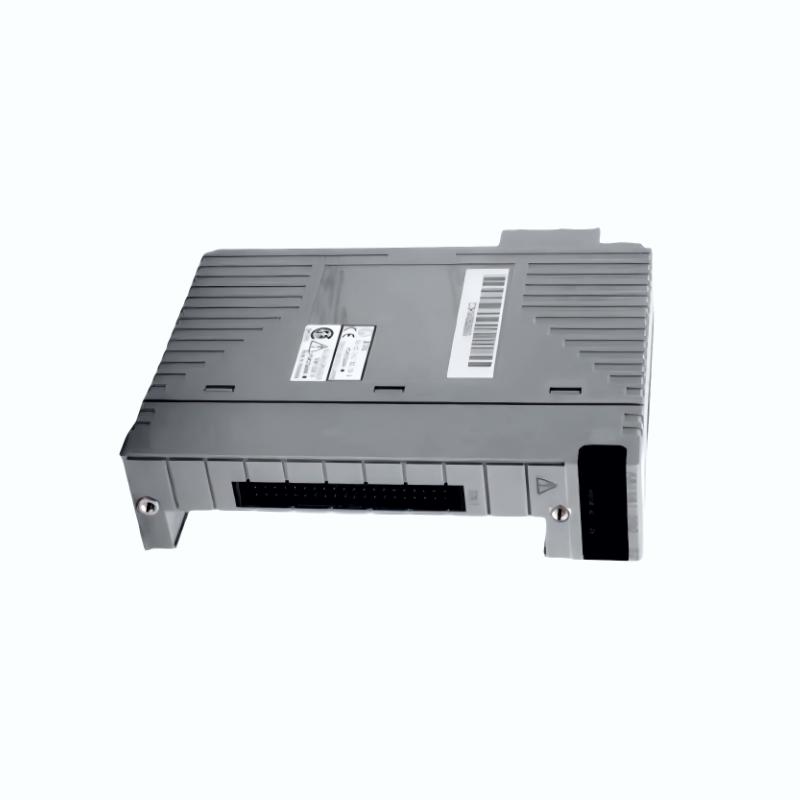

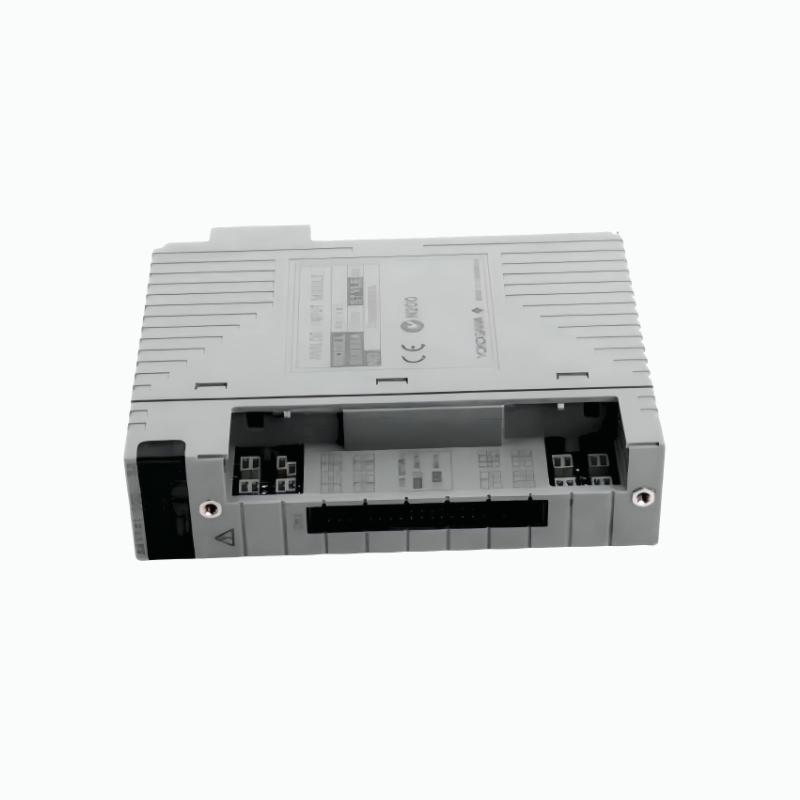

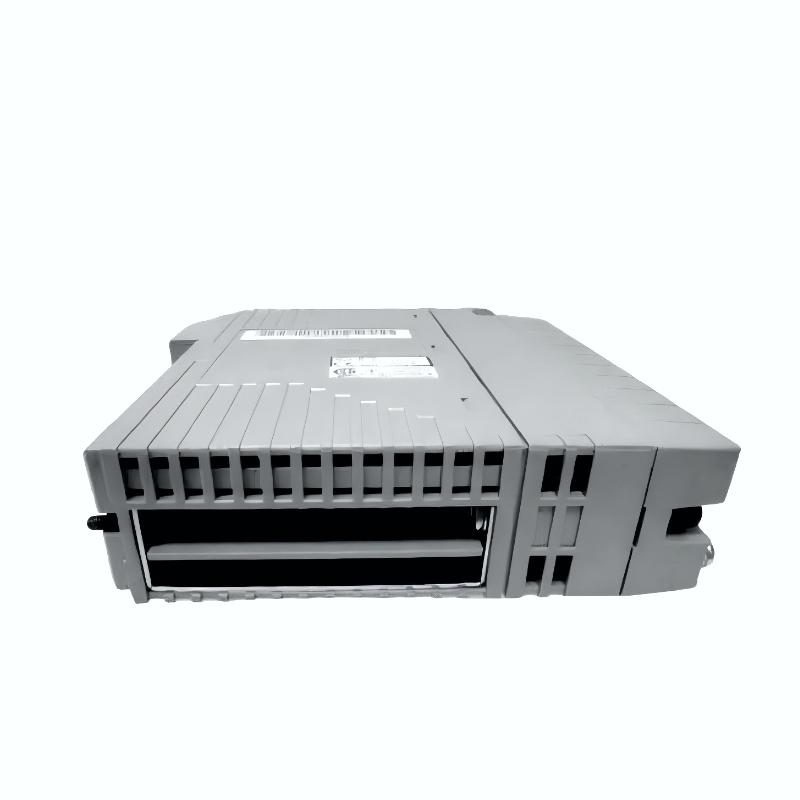

The Yokogawa ADV151-E63/D5A00 Numeric Input Module is a cabinet-mounted digital input interface designed to provide consistent and reliable signal acquisition in distributed automation systems. It plays a vital role in translating field device states into actionable control logic inputs.
Its compact dimensions and stable electrical design make it suitable for high-density installations across process industries. By ensuring accurate state detection and diagnostic transparency, the ADV151-E63/D5A00 contributes to overall system reliability and operational continuity.
Technical Specifications
| Parameter | Specification |
|---|
| Product Type | Numeric (Digital) Input Module |
| Model | ADV151-E63/D5A00 |
| Signal Type | Discrete digital inputs |
| Installation | Control cabinet mounted |
| Application | Distributed control systems |
| Diagnostics | Channel and module status monitoring |
| Operating Environment | Industrial indoor installation |
| Dimensions (H × W × D) | 107.5 × 130 × 32.8 mm |
| Net Weight | 0.3 kg (approx. 0.66 lb) |
Industrial Signal Monitoring Applications
The ADV151-E63/D5A00 Numeric Input Module is designed for dependable discrete signal acquisition within Yokogawa distributed control platforms. It captures field-level digital states and transfers them to the control processor for logic execution, event handling, and operational monitoring.
Typical industrial applications include:
-
Process equipment status indication
-
Interlock and permissive signal monitoring
-
Motor and pump run/stop feedback
-
Valve limit switch detection
-
Alarm and trip signal acquisition
In process-critical facilities, accurate digital input handling ensures stable control logic and timely alarm response.
Engineering Characteristics and Advantages
The ADV151-E63/D5A00 is developed with industrial reliability and cabinet efficiency in mind, supporting high-density digital input requirements.
Stable Digital State Detection
Engineered to ensure accurate ON/OFF signal recognition under varying industrial electrical conditions.
Compact Module Profile
Slim mechanical design supports dense cabinet installations without compromising accessibility.
Noise-Resistant Circuitry
Reduces false triggering in electrically noisy environments.
Integrated Diagnostics
Provides module-level and channel-level status feedback for troubleshooting and maintenance.
Platform Integration
Fully compatible with Yokogawa control systems and corresponding terminal units.
Technical FAQs
-
What type of signals does this module process?
It processes discrete digital (binary) input signals.
-
Is channel isolation provided?
Isolation characteristics depend on module configuration and system architecture.
-
Can input response time be configured?
Yes, input filtering and response parameters can typically be adjusted in the engineering software.
-
Does it support safety-related signal monitoring?
Suitability depends on overall system certification and configuration.
-
How are wiring connections implemented?
Field wiring is connected via compatible Yokogawa terminal units.
-
Is hot-swapping supported?
Hot swap capability depends on the specific control system platform design.
-
How are diagnostics accessed?
Diagnostic information is available through the host controller interface.
-
Can it detect fast pulse inputs?
Detection capability depends on configured scan rates and filtering parameters.
-
Is it suitable for redundant control architectures?
Yes, when integrated within a properly designed redundant system.
-
How does it improve system maintainability?
Built-in diagnostics and structured terminal connections simplify fault identification and service procedures.
