Precision Monitoring for High-Value Rotating Equipment

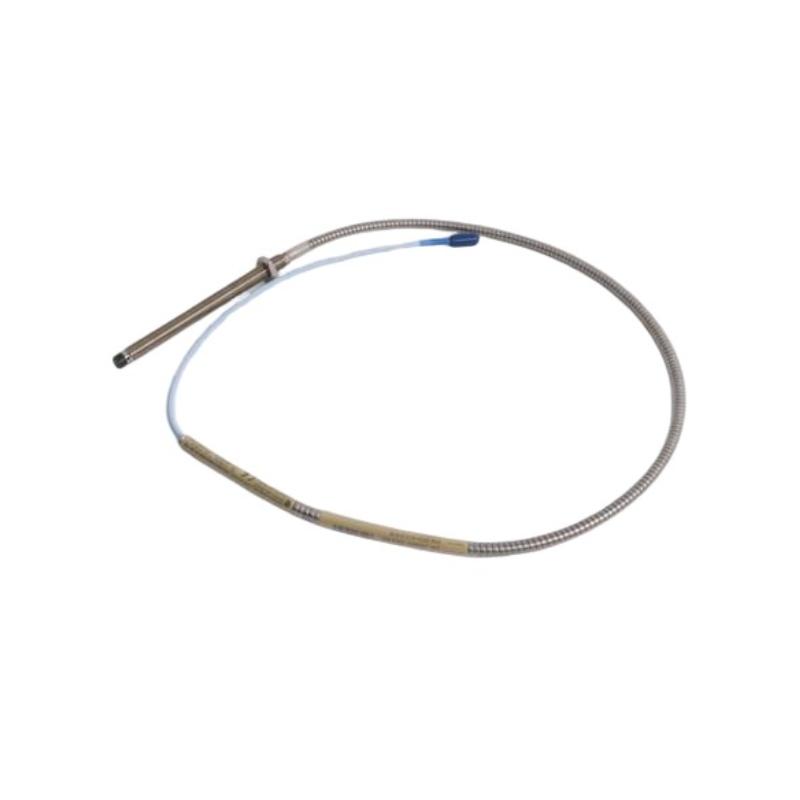

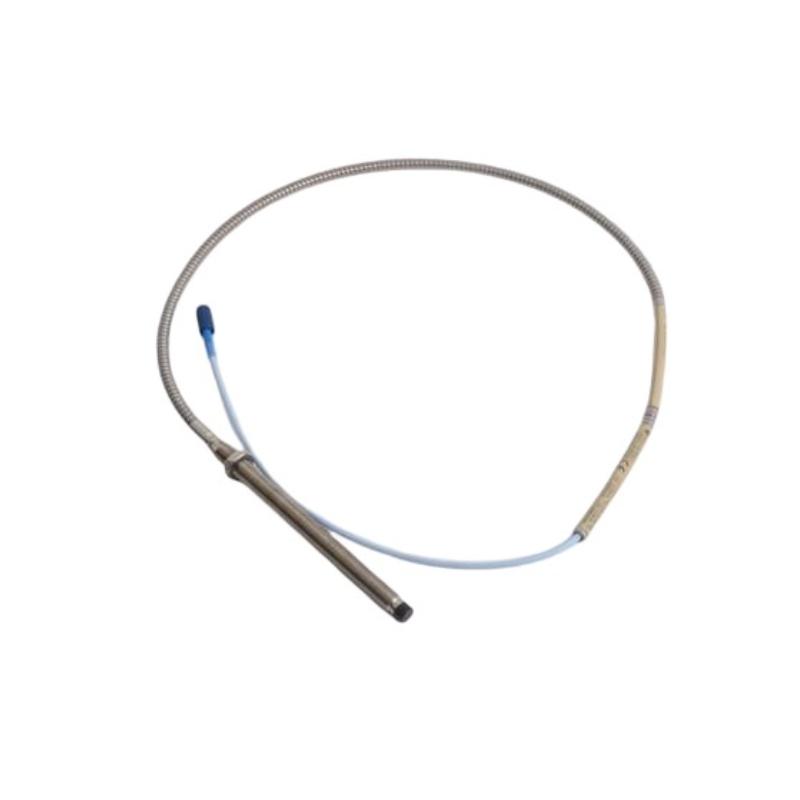

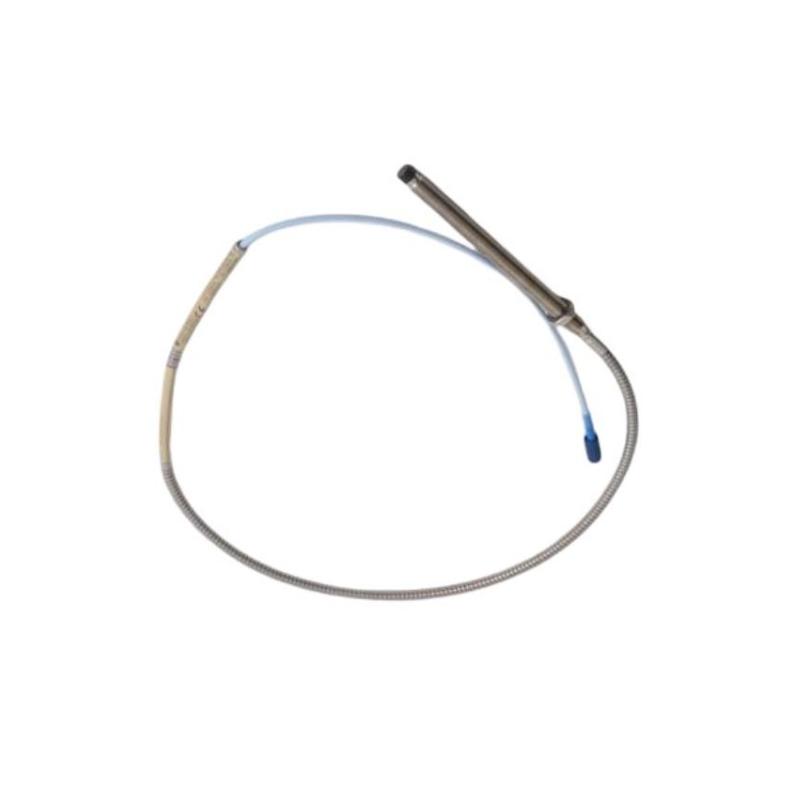

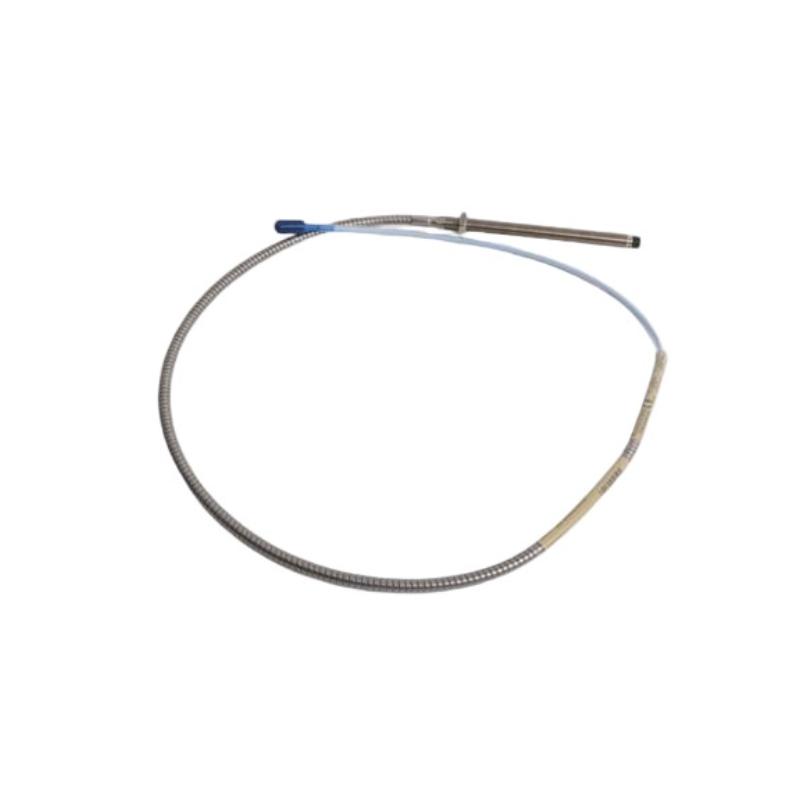

The Bently Nevada 330104-00-11-10-01-00 3300 XL 8 mm Proximity Probe is engineered for accurate, long-term vibration and shaft displacement measurement in mission-critical rotating machinery. As part of the 3300 XL transducer system, this probe is designed to deliver consistent signal integrity, mechanical durability, and dependable performance in harsh industrial environments.
From turbines operating at high RPM to compressors running in continuous production cycles, this 8 mm proximity probe supports condition-based maintenance programs and helps facilities detect imbalance, misalignment, and shaft movement before costly failures occur.
Built for reliability. Designed for precision. Trusted across industries.
Technical Specifications & Physical Parameters
| Parameter | Specification |
|---|
| Model Number | 330104-00-11-10-01-00 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Mounting Style | Standard Mount |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Probe Case Material | Stainless Steel |
| Integral Cable Length | 1.0 meter |
| Total Probe Length | Approx. 110 mm |
| Operating Temperature | -35°C to +177°C (-31°F to +351°F) |
| Storage Temperature | -51°C to +177°C |
| System Compatibility | 3300 XL Proximitor Sensor & Extension Cable |
| Approximate Weight | 0.13 kg (0.29 lbs) |
Typical Industrial Applications
The 3300 XL 8 mm probe is widely used in:
It is ideal for radial vibration monitoring, shaft position tracking, and dynamic displacement measurement in continuous protection systems.
Performance Advantages
Stable Signal Output
Maintains high linearity across its measurement range for reliable diagnostics.
Robust Industrial Construction
Stainless steel housing resists corrosion, oil exposure, and mechanical stress.
Installation Flexibility
Standard mounting configuration simplifies replacement and retrofitting.
High Temperature Capability
Suitable for demanding turbine and compressor environments.
System Integration
Designed for seamless operation with 3300 XL proximitor sensors and monitoring modules.
Supports Predictive Maintenance
Provides the accurate data required to reduce downtime and extend equipment lifespan.
Technical FAQs
1. What is the probe diameter?
The probe tip diameter is 8 mm.
2. What is the integral cable length for this configuration?
This model includes a 1.0 meter integral cable.
3. What temperature range can the probe operate in?
Operating temperature ranges from -35°C to +177°C.
4. What mounting thread does it use?
It features a 3/8-24 UNF thread.
5. Is it suitable for high-speed rotating machinery?
Yes, it is commonly used in turbines and compressors operating at high RPM.
6. Can it measure axial displacement?
Yes, when integrated into a compatible monitoring system.
7. What material is used for the probe housing?
Industrial-grade stainless steel.
8. Is this probe designed for permanent installation?
Yes, it is intended for continuous monitoring applications.
9. What is the approximate weight?
Approximately 0.13 kg (0.29 lbs).
10. What additional components are required for operation?
It must be used with compatible 3300 XL extension cables and proximitor sensors.
