Overview – Reliable Vibration Monitoring for Critical Rotating Assets

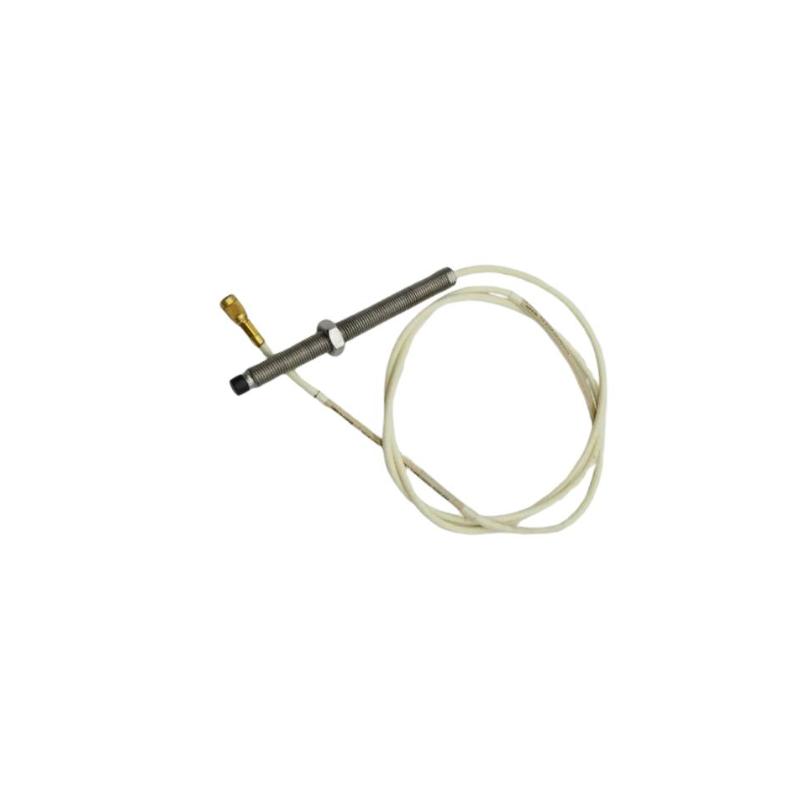

The Bently Nevada 21504-00-08-10-02 7200 8mm Standard Mount Probe is a field-proven proximity probe engineered for accurate radial vibration and shaft position measurement in industrial rotating machinery. As part of the respected 7200 Series, this 8 mm standard mount probe is widely used in environments where operational reliability and machinery protection are non-negotiable.
Built for continuous-duty applications, it provides stable signal performance under mechanical stress, temperature variation, and high-speed operation. For maintenance teams and reliability engineers, this probe offers dependable data that supports predictive maintenance strategies and reduces the risk of unexpected equipment failure.
Technical Specifications & Physical Characteristics
| Parameter | Specification |
|---|---|
| Model Number | 21504-00-08-10-02 |
| Series | 7200 |
| Probe Type | 8 mm Standard Mount Proximity Probe |
| Mounting Configuration | Standard Mount |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Probe Case Material | Stainless Steel |
| Cable Length | 2 meters |
| Connector Type | Coaxial connector |
| Operating Temperature | -34°C to +177°C (-30°F to +350°F) |
| Storage Temperature | -51°C to +177°C |
| Overall Length | Approx. 100 mm |
| Approximate Weight | 0.14 kg (0.31 lbs) |
