Precision Analog Output Control for RX3i PLC Systems

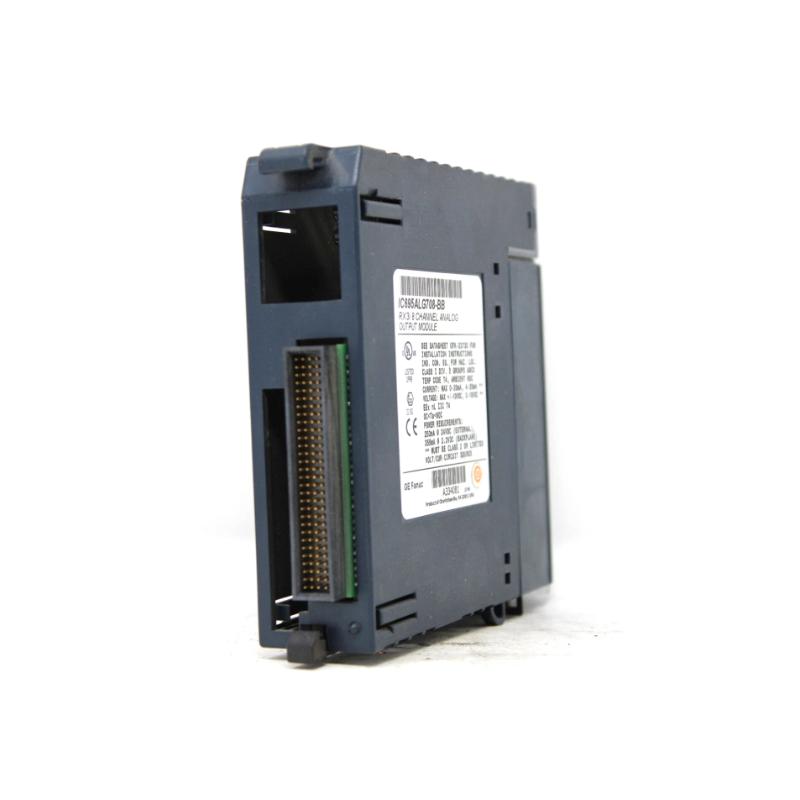

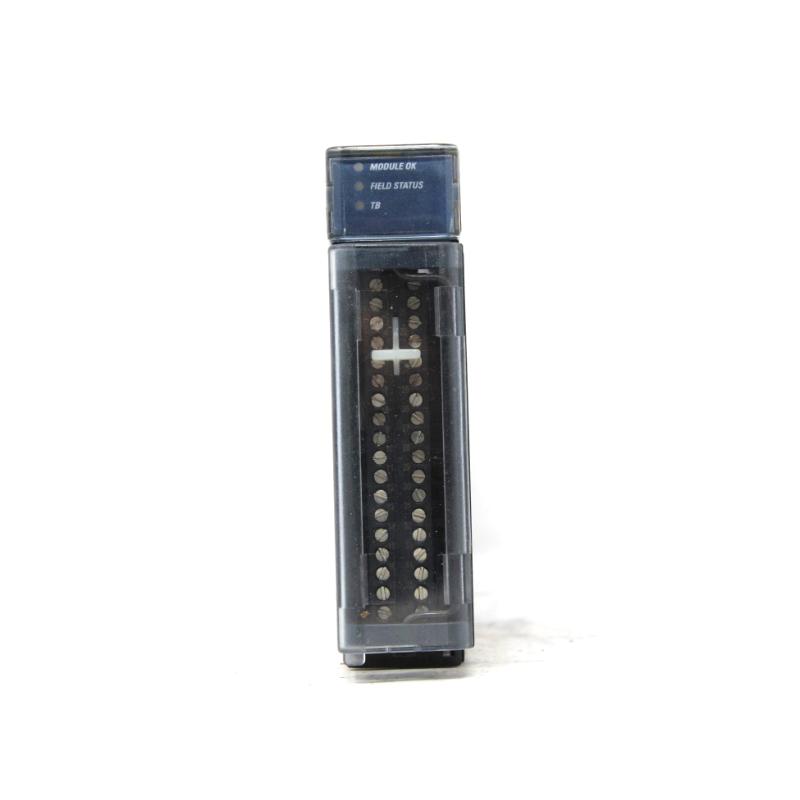

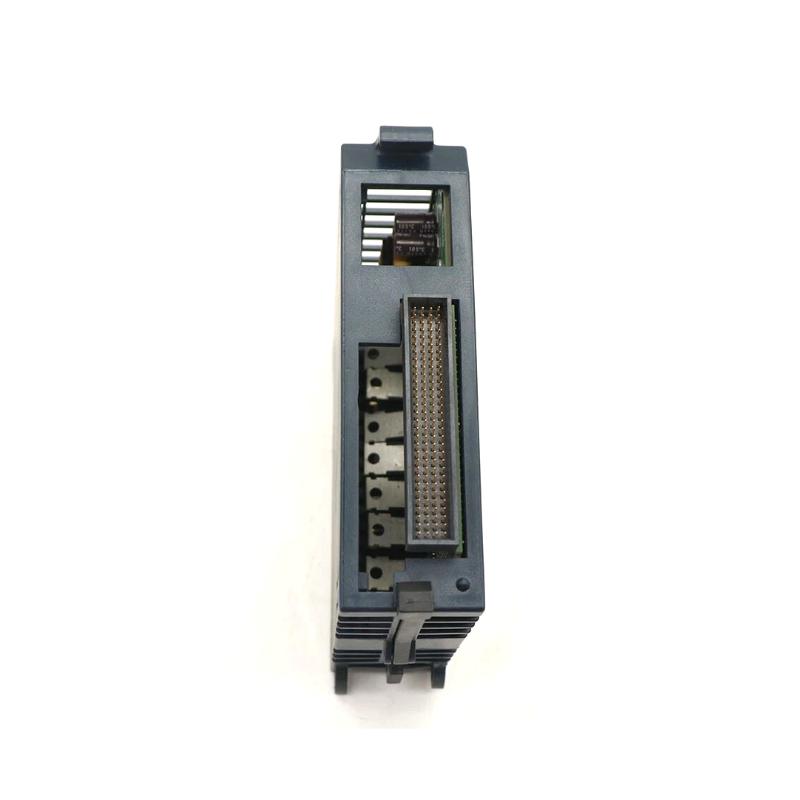

The GE IC695ALG708 Analog Output Module is engineered to provide reliable, high‑fidelity analog signal generation for control applications within the RX3i Series programmable logic controller (PLC) platform. Designed for industrial automation environments, this module converts digital output values from the PLC into precise analog current or voltage signals to drive field devices such as valves, actuators, converters, and instrumentation.
Its robust design, multiple output options, and seamless integration with RX3i hardware make the IC695ALG708 a flexible solution for diverse process control and machine automation needs.
Technical Specifications
| Specification | Details |
|---|
| Module Type | Analog Output Module |
| Model Number | IC695ALG708 |
| System Compatibility | RX3i Series PLC |
| Output Channels | 8 independent analog outputs |
| Output Signal Types | 0–20 mA, 4–20 mA, 0–10 V, ±10 V |
| Resolution | High‑resolution 12‑ to 14‑bit D/A conversion |
| Accuracy | ±0.25 % Full Scale (typical) |
| Load Range | Compatible with standard analog loads |
| Isolation | Channel‑to‑backplane isolation |
| Response Time | Real‑time update performance |
| Mounting Method | Rack installation in RX3i system |
| Dimensions | Standard RX3i module footprint |
| Weight | Approx. 0.45 kg |
| Operating Temperature | Industrial‑rated range |
| Environmental Design | Industrial automation environments |
| Diagnostics | Status LED indicators |
Typical Applications
The IC695ALG708 module is ideal for applications requiring precise analog control signal generation:
-
Process valve positioning
-
Analog command output for motor drives
-
Control of proportional actuators
-
Analog feedback loops for pressure, temperature, and flow
-
Distributed supervision systems
-
Chemical and petrochemical process automation
-
Infrastructure and utility control systems
Its 8‑channel design and support for both current and voltage outputs enable flexible use in varied automation tasks.
Key Advantages
-
Multi‑Channel Capability: Eight independent analog outputs for comprehensive control
-
Versatile Signal Support: Current and voltage output types accommodate diverse devices
-
High Resolution & Accuracy: Ensures stable and precise control signals
-
Seamless Integration: Compatible with RX3i PLC racks and backplane communication
-
Industrial Reliability: Designed for continuous operation in demanding environments
-
Fast Updates: Supports real‑time control requirements
-
Diagnostic Feedback: Visual indicators assist with system status and troubleshooting
These strengths make the IC695ALG708 well suited for systems where multiple analog outputs are needed with dependable performance and minimal configuration complexity.
Technical FAQs
1. How many analog outputs does the IC695ALG708 provide?
It provides eight independent analog output channels.
2. What types of output signals are supported?
The module supports 0–20 mA, 4–20 mA, 0–10 V, and ±10 V output signals.
3. What resolution does it use?
High‑resolution 12‑ to 14‑bit digital‑to‑analog conversion.
4. How accurate are the outputs?
Typical accuracy is ±0.25 % full scale.
5. Can it operate in real‑time control loops?
Yes — it supports rapid update performance suitable for real‑time systems.
6. Is it compatible with other RX3i modules?
Yes, it integrates seamlessly within RX3i rack systems.
7. What mounting method is used?
Rack installation within an RX3i PLC chassis.
8. Is it suitable for industrial environments?
Yes — designed for standard industrial operating conditions.
9. What diagnostic features are available?
Status LED indicators provide operational feedback.
10. How does it differ from smaller output modules?
It offers more output channels and greater flexibility for complex systems.
