High‑Precision Output for Industrial Control Systems

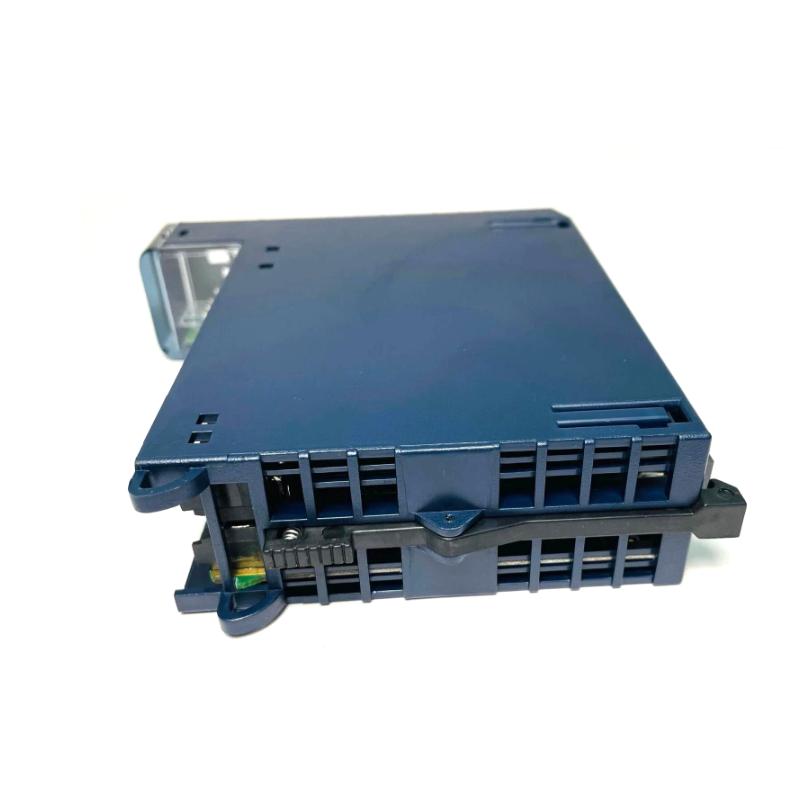

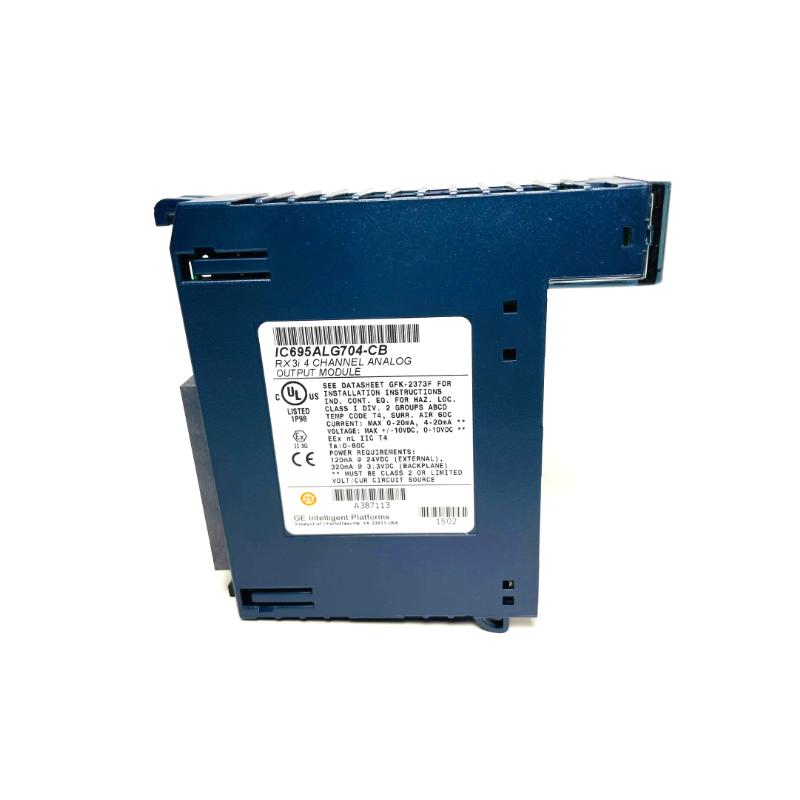

The GE IC695ALG704 Analog Output Module is a reliable, precision signal conversion component designed for the RX3i Series of GE Automation & Controls programmable logic controllers (PLCs). This module converts digital control values from the PLC into accurate analog voltage or current signals for controlling field‑level devices such as valves, actuators, drives, and transducers.
With industrial‑grade construction and consistent performance, the IC695ALG704 ensures that critical analog outputs remain stable and reliable — supporting smooth process control and automation across a variety of sectors.
Technical Specifications
| Parameter | Specification |
|---|
| Module Type | Analog Output Module |
| Model Number | IC695ALG704 |
| System Compatibility | RX3i Series PLC |
| Output Channels | 4 independent analog outputs |
| Supported Output Types | 0–20 mA, 4–20 mA, 0–10 V, ±10 V |
| Resolution | 12‑ to 14‑bit D/A conversion |
| Accuracy | ±0.25 % Full Scale |
| Load Range | Varies by signal type (mA/V load compatible) |
| Isolation | Channel‑to‑backplane isolation |
| Response Time | Real‑time update rates |
| Mounting | RX3i rack installation |
| Dimensions | Standard RX3i module footprint |
| Weight | ~0.45 kg |
| Operating Temperature | Industrial‑rated range |
| Environmental Design | Designed for industrial automation |
Application Scenarios
The IC695ALG704 analog output module is well‑suited for industrial applications that require dependable analog signal control:
-
Valve positioning in process control
-
Speed control of analog drives
-
Control of linear actuators
-
Temperature, pressure, and flow control loops
-
Signal generation for analog transducers
-
Analog command output in chemical and petrochemical plants
-
Factory automation machine interfaces
Its ability to output multiple standard industrial signal types makes it adaptable across automation architectures.
Key Advantages
-
Versatile Output Types: Supports both current and voltage ranges to meet diverse field device needs
-
Accurate Conversion: High resolution combined with reliable accuracy for smooth control
-
Seamless Integration: Plug‑in compatibility with RX3i series racks
-
Compact Design: Conserves cabinet space in modular PLC systems
-
Fast Response: Supports dynamic control updates for real‑time systems
-
Industrial Reliability: Built to withstand typical plant floor conditions
-

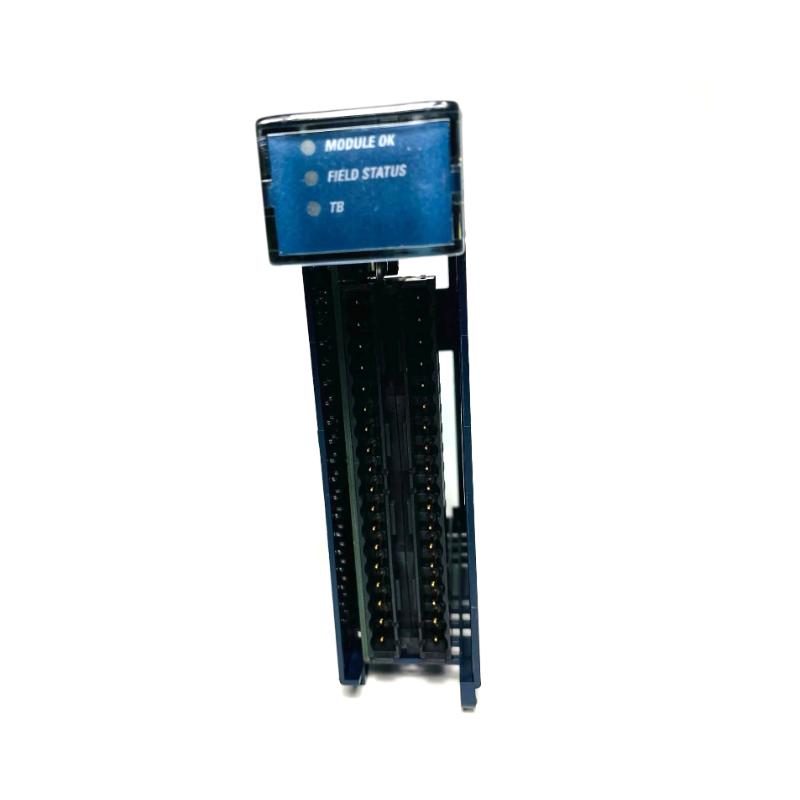

Simple Diagnostics: Status indicators assist troubleshooting
This module supports engineers in achieving consistent, real‑time analog control without added complexity.
Technical FAQs
1. How many outputs does the IC695ALG704 provide?
It provides four independent analog output channels.
2. What signal types are supported?
The module supports 0–20 mA, 4–20 mA, 0–10 V, and ±10 V output signals.
3. What resolution does it use?
Typically a 12‑ to 14‑bit digital‑to‑analog conversion resolution.
4. How accurate are the analog outputs?
Approximately ±0.25 % full‑scale accuracy.
5. Can it drive different types of field devices?
Yes — suitable for valves, actuators, and analog drive control.
6. Does it provide electrical isolation?
Yes — channel isolation is provided via backplane design.
7. Is it compatible with other RX3i modules?
Yes — fully compatible within the RX3i rack system.
8. What mounting method does it use?
Rack installation within the RX3i PLC chassis.
9. Is it suitable for industrial environments?
Yes, designed for reliable operation under normal industrial conditions.
10. Can it update outputs in real time?
Yes, it supports rapid output updates appropriate for control loops.
