ABB Bailey IMDSI13 PTJDC95205 Digital Input Submodule INFI 90 Series

Brand:ABB Bailey
Item No.:IMDSI13 PTJDC95205
Product Origin:Sweden
Product Dimensions:17.8 × 5.1 × 3.8 cm
Product Weight:0.35kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

1IMDSI13IMDSI13-3IMDSI13-1

Product Overview

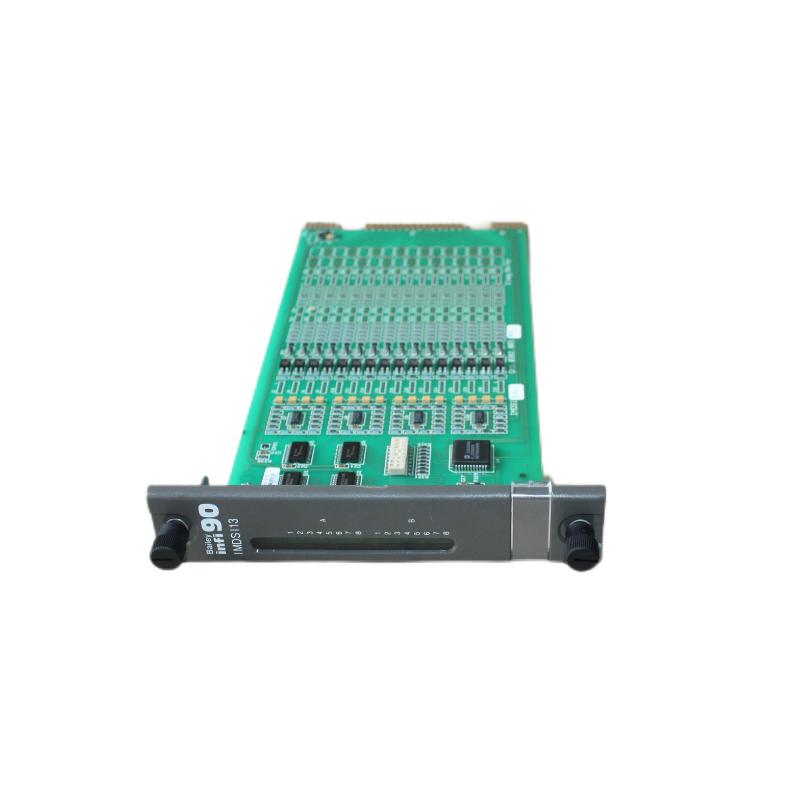

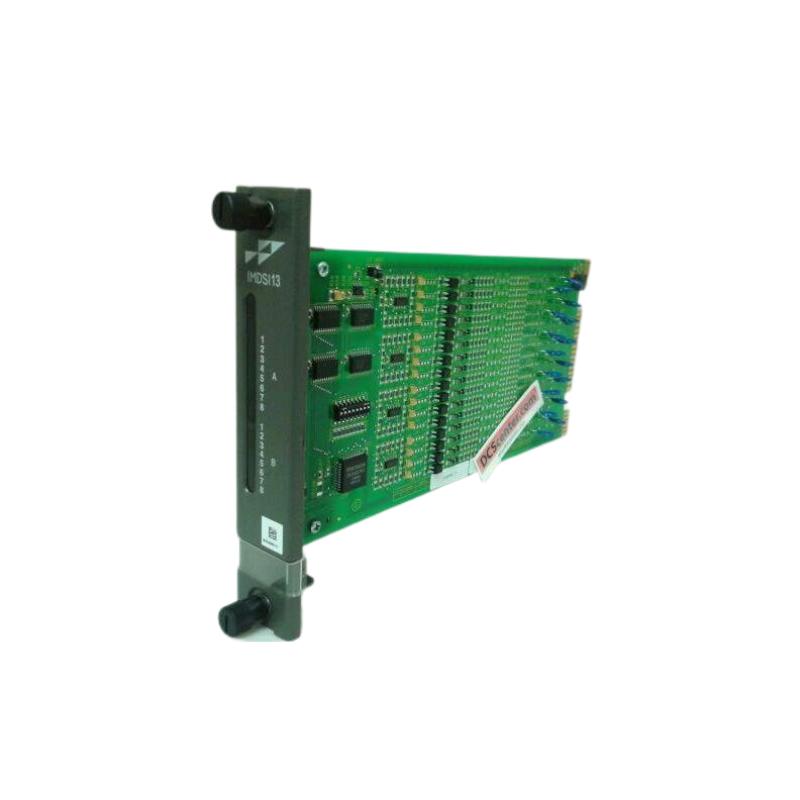

The ABB Bailey IMDSI13 PTJDC95205 Digital Input Submodule is a high-performance interface designed for use in the INFI 90 distributed control system. It provides reliable acquisition of discrete digital signals from field devices, enabling the DCS to monitor and respond to operational states such as switch positions, sensor status, and alarm conditions.

With rugged construction and precise signal handling, the IMDSI13 ensures continuous, accurate digital input performance in industrial automation applications. Its modular design allows seamless integration into INFI 90 racks, supporting both new installations and legacy system expansions.

Technical Specifications

ParameterSpecification
Module TypeDigital Input Submodule
Model NumberIMDSI13 PTJDC95205
System CompatibilityINFI 90 DCS
Input Channels16 discrete digital inputs
Input Voltage24 VDC standard
IsolationChannel-to-channel and channel-to-supply isolation
Input Response Time≤5 ms
Status IndicatorsLED per input channel
MountingINFI 90 rack-mounted
Dimensions17.8 × 5.1 × 3.8 cm
WeightApprox. 0.35 kg
Operating Temperature0–60°C
Environmental RatingIndustrial-grade operation


Application Areas

The IMDSI13 submodule is commonly deployed in scenarios requiring reliable discrete signal monitoring:

  • Switch and push-button status monitoring

  • Limit switches on machinery

  • Safety interlock verification

  • Valve open/close position monitoring

  • Alarm input capture

  • Pump and motor status feedback

  • General discrete process monitoring

It ensures that the control system receives accurate and timely digital information for automated decision-making.


Key Advantages

  • Supports 16 discrete input channels per module

  • Fast response time for real-time control

  • Integrated LED indicators simplify diagnostics and troubleshooting

  • Rugged design suitable for harsh industrial environments

  • Plug-and-play compatibility with INFI 90 racks

  • Channel isolation protects system from electrical noise

  • Simplifies system expansion and wiring organization


Technical FAQs

1. What is the primary purpose of IMDSI13?
To acquire discrete digital input signals from field devices for the INFI 90 DCS.

2. How many inputs does it support?
16 digital input channels.

3. What voltage level is required for input signals?
Standard 24 VDC.

4. Is it compatible with legacy INFI 90 systems?
Yes, fully compatible.

5. Can it detect fast-changing signals?
Yes, input response time is ≤5 ms.

6. Does it provide status indicators?
Yes, each channel has an LED indicator.

7. What type of mounting is used?
Rack-mounted within INFI 90 architecture.

8. Is it suitable for industrial environments?
Yes, rated for standard industrial conditions.

9. Can it handle signal noise?
Yes, channel isolation protects against interference.

10. Can multiple modules be installed together?
Yes, modular design allows expansion for higher channel counts.
