Introduction

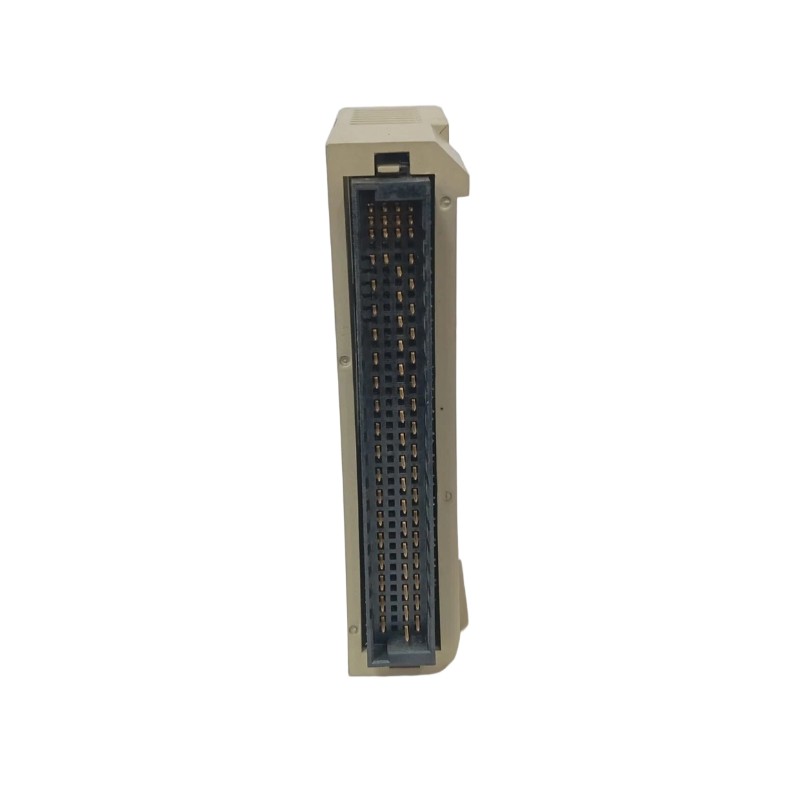

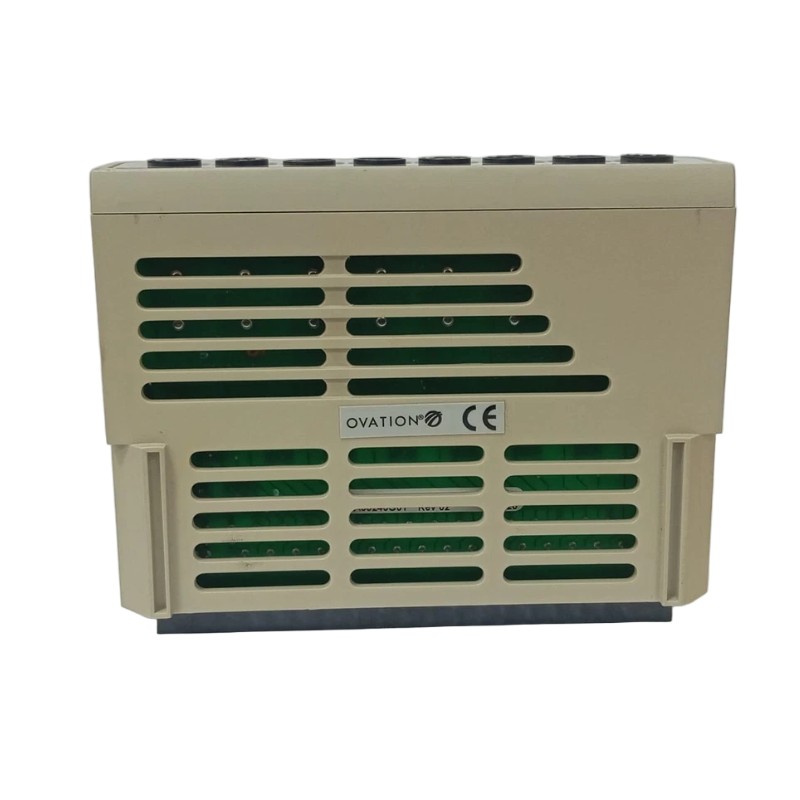

From an engineering-operations point of view, the Ovation 1C31174G31 Loop Interface Module serves as a structured handoff point between field instrumentation and the Ovation control architecture. It is built to simplify loop organization, provide clean isolation between field wiring and control logic, and ensure stable, noise-resistant signal transmission. This version of the loop interface board is commonly used in brownfield and greenfield installations where loop density is high and long-term maintainability is a priority.
Technical Specifications
(Dimensions and weight are estimated to support cabinet design and mechanical planning.)
| Parameter | Details |
|---|---|
| Module Type | Loop Interface Module |
| Model | 1C31174G31 |
| System | Emerson Ovation DCS |
| Primary Function | Conditioning, isolation, and routing of analog/digital field loops |
| Supported Loop Types | Analog current/voltage loops, discrete inputs (depending on wiring configuration) |
| Electrical Protection | Isolation barriers, filtering, surge mitigation |
| Backplane / Bus Interface | Internal Ovation system bus |
| Mounting | Panel or rack-mounted in Ovation control enclosure |
| Typical Operating Environment | Industrial control cabinets with moderate EMI conditions |
| Dimensions (H × W × D) | 205 × 135 × 32 mm |
| Weight | ≈ 0.75 kg |
| Construction | Multi-layer PCB with coated protective surfaces and shielded termination areas |
| Termination Style | Screw or compression terminals for field loop entry |
