Industrial‑Grade Motor Control for Compact Systems

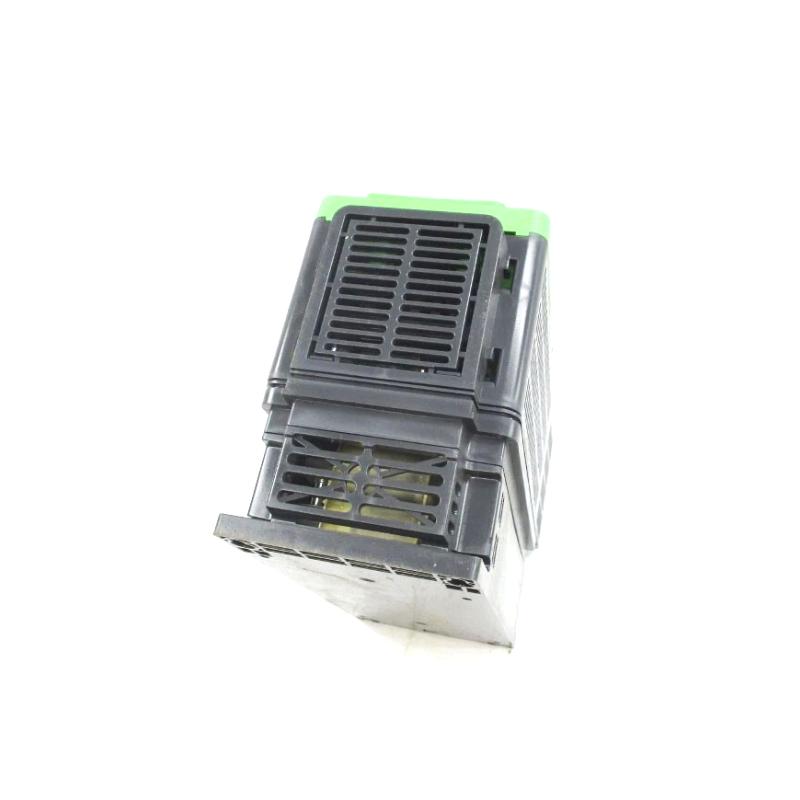

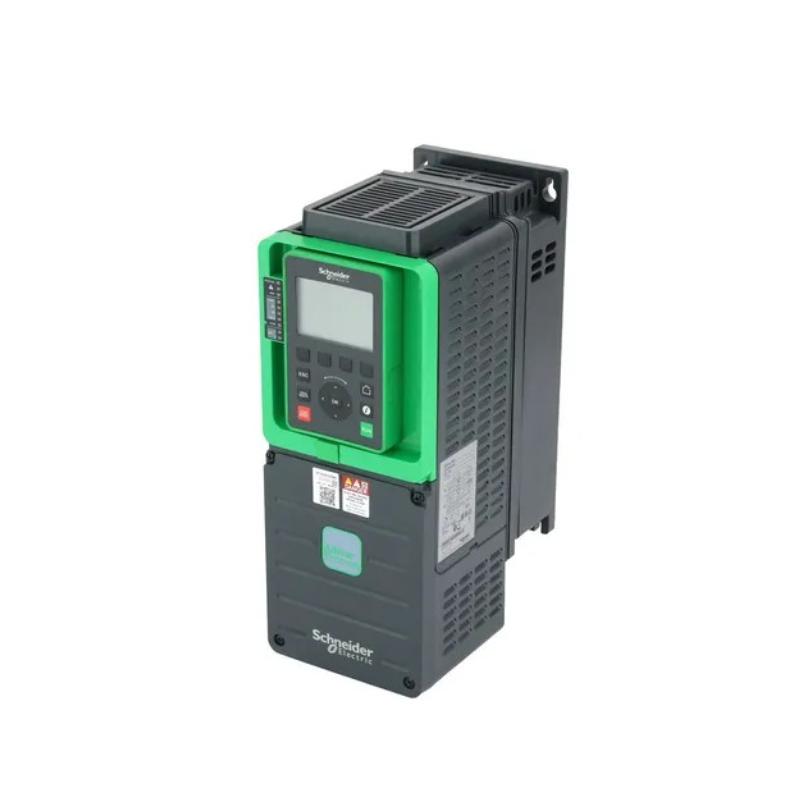

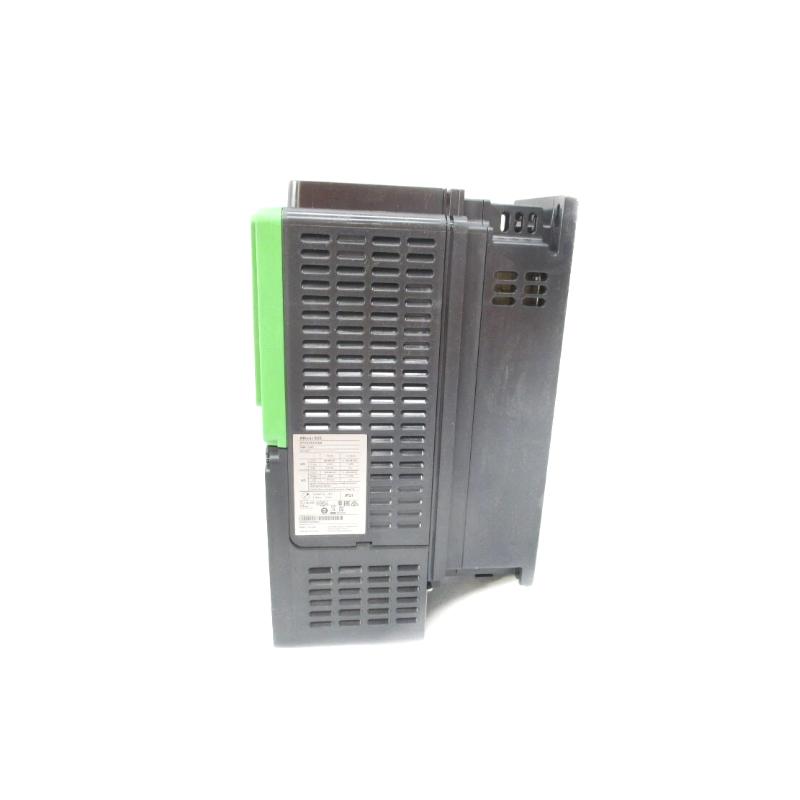

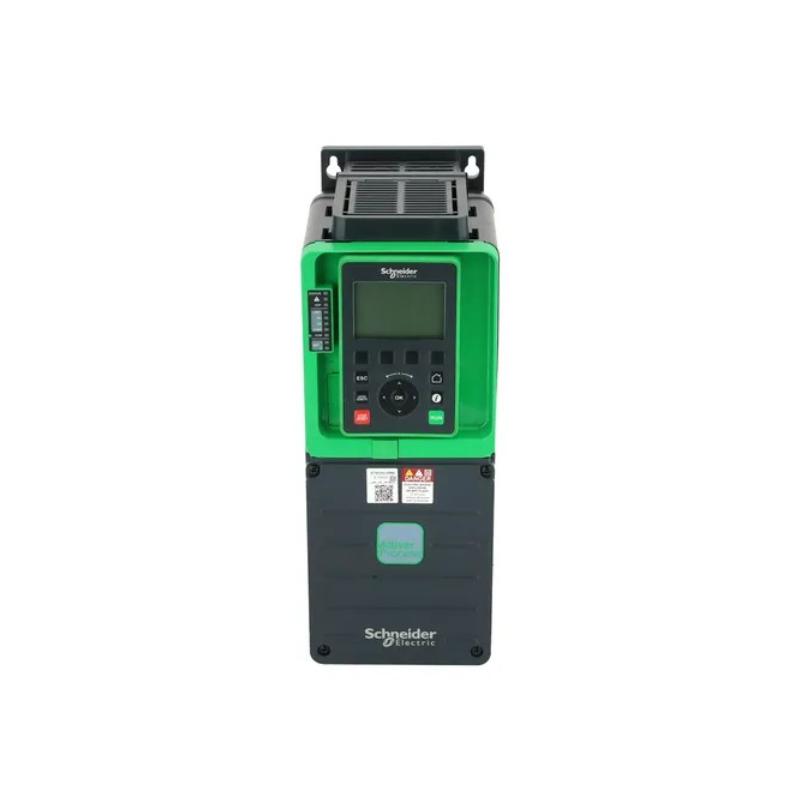

The Schneider ATV930U30N4 Variable Speed Drive is part of the Altivar Process ATV900 series — a rugged, high‑performance solution designed for precise speed and torque control in industrial automation environments. Tailored for smaller motors while still offering advanced control and connectivity, this drive brings process flexibility, energy efficiency, and robust protection into applications where reliability and integration matter.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | ATV930U30N4 |
| Product Type | Variable Speed Drive |
| Series | Altivar Process ATV900 |
| Motor Power | 3.0 kW (Normal Duty) / 2.2 kW (Heavy Duty) |
| Rated Supply Voltage | 380–480 V AC, 3‑phase |
| Rated Output Current | 7.2 A (Normal Duty) / 5.6 A (Heavy Duty) |
| Max Output Frequency | Up to 599 Hz |
| Switching Frequency | Adjustable 2–16 kHz |
| EMC Filter | Integrated EN/IEC 61800‑3 C2/C3 |
| Protection Rating | IP21 (Indoor, industrial) |
| Mounting | Wall mount |
| Communication | Modbus Serial, EtherNet/IP, Modbus TCP |
| Safety Function | Safe Torque Off (optional) |
| Discrete Speeds | Up to 16 preset speeds |
