Industrial‑Grade Drive for High‑Demand Motor Control

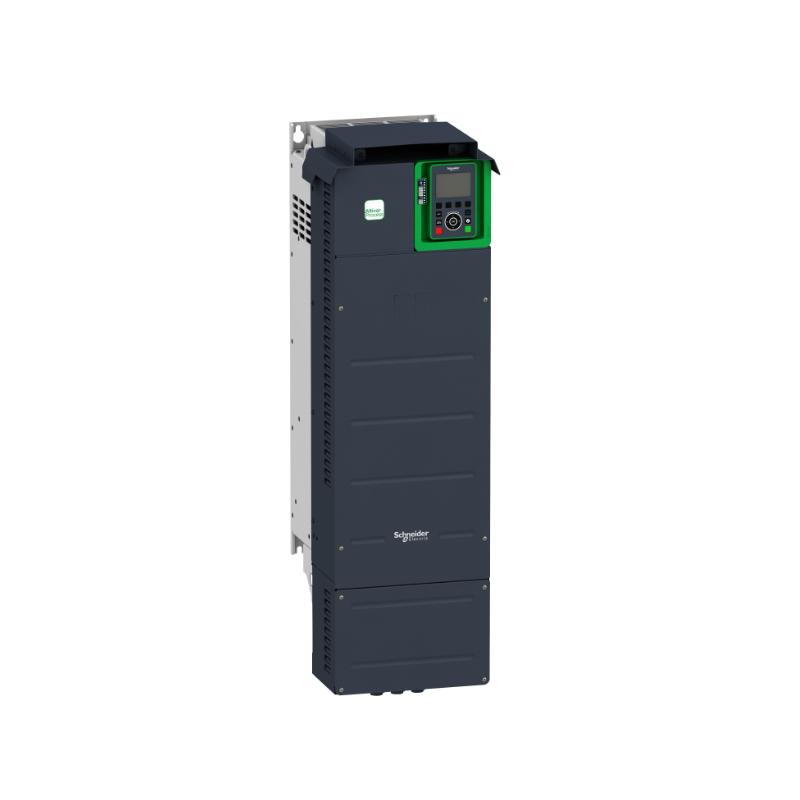

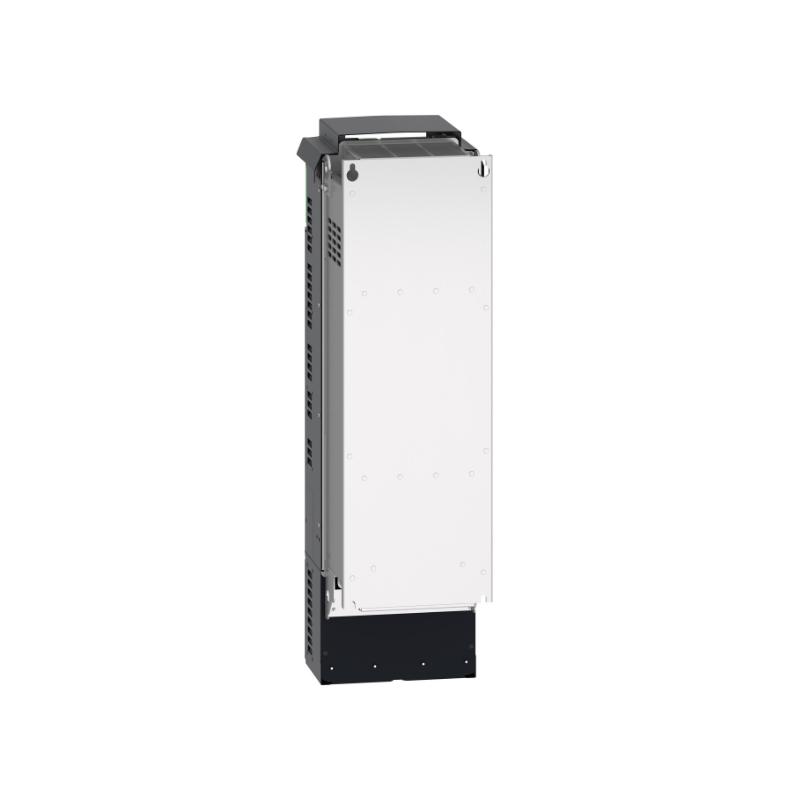

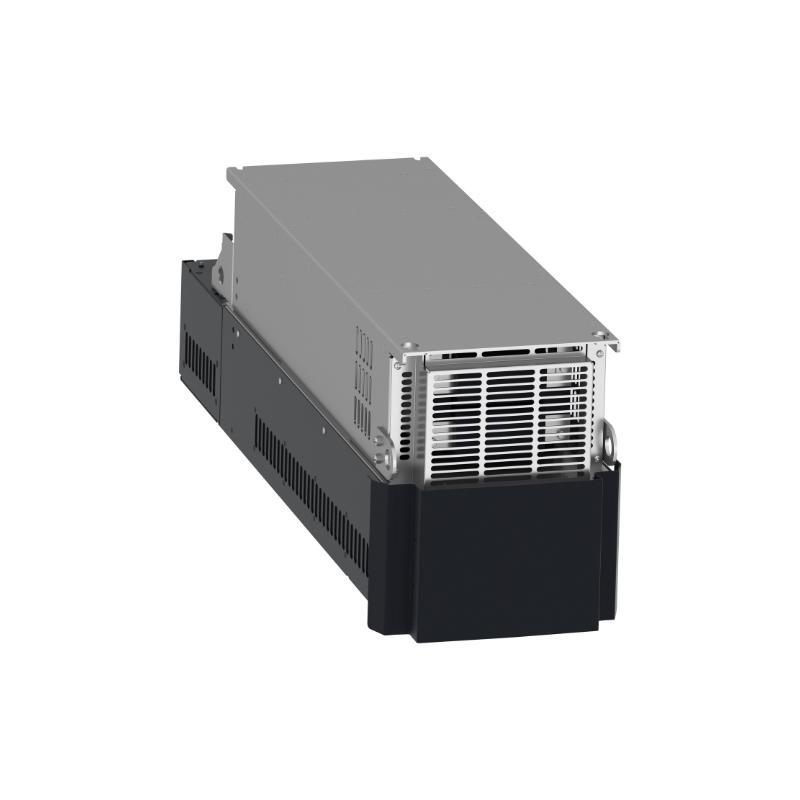

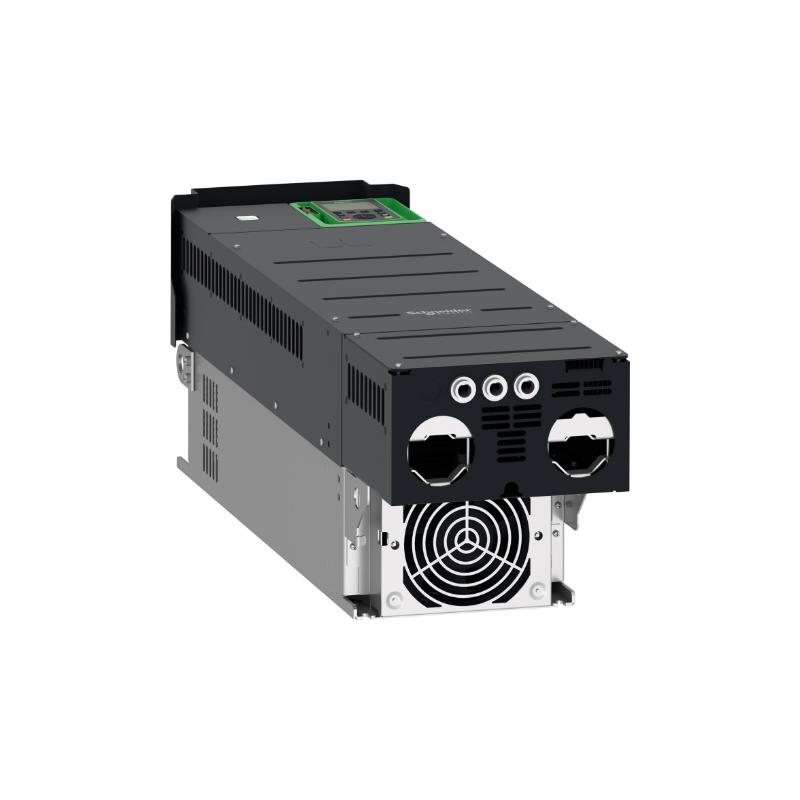

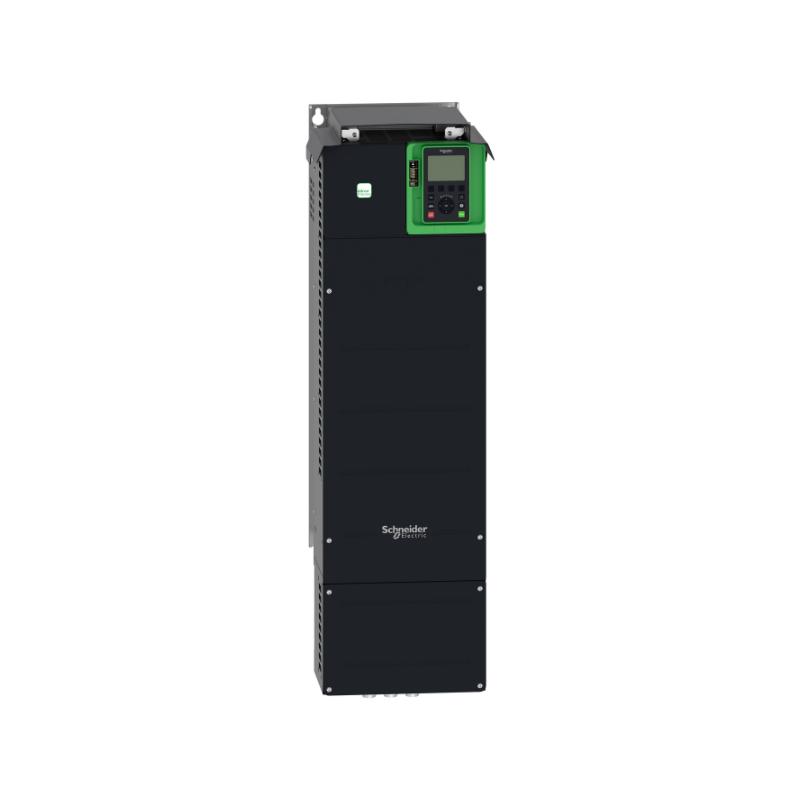

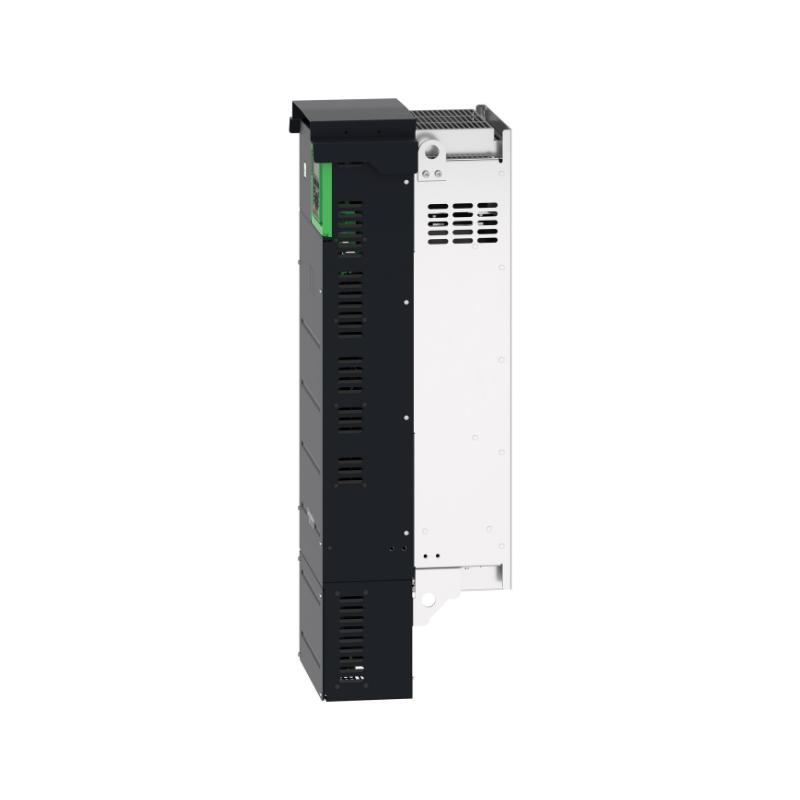

The Schneider ATV930D90N4 Variable Speed Drive is a robust and flexible AC drive from the Altivar Process ATV900 family, engineered to deliver precise motor control for demanding industrial applications. Designed for efficiency, reliability, and seamless integration, this drive supports both synchronous and asynchronous motors across a wide range of operating conditions. Its advanced control features, built‑in safety functions, and flexible communication options make it ideal for large‑scale automation systems and critical process environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | ATV930D90N4 |
| Product Type | Variable Speed Drive |
| Series | Altivar Process ATV900 |
| Motor Power | 90 kW |
| Rated Supply Voltage | 380–480 V AC, 3‑phase |
| Rated Output Current | Approx. 162 A |
| Line Current | Approx. 139 A |
| Max Output Frequency | 599 Hz |
| Switching Frequency | Adjustable for performance tuning |
| EMC Filter | Integrated (industrial compliance) |
| Protection Rating | IP21 (Indoor industrial) |
| Mounting | Vertical wall mount |
| Communication | Modbus Serial, EtherNet/IP, Modbus TCP, optional fieldbus |
| Safety Function | Safe Torque Off (STO) |
| Control Modes | Vector and scalar control, torque and speed optimization |
| Compatible Motors | Synchronous & asynchronous |
