Professional Drive Solution for Industrial Applications

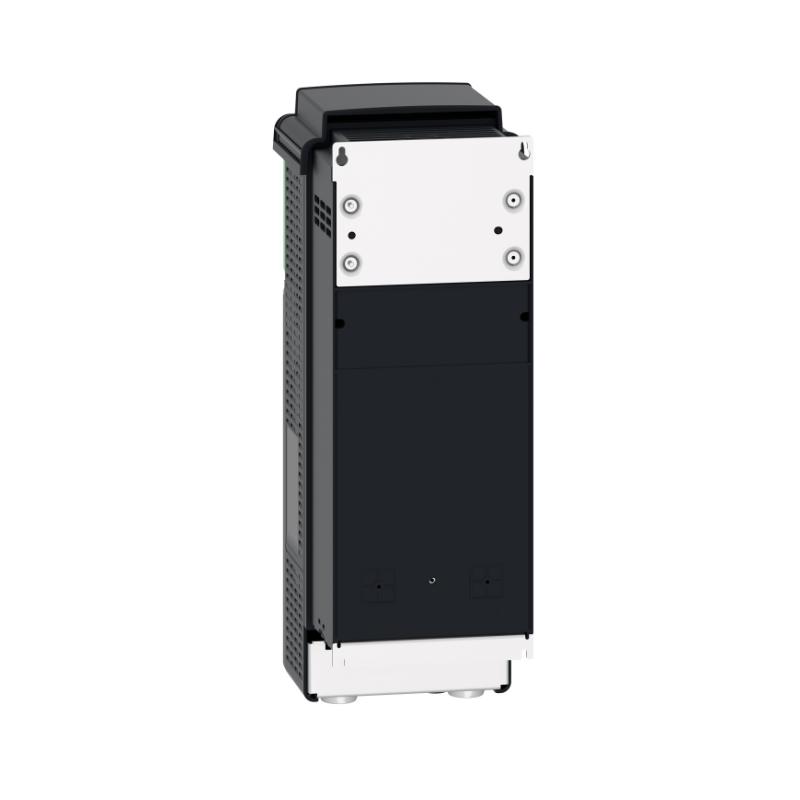

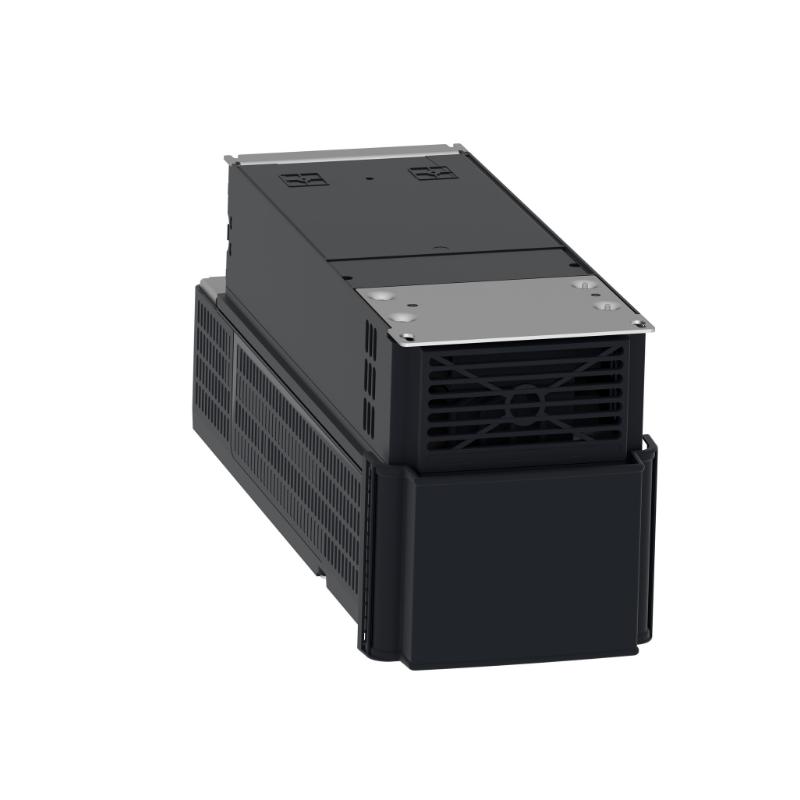

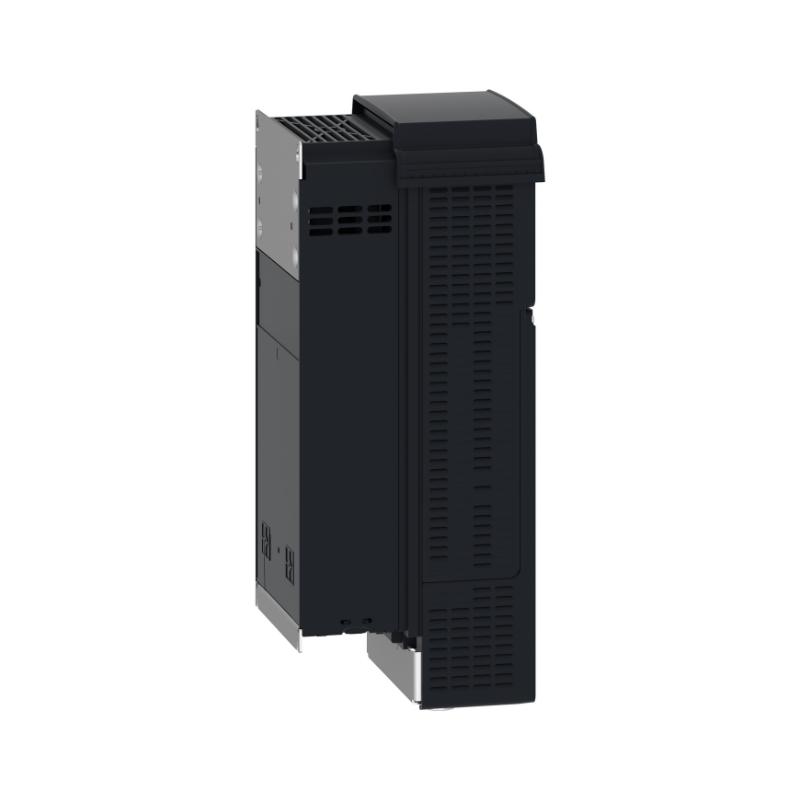

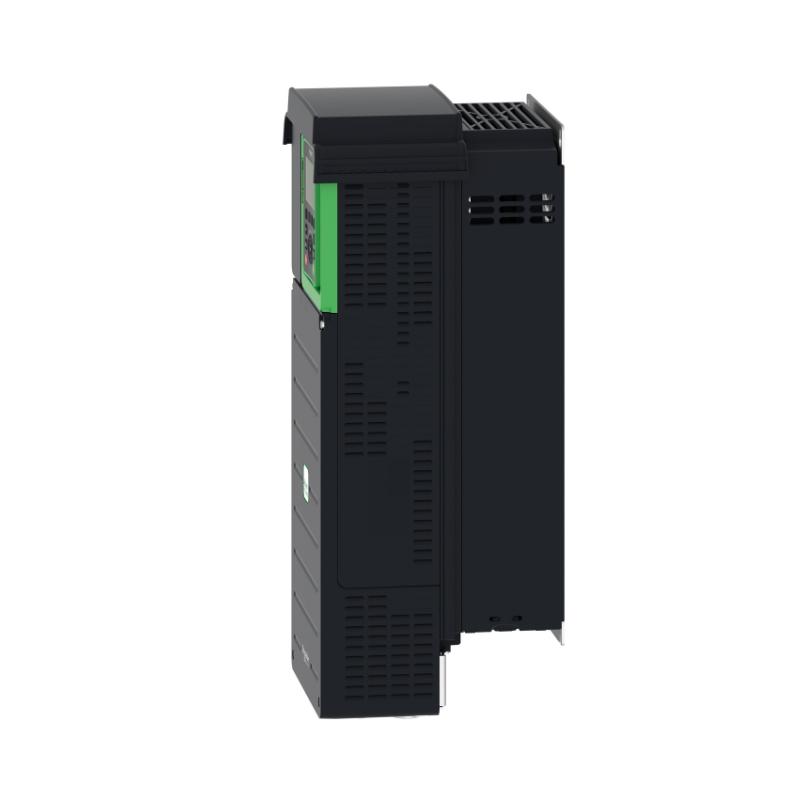

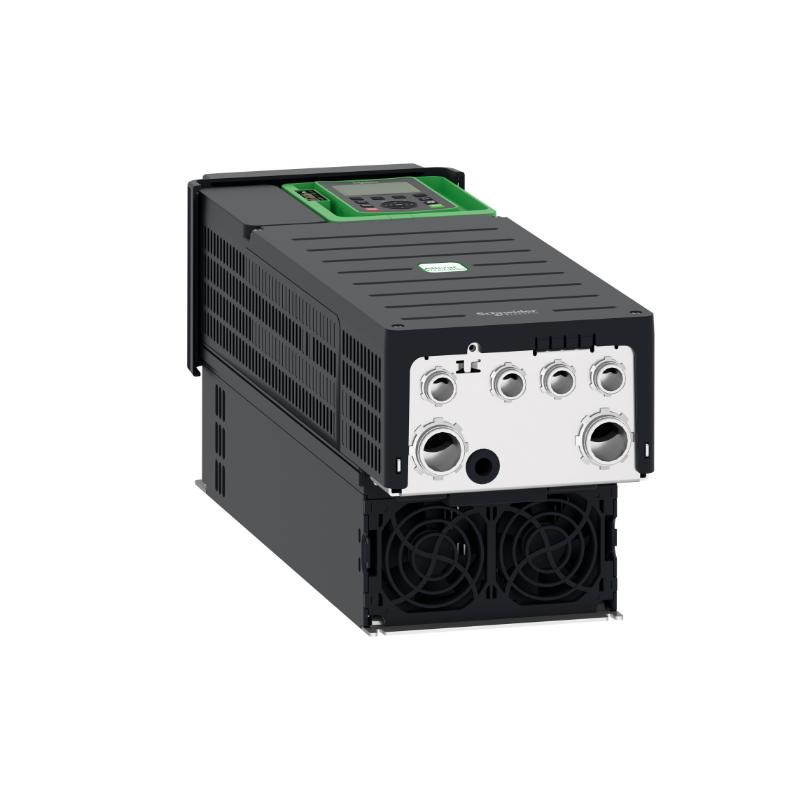

The Schneider ATV930D22N4 Variable Speed Drive is part of the Altivar Process ATV900 family, delivering precise motor control and energy-efficient operation for demanding industrial environments. Designed for both synchronous and asynchronous motors, this drive combines advanced functionality, flexible communication options, and robust protection features, making it ideal for process automation, energy-intensive applications, and integrated plant systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | ATV930D22N4 |
| Product Type | Variable Speed Drive |
| Series | Altivar Process ATV900 |
| Motor Power | 22 kW (Normal Duty) / 18.5 kW (Heavy Duty) |
| Rated Supply Voltage | 380–480 V AC, 3-phase |
| Rated Output Current | Up to 46.3 A |
| Line Current | Up to 39.6 A |
| Max Output Frequency | 599 Hz |
| Switching Frequency | Adjustable 2–16 kHz |
| EMC Filter | Integrated (EN/IEC 61800‑3 C2/C3) |
| Protection Rating | IP21 (Indoor, industrial) |
| Mounting | Wall mount |
| Communication | Modbus Serial, EtherNet/IP, Modbus TCP |
| Safety Function | Safe Torque Off (STO) |
| Discrete Speeds | 16 preset speeds |
| Control Modes | Vector control, optimized torque, variable & constant torque |
| Compatible Motors | Synchronous & asynchronous |
