Product Overview

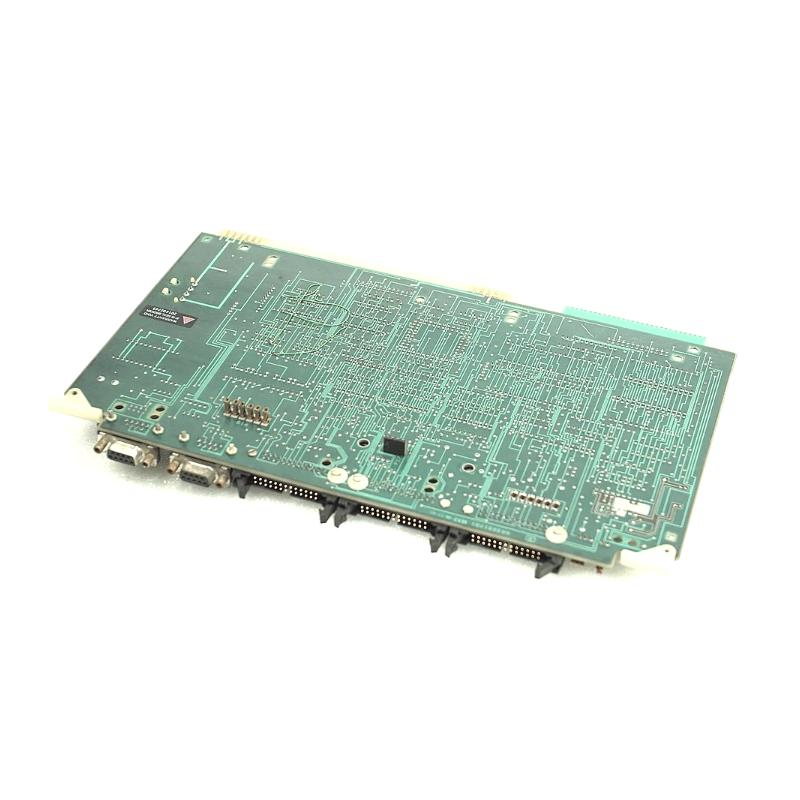

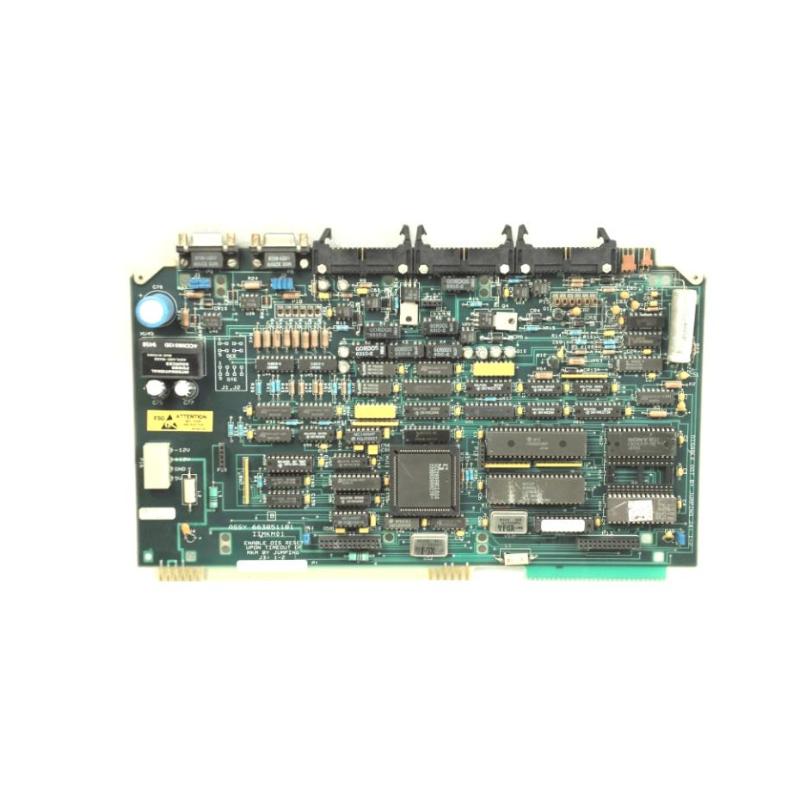

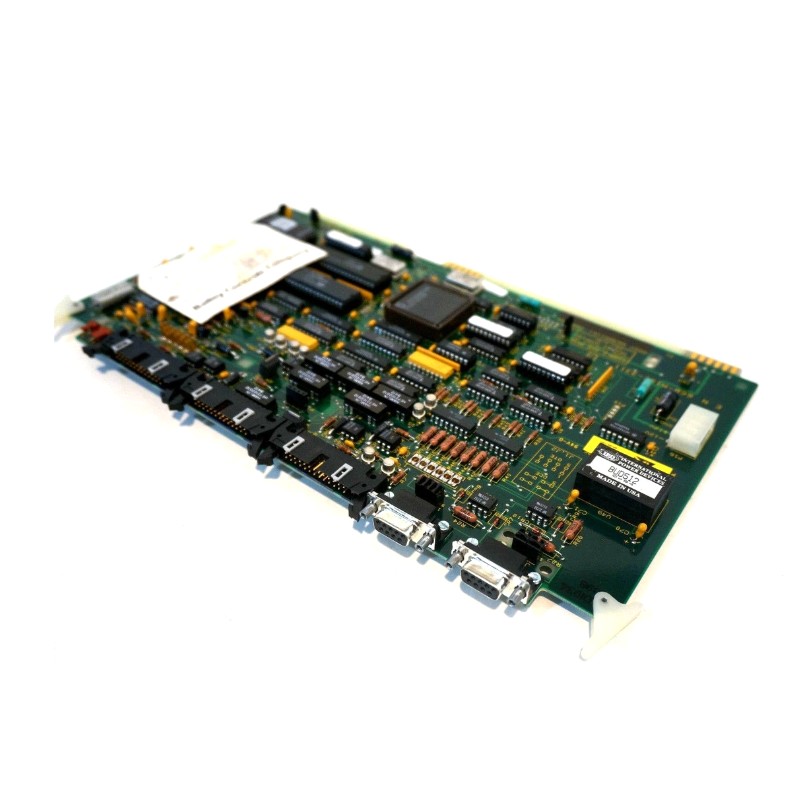

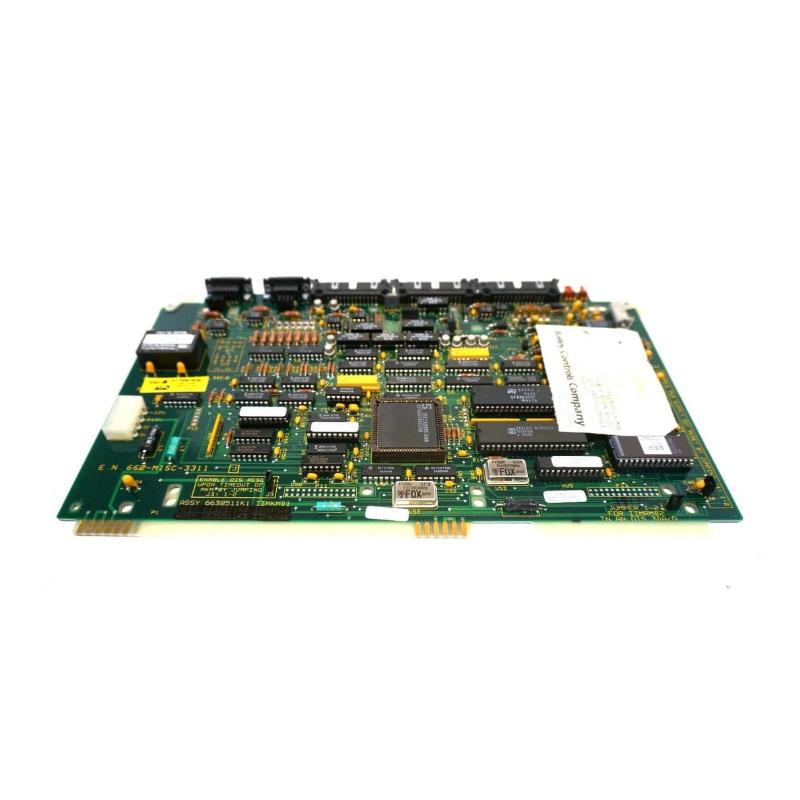

The ABB Bailey IIMKM01 6638511K1 Multibus Keyboard Module is a specialized operator interface module for Net 90 and Infi 90 distributed control systems. It provides a dedicated input mechanism for entering commands, programming instructions, or configuration data directly into the control system.
Designed for industrial environments, the IIMKM01 allows operators to interact with the control network safely and efficiently, supporting real-time system adjustments and diagnostics while maintaining robust performance under demanding conditions.
Technical Specifications
| Parameter | Specification |
|---|
| Module Type | Multibus Keyboard Module |
| Model Number | IIMKM01 6638511K1 |
| Input Method | Keypad / Function keys |
| Communication Interface | Multibus backplane connection |
| Compatible Systems | Net 90 / Infi 90 DCS |
| Response Time | Instantaneous for key presses |
| Mounting | Rack or panel-mounted module slot |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
Applications
The IIMKM01 module is used in industrial automation environments where direct operator input is required:
-
On-site programming and configuration of DCS systems
-
Manual entry of control parameters and setpoints
-
System diagnostics and troubleshooting
-
Real-time operator interventions during process operations
-
Training and simulation in control environments
-
Integration into Net 90 or Infi 90 operator stations
It enables precise and efficient human-machine interaction without compromising system integrity.
Advantages
-
Reliable operator interface for DCS programming and control
-
Instant response to key presses for efficient operations
-
Compact and modular design for easy rack integration
-
Compatible with Net 90 and Infi 90 distributed control systems
-
Supports safe, on-site adjustments and diagnostics
-
Reduces reliance on external input devices
-
Rugged construction suitable for industrial environments
The IIMKM01 enhances operator efficiency by providing a convenient, accessible, and dependable interface for system interaction.
Technical FAQs
1. What is the primary function of the IIMKM01?
It serves as a dedicated input interface for operator commands and system programming.
2. Which systems is it compatible with?
Net 90 and Infi 90 distributed control systems.
3. How does it connect to the system?
Via the Multibus backplane.
4. What type of input does it support?
Keypad and function key entry.
5. How is the module mounted?
It fits into standard module slots, either rack or panel-mounted.
6. Can it be used for real-time system adjustments?
Yes, it allows operators to input commands and setpoints directly.
7. What is the operating temperature range?
0°C to 55°C.
8. Is it suitable for industrial environments?
Yes, it is designed for rugged industrial use.
9. Does it support diagnostics?
Yes, operators can perform troubleshooting and monitoring functions.
10. How does it improve system operation?
By providing a reliable, fast, and accessible interface for operator control and system interaction.
