Product Overview

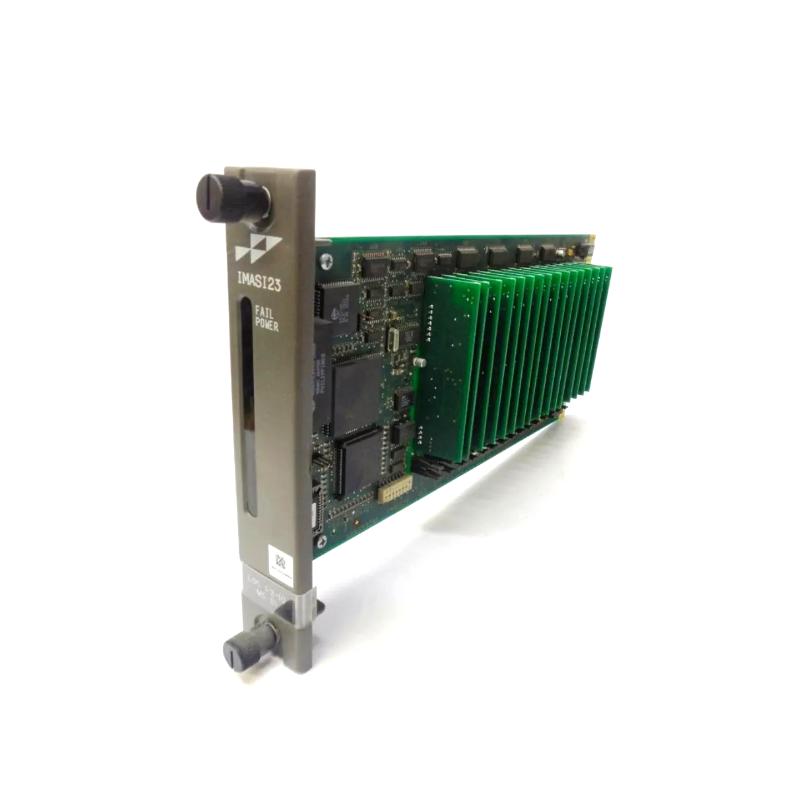

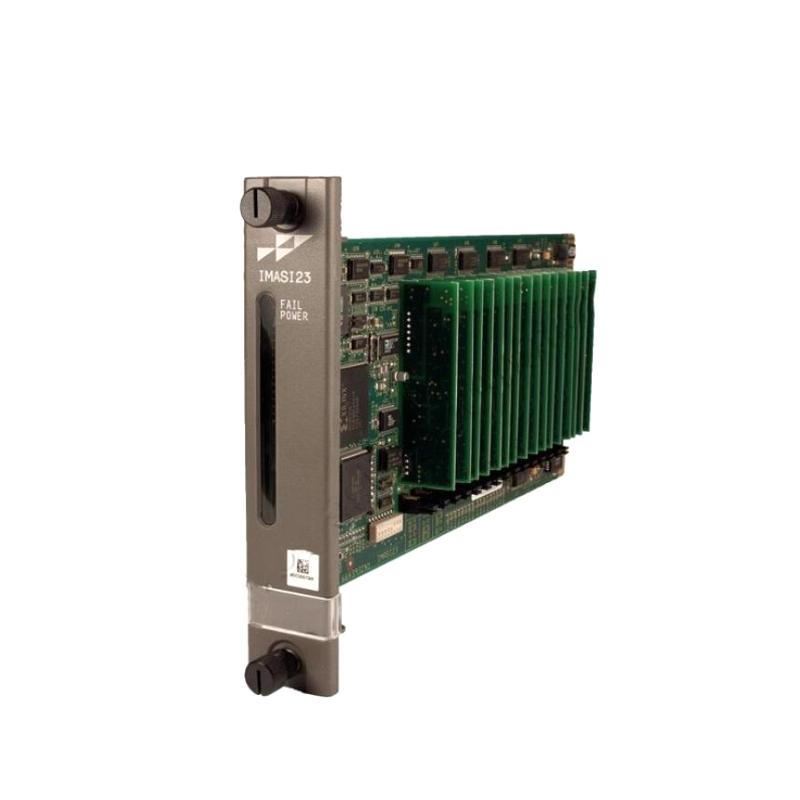

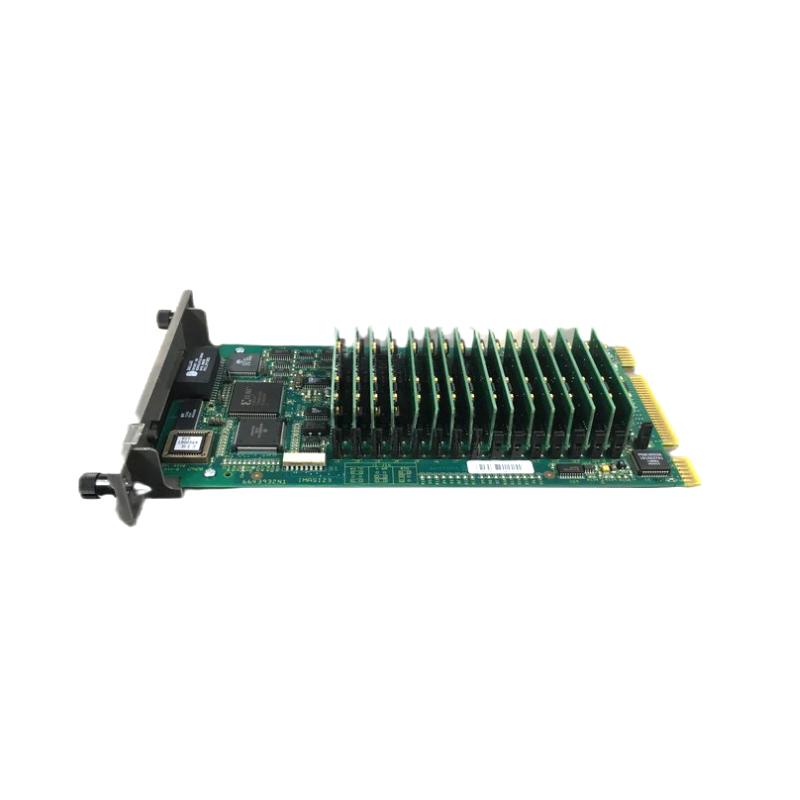

The ABB Bailey IMASI23 Analog Input Module is a precision signal interface designed for Net 90 and Infi 90 distributed control systems. It converts field-level analog signals from sensors such as temperature transmitters, pressure transducers, and flow meters into digital data that the control system can process.
Built for industrial reliability, the IMASI23 ensures accurate measurement, fast response, and consistent performance even in demanding process environments. Its modular design allows easy integration into distributed control architectures, enabling flexible and scalable automation solutions.
Technical Specifications
| Parameter | Specification |
|---|
| Module Type | Analog Input Module |
| Model Number | IMASI23 |
| Input Channels | 8 single-ended or 4 differential channels |
| Input Signal Types | 0–10 V, 4–20 mA, thermocouples, RTDs |
| Resolution | 16-bit analog-to-digital conversion |
| Sampling Rate | 10 ms per channel (typical) |
| Isolation | Optical isolation between input and system bus |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting | Rack-mounted / terminal slot |
Applications
The IMASI23 module is ideal for industrial automation systems that require accurate analog signal acquisition:
-
Temperature and pressure monitoring in chemical plants
-
Flow measurement in water and wastewater treatment facilities
-
Process variable monitoring in oil & gas operations
-
Automation of industrial manufacturing systems
-
Integration into distributed control system expansions
-
Remote analog signal collection for centralized control
It provides precise analog-to-digital conversion, enabling control systems to respond accurately to real-world process conditions.
Advantages
-
High-accuracy analog input measurement with 16-bit resolution
-
Supports multiple signal types including voltage, current, thermocouple, and RTD
-
Optical isolation ensures signal integrity and protection against electrical noise
-
Modular, rack-mounted design for easy system integration
-
Fast sampling rate for responsive control actions
-
Compatible with Net 90 and Infi 90 DCS platforms
-
Reduces wiring complexity and simplifies field device connections
The IMASI23 ensures reliable, high-precision analog data acquisition, which is critical for effective process control and automation.
Technical FAQs
1. How many analog channels does the IMASI23 support?
It supports 8 single-ended or 4 differential channels.
2. What types of signals can it read?
0–10 V, 4–20 mA, thermocouples, and RTDs.
3. What is the resolution of the module?
16-bit analog-to-digital conversion.
4. What is the typical sampling rate?
Approximately 10 milliseconds per channel.
5. Is the module isolated from the system bus?
Yes, optical isolation is provided.
6. How is the module mounted?
It mounts in standard terminal racks or module slots.
7. What is the operating temperature range?
0°C to 60°C.
8. Can it be used in harsh industrial environments?
Yes, it is designed for industrial reliability.
9. Which control systems is it compatible with?
Net 90 and Infi 90 distributed control systems.
10. What applications is it best suited for?
Temperature, pressure, and flow measurement, as well as general analog signal acquisition for process automation.
