Product Overview

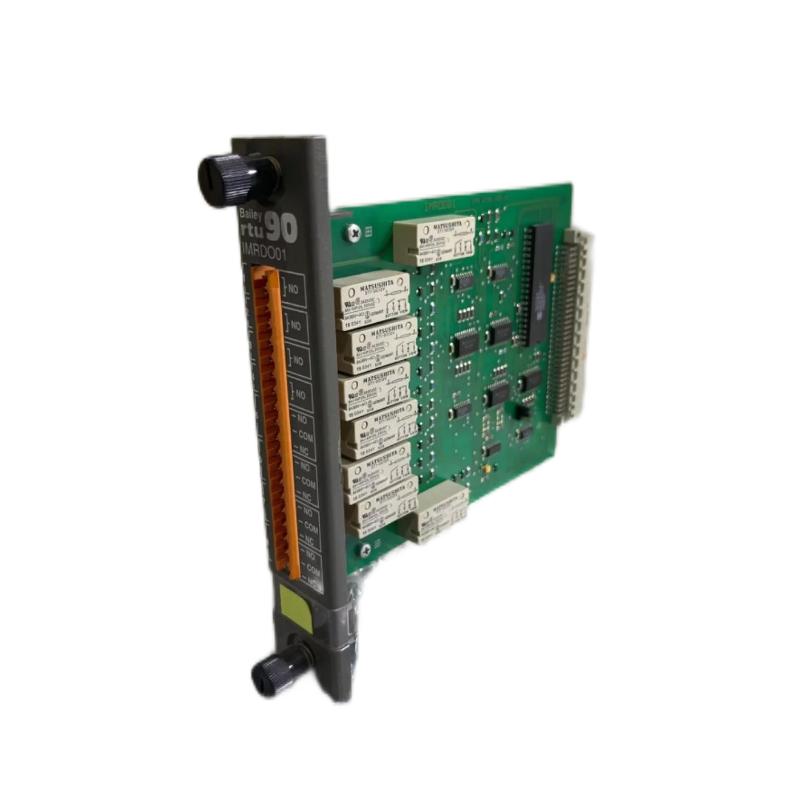

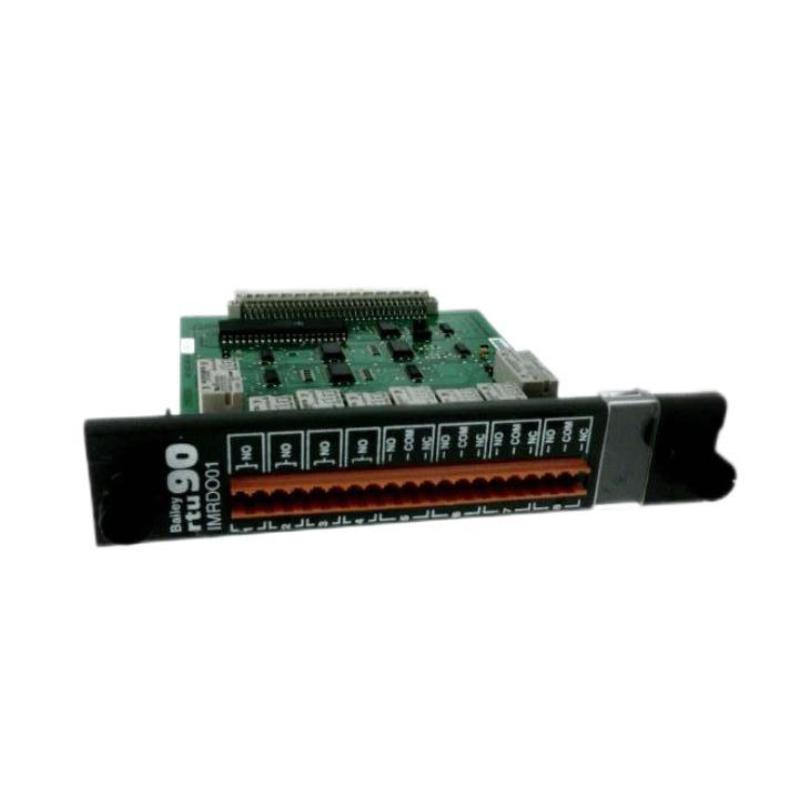

The ABB Bailey IMRDO01 Digital Output Module is a critical interface device within Net 90 and Infi 90 distributed control systems. Designed to convert digital control signals from the system into field-level actions, it enables the operation of actuators, alarms, relays, and other output devices with precision and reliability.
With industrial-grade construction, the IMRDO01 ensures consistent digital signal delivery even in harsh environments, making it an ideal component for process-critical applications where timing and accuracy are essential.
Technical Specifications
| Parameter | Specification |
|---|
| Module Type | Digital Output Module |
| Model Number | IMRDO01 |
| Number of Channels | 16 digital outputs |
| Output Type | Sourcing / Sink (configurable per system) |
| Load Capacity | 0.5 A per channel |
| Isolation | Optical isolation between logic and output circuits |
| Response Time | Typically < 5 ms |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting | Rack-mounted / Terminal module configuration |
Applications
The IMRDO01 module is used in diverse industrial automation environments requiring reliable digital output control:
-
Pump and motor actuation in water treatment plants
-
Valve control in chemical and petrochemical processes
-
Alarm and indicator signaling in power generation systems
-
Process interlocks and safety shutdowns
-
Distributed automation systems in manufacturing plants
-
Remote output expansion for DCS architectures
Its precision and speed make it ideal for time-sensitive control operations.
Advantages
-
High-speed and reliable digital output switching
-
Supports 16 configurable output channels for flexible control
-
Optical isolation for signal integrity and noise immunity
-
Compact rack-mounted design for efficient space utilization
-
Integrates seamlessly with Net 90 and Infi 90 systems
-
Reduces wiring complexity and simplifies maintenance
-
Suitable for harsh industrial environments with long-term durability
This module allows for efficient, reliable, and modular expansion of digital output capabilities within distributed control systems.
Technical FAQs
1. How many outputs does the IMRDO01 provide?
16 digital output channels.
2. What is the maximum current per channel?
0.5 A per output channel.
3. What type of outputs does it support?
Sourcing or sinking outputs depending on system configuration.
4. Is the module electrically isolated?
Yes, it uses optical isolation between logic and output circuits.
5. What is the response time of the outputs?
Typically less than 5 milliseconds.
6. How is it mounted?
Rack-mounted as part of the terminal module system.
7. Can it be used in high-temperature environments?
Yes, operational up to 60°C.
8. What types of devices can it control?
Alarms, relays, valves, motors, and other digital actuators.
9. Is it compatible with Net 90 and Infi 90 systems?
Yes, fully compatible.
10. How does it improve system reliability?
By providing accurate, fast, and optically isolated digital output signals.
